The utility model relates to a novel multilayer specification label, including base stock and label body, the upside of base stock is equipped with the recess that supplies the label body to place, the folding placing of label body is in the recess, the tank bottom fixed connection of one side of label body through first adhesion layer and recess, the downside of base stock is equipped with from type paper, the base stock with from type through the second adhesion layer connection between the paper, the upside of base stock is equipped with the inoxidizing coating that covers the recess setting, third adhesion layer and inoxidizing coating fixed connection are passed through in the upper end left side of base stock, the upper end right side of base stock passes through fourth adhesion layer and inoxidizing coating adhesion. The utility model has the advantages that: the folded label is placed in the groove, the protective layer can effectively protect the label, and when the label needs to be used, the label can be opened only by pulling the protective layer to separate the protective layer from the fourth adhesive layer on the base paper; the first adhesion layer can effectively fix the label body in the groove, so that the label body is not easy to lose.
Description
Technical Field
The utility model relates to a label technical field, in particular to novel multilayer specification label.
Background
Product information of many products on the market is usually printed on one label sticker, and then the label sticker is attached to the outer side of a product packaging box. However, when the information amount of the product is too much, one label sticker cannot completely record all product information, so that a multilayer instruction label needs to be used; the multi-layer specification label is made up by sticking one or several layers (several folds) of ordinary paper material with the same size and shape as label on the surface paper of finished label, i.e. the label portion is made up of multi-layer paper. The plain paper portion of the label is adhesively or otherwise bonded to the self-adhesive facestock to provide repeated peel and adhesion.
The existing multilayer specification label is not provided with a protection device, and when the label is stuck to the outer side of a product, the multilayer specification label is easily damaged in the processes of product transportation, transportation and use in the future, so that the label cannot be used.
SUMMERY OF THE UTILITY MODEL
To the deficiencies of the prior art, an object of the utility model is to provide a novel multilayer specification label to solve above-mentioned problem.
The technical scheme of the utility model is realized like this: the utility model provides a novel multilayer specification label, includes base stock and label body, the upside of base stock is equipped with the recess that supplies the label body to place, the folding place of label body is in the recess, the tank bottom fixed connection of one side of label body through first adhesion layer and recess, the downside of base stock is equipped with from type paper, the base stock with from being connected through the second adhesion layer between the type paper, the upside of base stock is equipped with the inoxidizing coating that covers the recess setting, the upper end left side of base stock is through third adhesion layer and inoxidizing coating fixed connection, the upper end right side of base stock is through fourth adhesion layer and inoxidizing coating adhesion.
By adopting the technical scheme, the folded label is placed in the groove, the protective layer can effectively protect the label, and when the label needs to be used, the label can be opened only by pulling the protective layer to separate the protective layer from the fourth adhesive layer on the base paper; the first adhesion layer can effectively fix the label body in the groove, so that the label body is not easy to lose.
The utility model discloses further set up to: and a convex block is convexly arranged on the edge of one side of the protective layer away from the third adhesion layer.
By adopting the technical scheme, the protective layer can be opened more conveniently and easily through the convex block.
The utility model discloses further set up to: the lug is arc-shaped and is integrally formed with the protective layer.
Through adopting above-mentioned technical scheme, make taking of lug hold convenience more, the effectual joint strength who improves lug and inoxidizing coating, increase of service life.
The utility model discloses further set up to: the size of the protective layer is the same as that of the base paper.
By adopting the technical scheme, the protective layer can effectively protect the base and the label, so that the base and the label are not easy to damage, and the service life is prolonged.
The utility model discloses further set up to: the groove depth of the groove is not less than the height of the folded tag body.
Through adopting above-mentioned technical scheme, make the label body can place completely in the recess, make the laminating of its inoxidizing coating inseparabler.
The utility model discloses further set up to: the protective layer is made of transparent plastic.
By adopting the technical scheme, the content on the specification label can be directly observed through the protective layer, and the use is more convenient.
Drawings
In order to more clearly illustrate the embodiments of the present invention or the technical solutions in the prior art, the drawings needed to be used in the description of the embodiments or the prior art will be briefly described below, it is obvious that the drawings in the following description are only some embodiments of the present invention, and for those skilled in the art, other drawings can be obtained according to these drawings without inventive exercise.
Fig. 1 is a schematic structural diagram of an embodiment of the present invention.

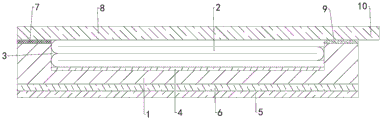

Fig. 2 is a sectional view of the structure of the embodiment of the present invention.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative efforts belong to the protection scope of the present invention.
As shown in fig. 1-2, the utility model discloses a novel multilayer specification label, including base stock 1 and label body 2, the upside of base stock 1 is equipped with the recess 3 that supplies label body 2 to place, the folding place in recess 3 of label body 2, the tank bottom fixed connection of first adhesion layer 4 and recess 3 is passed through to one side of label body 2, the downside of base stock 1 is equipped with from type paper 5, base stock 1 with from being connected through second adhesion layer 6 between the type paper 5, the upside of base stock 1 is equipped with the inoxidizing coating 8 that covers the setting of recess 3, the upper end left side of base stock 1 is through third adhesion layer 7 and inoxidizing coating 8 fixed connection, the upper end right side of base stock 1 is through fourth adhesion layer 9 and inoxidizing coating 8 adhesion.
By adopting the technical scheme, the folded label is placed in the groove, the protective layer can effectively protect the label, and when the label needs to be used, the label can be opened only by pulling the protective layer to separate the protective layer from the fourth adhesive layer on the base paper; the first adhesion layer can effectively fix the label body in the groove, so that the label body is not easy to lose.
In the embodiment of the present invention, a protruding block 10 is protruded from one side edge of the protective layer 8 away from the third adhesion layer 7.
By adopting the technical scheme, the protective layer can be opened more conveniently and easily through the convex block.
In the embodiment of the present invention, the protrusion 10 is formed in a circular arc shape and is integrally formed with the protection layer 8.
Through adopting above-mentioned technical scheme, make taking of lug hold convenience more, the effectual joint strength who improves lug and inoxidizing coating, increase of service life.
In the embodiment of the present invention, the size of the protective layer 8 is the same as the size of the base paper 1.
By adopting the technical scheme, the protective layer can effectively protect the base and the label, so that the base and the label are not easy to damage, and the service life is prolonged.
The embodiment of the utility model provides an in, the groove depth of recess 3 is not less than the height setting after 2 folding of label bodies.
Through adopting above-mentioned technical scheme, make the label body can place completely in the recess, make the laminating of its inoxidizing coating inseparabler.
In the embodiment of the present invention, the protective layer 8 is made of transparent plastic.
By adopting the technical scheme, the content on the specification label can be directly observed through the protective layer, and the use is more convenient.
The above description is only a preferred embodiment of the present invention, and should not be taken as limiting the invention, and any modifications, equivalent replacements, improvements, etc. made within the spirit and principle of the present invention should be included in the protection scope of the present invention.
Claims (6)
1. A novel multilayer specification label, including base stock (1) and label body (2), its characterized in that: the upside of base stock (1) is equipped with recess (3) that supply label body (2) to place, folding the placing in recess (3) of label body (2), the tank bottom fixed connection of one side of label body (2) through first adhesion layer (4) and recess (3), the downside of base stock (1) is equipped with from type paper (5), base stock (1) with from being connected through second adhesion layer (6) between type paper (5), the upside of base stock (1) is equipped with inoxidizing coating (8) that cover recess (3) set up, the upper end left side of base stock (1) is through third adhesion layer (7) and inoxidizing coating (8) fixed connection, the upper end right side of base stock (1) is through fourth adhesion layer (9) and inoxidizing coating (8) adhesion.
2. A novel multilayer instruction label according to claim 1, characterized in that: and a convex block (10) is convexly arranged on the edge of one side of the protective layer (8) far away from the third adhesion layer (7).
3. A novel multilayer instruction label according to claim 2, characterized in that: the convex block (10) is arc-shaped and is integrally formed with the protective layer (8).
4. A novel multilayer instruction label according to claim 1, characterized in that: the size of the protective layer (8) is the same as that of the base paper (1).
5. A novel multilayer instruction label according to claim 1, characterized in that: the depth of the groove (3) is not less than the height of the folded label body (2).
6. A novel multilayer instruction label according to claim 1, characterized in that: the protective layer (8) is made of transparent plastic.
