Abstract
本实用新型提供一种便携的数字媒体用展示装置，包括支撑杆，螺纹杆固定安装于所述支撑杆内壁的底部，所述螺纹块螺纹连接于螺纹杆的表面且位于支撑杆的内部，连接杆设置于螺纹块的表面且位于螺纹杆的外侧，支撑架固定安装于连接杆的一端，两个转动件固定安装于所述支撑架内壁的两侧，展示装置设置于两个转动件之间。本实用新型提供的便携的数字媒体用展示装置具有带动螺纹杆和螺纹块升降可以方便带动展示装置的高度，可以适应各种环境的使用，使用限位组件和固定组件能够对连接杆进行固定，可以方便操作者对展示装置进行拆卸和安装，可以方便操作者的使用，使用支撑架可以方便调节展示装置的角度进行调节，能够适应各种角度的使用。
The utility model provides a portable display device for digital media, comprising a support rod, a threaded rod is fixedly installed on the bottom of the inner wall of the support rod, the threaded block is threadedly connected to the surface of the threaded rod and is located inside the support rod, and is connected to the bottom of the inner wall of the support rod. The rod is arranged on the surface of the threaded block and is located on the outer side of the threaded rod, the support frame is fixedly installed on one end of the connecting rod, the two rotating parts are fixedly installed on both sides of the inner wall of the support frame, and the display device is arranged between the two rotating parts . The portable display device for digital media provided by the utility model has the height of driving the threaded rod and the threaded block to lift and lower and can easily drive the display device, and can adapt to the use of various environments. The disassembly and installation of the display device can be facilitated by the operator, the use of the operator can be facilitated, and the angle of the display device can be easily adjusted by using the support frame, which can adapt to the use of various angles.
Description
Technical Field
The utility model relates to a digital media field especially relates to a portable display device for digital media.
Background
Digital media belongs to the category of engineering subjects, and refers to information carriers for recording, processing, transmitting, and acquiring processes in the form of binary numbers, and these carriers include digital sensory media such as characters, graphics, images, sounds, video images, and animations, and presentation media representing these sensory media, which are collectively called logical media, and physical media for storing, transmitting, and displaying the logical media.
But place digital media display device's support frame can conveniently place at current digital media display device and lead to when accomodating causing the occupation of land space big, cause the waste, nevertheless at placing and carrying inconvenient to digital media display device.
Therefore, there is a need to provide a portable digital media display device that solves the above-mentioned problems.
SUMMERY OF THE UTILITY MODEL
The utility model provides a portable display device for digital media has solved and can conveniently place but cause the big problem in occupation of land space when placing digital media display device's support frame can lead to accomodating at current digital media display device.
In order to solve the technical problem, the utility model provides a portable display device for digital media, a serial communication port, include: a support bar;
the threaded rod is fixedly arranged at the bottom of the inner wall of the supporting rod;
the thread block is in threaded connection with the surface of the threaded rod and is positioned inside the supporting rod;
the connecting rod is arranged on the surface of the thread block and positioned on the outer side of the threaded rod;
the support frame is fixedly arranged at one end of the connecting rod and is positioned above the supporting rod;
the two rotating parts are fixedly arranged on two sides of the inner wall of the supporting frame;
the display device is arranged between the two rotating pieces and is located inside the supporting frame.
Preferably, the both sides of screw thread piece all are provided with spacing subassembly, spacing subassembly includes the axis of rotation, one side of axis of rotation is rotated and is connected with the movable rod, the one end fixedly connected with arc fixed block of movable rod, the inside of arc fixed block is provided with spacing bolt, the inside of connecting rod seted up with the spacing groove of spacing bolt looks adaptation.
Preferably, one side of arc fixed block articulates through the hinge has the arc apron, the arc fixed block with one side of arc apron with the equal fixedly connected with fixed plate in one side of arc apron, two the inside of fixed plate all is provided with the gim peg.
Preferably, both sides on the surface of the connecting rod are provided with fixing assemblies, each fixing assembly comprises a sliding groove, each sliding groove is formed in the surface of the connecting rod, and a sliding block is connected to the inside of each sliding groove in a sliding mode.
The connecting rod can be fixed by using the limiting assembly and the fixing assembly, so that an operator can conveniently detach and install the display device, and the use of the operator can be facilitated.
Preferably, one side of the sliding block is rotatably connected with a moving rod through a rotating shaft, a fixing bolt is arranged in the moving rod, and a fixing groove matched with the fixing bolt is formed in one side of the surface of the limiting bolt.
Preferably, one end of the surface of the threaded rod is sleeved with a first bevel gear, one side of the first bevel gear is meshed with a second bevel gear, one side of the second bevel gear is fixedly connected with a rotating rod, and one end of the rotating rod is fixedly provided with the handle.
The first bevel gear and the second bevel gear are matched to drive the threaded rod and the threaded block to ascend and descend, so that the height of the display device can be conveniently driven, and the display device can adapt to various environments.
Preferably, the bottoms of the two sides of the surface of the supporting rod are fixedly provided with bases, one side of each base is provided with a supporting plate, and the front surface of each supporting rod is provided with a movable door.
Compared with the prior art, the utility model provides a portable display device for digital media has following beneficial effect:
the utility model provides a portable display device for digital media uses first bevel gear and second bevel gear cooperation to drive threaded rod and the height that the screw thread piece goes up and down can conveniently drive display device, can adapt to the use of various environment, uses spacing subassembly and fixed subassembly can be with the height that can conveniently drive display device
Drawings

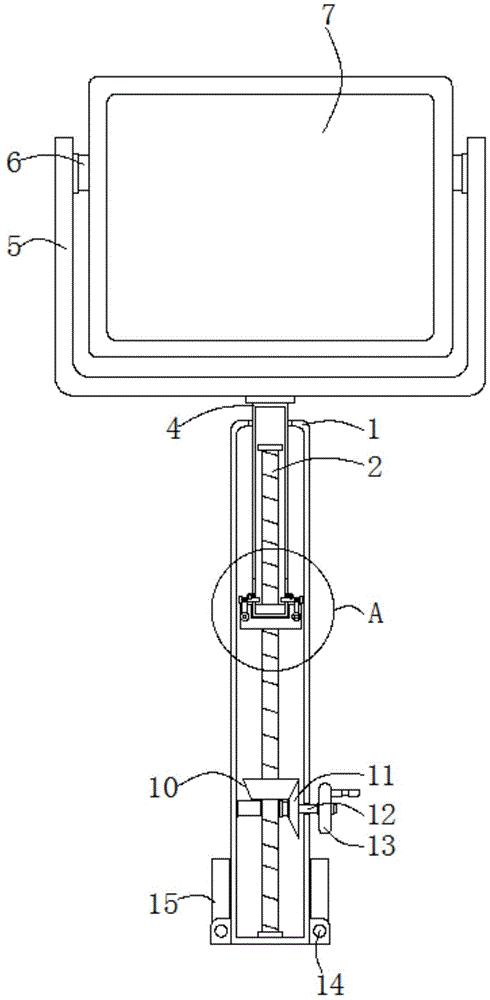

Fig. 1 is a schematic structural diagram of a preferred embodiment of a portable display device for digital media according to the present invention;
FIG. 2 is an enlarged view of portion A of FIG. 1;
FIG. 3 is an enlarged view of the portion B shown in FIG. 2;
fig. 4 is a schematic structural diagram of the portable digital media display device shown in fig. 1.
Reference numbers in the figures: 1. the bracing piece, 2, the threaded rod, 3, the screw thread piece, 4, the connecting rod, 5, the support frame, 6, rotate the piece, 7, display device, 8, spacing subassembly, 81, the axis of rotation, 82, the movable rod, 83, the arc fixed block, 84, spacing bolt, 85, the spacing groove, 86, the arc apron, 87, the fixed plate, 88, the bayonet catch, 9, fixed subassembly, 91, the spout, 92, the slider, 93, the movable rod, 94, the fixing bolt, 95, the fixed slot, 10, first bevel gear, 11, the second bevel gear, 12, the dwang, 13, the handle, 14, the base, 15, the backup pad, 16, the floating gate.
Detailed Description
The present invention will be further described with reference to the accompanying drawings and embodiments.
Please refer to fig. 1, fig. 2, fig. 3 and fig. 4 in combination, wherein fig. 1 is a schematic structural diagram of a preferred embodiment of a portable display device for digital media according to the present invention; FIG. 2 is an enlarged view of portion A of FIG. 1; FIG. 3 is an enlarged view of the portion B shown in FIG. 2; fig. 4 is a schematic structural diagram of the portable digital media display device shown in fig. 1. A portable presentation device for digital media, comprising: a support rod 1;
the threaded rod 2 is fixedly arranged at the bottom of the inner wall of the supporting rod 1;
the thread block 3 is connected to the surface of the threaded rod 2 in a threaded mode and is positioned inside the supporting rod 1;
a groove matched with the connecting rod 4 is formed in the thread block 3.
The connecting rod 4 is arranged on the surface of the thread block 3 and is positioned outside the threaded rod 2;
the support frame 5 is fixedly arranged at one end of the connecting rod 4 and is positioned above the support rod 1;
the two rotating pieces 6 are fixedly arranged on two sides of the inner wall of the supporting frame 5;
and the display device 7 is arranged between the two rotating pieces 6 and is positioned in the supporting frame 5.
Both sides of screw thread piece 3 all are provided with spacing subassembly 8, spacing subassembly 8 includes axis of rotation 81, one side of axis of rotation 81 is rotated and is connected with movable rod 82, the one end fixedly connected with arc fixed block 83 of movable rod 82, the inside of arc fixed block 83 is provided with spacing bolt 84, the inside of connecting rod 4 seted up with the spacing groove 85 of spacing bolt 84 looks adaptation.
One side of arc fixed block 83 is articulated through the hinge has arc apron 86, arc fixed block 83 with one side of arc apron 86 with the equal fixedly connected with fixed plate 87 in one side of arc apron 86, two the inside of fixed plate 87 all is provided with the gim peg 88.
Both sides of the top of the front and the back of the threaded block 3 are provided with rotating shafts 81, one side of each rotating shaft 81 is rotatably connected with a movable rod 82, two of the four movable rods 82 form a group, and an arc-shaped fixed block 83 is fixedly connected between the two movable rods 782.
Both sides on the surface of the connecting rod 4 are provided with fixing components 9, each fixing component 9 comprises a sliding groove 91, each sliding groove 91 is arranged on the surface of the connecting rod 4, and a sliding block 92 is slidably connected inside each sliding groove 91.
The sliding grooves 91 are formed in the opposite sides of the two sides of the surface of the connecting rod 4, the two sides of each sliding groove 91 are in a group, the sliding blocks 92 are connected to the four sliding grooves 91 in a sliding mode, the rotating shaft is arranged on one side of each sliding block 92, and the moving rod 93 is connected to one side of each rotating shaft in a rotating mode.
One side of the sliding block 92 is rotatably connected with a moving rod 93 through a rotating shaft, a fixing bolt 94 is arranged inside the moving rod 93, and a fixing groove 95 matched with the fixing bolt 94 is formed in one side of the surface of the limiting bolt 84.
One pot head on threaded rod 2 surface is equipped with first bevel gear 10, one side meshing second bevel gear 11 of first bevel gear 10, one side fixedly connected with dwang 12 of second bevel gear 11, the one end fixed mounting handle 13 of dwang 12.
A fixed rod is fixedly connected to one side of the second bevel gear 11, and one end of the threaded rod 2 penetrates through one side of the fixed rod and extends to the other side of the fixed rod.
The utility model discloses a bracing piece, including bracing piece 1, the equal fixed mounting in both sides bottom on bracing piece 1 surface has base 14, two one side of base 14 all is provided with backup pad 15, floating gate 16 has been seted up in the front of bracing piece 1.
The utility model provides a portable display device for digital media's theory of operation as follows:
during operation, the operator will have support frame 5 and connecting rod 4 display device 7 at first to place the inside of bracing piece 1, make connecting rod 4 coincide with the screw block 3 on the 2 surfaces of bracing piece 1 internal thread pole, after connecting rod 4 and screw block 3 coincide, the operator places the surface of the arc fixed block 83 of movable rod 82 one end with spacing bolt 84, rethread articulated drive arc apron 86 and spacing bolt 84 surface one side coincidence, after arc fixed block 83 and arc apron 86 contact, be connected arc fixed block 83 and arc apron 86 one side fixedly connected with fixed plate 87 through the gim peg 88, make spacing bolt 84 fix between arc fixed block 83 and arc apron 86, rethread removes movable rod 82 and drives spacing bolt 84 and the inside spacing groove 85 fixed connection of connecting rod 4.
After the limiting bolt 84 coincides with the limiting groove 85 inside the connecting rod 4, the moving rod 93 drives the sliding block 92 to slide inside the sliding groove 91 on the surface of the connecting rod 4, and after the sliding block 92 moves to the bottom of the sliding groove 91, the fixing bolt 94 is moved to coincide and connect with the limiting groove 85 inside the limiting bolt 84.
After connecting rod 4 is fixed with the inside screw block 3 of bracing piece 1, rethread rotates the handle 13 of 1 surperficial bottom one side of bracing piece, drive dwang 12 of handle 13 one side when handle 13 rotates and rotate, drive second bevel gear 11 when dwang 12 rotates and rotate, drive first bevel gear 10 when second bevel gear 11 rotates and rotate, drive threaded rod 2 when first bevel gear 10 rotates and rotate, drive screw block 3 when threaded rod 2 rotates and at the surperficial rebound of threaded rod 2, promote connecting rod 4 to move upwards when screw block 3 moves, drive support frame 5 and display device 7 to move upwards when connecting rod 4 moves upwards, after display device 7 moves to the position, be in bracing piece 1 surperficial bottom both sides backup pad 15 with ground contact can.
Compared with the prior art, the utility model provides a portable display device for digital media has following beneficial effect:
use first bevel gear 10 and second bevel gear 11 cooperation area to drive threaded rod 2 and the lifting of screw block 3 can conveniently drive display device 7's height, can adapt to the use of various environment, use spacing subassembly 8 and fixed subassembly 9 can be fixed connecting rod 4, can make things convenient for the operator to dismantle and install display device 7, can make things convenient for operator's use, use support frame 5 can conveniently adjust display device 7's angle and adjust, can adapt to the use of various angles.
The above only is the embodiment of the present invention, not limiting the scope of the present invention, all the equivalent structures or equivalent processes of the present invention are used in the specification and the attached drawings, or directly or indirectly applied to other related technical fields, and the same principle is included in the protection scope of the present invention.
Claims (7)
1. A portable presentation device for digital media, comprising: a support bar;
the threaded rod is fixedly arranged at the bottom of the inner wall of the supporting rod;
the thread block is in threaded connection with the surface of the threaded rod and is positioned inside the supporting rod;
the connecting rod is arranged on the surface of the thread block and positioned on the outer side of the threaded rod;
the support frame is fixedly arranged at one end of the connecting rod and is positioned above the supporting rod;
the two rotating parts are fixedly arranged on two sides of the inner wall of the supporting frame;
the display device is arranged between the two rotating pieces and is located inside the supporting frame.
2. The portable digital media display device of claim 1, wherein a limiting component is disposed on each of two sides of the thread block, the limiting component comprises a rotating shaft, a movable rod is rotatably connected to one side of the rotating shaft, an arc-shaped fixed block is fixedly connected to one end of the movable rod, a limiting bolt is disposed inside the arc-shaped fixed block, and a limiting groove adapted to the limiting bolt is disposed inside the connecting rod.
3. The portable digital media display device of claim 2, wherein an arc-shaped cover plate is hinged to one side of the arc-shaped fixing block through a hinge, fixing plates are fixedly connected to one sides of the arc-shaped fixing block and the arc-shaped cover plate and one side of the arc-shaped cover plate, and a clamping bolt is arranged inside each of the two fixing plates.
4. The portable digital media presentation device of claim 2, wherein a securing assembly is disposed on each side of the surface of the connecting rod, the securing assembly comprises a sliding slot, the sliding slot is disposed on the surface of the connecting rod, and a sliding block is slidably connected to the inside of the sliding slot.
5. The portable digital media display device of claim 4, wherein a moving rod is rotatably connected to one side of the sliding block through a rotating shaft, a fixing bolt is disposed inside the moving rod, and a fixing groove adapted to the fixing bolt is disposed on one side of the surface of the limiting bolt.
6. The portable digital media display device as claimed in claim 1, wherein a first bevel gear is sleeved on one end of the surface of the threaded rod, one side of the first bevel gear is engaged with a second bevel gear, a rotating rod is fixedly connected to one side of the second bevel gear, and a handle is fixedly installed at one end of the rotating rod.
7. The portable digital media display device of claim 1, wherein bases are fixedly installed at bottoms of two sides of the surface of the support rod, a support plate is installed at one side of each of the two bases, and a movable door is opened at the front of the support rod.
