Abstract
The utility model discloses a CPP cable is around band one-step method production facility, concretely relates to cable is around chartered plane technical field, including diaphragm, first rope sheave, second rope sheave and motor, the rope groove has all been seted up to first rope sheave and second rope sheave inside, be equipped with the box between first rope sheave and the second rope sheave, the box is inside to be fixed and to be equipped with two parcel mechanisms; the wrapping mechanism comprises two plate bodies, and a rotating plate is arranged between the two plate bodies. The utility model discloses a pass first rope sheave, box and second rope sheave with the cable of arbitrary size, two grooving lead to the cable tentatively, the spring supports and moves the commentaries on classics board motion, the commentaries on classics board drives spacing round motion, spacing round under the pressure of spring with cable surface contact, the cable is firmly spacing, will pass the framework around the package head expansion end and then be connected with cable surface fixed, stability when having improved the cable motion, can be applicable to the cable of arbitrary size, the suitability is strong and the parcel is effectual.
Description
Technical Field
The embodiment of the utility model provides a cable is around package technical field, concretely relates to CPP cable is around band one-step method production facility.
Background
The wrapping principle is as follows: and adopting concentric wrapping, wherein each wrapping head is wrapped by one layer. The whole wrapping process can be divided into rotary motion and linear motion. The wrapping tape reel rotates around the core wire along with the bag wrapping machine head, the wrapping tape is wound on the core wire, and the wrapping tape reel is driven to rotate at the moment. The core wire makes linear motion due to the traction force, so that the lapping tape is spirally wound on the core wire to complete the lapping process. Each tape reel is provided with a tape tension regulator which keeps the tension of the tape constant in the wrapping process of the whole tape, and the wrapping head is also provided with an automatic stopping device which can prevent the bag from leaking.
The prior art has the following defects: because the radius of cable is different, lead to all need to carry out position adjustment to the package head when wrapping to the cable at every turn to current cable band production facility is not spacing and direction to the cable, leads to rocking direct influence of cable to wrap the effect.
Therefore, the invention needs to invent one-step production equipment for the CPP cable wrapping tape.
SUMMERY OF THE UTILITY MODEL
Therefore, the embodiment of the utility model provides a one-step production device for a CPP cable wrapping tape, the cables with any size pass through the first rope pulley, the box body and the second rope pulley, the two rope grooves are used for conducting preliminary guiding on the cables, then the spring pushes the rotating plate to move, the rotating plate drives the limiting wheel to move, the limiting wheel is contacted with the outer surface of the cable under the pressure of the spring, the cable is firmly limited, then the movable end of the wrapping head penetrates through the frame body and is fixedly connected with the outer surface of the cable, the stability of the cable during movement is improved, can be suitable for cables with any size, has strong applicability and good wrapping effect, solves the problems that the position of a wrapping head needs to be adjusted when the cable is wrapped every time due to different radiuses of the cables in the prior art, and current cable band production facility does not carry on spacingly and direction to the cable, leads to rocking the problem of direct influence around the effect of package of cable.
In order to achieve the above object, the embodiment of the present invention provides the following technical solutions: a CPP cable wrapping belt one-step production device comprises a transverse plate, a first rope pulley, a second rope pulley and a motor, wherein the first rope pulley and the second rope pulley are arranged on the front side of the transverse plate, the rear sides of the first rope pulley and the second rope pulley extend into the inner wall of the transverse plate and are in contact with the inner wall of the transverse plate, the first rope pulley and the second rope pulley are movably connected with the transverse plate through a first rotating shaft, the motor is arranged on the rear side of the transverse plate, an output shaft of the motor is fixedly connected with the first rotating shaft inside the first rope pulley, rope grooves are formed inside the first rope pulley and the second rope pulley, a box body is arranged between the first side rope pulley and the second rope pulley, the rear end of the box body extends into the inner wall of the transverse plate and is fixedly connected with the inner wall of the transverse plate;
the wrapping mechanism comprises two plate bodies, one side wall of each of the two plate bodies is fixedly connected with one side wall of the inner part of the box body, a rotating plate is arranged between the two plate bodies, the rotating plate is movably connected with the two plate bodies through a second rotating shaft, a wheel groove is arranged in the rotating plate, the wheel groove is internally provided with a limiting wheel which passes through the rotating plate and extends to the outer side of the rotating plate, the limiting wheel is movably connected with the rotating plate through a third rotating shaft, the top of the rotating plate is fixedly provided with a frame body, the top of the rotating plate is provided with a pressing plate, the bottom of the pressing plate is fixedly connected with the top of the frame body and the top of the plate body, a wrapping head is arranged between the pressing plate and the rotating plate, the wrapping head is arranged between the plate body and the frame body, the wrapping head is movably connected with the rotating plate and the pressing plate through a fourth rotating shaft, the movable end of the wrapping head penetrates through the frame body, and a spring is fixedly arranged between the rear side of the rotating plate and one side wall of the inner portion of the box body.
Furthermore, two guide wheels are arranged inside the frame body, the two guide wheels are respectively arranged on the front side and the rear side of the movable end of the wrapping head, and the guide wheels are movably connected with the frame body through a fifth rotating shaft.
Furthermore, a bottom plate is fixedly arranged on the rear side of the transverse plate, the bottom of the bottom plate and the bottom of the transverse plate are located on the same horizontal plane, and the motor is fixedly arranged at the top of the bottom plate.
Furthermore, the diaphragm bottom is fixed and is equipped with two supporting legs, two the supporting leg top all with bottom plate bottom fixed connection.
Furthermore, openings are formed in two side walls of the box body, and the rotating plates are arranged on the front side and the rear side of the openings respectively.
Furthermore, the plate body, the rotating plate, the limiting wheel, the frame body, the pressing plate, the spring and the guide wheel are all symmetrical about the vertical center line of the box body.
Furthermore, the top of the plate body close to the top of the inner cavity of the transverse plate and the top of the frame body are positioned on the same horizontal plane.
The embodiment of the utility model provides a have following advantage:
through passing first rope sheave with the cable of arbitrary size, box and second rope sheave, two grooving carry out preliminary direction to the cable, then the spring supports and moves the rotor plate motion, the rotor plate drives spacing round motion, spacing round under the pressure of spring with the cable surface contact, the cable is firmly spacing, will pass the framework then with cable surface fixed connection around the package head expansion end after that, compare with prior art, stability when having improved the cable motion, can be applicable to the cable of arbitrary size, the suitability is strong and the parcel is effectual.
Drawings
In order to more clearly illustrate the embodiments of the present invention or the technical solutions in the prior art, the drawings used in the description of the embodiments or the prior art will be briefly described below. It should be apparent that the drawings in the following description are merely exemplary, and that other embodiments can be derived from the drawings provided by those of ordinary skill in the art without inventive effort.
The structure, ratio, size and the like shown in the present specification are only used for matching with the content disclosed in the specification, so as to be known and read by people familiar with the technology, and are not used for limiting the limit conditions which can be implemented by the present invention, so that the present invention has no technical essential significance, and any structure modification, ratio relationship change or size adjustment should still fall within the scope which can be covered by the technical content disclosed by the present invention without affecting the efficacy and the achievable purpose of the present invention.

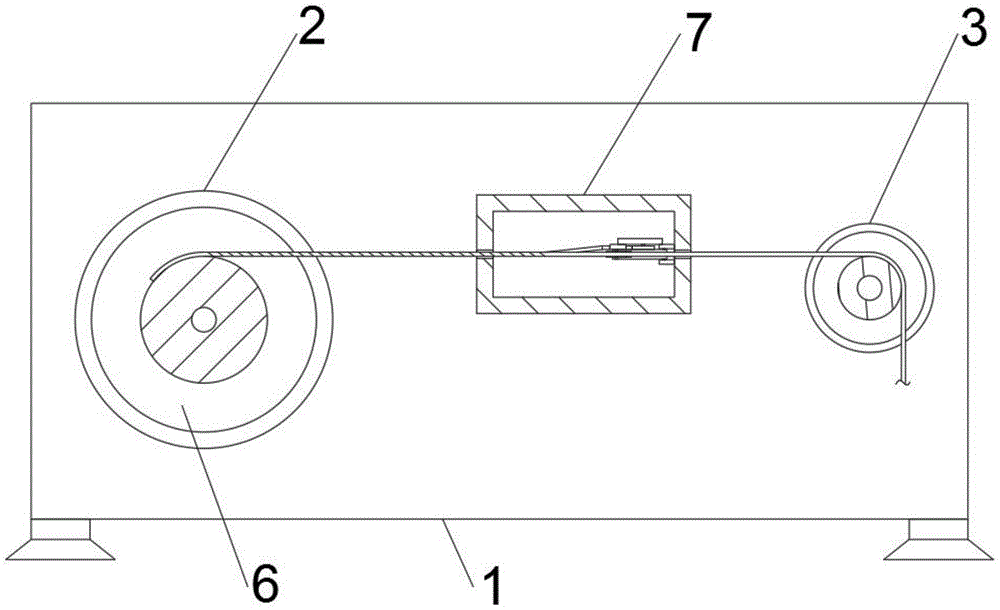

Fig. 1 is a schematic view of the overall structure provided by the present invention;
fig. 2 is a schematic cross-sectional view of the overall structure provided by the present invention;
fig. 3 is a top view of the internal structure of the frame body provided by the present invention;
fig. 4 is a schematic connection diagram of the wrapping head, the transverse plate, the rotating plate, the limiting wheel, the frame body and the guide wheel provided by the present invention;
fig. 5 is a left side view of the frame body provided by the present invention;
in the figure: 1. a transverse plate; 2. a first sheave; 3. a second sheave; 4. a motor; 5. wrapping a packet head; 6. rope grooves; 7. a box body; 8. a plate body; 9. rotating the plate; 10. a wheel groove; 11. a limiting wheel; 12. a frame body; 13. pressing a plate; 14. a spring; 15. a guide wheel; 16. a base plate.
Detailed Description
The present invention is described in terms of specific embodiments, and other advantages and benefits of the present invention will become apparent to those skilled in the art from the following disclosure. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Referring to the attached drawings 1-5 in the specification, the one-step production equipment for the CPP cable wrapping tape of the embodiment comprises a transverse plate 1, a first rope pulley 2, a second rope pulley 3 and a motor 4, the first rope pulley 2 and the second rope pulley 3 are both arranged at the front side of the transverse plate 1, the rear sides of the first rope pulley 2 and the second rope pulley 3 extend into the inner wall of the transverse plate 1 and are in contact with the inner wall of the transverse plate 1, the first rope pulley 2 and the second rope pulley 3 are movably connected with the transverse plate 1 through a first rotating shaft, the motor 4 is arranged at the rear side of the transverse plate 1, an output shaft of the motor 4 is fixedly connected with a first rotating shaft in the first rope pulley 2, rope grooves 6 are respectively arranged in the first rope pulley 2 and the second rope pulley 3, a box body 7 is arranged between the first rope pulley 2 and the second rope pulley 3, the rear side of the box body 7 extends into the inner wall of the transverse plate 1 and is fixedly connected with the inner wall of the transverse plate 1, and two wrapping mechanisms are fixedly arranged inside the box body 7;
the wrapping mechanism comprises two plate bodies 8, one side wall of each of the two plate bodies 8 is fixedly connected with one side wall inside the box body 7, a rotating plate 9 is arranged between the two plate bodies 8, the rotating plate 9 is movably connected with the two plate bodies 8 through a second rotating shaft, a wheel groove 10 is formed inside the rotating plate 9, a limiting wheel 11 is arranged inside the wheel groove 10, the limiting wheel 11 penetrates through the rotating plate 9 and extends to the outer side of the rotating plate 9, the limiting wheel 11 is movably connected with the rotating plate 9 through a third rotating shaft, a frame body 12 is fixedly arranged at the top of the rotating plate 9, a pressing plate 13 is arranged at the top of the rotating plate 9, the bottom of the pressing plate 13 is fixedly connected with the top of the frame body 12 and the top of the plate body 8, a wrapping head 5 is arranged between the pressing plate 13 and the rotating plate 9, the wrapping head 5 is arranged between the plate bodies 8 and the frame body 12, and the wrapping head 5 is movably connected with, the movable end of the wrapping head 5 penetrates through the frame body 12, and a spring 14 is fixedly arranged between the rear side of the rotating plate 9 and one side wall in the box body 7.
Furthermore, two guide wheels 15 are arranged inside the frame body 12, the two guide wheels 15 are respectively arranged on the front side and the rear side of the movable end of the wrapping head 5, the guide wheels 15 are movably connected with the frame body 12 through a fifth rotating shaft, the movable end of the wrapping head 5 can be limited and guided through the guide wheels 15, the movable end of the wrapping head 5 is prevented from being wrinkled, and therefore the cable wrapping effect is ensured.
Further, the fixed bottom plate 16 that is equipped with in diaphragm 1 rear side, bottom plate 16 bottom and diaphragm 1 bottom are located same horizontal plane, motor 4 is fixed to be established at bottom plate 16 top, can provide the support to motor 4 through bottom plate 16, increases the stability of motor.
Further, fixed two supporting legs, two of being equipped with in diaphragm 1 bottom the supporting leg top all with bottom plate 16 bottom fixed connection, can support bottom plate 16 and diaphragm 1 through two supporting legs, increase the utility model discloses a stability.
Further, openings are formed in two side walls of the box body 7, the rotating plates 9 are arranged on the front side and the rear side of the openings respectively, and a moving space can be provided for movement of cables through the openings.
Furthermore, the plate body 8, the rotating plate 9, the limiting wheel 11, the frame body 12, the pressing plate 13, the spring 14 and the guide wheel 15 are symmetrical about a vertical center line of the box body 7, and the symmetrically arranged plate body 8, the rotating plate 9, the limiting wheel 11, the frame body 12, the pressing plate 13, the spring 14 and the guide wheel 15 can guide and limit cables well, so that the probability of shaking in the movement process of the cables is reduced.
Further, the top of the plate body 8 close to the top of the inner cavity of the transverse plate 1 and the top of the frame body 12 are positioned on the same horizontal plane.
The implementation scenario is specifically as follows: in the initial state, the cable moving end with any size passes through the second rope wheel 3, the box 7 is fixed with the first rope wheel 2 finally, then the rope groove 6 in the first rope wheel 2 and the second rope wheel 3 guides the moving track of the cable, so that the cable is kept to be in the same level with the horizontal plane, meanwhile, at the moment when the cable passes through the frame 12, the elastic force of the spring 14 supports the rotating plate 9 to move, then the rotating plate 9 drives the limiting wheel 11 to rotate around the second rotating shaft, then the outer surface of the limiting wheel 11 is contacted with the outer surface of the cable under the pressure of the spring 14, then the two limiting wheels 11 compress the cable, so as to match the first rope wheel 2 and the second rope wheel 3 to make the movement of the cable more stable, then the output ends of the two wrapping heads 5 all pass through the frame 12 and are connected with the outer surface of the cable, when the utility model is put into practical use, the motor 4 is opened, the motor output shaft 4 drives the first rope, first rope sheave 2 is with the cable winding, then along with the continuous removal of cable, two movable end pairs around baotou 5 wrap up the cable surface, around baotou 5 body at the spacing steady rotation of fourth pivot of clamp plate 13 down, stability when having improved the cable motion, can be applicable to the cable of arbitrary size, the suitability is strong and the parcel is effectual, the radius of cable is different among the prior art specifically has been solved to this embodiment, lead to all needing to carry out position control around the baotou when wrapping the cable at every turn, and current cable band production facility does not carry out spacing and direction to the cable, lead to rocking the problem of the effect of direct influence around the package of cable.
Although the invention has been described in detail with respect to the general description and the specific embodiments, it will be apparent to those skilled in the art that modifications and improvements can be made based on the invention. Therefore, such modifications and improvements are intended to be within the scope of the invention as claimed.
Claims (7)
1. The utility model provides a CPP cable is around band one-step method production facility, includes diaphragm (1), first rope sheave (2), second rope sheave (3) and motor (4), all establish at diaphragm (1) front side first rope sheave (2) and second rope sheave (3), first rope sheave (2) and second rope sheave (3) rear side all extend to in diaphragm (1) inner wall and contact with diaphragm (1) inner wall, first rope sheave (2) and second rope sheave (3) all through first pivot and diaphragm (1) swing joint, establish diaphragm (1) rear side motor (4), motor (4) output shaft and the inside first pivot fixed connection of first rope sheave (2), its characterized in that: rope grooves (6) are formed in the first rope pulley (2) and the second rope pulley (3), a box body (7) is arranged between the first rope pulley (2) and the second rope pulley (3), the rear side of the box body (7) extends into the inner wall of the transverse plate (1) and is fixedly connected with the inner wall of the transverse plate (1), and two wrapping mechanisms are fixedly arranged in the box body (7);
the wrapping mechanism comprises two plate bodies (8), one side wall of each of the two plate bodies (8) is fixedly connected with one side wall inside the box body (7), a rotating plate (9) is arranged between the two plate bodies (8), the rotating plate (9) is movably connected with the two plate bodies (8) through a second rotating shaft, a wheel groove (10) is formed inside the rotating plate (9), a limiting wheel (11) is arranged inside the wheel groove (10), the limiting wheel (11) penetrates through the rotating plate (9) and extends to the outer side of the rotating plate (9), the limiting wheel (11) is movably connected with the rotating plate (9) through a third rotating shaft, a frame body (12) is fixedly arranged at the top of the rotating plate (9), a pressing plate (13) is arranged at the top of the rotating plate (9), the bottom of the pressing plate (13) is fixedly connected with the top of the frame body (12) and the top of the plate bodies (8), and a wrapping head (5) is arranged between the pressing plate (13) and the rotating, establish between plate body (8) and framework (12) around baotou (5), around baotou (5) through fourth pivot and commentaries on classics board (9) and clamp plate (13) swing joint, around baotou (5) expansion end and run through framework (12), it is equipped with spring (14) to fix between the inside lateral wall of commentaries on classics board (9) rear side and box (7).
2. The one-step production equipment for the CPP cable wrapping tape according to claim 1, is characterized in that: two guide wheels (15) are arranged in the frame body (12), the two guide wheels (15) are respectively arranged on the front side and the rear side of the movable end of the wrapping head (5), and the guide wheels (15) are movably connected with the frame body (12) through a fifth rotating shaft.
3. The one-step production equipment for the CPP cable wrapping tape according to claim 1, is characterized in that: the motor is characterized in that a bottom plate (16) is fixedly arranged on the rear side of the transverse plate (1), the bottom of the bottom plate (16) and the bottom of the transverse plate (1) are located on the same horizontal plane, and the motor (4) is fixedly arranged on the top of the bottom plate (16).
4. The one-step production equipment for the CPP cable wrapping tape according to claim 3, is characterized in that: the bottom of the transverse plate (1) is fixedly provided with two supporting legs, and the tops of the two supporting legs are fixedly connected with the bottom of the bottom plate (16).
5. The one-step production equipment for the CPP cable wrapping tape according to claim 1, is characterized in that: openings are formed in two side walls of the box body (7), and the two rotating plates (9) are respectively arranged on the front side and the rear side of the openings.
6. The one-step production equipment for the CPP cable wrapping tape according to claim 2, is characterized in that: the plate body (8), the rotating plate (9), the limiting wheel (11), the frame body (12), the pressing plate (13), the spring (14) and the guide wheel (15) are all symmetrical about the vertical center line of the box body (7).
7. The one-step production equipment for the CPP cable wrapping tape according to claim 1, is characterized in that: the top of the plate body (8) close to the top of the inner cavity of the transverse plate (1) and the top of the frame body (12) are positioned on the same horizontal plane.
