CN212966976U

CN212966976U - Promote frame suitable for house property is promoted

Info

Publication number: CN212966976U
Application number: CN202021290124.5U
Authority: CN
Inventors: 黄庞韬
Original assignee: Individual
Current assignee: Individual
Priority date: 2020-07-06
Filing date: 2020-07-06
Publication date: 2021-04-13
Anticipated expiration: 2030-07-06

Abstract

The utility model discloses a popularization frame suitable for the popularization of real estate, which comprises a base, wherein adjustable threaded columns are symmetrically arranged on the base, threaded rods are in threaded connection on the threaded columns, supporting columns are connected with bearings at the top ends of the threaded rods, supporting rods are fixed at the top ends of the supporting columns, sleeves are in sliding connection between the supporting rods, and clamping mechanisms are arranged on the supporting columns and the threaded columns; the utility model discloses a change the screw thread post that the drive symmetry set up along double-end screw lateral shifting, through threaded connection threaded rod on the screw thread post and take support column and bracing piece to reciprocate through rotating threaded rod drive threaded rod area, thereby be convenient for make corresponding regulation to this popularization frame according to the size of promoting the poster, through cup jointing spacing spring on the gag lever post, play spacing resilience effect to the clamping mechanism, thereby make fixture be convenient for will promoting the poster tensile the strutting when carrying out the centre gripping to promoting the poster, avoid it to produce the fold, the popularization and display effect has been guaranteed.

Description

Promote frame suitable for house property is promoted

Technical Field

The utility model relates to a promote a technical field, especially relate to a promote frame suitable for house property is promoted.

Background

The real estate popularization is also called real estate business popularization, which means that real estate development enterprises encourage consumers to purchase by applying various short-term inducements so as to promote all measures for selling real estate products, the business popularization has various specific forms, and the business popularization has the functions of display, sample room exhibition, free presentation and the like, and almost comprises various sales promotion means except personnel promotion, advertisement and public relations, the real estate popularization can accelerate the process of the real estate products entering the market, effectively resist and defeat the sales promotion activities of competitors, stimulate the consumers to purchase and infuse opinions beneficial to the enterprises, and the current real estate marketing advertisement poster is one of the most common real estate popularization means;

the house property marketing advertisement poster mainly relies on the promotion frame to demonstrate and promote, and the most all single structure of current promotion frame, be not convenient for adjust, can not place and demonstrate according to not unidimensional popularization poster, need change the promotion frame that corresponds simultaneously when leading to changing not unidimensional size's popularization poster, it is inconvenient to use, and the cost of popularization has been increased, in addition because it is soft stock and cloth to promote the poster mostly, and the clamping device of current promotion frame is most fixed in structure, can not effectually stretch the popularization poster and strut, thereby lead to promoting the poster fold, and then influence popularization bandwagon effect, therefore, the utility model provides a promotion frame suitable for the house property is promoted is used for solving the problem that exists among the prior art.

SUMMERY OF THE UTILITY MODEL

To the above problem, an object of the utility model is to provide a promote frame suitable for house property is promoted, this promote frame suitable for house property is promoted is through changeing the screw thread post lateral shifting that the drive symmetry set up, drive threaded rod area support column and bracing piece reciprocate through rotating the threaded rod, thereby be convenient for make corresponding regulation to this promote frame according to the size of promoting the poster, through cup jointing spacing spring on the gag lever post, play spacing resilience effect to the clamping mechanism, thereby be convenient for will promote the poster and stretch and strut, avoid it to produce the fold.

In order to realize the utility model discloses a purpose, the utility model discloses a following technical scheme realizes: a promotion frame suitable for house property promotion, which comprises a base, wherein through grooves are respectively arranged at the two sides of the top end of the base, the inner part of the base is provided with a double-head screw driven by a rotating handle, both sides of the double-head screw are in threaded sleeve connection with thread sleeves, the thread directions are opposite, the top end of the threaded sleeve is connected with a threaded column through a supporting block passing through the through groove, the top end of the threaded column is connected with a threaded rod through threads, the top end of the threaded rod is connected with a support column through a bearing, a support rod is fixed at the top end of the support column, one end of the support rod, which is far away from the support column, is connected inside the sleeve in a sliding way, the opposite sides of the symmetrically arranged threaded columns and the supporting columns are respectively fixed with a limiting pipe, the inside of the limiting pipe is connected with a limiting rod in a sliding way, one side of the limiting rod, which is positioned in the limiting pipe, is sleeved with a limiting spring, and one end of the limiting rod, which is positioned outside the limiting pipe, is fixed with a clamping mechanism.

The further improvement lies in that: the clamping mechanism comprises a clamping frame fixedly connected with the limiting rod, a locking bolt penetrates through the upper thread of the clamping frame, and a bearing at the bottom end of the locking bolt is connected with an anti-skid pad.

The further improvement lies in that: the upper and lower positions of one side of the limiting rod in the limiting pipe are respectively fixed with a limiting block, and the upper and lower ends in the limiting pipe are respectively provided with a limiting groove matched with the limiting blocks.

The further improvement lies in that: the upper and lower positions of the supporting rod on one side in the sleeve are respectively fixed with a first sliding block, and the top end and the bottom end inside the sleeve are respectively provided with a first sliding groove matched with the first sliding block.

The further improvement lies in that: the bottom end in the base is provided with a second sliding groove, the bottom end of the threaded sleeve is fixedly provided with a second sliding block matched with the second sliding groove, four corners of the bottom end of the base are provided with grooves, and universal wheels are arranged in the grooves.

The further improvement lies in that: the base is fixed with the installation piece in both sides symmetry around, the screw thread runs through has through carousel driven construction bolt on the installation piece, construction bolt bottom bearing is connected with the supporting pad.

The utility model has the advantages that: the utility model comprises a base, a double-end screw is driven to rotate by rotating a handle, so that a thread sleeve sleeved by threads at two sides of the double-end screw drives a thread column which is symmetrically arranged to transversely move along the double-end screw, a support rod slides in the sleeve, a threaded rod is connected with the thread column by threads, and the threaded rod is driven to drive the threaded rod to drive the support column and the support rod to move up and down by rotating the threaded rod, thereby being convenient to correspondingly adjust the promotion frame according to the size of the promotion poster, being suitable for the display of the promotion posters with different sizes, being convenient and fast to use, avoiding the problem that the promotion frame needs to be replaced simultaneously when the promotion poster is replaced, reducing the promotion cost to a certain extent, playing a limiting rebound effect on a clamping mechanism by sleeving a limiting spring on the limiting rod, thereby facilitating the promotion of the extension posters when, the generation of folds is avoided, and the popularization and display effects are ensured.

Drawings

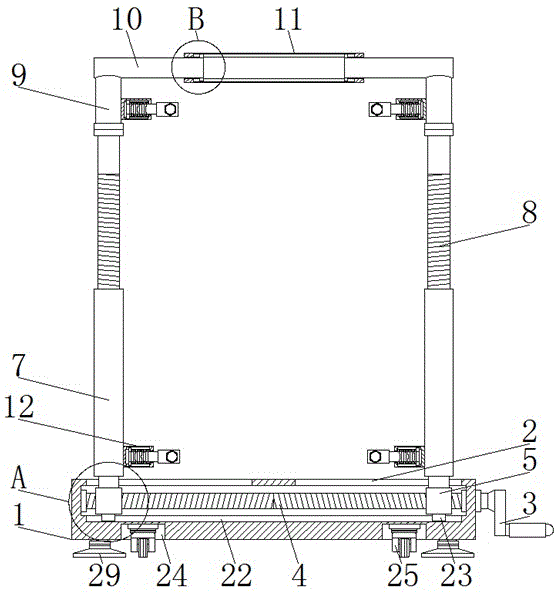

Fig. 1 is a front view of the present invention;

fig. 2 is a cross-sectional view of the present invention;

fig. 3 is a top cross-sectional view of the spacing tube of the present invention;

FIG. 4 is an enlarged view of the utility model at A;

fig. 5 is an enlarged view of the position B of the present invention.

Wherein: 1. a base; 2. a through groove; 3. turning a handle; 4. a double-ended screw; 5. a threaded sleeve; 6. a support block; 7. a threaded post; 8. a threaded rod; 9. a support pillar; 10. a support bar; 11. a sleeve; 12. a limiting pipe; 13. a limiting rod; 14. a limiting spring; 15. a clamping frame; 16. locking the bolt; 17. a non-slip mat; 18. a limiting block; 19. a limiting groove; 20. a first slider; 21. a first chute; 22. a second chute; 23. a second slider; 24. a groove; 25. a universal wheel; 26. mounting blocks; 27. a turntable; 28. installing a bolt; 29. a support pad.

Detailed Description

In order to deepen the understanding of the present invention, the following embodiments will be combined to make the present invention do further details, and the present embodiment is only used for explaining the present invention, and does not constitute the limitation of the protection scope of the present invention.

According to figures 1, 2, 3, 4 and 5, the embodiment provides a popularization rack suitable for house property popularization, which comprises a base 1, through grooves 2 are formed in two side positions of the top end of the base 1, a double-threaded screw rod 4 driven by a rotating handle 3 is arranged in the base 1, threaded sleeves 5 are sleeved on two sides of the double-threaded screw rod 4 in a threaded manner, the thread directions are opposite, the top end of each threaded sleeve 5 penetrates through the through groove 2 through a supporting block 6 to be connected with a threaded column 7, the top end of each threaded column 7 is connected with a threaded rod 8 in a threaded manner, the top end of each threaded rod 8 is connected with a supporting column 9 through a bearing, a supporting rod 10 is fixed at the top end of each supporting column 9, one end, far away from the supporting column 9, of each supporting rod 10 is connected into a sleeve 11 in a sliding manner, limiting pipes 12 are fixed on opposite sides, one side of the limiting rod 13, which is positioned in the limiting pipe 12, is sleeved with a limiting spring 14, and one end of the limiting rod 13, which is positioned outside the limiting pipe 12, is fixed with a clamping mechanism.

The fixture includes the centre gripping frame 15 with gag lever post 13 fixed connection, the screw thread of the way runs through has locking bolt 16 on the

centre gripping frame

15, 16 bottom end bearings of locking bolt are connected with slipmat 17 for the poster is promoted in the centre gripping.

The limiting blocks 18 are fixed at the upper and lower positions of one side of the limiting rod 13 in the limiting pipe 12, and limiting grooves 19 matched with the limiting blocks 18 are formed in the upper and lower ends of the limiting pipe 12, so that the limiting rod 13 is more stable in the moving process.

The upper and lower positions of one side of the support rod 10 in the sleeve 11 are both fixed with a first sliding block 20, and the top end and the bottom end inside the sleeve 11 are both provided with a first sliding groove 21 matched with the first sliding block 20, so that the support rod 10 and the sleeve 11 are limited.

Second spout 22 has been seted up to the inside bottom of base 1, 5 bottom mounting of thread bush has the second slider 23 that matches with second spout 22, makes the thread bush 5 move the in-process more stable, the four corners position of 1 bottom of base all sets up fluted 24, be equipped with universal wheel 25 in the flute 24, this popularization frame of being convenient for removes.

The equal symmetry in both sides is fixed with installation piece 26 around base 1, the screw thread runs through has through carousel 27 driven construction bolt 28 on installation piece 26, construction bolt 28 bottom bearing is connected with supporting pad 29, is convenient for support this popularization frame.

When the popularization poster is displayed on the popularization frame in the house property popularization process, the double-headed screw 4 is driven to rotate by the rotating handle 3, the threaded sleeves 5 on two sides of the double-headed screw 4 are enabled to transversely displace the threaded columns 7 and adjust the threaded columns 7 and the threaded rods 8 to proper positions according to the width of the popularization poster, then the threaded rods 8 are enabled to vertically displace along the threaded columns 7 by rotating the threaded rods 8, the threaded rods 8 and the supporting columns 9 are adjusted to proper positions according to the height of the popularization poster, the popularization poster to be displayed is placed between the clamping frames 15 and clamped and fixed to the popularization poster through the locking bolts 16, the popularization frame is convenient to move through the universal wheels 25 at the bottom end of the base 1 in the display process, and finally the supporting pad 29 descends to support the base 1 through the rotating mounting bolts 28.

The promotion frame suitable for the house property promotion comprises a base 1, a double-threaded screw rod 4 is driven to rotate by a rotating handle 3, so that a threaded sleeve 5 which is in threaded sleeve connection with two sides of the double-threaded screw rod 4 drives symmetrically arranged threaded columns 7 to transversely move along the double-threaded screw rod 4, a supporting rod 10 slides in a sleeve 11, a threaded rod 8 is connected with the threaded column 7 in a threaded manner, the threaded rod 8 is driven to drive a supporting column 9 and the supporting rod 10 to move up and down by rotating the threaded rod 8, the promotion frame is convenient to adjust correspondingly according to the size of a promotion poster, the promotion frame is suitable for the display of the promotion posters with different sizes, the promotion frame is convenient and fast to use, the problem that the promotion frame needs to be replaced simultaneously when the promotion poster is replaced is avoided, the promotion cost is reduced to a certain extent, a limiting spring 14 is sleeved on a limiting rod 13, a limiting resilience effect is played to a clamping mechanism, so that the promotion, the generation of folds is avoided, and the popularization and display effects are ensured.

The foregoing illustrates and describes the principles, general features, and advantages of the present invention. It will be understood by those skilled in the art that the present invention is not limited to the above embodiments, and that the foregoing embodiments and descriptions are provided only to illustrate the principles of the present invention without departing from the spirit and scope of the present invention. The scope of the invention is defined by the appended claims and equivalents thereof.

Claims

1. The utility model provides a promote frame suitable for house property is promoted, includes base (1), its characterized in that: the double-thread screw is characterized in that through grooves (2) are formed in two side positions of the top end of the base (1), a double-thread screw (4) driven by a rotating handle (3) is arranged in the base (1), thread sleeves (5) are sleeved on two sides of the double-thread screw (4) in a threaded manner and are opposite in thread direction, the top end of each thread sleeve (5) penetrates through the corresponding groove (2) through a supporting block (6) to be connected with a thread column (7), the top end of each thread column (7) is in threaded connection with a threaded rod (8), the top end of each threaded rod (8) is connected with a supporting column (9) through a bearing, a supporting rod (10) is fixed at the top end of each supporting column (9), one end, far away from the corresponding supporting column (9), of each supporting rod (10) is slidably connected into a sleeve (11), limiting pipes (12) are symmetrically arranged on opposite sides of the thread columns, one side of the limiting rod (13) located in the limiting pipe (12) is sleeved with a limiting spring (14), and one end of the limiting rod (13) located outside the limiting pipe (12) is fixed with a clamping mechanism.

2. The promotion frame suitable for the real estate promotion according to the claim 1, characterized in that: the clamping mechanism comprises a clamping frame (15) fixedly connected with the limiting rod (13), a locking bolt (16) penetrates through the upper thread of the clamping frame (15), and a non-slip mat (17) is connected to the bottom end of the locking bolt (16) in a bearing mode.

3. The promotion frame suitable for the real estate promotion according to the claim 1, characterized in that: the upper and lower positions of one side of the limiting rod (13) in the limiting pipe (12) are respectively fixed with a limiting block (18), and limiting grooves (19) matched with the limiting blocks (18) are formed in the upper and lower ends of the interior of the limiting pipe (12).

4. The promotion frame suitable for the real estate promotion according to the claim 1, characterized in that: the upper and lower positions of one side of the support rod (10) in the sleeve (11) are respectively fixed with a first sliding block (20), and the top end and the bottom end inside the sleeve (11) are respectively provided with a first sliding groove (21) matched with the first sliding block (20).

5. The promotion frame suitable for the real estate promotion according to the claim 1, characterized in that: the bottom end in the base (1) is provided with a second sliding groove (22), the bottom end of the threaded sleeve (5) is fixedly provided with a second sliding block (23) matched with the second sliding groove (22), four corners of the bottom end of the base (1) are provided with grooves (24), and universal wheels (25) are arranged in the grooves (24).

6. The promotion frame suitable for the real estate promotion according to the claim 1, characterized in that: the base is characterized in that mounting blocks (26) are symmetrically fixed to the front side and the rear side of the base (1), mounting bolts (28) driven by the turnplate (27) penetrate through the upper threads of the mounting blocks (26), and supporting pads (29) are connected to the bottom ends of the mounting bolts (28) through bearings.
