Abstract
本实用新型涉及污水处理技术领域，且公开了一种污水处理用除油撇渣装置，包括处理箱，所述处理箱的上侧壁固定设置有支架，所述处理箱的下侧壁固定设置有对称的支撑杆，所述支架的内部横向固定设置有限位杆，所述支架的左侧壁固定设置有机箱，所述机箱的内部固定设置有电机，所述限位杆的下端横向设置有双向丝杆，所述双向丝杆的右端通过第一轴承与支架的侧壁转动连接，所述双向丝杆的左端与电机的输出端固定连接。本实用新型，操作方便，可以对吸油毡内部吸附的油污进行快速处理，有效避免吸油毡达到饱和而影响吸油能力，大大提高了吸油毡的油污处理效率，降低了污水处理成本。
The utility model relates to the technical field of sewage treatment, and discloses a degreasing and skimming device for sewage treatment, comprising a treatment box, the upper side wall of the treatment box is fixedly provided with a bracket, and the lower side wall of the treatment box is fixedly arranged There are symmetrical support rods, a limit rod is fixed horizontally inside the bracket, a chassis is fixed on the left side wall of the bracket, a motor is fixed inside the chassis, and a lower end of the limit rod is laterally provided with A bidirectional screw rod, the right end of the bidirectional screw rod is rotatably connected with the side wall of the bracket through the first bearing, and the left end of the bidirectional screw rod is fixedly connected with the output end of the motor. The utility model is easy to operate, can quickly treat the oil stains absorbed inside the oil absorbing felt, effectively avoids the oil absorbing felt reaching saturation and affecting the oil absorption capacity, greatly improves the oil pollution treatment efficiency of the oil absorbing felt, and reduces the cost of sewage treatment.
Description
Technical Field
The utility model relates to a sewage treatment technical field especially relates to a sewage treatment is with deoiling skimming device.
Background
The sewage generally refers to the discharged water which is polluted to a certain extent and comes from life and production, the sewage mainly comprises domestic sewage, industrial wastewater and initial rainwater, the main pollutants of the sewage comprise pathogen pollutants, oxygen-consuming pollutants, plant nutrients, toxic pollutants and the like, a large amount of oil stains are contained in a large amount of industrial sewage and domestic sewage, and the oil stains in the sewage are inconvenient to clean and collect.
Most of previous oil removing and slag skimming devices adopt an oil absorbent felt to directly absorb oil stains on the surface of sewage, and when the oil absorbent felt absorbs a certain amount of oil stains, if the oil stains in the oil absorbent felt are not timely treated, the adsorption capacity can be greatly reduced, and the efficiency of later-stage sewage treatment is influenced.
SUMMERY OF THE UTILITY MODEL
The utility model aims at solving the problem that the oil absorption felt is saturated after being used for a long time in the prior art, the adsorption capacity can be greatly reduced, the influence lasts the greasy dirt and handles, and the oil removal skimming device for sewage treatment who provides.
In order to achieve the above purpose, the utility model adopts the following technical scheme:
an oil-removing and slag-removing device for sewage treatment comprises a treatment box, wherein a support is fixedly arranged on the upper side wall of the treatment box, symmetrical support rods are fixedly arranged on the lower side wall of the treatment box, a limiting rod is transversely and fixedly arranged in the support, a machine box is fixedly arranged on the left side wall of the support, a motor is fixedly arranged in the machine box, a bidirectional lead screw is transversely arranged at the lower end of the limiting rod, the right end of the bidirectional lead screw is rotatably connected with the side wall of the support through a first bearing, the left end of the bidirectional lead screw is fixedly connected with the output end of the motor, a slide block is in threaded connection with the rod wall of the bidirectional lead screw, an oil stain treatment mechanism is fixedly arranged on the lower side wall of the slide block, a mounting plate is transversely arranged in the treatment box, an oil absorption felt is fixedly arranged on the upper side wall of, the fixed inlet tube that is provided with of left side wall of handling the case, the fixed outlet pipe that is provided with of right side wall of handling the case.
Preferably, the greasy dirt processing mechanism includes the stripper plate, the lower lateral wall fixed connection of stripper plate and slider, the oil-out of symmetry is seted up at the both ends of stripper plate, the fixed flourishing dirty bottle that is provided with the symmetry in the both ends of stripper plate, the fixed first kelly that is provided with of lateral wall of flourishing dirty bottle, two first draw-in groove has all been seted up to the upper end of oil-out, two first kelly all with first draw-in groove between the joint, two the second draw-in groove has all been seted up to the lower extreme of flourishing dirty bottle, the lower lateral wall of stripper plate is connected with the lead screw through the second bearing rotation, two the lower extreme of lead screw all fixedly is provided with rotatory piece, two the equal threaded connection of pole wall of lead screw has the fixed plate, two the last lateral wall of fixed plate all fixedly is provided with the second kelly, two the second kelly with two the joint.
Preferably, elevating system includes the movable plate, two the spout of symmetry is seted up to the lateral wall of bracing piece, the movable plate with two the equal sliding connection of lateral wall of spout, the fixed catch bar that is provided with the symmetry of last lateral wall of movable plate, two the upper end of catch bar all with the lower lateral wall fixed connection of mounting panel, the fixed hydraulic stem that is provided with of lower lateral wall of handling the case, the lower lateral wall of hydraulic stem and the last lateral wall fixed connection of movable plate.
Preferably, a first sealing ring is fixedly arranged inside the oil outlet.
Preferably, the contact parts of the two push rods and the lower side wall of the treatment box are fixedly provided with second sealing rings.
Compared with the prior art, the utility model provides a sewage treatment is with deoiling skimming device possesses following beneficial effect:
1. this deoiling skimming device for sewage treatment through the common cooperation of hydraulic stem, movable plate, catch bar, mounting panel and oil absorption felt, adsorbs the processing fast to the floating greasy dirt in sewage upper end.
2. This deoiling skimming device for sewage treatment through the common cooperation of stripper plate, flourishing dirty bottle, first kelly, second kelly, lead screw, rotatory piece and fixed plate, extrudees the processing with the inside absorbent greasy dirt of oil absorption felt fast to collect the inside of flourishing dirty bottle, effectively avoid oil absorption felt to influence the efficiency that the greasy dirt was handled because of the saturation.
The part that does not relate to in the device all is the same with prior art or can adopt prior art to realize, the utility model discloses, convenient operation can carry out the rapid processing to the inside absorbent greasy dirt of oil absorption felt, effectively avoids oil absorption felt to reach the saturation and influence the oil absorption ability, has improved the greasy dirt treatment effeciency of oil absorption felt greatly, has reduced the sewage treatment cost.
Drawings

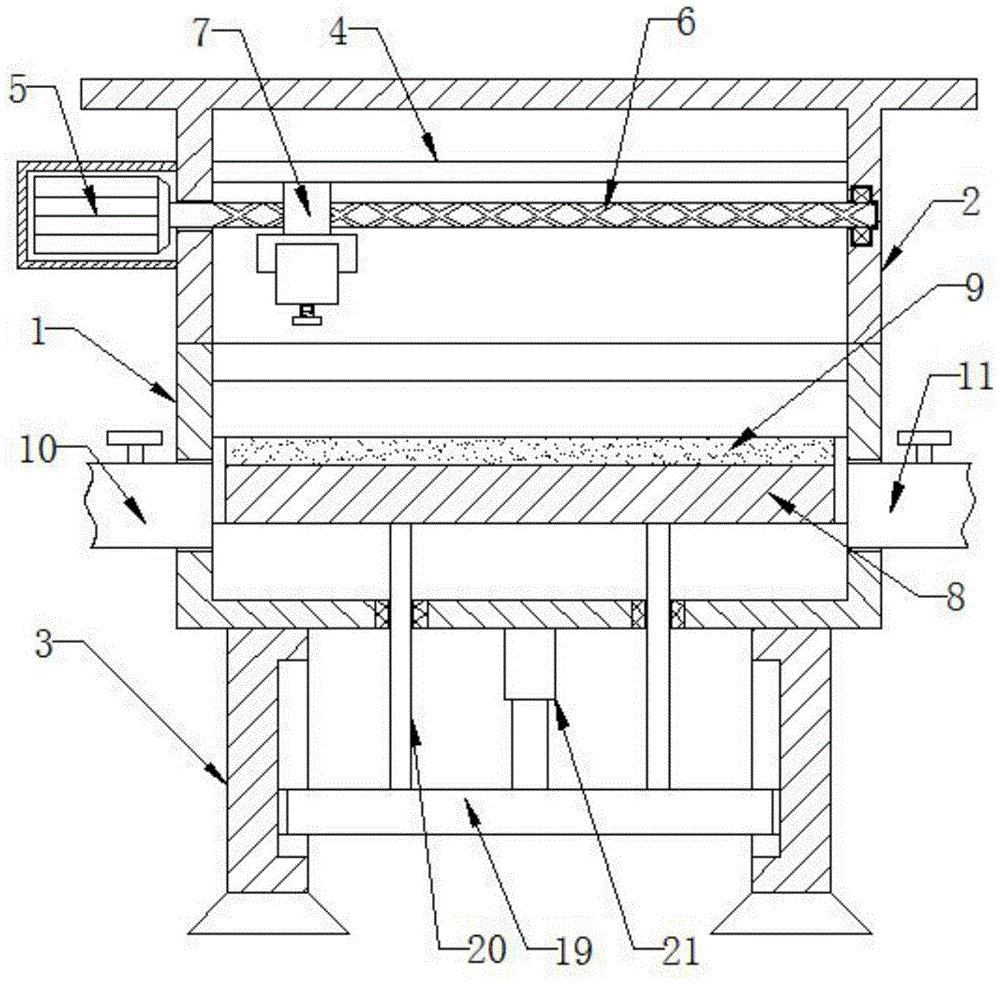

Fig. 1 is a schematic front structural view of an oil removing and slag removing device for sewage treatment according to the present invention;
FIG. 2 is a schematic side view of the oil stain treatment mechanism of FIG. 1;
fig. 3 is an enlarged schematic view of a portion a in fig. 2.
In the figure: the device comprises a processing box 1, a support 2, a support rod 3, a limiting rod 4, a motor 5, a bidirectional screw rod 6, a sliding block 7, an installation plate 8, an oil absorption felt 9, a water inlet pipe 10, a water outlet pipe 11, an extrusion plate 12, a dirt containing bottle 13, a first clamping rod 14, a screw rod 15, a rotating block 16, a fixed plate 17, a second clamping rod 18, a movable plate 19, a pushing rod 20 and a hydraulic rod 21.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments.
In the description of the present invention, it is to be understood that the terms "upper", "lower", "front", "rear", "left", "right", "top", "bottom", "inner", "outer", and the like indicate orientations or positional relationships based on the orientations or positional relationships shown in the drawings, and are only for convenience of description and simplicity of description, and do not indicate or imply that the device or element being referred to must have a particular orientation, be constructed and operated in a particular orientation, and therefore, should not be construed as limiting the present invention.
Referring to fig. 1-3, an oil removing and skimming device for sewage treatment comprises a treatment box 1, a support 2 is fixedly arranged on the upper side wall of the treatment box 1, symmetrical support rods 3 are fixedly arranged on the lower side wall of the treatment box 1, a limit rod 4 is transversely and fixedly arranged in the support 2, a machine box is fixedly arranged on the left side wall of the support 2, a motor 5 is fixedly arranged in the machine box, a bidirectional screw rod 6 is transversely arranged at the lower end of the limit rod 4, the right end of the bidirectional screw rod 6 is rotatably connected with the side wall of the support 2 through a first bearing, the left end of the bidirectional screw rod 6 is fixedly connected with the output end of the motor 5, a slide block 7 is in threaded connection with the rod wall of the bidirectional screw rod 6, an oil stain treatment mechanism is fixedly arranged on the lower side wall of the slide block 7, the oil stain treatment mechanism comprises a squeezing plate 12, the squeezing plate 12, a first sealing ring is fixedly arranged inside the oil outlets, two symmetrical dirt containing bottles 13 are fixedly arranged at two ends of the extrusion plate 12, first clamping rods 14 are fixedly arranged on the side walls of the dirt containing bottles 13, first clamping grooves are respectively formed at the upper ends of the two oil outlets, the two first clamping rods 14 are respectively clamped with the first clamping grooves, second clamping grooves are respectively formed at the lower ends of the two dirt containing bottles 13, screw rods 15 are rotatably connected to the lower side wall of the extrusion plate 12 through second bearings, rotating blocks 16 are respectively fixedly arranged at the lower ends of the two screw rods 15, fixed plates 17 are respectively in threaded connection with the rod walls of the two screw rods 15, second clamping rods 18 are respectively fixedly arranged on the upper side walls of the two fixed plates 17, the two second clamping rods 18 are clamped with the two second clamping grooves, a mounting plate 8 is transversely arranged inside the treatment box 1, an oil absorption felt 9 is fixedly arranged on the upper side wall of the mounting plate 8, and a lifting, elevating system includes movable plate 19, the spout of symmetry is seted up to the lateral wall of two bracing pieces 3, the equal sliding connection of lateral wall of movable plate 19 and two spouts, the fixed catch bar 20 that is provided with the symmetry of last lateral wall of movable plate 19, the fixed second sealing washer that is provided with of contact site of two catch bars 20 and the lower lateral wall of handling case 1, the upper end of two catch bars 20 all with mounting panel 8's lower lateral wall fixed connection, the fixed hydraulic stem 21 that is provided with of lower lateral wall of handling case 1, the lower lateral wall of hydraulic stem 21 and the last lateral wall fixed connection of movable plate 19, the fixed inlet tube 10 that is provided with of left side wall of handling case 1, the fixed outlet pipe 11 that is provided with of right side wall.
In the utility model, when sewage is required to be treated by using the sewage treatment device, the sewage is discharged into the treatment box 1 through the water inlet pipe 10, the hydraulic rod 21 is started, the hydraulic rod 21 drives the movable plate 19 fixedly connected with the lower side wall to move, the movable plate 19 drives the push rod 20 fixedly connected with the upper side wall to move, the two push rods 20 drive the mounting plate 8 fixedly connected with the upper end to move, the mounting plate 8 drives the oil absorption felt 9 fixedly connected with the upper side wall to move, the oil stain floating at the upper end of the sewage is quickly absorbed, when the oil absorption felt 9 is in contact connection with the lower side wall of the extrusion plate 12, the motor 5 is started, the motor 5 drives the bidirectional screw rod 6 fixedly connected with the right end to rotate, the bidirectional screw rod 6 drives the slider 7 in threaded connection with the rod wall to move, the extrusion plate 12 at the lower end is driven by the slider 7 to extrude the oil absorption felt 9, a large amount of oil, the rotating block 16 is rotated, the rotating block 16 drives the screw rod 15 fixedly connected with the upper end to rotate, the screw rod 15 drives the fixing plate 17 connected with the rod wall in a threaded mode to move, the fixing plate 17 drives the second clamping rod 18 fixedly connected with the upper side wall to move, the second clamping rod 18 is separated from the second clamping groove, the dirt containing bottle 13 is disassembled, and oil stains inside the dirt containing bottle are treated.
The above, only be the concrete implementation of the preferred embodiment of the present invention, but the protection scope of the present invention is not limited thereto, and any person skilled in the art is in the technical scope of the present invention, according to the technical solution of the present invention and the utility model, the concept of which is equivalent to replace or change, should be covered within the protection scope of the present invention.
Claims (5)
1. The oil-removing and slag-removing device for sewage treatment comprises a treatment box (1) and is characterized in that a support (2) is fixedly arranged on the upper side wall of the treatment box (1), symmetrical support rods (3) are fixedly arranged on the lower side wall of the treatment box (1), a limiting rod (4) is transversely and fixedly arranged in the support (2), a case is fixedly arranged on the left side wall of the support (2), a motor (5) is fixedly arranged in the case, a bidirectional screw rod (6) is transversely arranged at the lower end of the limiting rod (4), the right end of the bidirectional screw rod (6) is rotatably connected with the side wall of the support (2) through a first bearing, the left end of the bidirectional screw rod (6) is fixedly connected with the output end of the motor (5), a sliding block (7) is in threaded connection with the rod wall of the bidirectional screw rod (6), and an oil stain treatment mechanism is fixedly arranged on the lower side wall of the sliding block (, the inside of handling case (1) transversely is provided with mounting panel (8), the fixed oil absorption felt (9) that is provided with of last lateral wall of mounting panel (8), the fixed elevating system that is provided with of lower extreme of handling case (1), the fixed inlet tube (10) that is provided with of left side wall of handling case (1), the fixed outlet pipe (11) that is provided with of right side wall of handling case (1).
2. The oil removing and skimming device for sewage treatment according to claim 1, wherein the oil stain treatment mechanism comprises an extrusion plate (12), the extrusion plate (12) is fixedly connected with the lower side wall of the sliding block (7), two ends of the extrusion plate (12) are provided with symmetrical oil outlets, two ends of the extrusion plate (12) are fixedly provided with symmetrical dirt containing bottles (13), the side wall of each dirt containing bottle (13) is fixedly provided with a first clamping rod (14), the upper ends of the two oil outlets are respectively provided with a first clamping groove, the two first clamping rods (14) are respectively clamped with the first clamping grooves, the lower ends of the two dirt containing bottles (13) are respectively provided with a second clamping groove, the lower side wall of the extrusion plate (12) is rotatably connected with a screw rod (15) through a second bearing, the lower ends of the two screw rods (15) are respectively and fixedly provided with a rotating block (16), two equal threaded connection of pole wall of lead screw (15) has fixed plate (17), two the last lateral wall of fixed plate (17) is all fixed and is provided with second kelly (18), two second kelly (18) and two the joint between the second draw-in groove.
3. The oil removing and slag skimming device for sewage treatment according to claim 1, wherein the lifting mechanism comprises a movable plate (19), two symmetrical sliding grooves are formed in the side wall of the support rod (3), the movable plate (19) is connected with two sliding grooves, the side walls of the sliding grooves are connected in a sliding mode, symmetrical push rods (20) are fixedly arranged on the upper side wall of the movable plate (19), two push rods (20) are fixedly connected with the lower side wall of the mounting plate (8) at the upper end of the push rods (20), a hydraulic rod (21) is fixedly arranged on the lower side wall of the treatment box (1), and the lower side wall of the hydraulic rod (21) is fixedly connected with the upper side wall of the movable plate (19).
4. The oil removing and slag removing device for sewage treatment as claimed in claim 2, wherein a first sealing ring is fixedly arranged inside the oil outlet.
5. The oil and slag removing device for sewage treatment according to claim 3, wherein a second sealing ring is fixedly arranged at the contact part of the two push rods (20) and the lower side wall of the treatment box (1).
