CN212913810U

CN212913810U - Electric massage chair with mechanical arm

Info

Publication number: CN212913810U
Application number: CN202020543352.2U
Authority: CN
Inventors: 董建; 李林涛; 郑强胜
Original assignee: Jiaxing Vteler Electrical Technology Co ltd
Current assignee: Jiaxing Vteler Electrical Technology Co ltd
Priority date: 2020-04-14
Filing date: 2020-04-14
Publication date: 2021-04-09
Anticipated expiration: 2030-04-14

Abstract

The utility model relates to the technical field of electric massage chairs, and discloses an electric massage chair with a mechanical arm type. The bottom of the support seat is rotatably installed with a plurality of walking wheels, the side wall of the seat plate is rotatably installed with a rotating shaft, the outer side of the rotating shaft is fixedly sleeved with a rotating wheel, and the rotating wheel is fixedly installed with an inclined backing plate. A headrest is fixedly installed at the top, a fixed plate is fixedly installed on one side of the support column, a moving groove is provided on the top of the fixed plate, a moving block is slidably installed in the moving groove, and a limited hole is formed on the moving block. The utility model can move the massage chair more conveniently and flexibly through a plurality of walking wheels at the bottom of the support seat, saving a lot of manpower and time, and by adjusting the angle of the backboard, it can meet the needs of different people's back and waist, and is more comfortable and satisfies the need to use.

Description

Electric massage chair with mechanical arm

Technical Field

The utility model relates to an electronic massage armchair technical field especially relates to an electronic massage armchair with mechanical arm formula.

Background

The massage chair is used for massaging by utilizing mechanical rolling force action and mechanical force extrusion, and the manual massage can dredge channels and collaterals, circulate qi and blood and keep yin and yang balance of an organism, so that muscles can feel relaxed after massage, joints are flexible, people can be excited, fatigue is eliminated, and the massage chair has an important effect on ensuring body health. And thus is seen everywhere in daily life.

The application numbers are: 201721830353.X discloses a massage armchair with a mechanical arm, which comprises a massage armchair main body, wherein the side surface of the massage armchair main body is provided with a mechanical arm; the mechanical arm comprises a mounting seat fixedly mounted on the side face of the massage chair body, a first electric hydraulic push rod fixedly mounted on the side face of the mounting seat, a rotary base mounted at the upper end of the first electric hydraulic push rod, a second electric hydraulic push rod fixedly mounted on the side face of the rotary base and a placing seat mounted at the head of the second electric hydraulic push rod in a rolling manner. Has the advantages that: a massage armchair with mechanical arm formula pass through install additional in the massage armchair main part the arm has effectively solved the problem that traditional massage armchair can't place article, during the use moreover, only need with the hand article of taking can, need not to get up, consequently do not influence the massage, the arm can be about in addition about, rotatory, the function is abundant, easy and simple to handle, the practicality is good.

When the massage armchair is used, the angle of the backrest waist can not be adjusted mostly, the requirements of the back waist of different people can not be met, and the comfort of the massage armchair is reduced.

SUMMERY OF THE UTILITY MODEL

The utility model aims at solving the problem that the massage armchair can not adjust the angle of the backrest waist mostly when in use in the prior art, can not satisfy the needs of the back waist of different people, and reduces the comfort of the massage armchair, and provides an electric massage armchair with a mechanical arm type.

In order to achieve the above purpose, the utility model adopts the following technical scheme:

an electric massage chair with a mechanical arm comprises a seat board, wherein a support column is fixedly arranged at the bottom of the seat board, a support seat is fixedly arranged at the bottom end of the support column, a plurality of travelling wheels are rotatably arranged at the bottom of the support seat, a rotating shaft is rotatably arranged on the side wall of the seat board, a rotating wheel is fixedly sleeved at the outer side of the rotating shaft, a backup plate which is obliquely arranged is fixedly arranged on the rotating wheel, a backup pillow is fixedly arranged at the top end of the backup plate, a fixed plate is fixedly arranged at one side of the support column, a moving groove is formed in the top of the fixed plate, a moving block is slidably arranged in the moving groove, a limiting hole is formed in the moving block, a limiting rod is slidably arranged in the limiting hole, two ends of the limiting rod are respectively fixedly connected with the inner wall of one side of the corresponding moving groove, a rotating, the bottom of the rotating wheel is provided with a clamping groove, the top end of the clamping plate is clamped with the clamping groove, and the clamping plate and the clamping groove are clamped with each other to fix the backup plate.

Preferably, the locating slot has been seted up to the bottom of cardboard, and slidable mounting has the locating lever in the locating slot, and the bottom of locating lever extend to the below of cardboard and with the top fixed connection of fixed plate, the locating lever carries on spacingly to the cardboard.

Preferably, the bottom end of the clamping plate is fixedly provided with a limiting spring sleeved outside the positioning rod, the bottom end of the limiting spring is fixedly connected with the top of the fixing plate, and the limiting spring is started to limit and reset.

Preferably, one side fixed mounting that the cardboard is far away from the support column has the connecting rod, and the bottom fixed mounting of connecting rod has reset spring, and reset spring's bottom and the top fixed connection of fixed plate, the removal compression reset spring of connecting rod.

Preferably, the quantity of draw-in groove is a plurality of, and a plurality of draw-in grooves are the annular equidistance and distribute on rotating the wheel, and a plurality of draw-in grooves carry out multiposition fixed to the backup plate.

Preferably, the number of the return springs is multiple, and the return springs are distributed on one side of the connecting rod and the fixing plate close to each other at equal intervals in the vertical direction. A plurality of reset springs play spacing and effect that resets.

Compared with the prior art, the utility model provides an electronic massage armchair with mechanical arm formula possesses following beneficial effect:

1. the electric massage chair with the mechanical arm type has the advantages that the connecting rod is pulled to compress the plurality of reset springs, the plurality of reset springs absorb energy, meanwhile, the connecting rod drives the clamping plate to move, the clamping plate compresses the limiting springs, the limiting springs absorb energy, meanwhile, the limiting rod limits the moving block, the clamping plate is moved out of the clamping groove, and then the angle adjustment of the backup plate can be completed by pushing the backup plate;

2. after the electric massage chair with the mechanical arm is adjusted, the backup plate is kept still, then the connecting rod is loosened, the clamping plate is clamped into the clamping groove under the spring rebounding acting force of the limiting spring and the return spring, and the rotating wheel is fixed;

and the part that does not relate to among the device all is the same with prior art or can adopt prior art to realize, the utility model discloses a plurality of walking wheels of supporting seat bottom can make things convenient for nimble removal massage armchair more, practices thrift a large amount of manpowers and time, and through the angle of adjusting the backup plate, can satisfy the needs of different people's back waist, and is more comfortable, has satisfied the needs that use.

Drawings

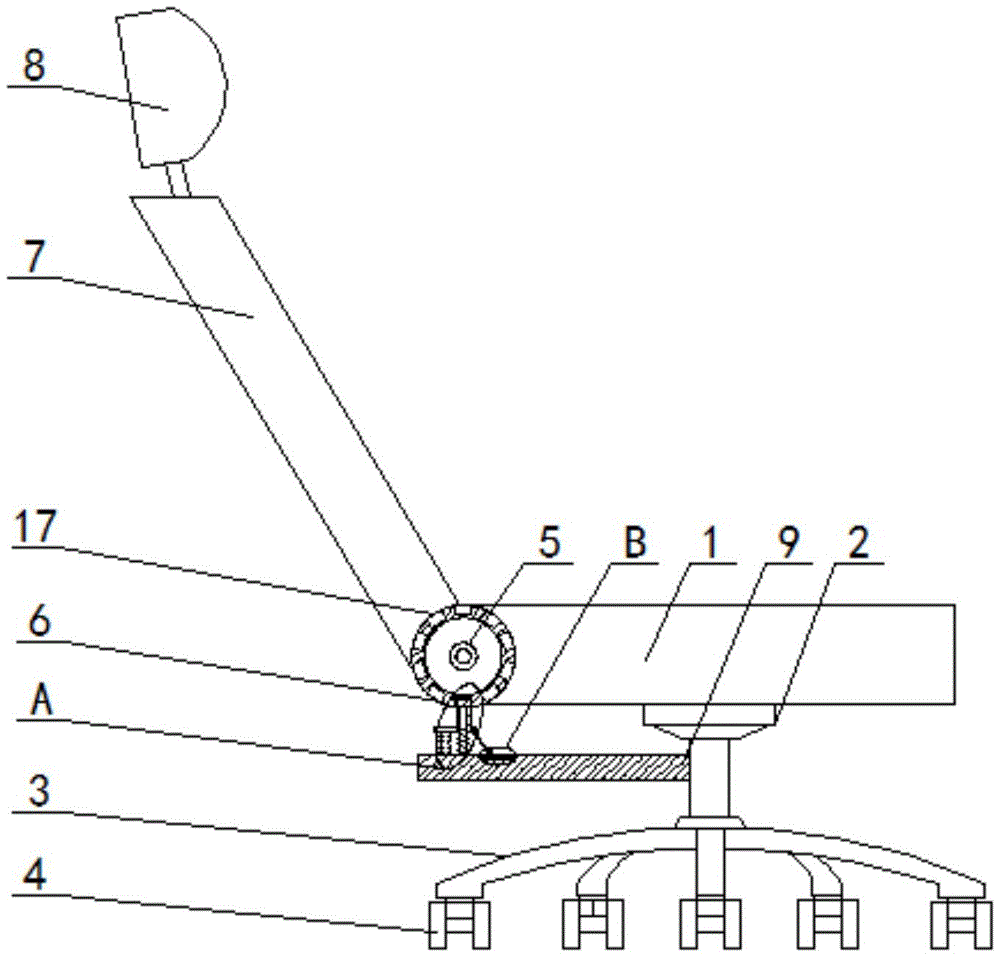

Fig. 1 is a schematic view of a front view structure of an electric massage chair with a mechanical arm;

fig. 2 is a schematic structural view of a portion a of an electric massage chair with a mechanical arm according to the present invention;

fig. 3 is a schematic structural diagram of a part B of an electric massage chair with a mechanical arm of the present invention.

In the figure: the device comprises a seat plate 1, a support column 2, a support base 3, a seat plate 4, a rotating shaft 5, a rotating wheel 6, a backup plate 7, a backup pillow 8, a fixing plate 9, a moving groove 10, a moving block 11, a limiting hole 12, a limiting rod 13, a rotating plate 14, a rotating base 15, a clamping plate 16, a clamping groove 17, a positioning groove 18, a positioning rod 19, a limiting spring 20, a connecting rod 21 and a return spring 22.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments.

In the description of the present invention, it is to be understood that the terms "upper", "lower", "front", "rear", "left", "right", "top", "bottom", "inner", "outer", and the like indicate orientations or positional relationships based on the orientations or positional relationships shown in the drawings, and are only for convenience of description and simplicity of description, and do not indicate or imply that the device or element being referred to must have a particular orientation, be constructed and operated in a particular orientation, and therefore, should not be construed as limiting the present invention.

Referring to fig. 1-3, an electric massage chair with a mechanical arm comprises a seat plate 1, a support pillar 2 is fixedly installed at the bottom of the seat plate 1, a support seat 3 is fixedly installed at the bottom end of the support pillar 2, a plurality of traveling wheels 4 are rotatably installed at the bottom of the support seat 3, a rotating shaft 5 is rotatably installed on the side wall of the seat plate 1, a rotating wheel 6 is fixedly sleeved on the outer side of the rotating shaft 5, a backup plate 7 which is obliquely arranged is fixedly installed on the rotating wheel 6, a backup pillow 8 is fixedly installed at the top end of the backup plate 7, a fixed plate 9 is fixedly installed at one side of the support pillar 2, a moving groove 10 is formed at the top of the fixed plate 9, a moving block 11 is slidably installed in the moving groove 10, a limit hole 12 is formed in the moving block 11, a limit rod 13 is slidably installed in the limit hole 12, both ends of the limit rod 13, one end of the rotating plate 14, which is far away from the moving block 11, is rotatably provided with a rotating seat 15, one side of the rotating seat 15 is fixedly provided with a clamping plate 16, the bottom of the rotating wheel 6 is provided with a clamping groove 17, the top end of the clamping plate 16 is clamped with the clamping groove 17, and the clamping plate 16 and the clamping groove 17 are clamped to fix the backup plate 7.

The utility model discloses in, constant head tank 18 has been seted up to cardboard 16's bottom, and slidable mounting has locating lever 19 in the constant head tank 18, and locating lever 19's bottom extend to cardboard 16 the below and with the top fixed connection of fixed plate 9, locating lever 19 carries on spacingly to cardboard 16.

The utility model discloses in, the bottom fixed mounting of cardboard 16 establishes the spacing spring 20 in the locating lever 19 outside, and spacing spring 20's bottom and the top fixed connection of fixed plate 9, spacing spring 20 start spacing and the effect that resets.

Preferably, a connecting rod 21 is fixedly mounted on one side of the clamping plate 16, which is far away from the supporting column 2, a return spring 22 is fixedly mounted at the bottom end of the connecting rod 21, the bottom end of the return spring 22 is fixedly connected with the top of the fixing plate 9, and the return spring 22 is compressed by the movement of the connecting rod 21.

The utility model discloses in, the quantity of draw-in groove 17 is a plurality ofly, and a plurality of draw-in grooves 17 are the annular equidistance and distribute on rotating wheel 6, and a plurality of draw-in grooves 17 carry out multiposition fixed to backup plate 7.

The utility model discloses in, reset spring 22's quantity is a plurality of, and a plurality of reset spring 22 are vertical direction equidistance and distribute in the one side that connecting rod 21 and fixed plate 9 are close to each other. The plurality of return springs 22 function as a limit and return.

In the utility model, when in use, the connecting rod 21 is pulled, the connecting rod 21 compresses the plurality of reset springs 22, the plurality of reset springs 22 absorb energy, simultaneously, the connecting rod 21 drives the clamping plate 16 to move, the clamping plate 16 compresses the limiting spring 20, the limiting spring 20 absorbs energy, simultaneously, the clamping plate 16 drives the rotating seat 15 to move, the rotating seat 15 drives the rotating plate 14 to move, the rotating plate 14 drives the moving block 11 to move, the limiting rod 13 limits the moving block 11, the clamping plate 16 is moved out of the clamping groove 17, then the backup plate 7 is pushed to complete the angle adjustment of the backup plate 7, after the adjustment, the backup plate 7 is kept still, then the connecting rod 21 is loosened, under the spring acting force of the limiting spring 20 and the reset spring 22, the clamping plate 16 is clamped into the clamping groove 17, the rotating wheel 6 is fixed, the utility model discloses a plurality of traveling wheels 4 at the bottom of the supporting seat 3, the mobile massage armchair which can be more convenient and flexible saves a large amount of manpower and time, can meet the needs of the back and the waist of different people by adjusting the angle of the backup plate 7, is more comfortable, and meets the needs of use.

The above, only be the concrete implementation of the preferred embodiment of the present invention, but the protection scope of the present invention is not limited thereto, and any person skilled in the art is in the technical scope of the present invention, according to the technical solution of the present invention and the utility model, the concept of which is equivalent to replace or change, should be covered within the protection scope of the present invention.

Claims

1. An electric massage chair with a mechanical arm type comprises a seat board (1) and is characterized in that a support column (2) is fixedly installed at the bottom of the seat board (1), a support seat (3) is fixedly installed at the bottom end of the support column (2), a plurality of travelling wheels (4) are rotatably installed at the bottom of the support seat (3), a rotating shaft (5) is rotatably installed on the side wall of the seat board (1), a rotating wheel (6) is fixedly sleeved on the outer side of the rotating shaft (5), a backup plate (7) which is obliquely arranged is fixedly installed on the rotating wheel (6), a backup pillow (8) is fixedly installed at the top end of the backup plate (7), a fixed plate (9) is fixedly installed at one side of the support column (2), a moving groove (10) is formed in the top of the fixed plate (9), a moving block (11) is slidably installed in the moving groove (10), a limiting hole (12) is formed in, and the both ends of gag lever post (13) respectively with one side inner wall fixed connection of corresponding shifting chute (10), rotate on movable block (11) and install rotor plate (14) that the slope set up, the one end that the movable block (11) was kept away from in rotor plate (14) rotates and installs and rotate seat (15), one side fixed mounting who rotates seat (15) has cardboard (16), draw-in groove (17) have been seted up to the bottom of rotating wheel (6), and the top and draw-in groove (17) of cardboard (16) clamp mutually.

2. The electric massage chair with mechanical arm as claimed in claim 1, wherein the bottom end of the clamping plate (16) is provided with a positioning slot (18), a positioning rod (19) is slidably mounted in the positioning slot (18), and the bottom end of the positioning rod (19) extends below the clamping plate (16) and is fixedly connected with the top of the fixing plate (9).

3. The electric massage chair with mechanical arm as claimed in claim 1, wherein the bottom end of the catch plate (16) is fixedly mounted with a limiting spring (20) sleeved on the outside of the positioning rod (19), and the bottom end of the limiting spring (20) is fixedly connected with the top of the fixing plate (9).

4. The electric massage chair with mechanical arm type as claimed in claim 1, wherein a connecting rod (21) is fixedly mounted on a side of the catch plate (16) away from the supporting column (2), a return spring (22) is fixedly mounted at a bottom end of the connecting rod (21), and a bottom end of the return spring (22) is fixedly connected with a top portion of the fixing plate (9).

5. The electric massage chair with mechanical arm type as claimed in claim 1, wherein the number of the locking slots (17) is plural, and the plural locking slots (17) are distributed on the rotary wheel (6) in a ring shape at equal intervals.

6. The electric massage chair with mechanical arm type as claimed in claim 4, wherein the number of the return springs (22) is plural, and the plural return springs (22) are vertically distributed at equal intervals on the side where the connecting rod (21) and the fixing plate (9) are close to each other.
