CN212888614U

CN212888614U - Injection molding machine with quick cooling function

Info

Publication number: CN212888614U
Application number: CN202021698702.9U
Authority: CN
Inventors: 刘桂平; 潘金贵; 刘世顺
Original assignee: Angelo Guangdong Technology Co ltd
Current assignee: Angelo Guangdong Technology Co ltd
Priority date: 2020-08-14
Filing date: 2020-08-14
Publication date: 2021-04-06
Anticipated expiration: 2030-08-14

Abstract

The utility model discloses an injection molding machine with quick cooling function, including landing leg and mounting panel, the landing leg upper end is fixed with the workstation, and installs the support column on the workstation, the mounting panel is fixed in the support column upper end, and mounting panel upper end mid-mounting has the motor, the motor lower extreme is connected with the screw lead screw, and installs the stirring rod in the screw lead screw outside, the stirring rod outside distributes and has the section of thick bamboo of moulding plastics, and moulds plastics a section of thick bamboo upside and install the feed inlet, the inboard laminating of a section of thick bamboo of moulding plastics has the heating wire, and the laminating of a section of thick bamboo outer wall of moulding plastics has the limiting plate, the limiting plate. This injection molding machine with quick cooling function is provided with the limiting plate, and the limiting plate coincides with the vertical axis of a section of thick bamboo of moulding plastics, and a section of thick bamboo of moulding plastics plays spacing effect at the bottom of the setting of limiting plate, can reduce the device operation, and the vibration that a section of thick bamboo produced of moulding plastics avoids moulding plastics the fastness of being connected between a section of thick bamboo and the mould, extension device's life.

Description

Injection molding machine with quick cooling function

Technical Field

The utility model relates to an injection molding machine technical field specifically is an injection molding machine with quick cooling function.

Background

An injection molding machine is also known as an injection molding machine or an injection machine. It is a main forming equipment for making various shaped plastic products from thermoplastic plastics or thermosetting plastics by using plastic forming mould. The device is divided into a vertical type, a horizontal type and a full-electric type. The injection molding machine can heat the plastic, apply high pressure to the molten plastic, and inject it to fill the mold cavity.

When an injection molding machine on the market is used, an injection molding device is not provided with a quick cooling structure, the production quality and the production efficiency of products are affected, vibration and noise are large in the running process of the injection molding machine, the operation environment of a user is poor, and therefore the injection molding machine with the quick cooling function is provided.

SUMMERY OF THE UTILITY MODEL

An object of the utility model is to provide an injection molding machine with quick cooling function to the device of moulding plastics that proposes in solving above-mentioned background does not set up quick cooling structure, influences the production quality and the production efficiency of product, and the device operation in-process, vibration and noise are great, the relatively poor problem of user operational environment.

In order to achieve the above object, the utility model provides a following technical scheme: the utility model provides an injection molding machine with quick cooling function, includes landing leg and mounting panel, the landing leg upper end is fixed with the workstation, and installs the support column on the workstation, the mounting panel is fixed in the support column upper end, and mounting panel upper end mid-mounting has the motor, the motor lower extreme is connected with the screw lead screw, and installs the stirring rod outside the screw lead screw, the stirring rod outside distributes and has a section of thick bamboo of moulding plastics, and moulds plastics a section of thick bamboo upside and install the feed inlet, the inboard laminating of section of thick bamboo of moulding plastics has the heating wire, and moulds plastics a section of thick bamboo outer wall laminating and have a limiting plate, the limiting plate both sides are provided with the fixed plate, a section of thick bamboo lower extreme of moulding plastics is connected with the mould, and the distribution in the mould.

Preferably, the supporting legs are symmetrically distributed about a vertical central axis of the workbench, and the supporting legs and the workbench are vertically distributed.

Preferably, the mounting plate coincides with the vertical central axis of the motor, and the motor is in key connection with the threaded screw rod.

Preferably, an integrated structure is formed between the threaded screw rod and the stirring rod, and the stirring rod forms a rotating structure with the motor through the threaded screw rod.

Preferably, the inner wall of the limiting plate is tightly attached to the outer wall of the injection molding barrel, and the limiting plate coincides with the vertical central axis of the injection molding barrel.

Preferably, the pipe clamp forms a lifting structure through the supporting rod, and the cold water pipe is fixedly connected with the pipe clamp.

Compared with the prior art, the beneficial effects of the utility model are that: this injection molding machine with quick cooling function is provided with the limiting plate, and the limiting plate coincides with the vertical axis of a section of thick bamboo of moulding plastics, and the setting of limiting plate plays spacing effect to a section of thick bamboo of moulding plastics, can reduce the device operation, and the vibration that a section of thick bamboo produced of moulding plastics avoids moulding plastics the fastness of being connected between a section of thick bamboo and the mould, extension device's life.

For fixed connection between cold water pipe and the pipe strap, the setting of cold water pipe lets the user let in cold water to the cold water intraductal to spray to the mould on, thereby make the mould cool down the cooling rapidly, guarantee the quality of product, improve the production efficiency of product.

For the key-type connection between motor and the screw lead screw, the setting of this structure for the structure is more stable, constitutes detachable construction between motor and the screw lead screw, and the person of facilitating the use carries out equipment disassembly to the device, and behind the user starter motor, the motor drives the screw lead screw rotatory, and the screw lead screw can be with the ground paste propelling movement to the below of a section of thick bamboo of moulding plastics when rotatory, and inside the injection mold, simple structure, person of facilitating the use's operation.

Drawings

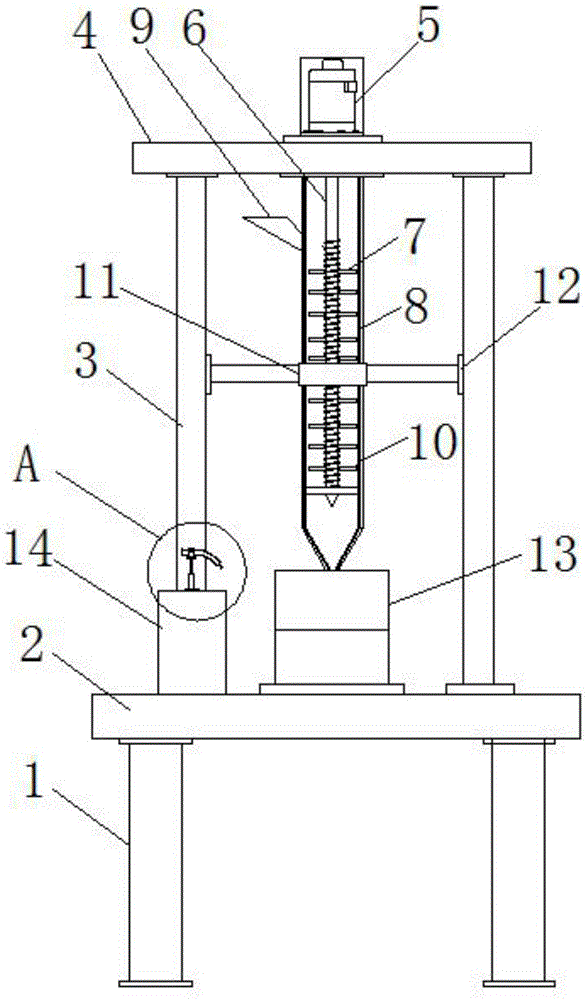

FIG. 1 is a schematic front view of the present invention;

fig. 2 is a schematic view of a downward structure of the limiting plate of the present invention;

fig. 3 is an enlarged schematic view of a portion a in fig. 1 according to the present invention.

In the figure: 1. a support leg; 2. a work table; 3. a support pillar; 4. mounting a plate; 5. a motor; 6. a threaded lead screw; 7. a stirring rod; 8. an injection molding barrel; 9. a feed inlet; 10. an electric heating wire; 11. a limiting plate; 12. a fixing plate; 13. a mold; 14. a fixed table; 15. a support bar; 16. a pipe clamp; 17. a cold water pipe.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.

Referring to fig. 1-3, the present invention provides a technical solution: an injection molding machine with a rapid cooling function comprises supporting legs 1, a workbench 2, supporting columns 3, a mounting plate 4, a motor 5, a threaded screw rod 6, a stirring rod 7, an injection molding barrel 8, a feeding hole 9, heating wires 10, a limiting plate 11, a fixing plate 12, a mold 13, a fixing table 14, a supporting rod 15, a pipe clamp 16 and a cold water pipe 17, wherein the workbench 2 is fixed at the upper end of each supporting leg 1, the supporting columns 3 are mounted at the upper end of the workbench 2, the supporting legs 1 are symmetrically distributed about the vertical central axis of the workbench 2, and the supporting legs 1 and the workbench 2 are vertically distributed;

the mounting plate 4 is fixed at the upper end of the support column 3, the motor 5 is installed in the middle of the upper end of the mounting plate 4, the lower end of the motor 5 is connected with the threaded screw 6, the stirring rod 7 is installed outside the threaded screw 6, the mounting plate 4 is overlapped with the vertical central axis of the motor 5, and the motor 5 is in key connection with the threaded screw 6, the structure is more stable, a detachable structure is formed between the motor 5 and the threaded screw 6, a user can conveniently assemble and disassemble the device, after the user starts the motor 5, the motor 5 drives the threaded screw 6 to rotate, when the threaded screw 6 rotates, slurry can be pushed to the lower part of the injection molding barrel 8 and injected into the mold 13, the structure is simple, and the operation of the user is convenient;

an injection cylinder 8 is distributed on the outer side of the stirring rod 7, a feed inlet 9 is arranged on the upper side of the injection cylinder 8, the threaded screw rod 6 and the stirring rod 7 are of an integrated structure, the stirring rod 7 forms a rotating structure with the motor 5 through the threaded screw rod 6, and the stirring rod 7 can prevent slurry from being solidified in the injection process and enhance the fluidity of the slurry, so that the slurry can smoothly flow into the mold 13, and the smooth injection operation is ensured;

the inner side of the injection molding barrel 8 is attached with the heating wire 10, the outer wall of the injection molding barrel 8 is attached with the limiting plate 11, the fixing plates 12 are arranged on two sides of the limiting plate 11, the inner wall of the limiting plate 11 is closely attached to the outer wall of the injection molding barrel 8, the limiting plate 11 is overlapped with the vertical central axis of the injection molding barrel 8, the injection molding barrel 8 at the bottom of the limiting plate 11 plays a limiting role, vibration generated by the injection molding barrel 8 during operation of the device can be reduced, firmness of connection between the injection molding barrel 8 and the mold 13 is avoided, and the service life of the device;

8 lower extremes of section of thick bamboo of moulding plastics are connected with mould 13, and mould 13 left side distribution has fixed

station

14, 14 upper ends of fixed station are fixed with

bracing piece

15, and 15 upper ends of bracing piece are connected with

pipe strap

16, 16 middle parts of pipe strap run through there is cold water pipe 17, pipe strap 16 passes through bracing piece 15 and constitutes elevation structure, and be fixed connection between cold water pipe 17 and the pipe strap 16, the setting of cold water pipe 17, let the user let in cold water pipe 17 in to the cold water pipe 17, and spray to mould 13 on, thereby make mould 13 cool down the cooling rapidly, guarantee the quality of product, the production efficiency of product is improved.

The working principle is as follows: for the injection molding machine with the rapid cooling function, a user firstly adds slurry into the injection molding barrel 8 through the feed inlet 9, the motor 5 is started, the motor 5 drives the threaded screw rod 6 to rotate, the threaded screw rod 6 can push the slurry to the lower part of the injection molding barrel 8 when rotating and inject the slurry into the mold 13, the structure is simple, the operation of the user is convenient, the stirring rod 7 forms a rotating structure through the threaded screw rod 6 and the motor 5, the arrangement of the stirring rod 7 can avoid the slurry from being solidified in the injection molding process, the fluidity of the slurry is enhanced, so that the slurry smoothly flows into the mold 13, the smooth injection molding operation is ensured, the limiting plate 11 is superposed with the vertical central axis of the injection molding barrel 8, the injection molding barrel 8 at the bottom of the limiting plate 11 plays a limiting role, the vibration generated by the injection molding barrel 8 during the operation of the device can be reduced, and the firmness of connection between the injection molding barrel 8 and the, extension fixture's life, heating wire 10's setting, can guarantee to mould plastics and have a certain temperature in a section of thick bamboo 8, further guarantee the mobility of ground paste, prevent that the ground paste from solidifying, pipe strap 16 passes through bracing piece 15 and constitutes elevation structure, and be fixed connection between cold water pipe 17 and the pipe strap 16, cold water pipe 17's setting, let the user let in cold water pipe 17 in to cold water pipe, and spray to mould 13 on, thereby make mould 13 cool down the cooling rapidly, guarantee the quality of product, and the production efficiency of product is improved.

Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.

Claims

1. The utility model provides an injection molding machine with quick cooling function, includes landing leg (1) and mounting panel (4), its characterized in that: the supporting leg structure is characterized in that a workbench (2) is fixed to the upper end of the supporting leg (1), a supporting column (3) is installed on the upper end of the workbench (2), the mounting plate (4) is fixed to the upper end of the supporting column (3), a motor (5) is installed in the middle of the upper end of the mounting plate (4), the lower end of the motor (5) is connected with a threaded lead screw (6), a stirring rod (7) is installed on the outer side of the threaded lead screw (6), an injection molding cylinder (8) is distributed on the outer side of the stirring rod (7), a feeding port (9) is installed on the upper side of the injection molding cylinder (8), a heating wire (10) is laminated on the inner side of the injection molding cylinder (8), a limiting plate (11) is laminated on the outer wall of the injection molding cylinder (8), fixing plates (12) are arranged on two sides of the limiting plate (11), a mold (13), and the upper end of the supporting rod (15) is connected with a pipe clamp (16), and a cold water pipe (17) penetrates through the middle part of the pipe clamp (16).

2. An injection molding machine having a rapid cooling function according to claim 1, characterized in that: landing leg (1) is the symmetric distribution about the vertical axis of workstation (2), and is the vertical form between landing leg (1) and workstation (2) and distributes.

3. An injection molding machine having a rapid cooling function according to claim 1, characterized in that: the mounting plate (4) coincides with the vertical central axis of the motor (5), and the motor (5) is in key connection with the threaded screw rod (6).

4. An injection molding machine having a rapid cooling function according to claim 1, characterized in that: the screw thread lead screw (6) and the stirring rod (7) are of an integrated structure, and the stirring rod (7) forms a rotating structure with the motor (5) through the screw thread lead screw (6).

5. An injection molding machine having a rapid cooling function according to claim 1, characterized in that: the inner wall of the limiting plate (11) is tightly attached to the outer wall of the injection molding barrel (8), and the limiting plate (11) is overlapped with the vertical central axis of the injection molding barrel (8).

6. An injection molding machine having a rapid cooling function according to claim 1, characterized in that: the pipe clamp (16) forms a lifting structure through the supporting rod (15), and the cold water pipe (17) is fixedly connected with the pipe clamp (16).
