CN212876818U - Adjustable hedge trimmer is used in afforestation

Info

Publication number: CN212876818U
Application number: CN202021815044.7U
Authority: CN
Inventors: 张玉
Original assignee: Individual
Current assignee: Individual
Priority date: 2020-08-27
Filing date: 2020-08-27
Publication date: 2021-04-06
Anticipated expiration: 2030-08-27

Abstract

The utility model discloses an afforestation technical field, an adjustable hedge trimmer is used in afforestation, including handheld handle, the right-hand member spiro union of handheld handle has flexible outer pole, the hemisphere hole has been seted up on the surface of flexible outer pole, flexible inner pole has been cup jointed in the inner chamber activity of flexible outer pole, the right-hand member and the screw thread cuff spiro union of pole in stretching out and drawing back, the right-hand member fixedly connected with connecting block of screw thread cuff, the mounting plate is installed to the bottom of connecting block, the mounting plate with be connected the down tube activity and cup joint, the right-hand member fixedly connected with drive box of connecting the down tube, the inside fixed mounting of drive box has micro motor, the right side wall of drive box runs through there is the blade, the inside that the blade extends to the drive box is connected with micro motor's output. The utility model provides a novel hedge trimmer of scalable regulation, angle modulation, dismouting has the advantage of being convenient for deposit, easily carrying when satisfying specific work needs.

Description

Adjustable hedge trimmer is used in afforestation

Technical Field

The utility model relates to a garden technology field specifically is an adjustable hedge trimmer is used in afforestation.

Background

The development of society is not independent of the coordination of nature, water, sunlight, air and green plants play very important roles, along with the rapid development of social economy, city expansion, the urbanization of villages and towns is intensified, city buildings and streets are widened, large original green plants are damaged, due to the recent air pollution, the afforestation is more and more attractive, the urban landscaping is on the rise, various shapes of green cypresses which are trimmed can be seen anywhere in the greenbelts of the middle and middle urban parks, the trimming hedges are used for beautifying the living environment of people, the urban beautification and the taste are improved, more and more important functions are achieved, more and more hedge trimmers are applied to the hedge trimming, the workload of urban environment workers can be reduced, the working efficiency is improved, along with the development of economy, the technological progress is continuous, and more hedge trimmer functions are achieved, present gardens hedge trimmer is mostly fixed knot structure, has certain degree of difficulty to the pruning of eminence and low department hedge, and, fixed knot structure's hedge trimmer exists the shortcoming that occupies space and be difficult for carrying, for this reason, we provide an adjustable hedge trimmer for afforestation.

SUMMERY OF THE UTILITY MODEL

An object of the utility model is to provide an adjustable hedge trimmer is used in afforestation to solve the problem that proposes among the above-mentioned background art.

In order to achieve the above object, the utility model provides a following technical scheme: an adjustable hedge trimmer for landscaping comprises a hand-held handle, wherein a telescopic outer rod is screwed at the right end of the hand-held handle, a hemispherical hole is formed in the surface of the telescopic outer rod, a telescopic inner rod is movably sleeved in an inner cavity of the telescopic outer rod, a movable groove is formed in the left end of the telescopic inner rod, an adjusting spring is movably installed in the movable groove, a limiting rod is movably installed at the top end of the adjusting spring, the limiting rod penetrates through the top wall of the telescopic outer rod and extends to the outside of the telescopic outer rod, the right end of the telescopic inner rod is in threaded connection with a threaded sleeve opening, a connecting block is fixedly connected with the right end of the threaded sleeve opening, a fastening plate is installed at the bottom of the connecting block and is movably sleeved with a connecting inclined rod, a driving box is fixedly connected with the right end of the connecting inclined rod, a micro motor is fixedly installed in the driving box, and a blade penetrates through the right side, the blade extends to the interior of the driving box and is connected with the output end of the micro motor.

Preferably, movable mounting has push switch on the handheld handle, the bottom fixedly connected with battery compartment of handheld handle, the internally mounted of battery compartment has the lithium cell, power source has been seted up to the bottom in battery compartment, power source passes through wire and battery compartment and micro motor electric connection.

Preferably, a threaded hole is formed in the right side wall of the handheld grip, a threaded hole is formed in the left end of the telescopic outer rod, and a threaded hole is formed in the right end of the telescopic inner rod.

Preferably, the mounting plate has upper and lower two symmetric distributions, below and connecting block be fixed connection, the top pass through sliding tray swing joint with the connecting block.

Preferably, the fastening plate is provided with a through hole, the left end of the connecting inclined rod is provided with a through hole, the fastening plate and the connecting inclined rod are movably sleeved through a screw rod, and two ends of the screw rod are screwed with fastening knobs.

Compared with the prior art, the beneficial effects of the utility model are that: the utility model has reasonable structural design, can realize the extension and the shortening of the whole hedge trimmer through the movable sleeve joint of the telescopic inner and outer rods and the arrangement of the hemispherical hole, the movable groove, the adjusting spring and the limiting rod, and provides conditions for the trimming work of higher or lower hedges in the actual work; the angle adjustment of the blade and the folding of the whole machine can be realized through the movable combination connection of the fastening plate, the fastening knob and the connecting inclined rod, and convenience is provided for the actual working requirement and the storage of the hedge trimmer; the disassembly of the hedge trimmer is realized through the screw connection of the telescopic rod, the connecting block and the handle, and the trimming and carrying are convenient; through the combination of storage battery power supply and power supply, the work demand under the power source condition of lacking is solved. The utility model discloses a can realize dismantling the flexible, angle modulation, folding of hedge trimmer, facilitate for the afforestation pruning of reality, be worth extensively promoting.

Drawings

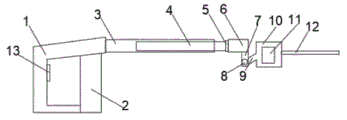

FIG. 1 is a front view of the overall structure of the present invention;

FIG. 2 is an appearance diagram of the overall structure of the present invention;

fig. 3 is a schematic view of the structure of the telescopic inner and outer rods of the present invention.

In the figure: 1. a hand-held grip; 2. a battery compartment; 3. a telescopic outer rod; 4. a telescopic inner rod; 5. threading a sleeve opening; 6. connecting blocks; 7. a fastening plate; 8. fastening a knob; 9. connecting the inclined rod; 10. a drive cartridge; 11. a micro motor; 12. a blade; 13. a push switch; 14. a power interface; 15. a hemispherical hole; 16. a movable groove; 17. adjusting the spring; 18. a limiting rod.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.

Referring to fig. 1-3, the present invention provides a technical solution: an adjustable hedge trimmer for landscaping comprises a hand-held handle 1, a telescopic outer rod 3 is screwed at the right end of the hand-held handle 1, a hemispherical hole 15 is formed in the surface of the telescopic outer rod 3, a telescopic inner rod 4 is movably sleeved in an inner cavity of the telescopic outer rod 3, a movable groove 16 is formed in the left end of the telescopic inner rod 4, an adjusting spring 17 is movably installed in the movable groove 16, a limiting rod 18 is movably installed at the top end of the adjusting spring 17, the limiting rod 18 penetrates through the top wall of the telescopic outer rod 3 and extends to the outside of the telescopic outer rod 3, the right end of the telescopic inner rod 4 is screwed with a threaded sleeve opening 5, a connecting block 6 is fixedly connected with the right end of the threaded sleeve opening 5, a fastening plate 7 is installed at the bottom of the connecting block 6, the fastening plate 7 is movably sleeved with a connecting inclined rod 9, a driving box 10 is fixedly connected with the right end of the connecting inclined rod 9, a micro motor 11 is fixedly installed in the, the blade 12 extends to the interior of the drive box 10 and is connected with the output end of the micro motor 11.

A press switch 13 is movably mounted on the handheld grip 1, the bottom of the handheld grip 1 is fixedly connected with a battery cabin 2, a lithium battery is mounted inside the battery cabin 2, a power interface 14 is arranged at the bottom of the battery cabin 2, and the power interface 14 is electrically connected with the battery cabin 2 and the micro motor 11 through a lead;

a threaded hole is formed in the right side wall of the handheld grip 1, a threaded hole is formed in the left end of the telescopic outer rod 3, and a threaded hole is formed in the right end of the telescopic inner rod 4;

the fastening plate 7 is symmetrically distributed up and down, the lower part of the fastening plate is fixedly connected with the connecting block 6, and the upper part of the fastening plate is movably connected with the connecting block 6 through a sliding groove;

the through-hole has been seted up on the mounting plate 7, and the through-hole has been seted up to the left end of connecting down tube 9, and mounting plate 7 cup joints through the screw rod activity with connecting down tube 9, and the both ends spiro union of screw rod has fastening knob 8.

The working principle is as follows: when the novel hedge trimmer works, a power supply is firstly switched on through the power interface 14, the power supply can charge a storage battery in the battery cabin 2 while supplying power to the whole device, then the hand-held handle 1 is held by one hand, the telescopic outer rod 3 is held by the other hand, and the press switch 13 is pressed to drive the micro motor 11 to work, so that the blade 12 rotates to work; when the telescopic motion needs to be adjusted, the top end of a limiting rod 18 on the telescopic outer rod 3 is pressed down to be adjusted, and after the required length is reached, the limiting rod 18 extends out of the hemispherical hole 15 to be fixed under the action of an adjusting spring 17; when the angle of the blade 12 needs to be adjusted, the fastening knob 8 only needs to be unscrewed, the connecting inclined rod 9 is adjusted, and after the required angle is reached, the fastening knob 8 is screwed down to complete angle adjustment; when the hedge trimmer is disassembled and assembled, the telescopic rod of the screw joint can be screwed up and unscrewed with the handheld grip 1 and the threaded sleeve opening 5. Through the movable sleeve joint of the telescopic inner and outer rods and the arrangement of the hemispherical hole 15, the movable groove 16, the adjusting spring 17 and the limiting rod 18, the whole hedge trimmer can be extended and shortened, and conditions are provided for higher or lower hedge trimming work in actual work; the angle adjustment of the blade 12 and the folding of the whole machine can be realized through the movable combination connection of the fastening plate 7, the fastening knob 8 and the connecting inclined rod 9, thereby providing convenience for the actual working requirement and the storage of the hedge trimmer; the disassembly of the hedge trimmer is realized through the screw connection of the telescopic rod, the connecting block 6 and the hand-held handle 1, and the trimming and carrying are convenient; through the combination of storage battery power supply and power supply, the work demand under the power source condition of lacking is solved.

Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.

Claims

1. The utility model provides an adjustable hedge trimmer is used in afforestation, includes handheld handle (1), its characterized in that: the handle is characterized in that a telescopic outer rod (3) is connected to the right end of the handheld handle (1) in a threaded manner, a hemispherical hole (15) is formed in the surface of the telescopic outer rod (3), a telescopic inner rod (4) is sleeved on the inner cavity of the telescopic outer rod (3) in a movable manner, a movable groove (16) is formed in the left end of the telescopic inner rod (4), an adjusting spring (17) is movably mounted inside the movable groove (16), a limiting rod (18) is movably mounted at the top end of the adjusting spring (17), the limiting rod (18) penetrates through the top wall of the telescopic outer rod (3) and extends to the outside of the telescopic outer rod (3), the right end of the telescopic inner rod (4) is in threaded connection with a threaded sleeve opening (5), a connecting block (6) is fixedly connected to the right end of the threaded sleeve opening (5), a fastening plate (7) is mounted at the bottom of the connecting block (6), and the fastening plate (, the right-hand member fixedly connected with drive box (10) of connecting down tube (9), the inside fixed mounting of drive box (10) has micro motor (11), the right side wall of drive box (10) has run through blade (12), blade (12) extend to the inside of drive box (10) and are connected with micro motor's (11) output.

2. An adjustable hedge trimmer for landscaping in accordance with claim 1, further comprising: movable mounting has press switch (13) on handheld handle (1), the bottom fixedly connected with battery compartment (2) of handheld handle (1), the internally mounted of battery compartment (2) has the lithium cell, power source (14) have been seted up to the bottom of battery compartment (2), power source (14) pass through wire and battery compartment (2) and micro motor (11) electric connection.

3. An adjustable hedge trimmer for landscaping in accordance with claim 1, further comprising: the right side wall of the handheld grip (1) is provided with a threaded hole, the left end of the telescopic outer rod (3) is provided with a threaded hole, and the right end of the telescopic inner rod (4) is provided with a threaded hole.

4. An adjustable hedge trimmer for landscaping in accordance with claim 1, further comprising: the fastening plate (7) is symmetrically distributed up and down, the lower part of the fastening plate is fixedly connected with the connecting block (6), and the upper part of the fastening plate is movably connected with the connecting block (6) through a sliding groove.

5. An adjustable hedge trimmer for landscaping in accordance with claim 1, further comprising: the fastening plate (7) is provided with a through hole, the left end of the connecting inclined rod (9) is provided with a through hole, the fastening plate (7) and the connecting inclined rod (9) are movably sleeved through a screw rod, and the two ends of the screw rod are connected with fastening knobs (8) in a threaded manner.
