Abstract
The utility model belongs to the technical field of furniture equipment and specifically relates to a combination intelligence sofa is related to, and it includes the base, the both ends of base upper surface are provided with the handrail respectively, two be provided with between the handrail and be located the back board of base one side, the lower surface of base is provided with the holding tank, just the base is kept away from the side of back board with the lateral wall of holding tank is linked together, be provided with the bed board in the holding tank, the bed board is released or is retracted through the drive structure in the holding tank, one of them the handrail hand is provided with and is used for control the control panel that the drive structure was opened and close, the bed board is kept away from be provided with a plurality of supporting wheel on the. The sofa has the effect that a user feels comfortable when sleeping on the sofa.
Description
Technical Field
The application relates to the field of furniture equipment, in particular to a combined intelligent sofa.
Background
The intelligent furniture is based on modern fashion furniture, and skillfully integrates combined intelligence, electronic intelligence, mechanical intelligence and Internet of things intelligence into furniture products, so that the furniture is intelligentized, internationalized and fashionable, the home life is more convenient and comfortable, the intelligent furniture is an important component of a new and precious life style, and the intelligent furniture is a development trend and trend of future international furniture. The intelligent combination of the intelligent furniture products breaks through the combination mode of the traditional furniture, the subjective creativity (DIY) of users is fully exerted, the appearance size and the combination mode are not calculated by furniture manufacturers any more, but the users freely combine and freely match according to personal preferences and the actual situation of family space.
At present, the intelligent furniture not only influences the living ecology of people, but also changes the living style of people. In the next 5 years, intelligent furniture will be popularized in more than 80% of the world, and China will undoubtedly become a main battlefield for international companies to compete for intelligent furniture. The sofa is a multi-seat chair with cushions. The back-rest chair with spring or thick foamed plastic has armrests on two sides and is one kind of soft furniture.
In view of the above-mentioned related technologies, the inventor thinks that there are defects that the bed is not enough when there are many family members, and the general sofa is too soft to be used for sleeping.
SUMMERY OF THE UTILITY MODEL
In order to make a user feel comfortable when using the sofa to sleep, the application provides a combined intelligent sofa.
The application provides a combination intelligence sofa adopts following technical scheme:
the utility model provides a combination intelligence sofa, includes the base, the both ends of base upper surface are provided with the handrail respectively, two be provided with between the handrail and be located the back board of base one side, the lower surface of base is provided with the holding tank, just the base is kept away from the side of back board with the lateral wall of holding tank is linked together, be provided with the bed board in the holding tank, the bed board is released or is retracted through the drive structure in the holding tank, one of them handrail hand is provided with and is used for control the control panel that the drive structure was opened and close, the bed board is kept away from be provided with a plurality of supporting wheel on the side of holding tank.
By adopting the technical scheme, when the bed board needs to be used, the driving structure is started through the control panel, the driving structure pushes the bed board to move outwards, the supporting wheel contacts the ground and processes a bed board provider in the moving process until the bed board is pushed out to most parts, and then a layer of cotton pad is paved on the surface of the bed board; after the sofa is used, the driving structure is controlled to withdraw the bed board, so that the bed board can be moved out when the bed is not enough when a plurality of people are at home, and a user feels comfortable when using the sofa to sleep.
Preferably, the drive structure includes the extensible member, the bed board is provided with the side of supporting wheel is followed the length direction of handrail is provided with the mounting groove, the bed board is kept away from the side of back board with the lateral wall of mounting groove is linked together, the extensible member install in the mounting groove, the one end of extensible member with the inside wall of mounting groove is connected, the other end of extensible member with the inside wall of holding tank is connected.
Through adopting above-mentioned technical scheme, start the extensible member, the telescopic link of extensible member stretches out and promotes the outside removal of bed board, otherwise, the telescopic link withdrawal of extensible member can be withdrawed the bed board, so easy operation, convenient and practical.
Preferably, the number of the telescopic pieces is two, and the two telescopic pieces are arranged in parallel and are arranged in the mounting groove.
Through adopting above-mentioned technical scheme, two electric putter's setting has improved electric putter and can retrieve the power to the driving force of bed board for the bed board is more stable when removing, and the performance is better.
Preferably, the telescopic part is an electric push rod, and the electric push rod is electrically connected with the control panel.
Through adopting above-mentioned technical scheme, electric putter has advantages such as small, the precision is high, synchronous and auto-lock performance is good completely, and less noise is little to reduce the interference that produces the user when adjusting the bed board, the cost is lower simultaneously.
Preferably, the bed board is close to be provided with the guide way on the side of back board, the cooperation of sliding has the guide bar in the guide way, the guide bar is kept away from the one end of guide way with the holding tank is close to the side fixed connection of back board.
Through adopting above-mentioned technical scheme, the setting up of guide bar cooperation guide way makes the bed board more stable at the in-process of pushing out or withdrawing, also plays certain supporting role to the bed board simultaneously for the stability of bed board can improve.
Preferably, the side that the bed board was provided with the supporting wheel with the lateral wall of guide way is linked together, the guide bar with set up the strengthening rib between the lateral wall of holding tank, the strengthening rib is located the below of guide bar.
Through adopting above-mentioned technical scheme, the setting up of strengthening rib has effectively increased the joint strength between guide bar and the holding tank lateral wall to further improve the stability of bed board.
Preferably, the two end faces of the bed board are provided with storage boxes.
By adopting the technical scheme, the storage box can provide storage spaces on two sides of the bed board, is practical for a user and improves the practicability.
Preferably, the surface of the bed board is provided with anti-slip strips for preventing the mattress from slipping.
Through adopting above-mentioned technical scheme, the setting of antislip strip can increase the surperficial frictional force of bed board to prevent to lay the mattress landing on the bed board, reinforcing user's use experience.
In summary, the present application includes at least one of the following beneficial technical effects:
1. when the bed board needs to be used, the driving structure is started through the control panel, the driving structure pushes the bed board to move outwards, in the moving process, the supporting wheel contacts the ground and processes a bed board provider until the bed board is pushed out for most parts, and then a layer of cotton pad is paved on the surface of the bed board; after the sofa is used, the driving structure is controlled to withdraw the bed board, so that the bed board can be moved out when the bed is not enough when a large number of people are at home, and a user feels comfortable when using the sofa to sleep;
2. the telescopic member is started, the telescopic rod of the telescopic member extends out and pushes the bed board to move outwards, otherwise, the telescopic rod of the telescopic member retracts to withdraw the bed board, so that the operation is simple, and the bed board is convenient and practical;
3. the guide rod is matched with the guide groove, so that the bed plate is more stable in the pushing-out or withdrawing process, and meanwhile, the bed plate is supported to a certain extent, and the stability of the bed plate is improved.
Drawings

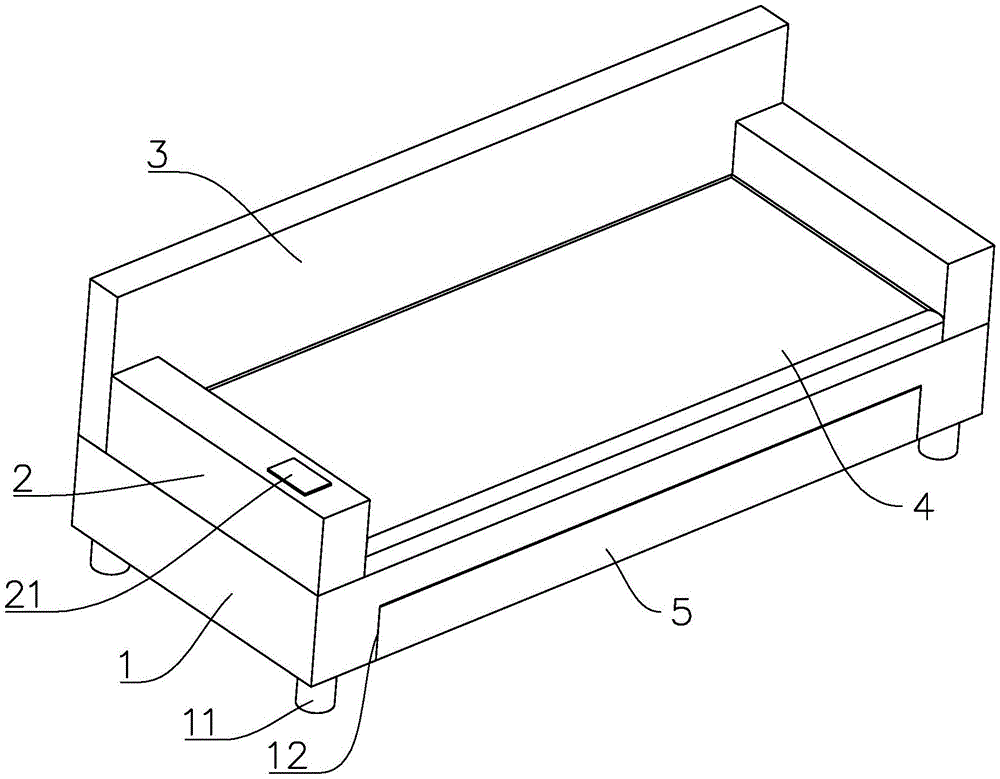

Fig. 1 is a schematic overall structure diagram of an embodiment of a combined intelligent sofa according to the present application.
Fig. 2 is an exploded schematic view of an embodiment of a combination intelligent sofa according to the present application.
Description of reference numerals: 1. a base; 11. a support leg; 12. accommodating grooves; 2. a handrail; 21. a control panel; 3. a back board; 4. a cushion; 5. a bed board; 51. anti-slip strips; 52. a support wheel; 53. mounting grooves; 54. a guide groove; 55. a groove; 56. a cover; 561. a fastening groove; 6. an electric push rod; 7. a guide bar; 71. and (5) reinforcing ribs.
Detailed Description
The present application is described in further detail below with reference to figures 1-2.
The embodiment of the application discloses combination intelligence sofa. Referring to fig. 1, a combination intelligent sofa includes a base 1 horizontally arranged, four corners of the lower surface of the base 1 are respectively provided with a support leg 11, and the four support legs provide support force for the base 1. The two ends of the upper surface of the base 1 are respectively provided with the armrests 2, the backrest plate 3 positioned on one side of the base 1 is arranged between the two armrests 2, meanwhile, the upper surface of the base 1 is provided with the cushion 4, and the cushion 4 is positioned between the two armrests 2 and the backrest plate 3.
Referring to fig. 1 and 2, base 1's lower surface is provided with holding tank 12, and base 1 keeps away from the side of back board 3 and is linked together with holding tank 12's lateral wall, be provided with bed board 5 in the holding tank 12, bed board 5's height, length and width all with holding tank 12's height, length and width equal, bed board 5's surface is provided with antislip strip 51 that is used for preventing the mattress landing, antislip strip 51 is wavy, antislip strip 51 sets up along bed board 5's length direction, antislip strip 51 is provided with a plurality of, a plurality of antislip strip 51 set up along bed board 5's even interval of width direction, and two antislip strip 51 in the outside are the linear type, so, when the lateral wall is withdrawed, make on bed board 5 and base 1's the lateral surface not.
Referring to fig. 1 and 2, during the holding tank 12 was released or was withdrawn through the drive structure to bed board 5, 2 hands of one of them handrail were provided with and were used for controlling the control panel 21 that the drive structure opened and close, bed board 5 was provided with a plurality of supporting wheel 52 on keeping away from the side of holding tank 12 tank bottom, in this embodiment, the quantity of supporting wheel 52 can be four, four supporting wheels 52 distribute respectively on four corners of bed board 5 lower surface, the setting of supporting wheel 52 can provide certain holding power to bed board 5, make bed board 5 more smooth when pushing out to the holding tank 12 outside. Concretely, drive structure includes the extensible member that the level set up, and the extensible member is electric putter 6, and electric putter 6 is connected with control panel 21 electricity, and electric putter 6 has advantages such as small, the precision is high, synchronous and auto-lock performance is good completely, and less noise is little to reduce the interference that produces the user when adjusting bed board 5, the cost is lower simultaneously. The side that bed board 5 was provided with supporting wheel 52 is provided with mounting groove 53 along the length direction of handrail 2, and the side that bed board 5 kept away from back board 3 is linked together with the lateral wall of mounting groove 53, so, conveniently processes mounting groove 53, reduces manufacturing cost.
Referring to fig. 2, the electric push rod 6 is installed in the installation groove 53, the end of the telescopic rod of the electric push rod 6 is hinged to the inner side wall of the installation groove 53 close to the backboard 3, the end of the rod body of the electric push rod 6 is hinged to the inner side wall of the accommodation groove 12 far away from the backboard 3, and the shortest length of the electric push rod 6 is equal to the length of the installation groove 53, that is, when the bed board 5 is retracted, the whole electric push rod 6 is also located in the installation groove 53. Simultaneously, in this embodiment, electric putter 6's quantity can be two, and is corresponding, and the quantity of mounting groove 53 also is two, and two electric putter 6 parallel arrangement of each other just install respectively in two mounting grooves 53, and two electric putter 6 set up about the width direction symmetry of bed board 5 is followed to bed board 5, so, the power can be retrieved to electric putter 6 to the driving force of bed board 5 to setting up of two electric putter 6 for bed board 5 is more stable when removing, and the performance is better.
Referring to fig. 2, in addition, a guide groove 54 is arranged on the side surface of the bed plate 5 close to the back plate 3, the length of the guide groove 54 is equal to that of the installation groove 53, a guide rod 7 with the length equal to that of the guide groove 54 is slidably fitted in the guide groove 54, and one end of the guide rod 7 far away from the guide groove 54 is fixedly connected with the side surface of the accommodating groove 12 close to the back plate 3. And the side surface of the bedplate 5 provided with the supporting wheels 52 is communicated with the side wall of the guide groove 54, a reinforcing rib 71 is arranged between the guide rod 7 and the side wall of the accommodating groove 12, and the reinforcing rib 71 is positioned below the guide rod 7. In the present embodiment, the number of the guide bars 7, the guide grooves 54, and the reinforcing ribs 71 is two and are symmetrically arranged with respect to the two electric push rods 6. In addition, all be provided with the containing box at the both ends face of bed board 5, it is concrete, all be provided with recess 55 on the both ends face of bed board 5, the opening part of every recess 55 all articulates there is lid 56, lid 56 keeps vertical under natural state, the last side of lid 56 articulates on the inside wall that supporting wheel 52 was kept away from to recess 55, the lateral surface of lid 56 keeps the parallel and level with the terminal surface of bed board 5 simultaneously, the middle part position department of the lateral surface of lid 56 is provided with lock joint groove 561, in order to make things convenient for the user to pass through lock joint groove 561 pulling and open lid 56.
The implementation principle of a combination intelligent sofa of the embodiment of the application is as follows: when the bed board 5 needs to be used, the electric push rod 6 is started through the control panel 21, the telescopic rod of the electric push rod 6 extends out and reversely pushes the bed board 5 to move outwards, in the moving process, the supporting wheel 52 is in contact with the ground and handles a provider of the bed board 5, meanwhile, the guide rod 7 guides the bed board 5, the stability of the bed board 5 in the moving process is improved until the electric push rod 6 reaches the maximum stroke, and then a layer of cotton pad (not shown in the figure) is paved on the surface of the bed board 5; after the use, the telescopic rod of the electric push rod 6 is controlled to retract, so that the bed board 5 can be retracted.
The above embodiments are preferred embodiments of the present application, and the protection scope of the present application is not limited by the above embodiments, so: all equivalent changes made according to the structure, shape and principle of the present application shall be covered by the protection scope of the present application.
Claims (8)
1. The utility model provides a combination intelligence sofa which characterized in that: including base (1), the both ends of base (1) upper surface are provided with handrail (2), two be provided with between handrail (2) and be located back board (3) of base (1) one side, the lower surface of base (1) is provided with holding tank (12), just base (1) is kept away from the side of back board (3) with the lateral wall of holding tank (12) is linked together, be provided with bed board (5) in holding tank (12), bed board (5) are released or are retracted through the drive structure in holding tank (12), one of them handrail (2) hand is provided with and is used for control panel (21) that the drive structure opened and close, bed board (5) are kept away from be provided with a plurality of supporting wheel (52) on the side of holding tank (12) tank bottom.
2. The combination intelligent sofa of claim 1, wherein: drive structure includes the extensible member, bed board (5) are provided with the side of supporting wheel (52) is followed the length direction of handrail (2) is provided with mounting groove (53), bed board (5) are kept away from the side of back board (3) with the lateral wall of mounting groove (53) is linked together, the extensible member install in mounting groove (53), the one end of extensible member with the inside wall of mounting groove (53) is connected, the other end of extensible member with the inside wall of holding tank (12) is connected.
3. The combination intelligent sofa of claim 2, wherein: the extensible member is provided with two, two extensible member parallel arrangement each other and all install in mounting groove (53).
4. The combination intelligent sofa of claim 2, wherein: the telescopic piece is an electric push rod (6), and the electric push rod (6) is electrically connected with the control panel (21).
5. The combination intelligent sofa of claim 2, wherein: bed board (5) are close to be provided with guide way (54) on the side of back board (3), the cooperation of sliding has guide bar (7) in guide way (54), guide bar (7) are kept away from the one end of guide way (54) with holding tank (12) are close to the side fixed connection of back board (3).
6. The intelligent sofa of claim 5, wherein: the side that bed board (5) was provided with supporting wheel (52) with the lateral wall of guide way (54) is linked together, guide bar (7) with set up strengthening rib (71) between the lateral wall of holding tank (12), strengthening rib (71) are located the below of guide bar (7).
7. The combination intelligent sofa of claim 1, wherein: the two end faces of the bed board (5) are provided with storage boxes.
8. The combination intelligent sofa of claim 1, wherein: the surface of the bed board (5) is provided with an anti-slip strip (51) for preventing the mattress from slipping.
