Abstract
本实用新型公开了一种尿道下裂术后伤口防护的内裤，包括内裤本体，所述内裤本体的顶端设有松紧绷带，所述内裤本体两侧均设有多个按扣，所述内裤本体的两侧底端设有裤腿口，所述内裤本体的底部设有裆布，所述裆布顶端位于内裤本体的外壁设有查看管，所述内裤本体的内壁位于查看管的底部设有放药袋，所述查看管由多个伸缩环组成。本实用新型尿道下裂术后伤口防护的内裤，通过内裤本体两侧的上拉片和下拉片，利用按扣进行调节尺寸，将尺寸调节到患者最舒适的尺寸，通过查看管底部的查看口查看患者伤口的愈合情况，通过多个伸缩环内径依次递增，查看管可以进行伸缩，便于患者在术后恢复期间，保护患者的隐私，便于医生查看伤口。
The utility model discloses underpants for wound protection after hypospadias surgery, comprising an underpants body, an elastic bandage is arranged at the top of the underpants body, and a plurality of snap buttons are arranged on both sides of the underpants body. The bottom ends of the two sides are provided with trouser leg openings, the bottom of the underwear body is provided with a crotch cloth, the top of the crotch cloth is located on the outer wall of the underwear body, and a viewing tube is provided, and the inner wall of the underwear body is located at the bottom of the viewing tube. The medicine bag, the viewing tube is composed of a plurality of telescopic rings. The utility model of the underpants for wound protection after hypospadias surgery can adjust the size through the upper pull tab and the pull down tab on both sides of the underpants body, and use the snap button to adjust the size to the most comfortable size for the patient, through the viewing port at the bottom of the viewing tube To check the healing status of the patient's wound, the inner diameter of multiple expansion rings can be increased in turn, and the viewing tube can be expanded and contracted, which is convenient for the patient to protect the patient's privacy during postoperative recovery, and facilitates the doctor to view the wound.
Description
Technical Field
The utility model relates to a medical care apparatus technical field, concretely relates to pants of hypospadias postoperative wound protection.
Background
The scrotum of the penis is rich in blood supply, the wound after the hypospadias operation is easy to ooze blood, and the scrotum is close to the anus, so that the wound is easy to be polluted by excrement. Repeated bleeding infection of the wound can cause postoperative complications such as urinary fistula, urethral stricture and the like, so that the dressing needs to be changed in time to keep the wound clean and dry. The time required for dressing change and bandaging of the hypospadia wound is long, the privacy protection part of the patient needs to be exposed for a long time, and the discomfort of the patient can be increased.
The wound is perpendicular to the body surface after the hypospadias operation, for the protection wound, prevents that bed clothes friction from arousing pain or hemorrhage, and present hypospadias postoperative wound protection instrument is iron-made by the strut quilt frame. The quilt supporting frame has heavy weight and poor stability, and is easy to be kicked over and injured by crashing when sleeping or turning over. It is clear that the prior art is not comprehensive enough for privacy protection of patients. The long-term pressure on the sacrococcygeal region is easy to form pressure sores, so that the protection of the sacrococcygeal region by the breathable pressure-reducing material is particularly important.
In summary, it is necessary to invent an underpants for protecting wound after hypospadias to solve the above problems.
SUMMERY OF THE UTILITY MODEL
The utility model aims at providing a pants of hypospadias postoperative wound protection looks over the healing condition of patient's wound through the viewing port of viewing tube bottom, scales up in proper order through a plurality of expansion ring internal diameters, and the viewing tube can stretch out and draw back, through putting the inside first magic subsides that are equipped with in medicine area, is equipped with a plurality of second magic subsides through the inner wall both sides of putting the medicine bag to solve the above-mentioned weak point in the technique.
In order to achieve the above object, the present invention provides the following technical solutions: a pair of underpants for protecting wounds after hypospadias comprises an underpants body, wherein elastic bandages are arranged at the top end of the underpants body, a plurality of snap fasteners are arranged on two sides of the underpants body, leg openings are arranged at the bottom ends of two sides of the underpants body, crotch cloth is arranged at the bottom of the underpants body, an inspection tube is arranged at the outer wall of the underpants body at the top end of the crotch cloth, and a medicine placing bag is arranged at the bottom of the inspection tube on the inner wall of the underpants body;
the inspection tube is composed of a plurality of telescopic rings, the inner diameters of the telescopic rings are sequentially increased from top to bottom, one end of the inspection tube is fixedly connected with a lifting column, the bottom of the inspection tube is provided with an inspection opening, a connecting ring is arranged between the inspection tube and the underwear body, and the connecting ring is in threaded connection with the inspection tube.
Preferably, the bottom of the snap fastener is provided with a buckle groove, and the snap fastener is matched with the buckle groove.
Preferably, the outer wall of the snap fastener is provided with an upper pulling piece, the snap fastener penetrates through the upper pulling piece, and the bottom of the buckle groove is provided with a lower pulling piece.
Preferably, the underwear comprises an underwear body and is characterized in that a gauze layer, a sweat absorbing layer and a breathable layer are arranged on the back of the underwear body, the sweat absorbing layer is arranged on one side of the gauze layer, the breathable layer is arranged on one side of the sweat absorbing layer, a plurality of air holes are formed in the breathable layer, a protective layer is arranged between the sweat absorbing layer and the breathable layer, and the protective layer is made of polyurethane foam.
Preferably, the inside of the crotch cloth is provided with a breathable fabric, and the top end of the crotch cloth is tightly attached to the bottom end of the medicine placing bag.
Preferably, the top end of the medicine placing bag is provided with a medicine placing opening, and the inner wall of the top end of the medicine placing bag is provided with a first magic tape.
Preferably, a plurality of second magic tapes are arranged on two sides of the inner wall of the medicine placing bag, and the second magic tapes are symmetrically distributed about the axis of the medicine placing bag.
Preferably, a plaster is arranged inside the medicine placing bag, and two ends of the plaster are positioned at the bottom end of the second magic tape.
In the technical scheme, the utility model provides a technological effect and advantage:
1. the healing condition of the wound of the patient is checked through the checking port at the bottom of the checking tube, the inner diameters of the plurality of telescopic rings are sequentially increased, the checking tube can be telescopic, the privacy of the patient is protected during the postoperative recovery period of the patient, a doctor can check the wound conveniently, the comfort degree of the patient is improved, and the use is convenient;
2. be equipped with gauze element layer, sweat-absorbing layer and ventilative layer through the pants body back, crotch cloth is inside to be equipped with ventilative surface fabric, avoids the patient to produce the sore because of lying in bed for a long time, increases the comfort level during the patient resumes, puts the inside first magic subsides that are equipped with of medicine area, seals after being convenient for put the medicine, and the inner wall both sides of putting the medicine bag are equipped with a plurality of second magic subsides, avoid the patient to lead to the skew of medicine position because of good movements, the medicine of being convenient for is fixed.
Drawings
In order to more clearly illustrate the embodiments of the present application or the technical solutions in the prior art, the drawings needed to be used in the embodiments will be briefly described below, and it is obvious that the drawings in the following description are only some embodiments described in the present invention, and other drawings can be obtained by those skilled in the art according to these drawings.

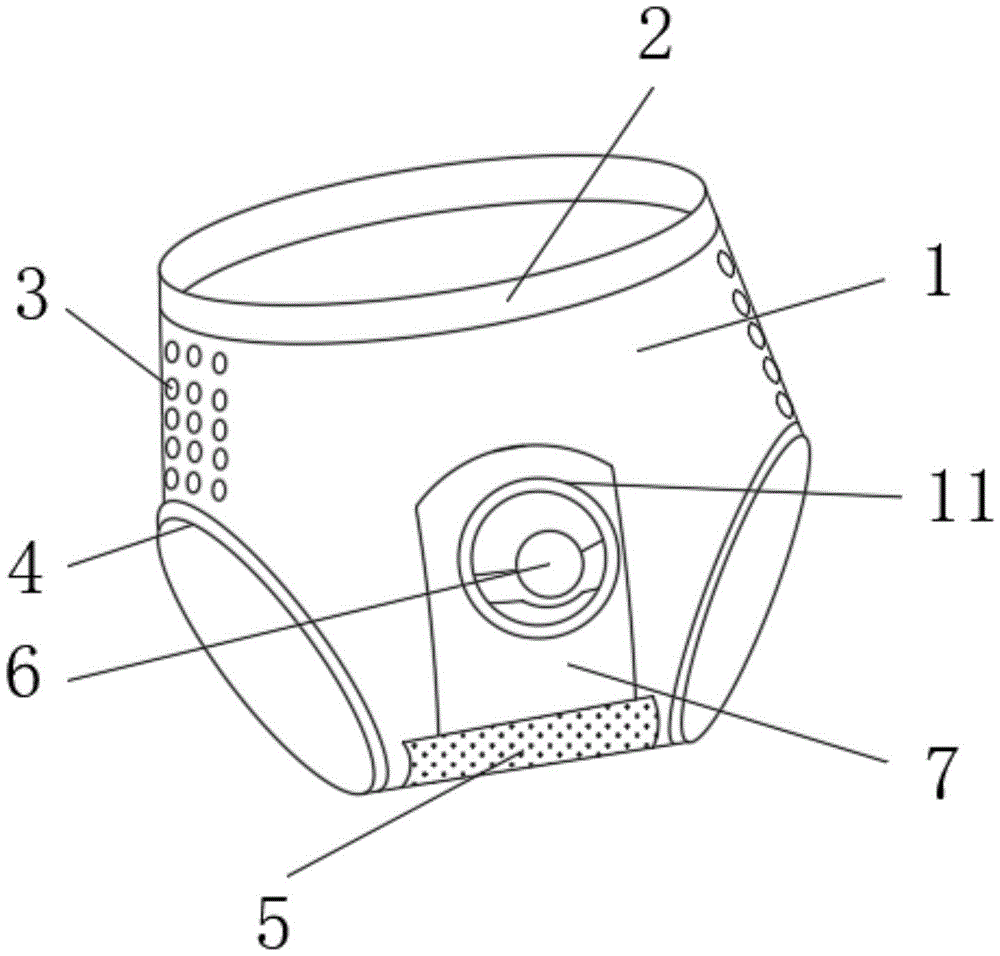

Fig. 1 is a schematic view of the overall structure of the present invention;
fig. 2 is a schematic view of the viewing tube structure of the present invention;
FIG. 3 is a schematic view of the snap fastener structure of the present invention;
FIG. 4 is a back sectional view of the underpants body of the present invention;
fig. 5 is a schematic view of the structure of the medicine placing bag of the present invention.
Description of reference numerals:
1. an underpants body; 2. tightening a bandage; 3. snapping; 4. a leg opening; 5. a crotch cloth; 6. checking and taking care of; 7. placing a medicine bag; 8. a telescopic ring; 9. lifting the column; 10. a viewing port; 11. a connecting ring; 12. buckling grooves; 13. an upper pull sheet; 14. a lower pull tab; 15. a gauze layer; 16. a sweat absorbing layer; 17. a breathable layer; 18. Air holes are formed; 19. a medicine placing opening; 20. a first magic tape; 21. a second magic tape; 22. applying the medicinal plaster.
Detailed Description
In order to make the technical solution of the present invention better understood by those skilled in the art, the present invention will be further described in detail with reference to the accompanying drawings.
The utility model provides underpants for protecting wound after hypospadias, which are shown in figures 1-5, and comprise an underpants body 1, wherein the top end of the underpants body 1 is provided with an elastic bandage 2, both sides of the underpants body 1 are provided with a plurality of snap fasteners 3, the bottom ends of both sides of the underpants body 1 are provided with trouser leg openings 4, the bottom of the underpants body 1 is provided with a crotch cloth 5, the outer wall of the top end of the crotch cloth 5, which is positioned at the underpants body 1, is provided with an inspection tube 6, and the bottom of the inner wall of the underpants body 1, which is positioned at the inspection tube 6, is provided with a medicine placing bag 7;
the inspection tube 6 is composed of a plurality of telescopic rings 8, the inner diameters of the telescopic rings 8 are sequentially increased from top to bottom, one end of the inspection tube 6 is fixedly connected with a lifting column 9, the bottom of the inspection tube 6 is provided with an inspection opening 10, a connecting ring 11 is arranged between the inspection tube 6 and the underwear body 1, and the connecting ring 11 is in threaded connection with the inspection tube 6.
Further, in the above technical solution, the bottom of the snap fastener 3 is provided with a catching groove 12, the snap fastener 3 is matched with the catching groove 12, and the size of the underpants can be adjusted by the snap fastener 3, so that the underpants can be used for different patients.
Furthermore, in the above technical solution, the outer wall of the snap fastener 3 is provided with an upper pull tab 13, the snap fastener 3 penetrates the upper pull tab 13, the bottom of the buckle slot 12 is provided with a lower pull tab 14, the size of the underwear is adjusted by the upper pull tab 13 and the lower pull tab 14, and the underwear is fixed by the snap fastener 3, so that the underwear is convenient for different patients to use.
The implementation mode is specifically as follows: after this pants is dressed to at first patient, look over the healing condition of patient's wound through looking over the mouth 10 of looking over 6 bottoms of the pipe of looking over, increase progressively in proper order through a plurality of 8 internal diameters of flexible ring, look over pipe 6 and can stretch out and draw back, the patient of being convenient for resumes the period at the postoperative, protection patient's privacy, the wound is looked over to the doctor of being convenient for, improves patient's comfortable degree, facilitate the use, the privacy problem of looking over the wound healing condition and protection patient that exists among the prior art has specifically been solved to this embodiment.
As shown in fig. 1-5: the back of pants body 1 is equipped with gauze element layer 15, sweat-absorbing layer 16 and ventilative layer 17, one side of gauze element layer 15 is equipped with sweat-absorbing layer 16, one side of sweat-absorbing layer 16 is equipped with ventilative layer 17, ventilative layer 17 is inside to be equipped with a plurality of bleeder vents 18, be equipped with the inoxidizing coating between sweat-absorbing layer 16 and the ventilative layer 17, the inoxidizing coating has polyurethane foam to constitute, and the patient lies in bed for a long time, avoids growing sore, is equipped with ventilative layer 17, increases patient's comfort level.
Further, in the above technical scheme, the inside of the crotch cloth 5 is provided with the breathable fabric, the top end of the crotch cloth 5 is closely attached to the bottom end of the medicine placing bag 7, and the comfort of the patient is improved as the patient lies in bed for a long time due to the breathable fabric arranged inside the crotch cloth 5.
Further, in the above technical scheme, a medicine placing opening 19 is formed in the top end of the medicine placing bag 7, a first magic tape 20 is arranged on the inner wall of the top end of the medicine placing bag 7, the medicine placing opening 19 is provided with the first magic tape 20, and the placement of the internal plaster 22 is convenient to fix in the medicine placing process.
Further, in the above technical solution, a plurality of second magic tapes 21 are disposed on two sides of the inner wall of the medicine placing bag 7, the plurality of second magic tapes 21 are symmetrically distributed about the axis of the medicine placing bag 7, the second magic tapes 21 are symmetrically distributed, and the fixation of the internal plaster 22 is increased.
Further, in the above technical solution, a plaster 22 is disposed inside the medicine placing bag 7, and two ends of the plaster 22 are located at the bottom end of the second magic tape 21, so that the patient can change the medicine conveniently, and the recovery of the patient is facilitated.
The implementation mode is specifically as follows: be equipped with gauze element layer 15 at 1 back of pants body, sweat-absorbing layer 16 and ventilative layer 17, crotch cloth 5 inside is equipped with ventilative surface fabric, avoid the patient to produce the sore because of lying in bed for a long time, increase the comfort level during the patient resumes, it is equipped with first magic subsides 20 to put medicine area inside, it seals to be convenient for put after the medicine, the inner wall both sides of putting medicine bag 7 are equipped with a plurality of second magic subsides 21, avoid the patient to lead to the skew of medicine position because of good movement, the medicine of being convenient for is fixed, this embodiment has specifically solved and has been not convenient for change medicine and the patient is because of lying in bed for a long time among the prior art and has produced.
This practical theory of operation:
referring to the attached figures 1-5 of the specification, firstly, the upper pulling piece 13 and the lower pulling piece 14 on both sides of the underwear body 1 are adjusted in size by the snap fasteners 3, the size is adjusted to the most comfortable size of a patient, the healing condition of the wound of the patient is checked through the checking opening 10 at the bottom of the checking tube 6, and the checking tube 6 can be stretched by sequentially increasing the inner diameters of a plurality of telescopic rings 8;
referring to the attached drawings 1-5 of the specification, the back of the underpants body 1 is provided with a gauze layer 15, a sweat absorbing layer 16 and a breathable layer 17, breathable fabric is arranged inside the crotch cloth 5, so that sores of a patient caused by long-term lying are avoided, a first magic tape 20 is arranged inside the medicine placing belt, so that the patient can conveniently seal after placing medicine, and a plurality of second magic tapes 21 are arranged on two sides of the inner wall of the medicine placing bag 7, so that the patient is prevented from shifting medicine positions caused by movement.
While certain exemplary embodiments of the present invention have been described above by way of illustration only, it will be apparent to those of ordinary skill in the art that the described embodiments may be modified in various different ways without departing from the spirit and scope of the present invention. Accordingly, the drawings and description are illustrative in nature and should not be construed as limiting the scope of the invention.
