The utility model discloses a wear-resisting type sole, including sole, sole portion, arch of foot portion and heel portion, the front of sole bonds and has the wearing layer, a plurality of second dashpot has been seted up in the outside that the front of wearing layer is located sole portion, it has first wear-resisting non slipping spur to bond on the second dashpot, a plurality of third dashpot has been seted up to the inboard that the front of wearing layer is located sole portion. This wear-resisting type sole, the utility model discloses a sole, sole portion, arch of foot portion, heel portion, first dashpot, the second dashpot, first wear-resisting non slipping spur, the third dashpot, the wear-resisting strip of antiskid, the fourth dashpot, the fifth dashpot, the wear-resisting non slipping spur of second, the cooperation of sixth dashpot and wearing layer is used, it is poor to have solved current sole wear-resisting effect, because the sole is in frictional state with ground for a long time, so the phenomenon that appears damaging and leaking the end very easily takes place, at this moment, whole double-layer shoes just can report useless.

Description

Wear-resisting type sole

Technical Field

The utility model relates to a sole technical field specifically is a wear-resisting type sole.

Background

The sole has a rather complicated structure, comprises all materials forming the bottom, such as an outsole, a midsole and a heel, the common characteristics of common sole materials are waterproof, oil-proof, heat-proof, pressure-proof, impact-resistant, good elasticity, easy adaptation to foot shapes, difficult deformation after shaping, heat preservation, easy moisture absorption and the like, and the common characteristics of common sole materials are matched with the midsole, the common characteristics of common sole materials have the brake function when feet are changed by walking, the common sole materials can not slip down, are easy to stop walking and the like, the sole materials are various and can be divided into a natural bottom material and a synthetic bottom material, the natural bottom material comprises natural bottom leather, bamboo, wood and the like, the synthetic bottom material comprises rubber, plastic, rubber-plastic combined materials, regenerated leather, elastic hard cardboard and the like

However, in the conventional wear-resistant sole on the market, the sole is in a friction state with the ground for a long time, so that the phenomena of damage and sole leakage are particularly easy to occur, and at the moment, the whole pair of shoes can report waste, which not only brings inconvenience to people to wear, but also reduces the service life of the shoes.

SUMMERY OF THE UTILITY MODEL

An object of the utility model is to provide a wear-resisting type sole to solve the problem that proposes among the above-mentioned background art.

In order to achieve the above object, the utility model provides a following technical scheme:

the utility model provides a wear-resisting type sole, includes sole, sole portion, arch of foot portion and heel portion, the front of sole bonds and has the wearing layer, a plurality of second dashpot has been seted up in the outside that the front of wearing layer is located sole portion, it has first wear-resisting non slipping spur to bond on the second dashpot, a plurality of third dashpot has been seted up to the inboard that the front of wearing layer is located sole portion, it has anti-skidding wear strip to bond on the third dashpot, the front of wearing layer is located arch of foot portion and has seted up first dashpot, and the last slope of first dashpot is connected with the front of sole portion, the front of wearing layer is located the heel portion and has seted up fourth dashpot and sixth dashpot respectively, the front of heel portion is located the wearing layer and has seted up a plurality of fifth dashpot, it has a plurality of second wear-resisting spur to bond on the fifth dashpot.

As a further aspect of the present invention: the depth of the fifth buffer groove is smaller than the depth of the fourth buffer groove and the depth of the sixth buffer groove, and the height of the second wear-resistant anti-slip block is higher than the front face of the heel part.

As a further aspect of the present invention: the shape of the first wear-resistant anti-slip block is regular hexagon, and the first wear-resistant anti-slip block is made of polyurethane rubber.

As a further aspect of the present invention: the anti-skid wear-resistant strips are rectangular and made of polyurethane rubber.

As a further aspect of the present invention: the shape of the second wear-resistant anti-slip block is regular pentagon, and the second wear-resistant anti-slip block is made of nitrile rubber.

As a further aspect of the present invention: the wear-resistant layer is made of natural rubber.

Compared with the prior art, the beneficial effects of the utility model are that:

the utility model discloses a sole, sole portion, arch of foot portion, the heel portion, first dashpot, the second dashpot, first wear-resisting non slipping spur, the third dashpot, the wear-resisting strip of antiskid, the fourth dashpot, the fifth dashpot, the wear-resisting non slipping spur of second, the cooperation of sixth dashpot and wearing layer is used, it is poor to have solved current sole wear-resisting effect, because the sole is in frictional state with ground for a long time, so the phenomenon that appears damaging and leaking the end very easily takes place, at this moment, just can report useless for whole double-layer shoes, not only bring inconvenience for people's dress, and reduce shoes life's problem.

Drawings

FIG. 1 is a schematic view of a wear-resistant sole;

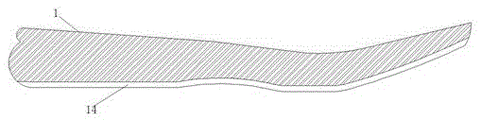

FIG. 2 is a side view of a wear resistant sole;

FIG. 3 is a schematic view of a sole portion of a wear-resistant sole;

fig. 4 is a schematic view of the structure of a heel portion of a wear-resistant sole.

In the figure: sole 1, sole portion 2, arch of foot portion 3, heel portion 4, first dashpot 5, second dashpot 6, first wear-resisting skid resistant block 7, third dashpot 8, wear-resisting strip 9 of antiskid, fourth dashpot 10, fifth dashpot 11, wear-resisting skid resistant block 12 of second, sixth dashpot 13, wearing layer 14.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.

Referring to fig. 1-4, in an embodiment of the present invention, a wear-resistant sole includes a sole 1, a sole portion 2, an arch portion 3 and a heel portion 4, a wear-resistant layer 14 is bonded to a front surface of the sole 1, a plurality of second buffer slots 6 are formed on a front surface of the wear-resistant layer 14 on the sole portion 2, a first wear-resistant anti-slip block 7 is bonded to the second buffer slots 6, a plurality of third buffer slots 8 are formed on a front surface of the wear-resistant layer 14 on the sole portion 2, a plurality of anti-slip wear strips 9 are bonded to the third buffer slots 8, a first buffer slot 5 is formed on the arch portion 3 on the front surface of the wear-resistant layer 14, an upper slope of the first buffer slot 5 is connected to the front surface of the sole portion 2, a fourth buffer slot 10 and a sixth buffer slot 13 are respectively formed on the heel portion 4 on the front surface of the wear-resistant layer 14, the sixth buffer slot 13 is communicated with the fourth buffer slot 10, a lower slope of the first buffer slot 5 is connected to the fourth buffer slot 10, the front of heel 4 is located and has seted up a plurality of fifth dashpot 11 on wearing layer 14, it has the wear-resisting non slipping spur of a plurality of second to bond on the fifth dashpot 11, the degree of depth of fifth dashpot 11 is less than the degree of depth of fourth dashpot 10 and sixth dashpot 13, the wear-resisting non slipping spur 12 of second highly is higher than the front of heel 4, the shape of first wear-resisting non slipping spur 7 is regular hexagon, and the material of first wear-resisting non slipping spur 7 is polyurethane rubber, the shape of anti-skidding wear strip 9 is the rectangle, and the material of anti-skidding wear strip 9 is polyurethane rubber, the shape of the wear-resisting non slipping spur 12 of second is regular pentagon, and the material of the wear-resisting non slipping spur 12 of second is nitrile rubber, the material of wearing layer 14 is natural rubber.

The utility model discloses a theory of operation is:

when the pair of shoes is used, when people walk, the first wear-resistant anti-skid blocks 7 and the anti-skid wear-resistant strips 9 contact with the ground, one displacement can be generated inside the second buffer grooves 6 and the third buffer grooves 8 to increase the friction force with the ground, so that when people use the pair of shoes, the pair of shoes has strong gripping force and anti-skid property, the sole part is contacted with the ground more stably at the first time, meanwhile, the polyurethane rubber is polymerized by polyester or polyether and diisocyanamide lipid compounds, so that the pair of shoes has the characteristics of high wear resistance, tear resistance, high hardness, good strength and the like, the sole part 2 can be effectively protected, in the walking process, the first buffer grooves 5 are not in direct contact with the ground, but can pass through the first buffer grooves 5 when people walk, the sole has the advantages that the sole has the buffering effect and can effectively protect the arch of the foot, but when people do strenuous exercise, the impact force on the heel is larger, similarly, the cooperation of the fifth buffer groove 11, the fourth buffer groove 10 and the sixth buffer groove 13 can buffer the pressure between the heel and the ground, the friction force between the heel and the ground is increased through the arrangement of the second wear-resistant anti-slip block 12, so that the cooperation between the sole part 2 and the heel part 4 and the ground gripping force are stronger in the strenuous exercise, meanwhile, the nitrile rubber is prepared from butadiene and acrylonitrile through emulsion polymerization, the nitrile rubber has the characteristics of high elasticity and medium resistance, the heel of people can be well protected, the direct impact force on the knee is effectively reduced, meanwhile, the wear-resistant layer 14 is made of natural rubber materials, the problem that the existing sole 1 is poor in wear-resistant effect is solved, and the sole 1 and the ground are in a friction state for a long time, therefore, the phenomena of damage and leakage are particularly easy to occur, and the whole pair of shoes can report the wastes, which not only brings inconvenience to people to wear, but also reduces the service life of the shoes.

Although the present invention has been described in detail with reference to the foregoing embodiments, it will be apparent to those skilled in the art that modifications may be made to the embodiments or portions thereof without departing from the spirit and scope of the invention.

Claims

1. The utility model provides a wear-resisting type sole, includes sole (1), sole portion (2), arch of foot portion (3) and heel portion (4), its characterized in that: the front of the sole (1) is bonded with a wear-resistant layer (14), the outer side of the front of the wear-resistant layer (14) positioned on the sole part (2) is provided with a plurality of second buffer grooves (6), the second buffer grooves (6) are bonded with first wear-resistant anti-slip blocks (7), the inner side of the front of the wear-resistant layer (14) positioned on the sole part (2) is provided with a plurality of third buffer grooves (8), the third buffer grooves (8) are bonded with anti-slip wear-resistant strips (9), the front of the wear-resistant layer (14) positioned on the arch part (3) is provided with a first buffer groove (5), the upper gradient of the first buffer groove (5) is connected with the front of the sole part (2), the front of the wear-resistant layer (14) positioned on the heel part (4) is provided with a fourth buffer groove (10) and a sixth buffer groove (13) respectively, the front of the heel part (4) positioned on the wear-resistant layer (14) is provided with a plurality of fifth buffer grooves (11), and a plurality of second wear-resistant anti-skidding blocks (12) are bonded on the fifth buffer groove (11).

2. A wear-resistant sole as claimed in claim 1, wherein: the depth of the fifth buffer groove (11) is smaller than the depths of the fourth buffer groove (10) and the sixth buffer groove (13), and the height of the second wear-resistant anti-skid block (12) is higher than the front surface of the heel part (4).

3. A wear-resistant sole as claimed in claim 1, wherein: the shape of the first wear-resistant anti-slip blocks (7) is regular hexagon, and the first wear-resistant anti-slip blocks (7) are made of polyurethane rubber.

4. A wear-resistant sole as claimed in claim 1, wherein: the anti-skid wear-resistant strips (9) are rectangular, and the anti-skid wear-resistant strips (9) are made of polyurethane rubber.

5. A wear-resistant sole as claimed in claim 1, wherein: the shape of the second wear-resistant anti-skid block (12) is regular pentagon, and the material of the second wear-resistant anti-skid block (12) is nitrile rubber.

6. A wear-resistant sole as claimed in claim 1, wherein: the wear-resistant layer (14) is made of natural rubber.
