CN212691995U - Multifunctional water washing type fresh air purifier - Google Patents
Multifunctional water washing type fresh air purifier Download PDFInfo
- Publication number
- CN212691995U CN212691995U CN202020599406.7U CN202020599406U CN212691995U CN 212691995 U CN212691995 U CN 212691995U CN 202020599406 U CN202020599406 U CN 202020599406U CN 212691995 U CN212691995 U CN 212691995U
- Authority
- CN
- China
- Prior art keywords
- water
- fresh air
- shell
- water tank
- circulating pump
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Active
Links
Images
Classifications
-
- Y—GENERAL TAGGING OF NEW TECHNOLOGICAL DEVELOPMENTS; GENERAL TAGGING OF CROSS-SECTIONAL TECHNOLOGIES SPANNING OVER SEVERAL SECTIONS OF THE IPC; TECHNICAL SUBJECTS COVERED BY FORMER USPC CROSS-REFERENCE ART COLLECTIONS [XRACs] AND DIGESTS
- Y02—TECHNOLOGIES OR APPLICATIONS FOR MITIGATION OR ADAPTATION AGAINST CLIMATE CHANGE
- Y02B—CLIMATE CHANGE MITIGATION TECHNOLOGIES RELATED TO BUILDINGS, e.g. HOUSING, HOUSE APPLIANCES OR RELATED END-USER APPLICATIONS
- Y02B30/00—Energy efficient heating, ventilation or air conditioning [HVAC]
- Y02B30/54—Free-cooling systems
Landscapes
- Disinfection, Sterilisation Or Deodorisation Of Air (AREA)
- Central Air Conditioning (AREA)
Abstract
The utility model belongs to the technical field of the air purification technique and specifically relates to a multi-functional washing formula fresh air purification machine, which comprises a housin, the right-hand member of casing is equipped with outdoor air outlet and the outdoor new trend air intake of airing exhaust, the left end of casing is equipped with outdoor new trend supply-air outlet and the indoor entry of airing exhaust, the left front portion of inner chamber of casing is equipped with new trend air supply fan, anion generator, first supplementary electric heater and cold and heat source interchanger in proper order, the left rear portion of casing inner chamber is equipped with ultraviolet sterilizing equipment, the inner chamber right side of casing is equipped with alternative fillter section and waste heat recovery device in proper order, the inner chamber middle part of casing is equipped with the spray room, the inner wall bottom middle part of spray room is connected with the water tank. The utility model has the advantages of reasonable design, it is convenient to use, has powerful practicality and functionality, and purifying effect is better, is worth using widely.
Description
Technical Field
The utility model relates to an air purification technical field especially relates to a multi-functional washing formula new trend clearing machine.
Background
In recent years, as the environment deteriorates, accompanied by the problem of drying and pollution of indoor air, more and more people begin to pay attention to the quality of air. The indoor air quality standard is a set of comprehensive data for measuring the indoor environment condition, is an important index for indicating the indoor environment health and being suitable for living, and has main standards of oxygen content, formaldehyde content, temperature, humidity, particulate matters and the like.
In order to improve indoor air quality, the importance of fresh air purification gradually enters the field of vision of people. The fresh air purification existing in the market generally adopts the technologies of coarse-effect filter screens, medium-effect filter screens and high-efficiency and activated carbon composite filter screens to filter air, and the fresh air purification has a single function. And the fresh air is only purified, but the temperature and the humidity are not regulated. And in addition, fresh air system manufacturers on the market mostly output clean air by using technologies of coarse-effect filter screens, medium-effect filter screens and high-efficiency and activated carbon composite filter screens, the clean air efficiency of the filter screens is reduced along with the increase of the operation time, the filter screens must be replaced when the clean air efficiency is reduced to a certain degree, and the daily applicable cost of users is greatly increased. Therefore, a multifunctional water-washing type fresh air purifier capable of solving the problems is provided.
SUMMERY OF THE UTILITY MODEL
The utility model aims at solving the defects existing in the prior art, and providing a multifunctional water washing type fresh air purifier which is more convenient to use.
In order to achieve the above purpose, the utility model adopts the following technical scheme:
a multifunctional water washing type fresh air purifier is designed, and comprises a shell, wherein an outdoor air exhaust port and an outdoor fresh air inlet are respectively arranged on the front side and the rear side of the right end of the shell, an outdoor fresh air supply port and an indoor air exhaust inlet are respectively arranged on the front side and the rear side of the left end of the shell, a fresh air supply fan, an anion generator, a first auxiliary electric heater and a cold and heat source exchanger are sequentially arranged on the front side of the left side of an inner cavity of the shell, an ultraviolet sterilization device is arranged on the rear side of the left side of the inner cavity of the shell, an alternative filtering section and a waste heat recovery device are sequentially arranged on the right side of the inner cavity of the shell, an alternative air return port is arranged on the right side of the alternative filtering section, an air exhaust fan is arranged on the right side of the waste heat recovery device, the inner wall bottom middle part of shower room is connected with the water tank, the internal connection of water tank has the third to assist electric heater, the right side of water tank is equipped with spray circulating pump and water filter circulating pump, the water inlet of spray circulating pump and water filter circulating pump is connected with the water tank through the pipeline respectively, the delivery port of water filter circulating pump is connected with the water-locator, the delivery port of spray circulating pump is connected with the shower water pipe, the middle part of shower room is connected with the washing and filters the filling layer.
Preferably, the front end of the shell is connected with an electric control box, the electric control box comprises a control circuit board, a control circuit board and electric components, the electric components are connected with the control circuit board through leads, and the control circuit board is respectively connected with a first auxiliary electric heater, a cold and heat source exchanger, a second auxiliary electric heater, a fresh air supply fan, an anion generator, a spray circulating pump, a third auxiliary electric heater, a water filter circulating pump and an exhaust fan through leads.
Preferably, the right side upper portion of water tank has connected gradually moisturizing pipe and overflow pipe, be equipped with the ball-cock assembly on the moisturizing pipe, the right side sub-unit connection of water tank has the drain pipe, be equipped with the drainage solenoid valve on the drain pipe, the drainage solenoid valve is connected with control circuit board through the wire, just the one end that the water tank was kept away from to drain pipe, overflow pipe and moisturizing pipe all extends to the outside of casing.
Preferably, a rear water baffle is arranged between the water tank and the water distributor, a flow equalizer is arranged between the rear water baffle and the cold and heat source exchanger, and a front water baffle is arranged on the right side of the upper part of the spray room.
Preferably, the upper end of the shell is provided with a detection hole, and the detection hole is provided with a comprehensive sensor.
Preferably, the fresh air supply fan and the exhaust fan are both centrifugal fans or axial fans.
The utility model provides a pair of multi-functional washing formula fresh air purification machine, beneficial effect lies in: the utility model can fully remove the granular impurities and formaldehyde in the fresh air through the double washing and filtration of the spraying and washing filter filling layer, especially has good removal effect on PM. fine particles without a filter screen, thereby solving the problem of filter screen blockage in the traditional fresh air purification, being more practical, humidifying the air in a washing and purifying mode, having better using effect, being provided with a waste heat recovery device, leading outdoor fresh air and indoor exhaust air to pass through the waste heat recovery device, leading the outdoor fresh air to recover the energy of the indoor exhaust air in the waste heat recovery device, thereby achieving the effects of ventilation and keeping the indoor temperature and humidity stable, and through the arranged negative oxygen ion generator, make to contain a large amount of negative oxygen ions in the indoor new trend, rethread ultraviolet germicidal device can play bactericidal effect to the new trend, has further improved the result of use of device. Compared with the prior art, the utility model has the advantages of reasonable design, it is convenient to use, has powerful practicality and functionality, and purifying effect is better, is worth using widely.
Drawings

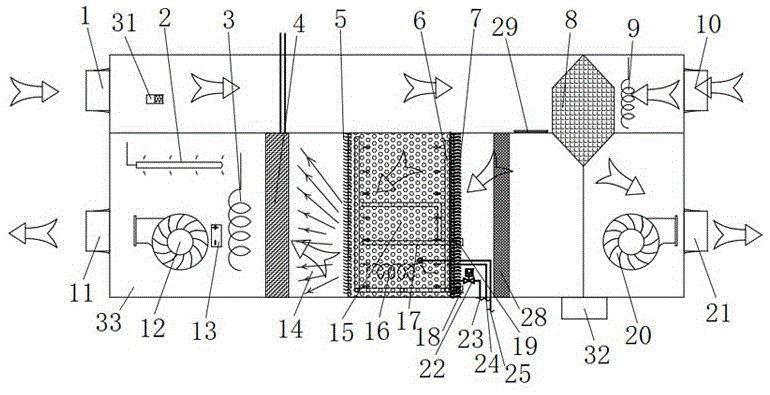

Fig. 1 is a top view of a multifunctional water-washing fresh air purifier provided by the utility model;
fig. 2 is a front view of the multifunctional water washing type fresh air purifier provided by the utility model.
In the figure: an indoor air exhaust inlet 1, an ultraviolet sterilization device 2, a first auxiliary electric heater 3, a cold and heat source exchanger 4, a rear water baffle 5, a spray water pipe 6, a front water baffle 7, a waste heat recovery device 8, a second auxiliary electric heater 9, an outdoor fresh air inlet 10, an outdoor fresh air supply outlet 11, a fresh air supply fan 12, an anion generator 13, a flow equalizer 14, a water washing filtering filling layer 15, a third auxiliary electric heater 16, a water distributor 17, a spraying circulating pump 18, a water filtering circulating pump 19, an air exhaust fan 20, an outdoor air exhaust outlet 21, a water discharge electromagnetic valve 22, a water discharge pipe 23, an overflow pipe 24, a water replenishing pipe 25, a water tank 26, a floating ball valve 27, an alternative filtering section 28, an alternative air return 29, a spray chamber 30, an integrated sensor 31, an electronic control box 32 and a shell 33.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments.
Referring to fig. 1-2, a multifunctional washing type fresh air purifier comprises a shell 33, wherein the front end of the shell 33 is connected with an electric control box 32, the electric control box 32 comprises a control circuit board, a control circuit board and electric elements, the electric elements are connected with the control circuit board through wires, the control circuit board is respectively connected with a first auxiliary electric heater 3, a cold and heat source exchanger 4, a second auxiliary electric heater 9, a fresh air supply fan 12, an anion generator 13, a spraying circulating pump 18, a third auxiliary electric heater 16, a water filter circulating pump 19 and an exhaust fan 20 through wires, and the start and stop of electric appliances inside the control device are facilitated.
A detection hole is formed in the upper end of the shell 33, a comprehensive sensor 31 is arranged at the detection hole, and the comprehensive sensor 31 is a PM2.5 formaldehyde air quality detection sensor and a temperature and humidity CO2/TVOC detection module six-in-one module.
An outdoor exhaust air port 21 and an outdoor fresh air inlet 10 are respectively arranged on the front side and the rear side of the right end of a shell 33, an outdoor fresh air supply port 11 and an indoor exhaust air inlet 1 are respectively arranged on the front side and the rear side of the left end of the shell 33, a fresh air supply fan 12, an anion generator 13, a first auxiliary electric heater 3 and a cold and heat source exchanger 4 are sequentially arranged on the front portion of the left side of an inner cavity of the shell 33, an ultraviolet sterilization device 2 is arranged on the rear portion of the left side of the inner cavity of the shell 33, a standby filter section 28 and a waste heat recovery device 8 are sequentially arranged on the right side of the inner cavity of the shell 33, the waste heat recovery device 8 is provided with a fresh air duct and an exhaust air duct, the fresh air duct and the exhaust air duct are alternately overlapped and are not communicated with each other, an air duct connected with, The fresh air supply fan 12 and the outdoor fresh air supply outlet 11 are formed along the fresh air flow direction, the air channel connected with the air exhaust duct is an air exhaust channel, and the air exhaust channel is formed by an indoor air exhaust inlet 1, a waste heat recovery device 8, an air exhaust fan 20 and an outdoor air exhaust air port 21 along the air exhaust flow direction.
The right side of the alternative filtering section 28 is provided with an alternative return air inlet 29, a part of return air can be processed and returned to the indoor space through the arranged alternative return air inlet 29, the energy-saving effect is achieved, the right side of the waste heat recovery device 8 is provided with an exhaust fan 20, and the fresh air supply fan 12 and the exhaust fan 20 are both centrifugal fans or axial flow fans.
The rear part of the right side of the inner cavity of the shell 33 is connected with a second auxiliary electric heater 9 which is matched with the outdoor fresh air inlet 10 and is used, the middle part of the inner cavity of the shell 33 is provided with a spray chamber 30, the middle part of the bottom end of the inner wall of the spray chamber 30 is connected with a water tank 26, the upper part of the right side of the water tank 26 is sequentially connected with a water replenishing pipe 25 and an overflow pipe 24, the water replenishing pipe 25 is provided with a ball float valve 27, the lower part of the right side of the water tank 26 is connected with a drain pipe 23, the drain pipe 23 is provided with a drain electromagnetic valve 22, the drain electromagnetic valve 22 is connected with a control circuit board through a lead, and one ends of the drain pipe 23, the overflow pipe 24 and the water replenishing pipe 25, which are far away from the water tank 26, all extend to the outer side of the shell 33, a, can be so that sewage is discharged, rethread moisturizing pipe 25 carries out the moisturizing, reaches the purpose of trading water, sprays through the clear water that circulating pump 18 extraction was changed moreover, can filter filling layer 15 to the nozzle of shower pipe 6 and washing and wash, the used repeatedly of being convenient for.
The inside of the water tank 26 is connected with a third auxiliary electric heater 16, the right side of the water tank 26 is provided with a spray circulating pump 18 and a water filter circulating pump 19, the water inlet of the spray circulating pump 18 and the water inlet of the water filter circulating pump 19 are respectively connected with the water tank 26 through pipelines, the water outlet of the water filter circulating pump 19 is connected with a water distributor 17, a rear water baffle 5 is arranged between the water tank 26 and the water distributor 17, a flow equalizer 14 is arranged between the rear water baffle 5 and the cold and heat source exchanger 4, and the right side of the upper part of the spray chamber 30 is provided with a front water baffle.
The water outlet of the spray circulating pump 18 is connected with a spray water pipe 6, the middle part of the spray chamber 30 is connected with a washing filtering filling layer 15, the washing filtering filling layer 15 is a drawer type filling layer, the inside of the washing filtering filling layer 15 is provided with a filler for increasing the contact area of air and water, and the washing filtering filling layer 15 can be replaced.
The working principle is as follows: when in use, after the outdoor fresh air supply fan 12 and the exhaust fan 20 are started, under the action of the fresh air supply fan 12, outdoor fresh air enters the shell 33 from the outdoor fresh air inlet 10, when the outdoor temperature is too low, the auxiliary electric heating unit 9 can be started to preheat the fresh air, the water in the spray chamber 30 is prevented from freezing due to too low temperature, then the fresh air enters the waste heat recovery device 8, the fresh air outside the chamber and the indoor exhaust air in the waste heat recovery device 8 carry out energy exchange, then the fresh air enters the waste heat recovery device 8, after the fresh air outside the chamber and the indoor exhaust air in the waste heat recovery device 8 carry out energy exchange, the outdoor fresh air enters the spray chamber 30 to be washed, the water in the water tank 26 is conveyed to the spray water pipe 6 through the pipeline by the spray circulating pump 18, the spray water pipe 6 sprays the water in the spray chamber 30, then flows back to the water tank 26, the water is conveyed to the water distributor 17 by, the fresh air passes through the water washing filtering filling layer 15 and then flows back to the water tank 26, so that water can be recycled, outdoor fresh air can be subjected to double washing, the outdoor fresh air is fully purified, the outdoor fresh air after being washed and purified passes through the cold and heat source heat exchanger 4, the fresh air can be subjected to dehumidification, heating and cooling treatment through the cold and heat source heat exchanger 4, the indoor fresh air contains a large amount of negative oxygen ions through the negative oxygen ion generator 13, and the fresh air is sterilized through the ultraviolet sterilization device 2 and then is fed into the room through the indoor fresh air supply outlet 11 by the fresh air supply fan 12; under the action of the exhaust fan 20, indoor exhaust air enters the waste heat recovery device 8 from the indoor exhaust inlet 1, and is exhausted outdoors through the outdoor exhaust air port 21 through the exhaust fan 20 after the energy exchange between the waste heat recovery device 8 and outdoor fresh air is carried out.
The above, only be the concrete implementation of the preferred embodiment of the present invention, but the protection scope of the present invention is not limited thereto, and any person skilled in the art is in the technical scope of the present invention, according to the technical solution of the present invention and the utility model, the concept of which is equivalent to replace or change, should be covered within the protection scope of the present invention.
Claims (6)
1. A multifunctional water washing type fresh air purifier comprises a shell (33) and is characterized in that an outdoor air exhaust port (21) and an outdoor fresh air inlet (10) are respectively arranged on the front side and the rear side of the right end of the shell (33), an outdoor fresh air supply port (11) and an indoor air exhaust inlet (1) are respectively arranged on the front side and the rear side of the left end of the shell (33), a fresh air supply fan (12), an anion generator (13), a first auxiliary electric heater (3) and a cold and heat source exchanger (4) are sequentially arranged on the left front portion of an inner cavity of the shell (33), an ultraviolet sterilization device (2) is arranged on the left rear portion of the inner cavity of the shell (33), an alternative filtering section (28) and a waste heat recovery device (8) are sequentially arranged on the right side of the inner cavity of the shell (33), an alternative air return port (29) is arranged on the right side of the alternative filtering section (, the rear part of the right side of the inner cavity of the shell (33) is connected with a second auxiliary electric heater (9) matched with the outdoor fresh air inlet (10) for use, a spray chamber (30) is arranged in the middle of the inner cavity of the shell (33), a water tank (26) is connected in the middle of the bottom end of the inner wall of the spray chamber (30), the interior of the water tank (26) is connected with a third auxiliary electric heater (16), the right side of the water tank (26) is provided with a spraying circulating pump (18) and a water filtering circulating pump (19), the water inlet of the spraying circulating pump (18) and the water inlet of the water filtering circulating pump (19) are respectively connected with a water tank (26) through pipelines, the water outlet of the water filtering circulating pump (19) is connected with a water distributor (17), the water outlet of the spraying circulating pump (18) is connected with a spraying water pipe (6), the middle part of the spray chamber (30) is connected with a water washing filtering filling layer (15).
2. The multifunctional water washing type fresh air purifier as claimed in claim 1, wherein the front end of the casing (33) is connected with an electric control box (32), the electric control box (32) comprises a control circuit board, a control circuit board and electric elements, the electric elements are connected with the control circuit board through wires, and the control circuit board is respectively connected with the first auxiliary electric heater (3), the cold and heat source exchanger (4), the second auxiliary electric heater (9), the fresh air supply fan (12), the anion generator (13), the spray circulation pump (18), the third auxiliary electric heater (16), the water filter circulation pump (19) and the exhaust fan (20) through wires.
3. The multifunctional water washing type fresh air purifier as claimed in claim 1, wherein a water replenishing pipe (25) and an overflow pipe (24) are sequentially connected to the upper portion of the right side of the water tank (26), a ball float valve (27) is arranged on the water replenishing pipe (25), a drain pipe (23) is connected to the lower portion of the right side of the water tank (26), a drainage electromagnetic valve (22) is arranged on the drain pipe (23), the drainage electromagnetic valve (22) is connected with a control circuit board through a lead, and one end, away from the water tank (26), of the drain pipe (23), the overflow pipe (24) and the water replenishing pipe (25) extends to the outer side of the shell (33).
4. The multifunctional water washing type fresh air purifier as claimed in claim 1, wherein a rear water baffle (5) is arranged between the water tank (26) and the water distributor (17), a current equalizer (14) is arranged between the rear water baffle (5) and the cold and heat source exchanger (4), and a front water baffle (7) is arranged on the right side of the upper part of the spray chamber (30).
5. The multifunctional water washing type fresh air purifier as claimed in claim 1, wherein a detection hole is formed at the upper end of the shell (33), and a comprehensive sensor (31) is arranged at the detection hole.
6. The multifunctional water washing type fresh air purifier as claimed in claim 1, wherein the fresh air supply fan (12) and the exhaust fan (20) are both centrifugal fans or axial fans.
