CN212678633U

CN212678633U - Multifunctional projector conference table

Info

Publication number: CN212678633U
Application number: CN202020823231.3U
Authority: CN
Inventors: 杨宇新
Original assignee: Shenzhen Blvd Architecture Consulting Co ltd
Current assignee: Shenzhen Blvd Architecture Consulting Co ltd
Priority date: 2020-05-15
Filing date: 2020-05-15
Publication date: 2021-03-12
Anticipated expiration: 2030-05-15

Abstract

The utility model relates to an office equipment technical field just discloses multifunctional projector conference table, including the desktop board, the bottom fixed mounting of desktop board has the table to hold in the palm, the bottom fixed mounting that the table held in the palm has four table legs, the bottom fixed mounting of table leg has the non slipping spur. The utility model discloses multi-functional projecting apparatus conference table, when idle or when not needing the projecting apparatus, seal the equipment groove through two dustproof sliding covers, make on the unable projecting apparatus body that falls of external dust, when needing to use the projecting apparatus body, slide two dustproof sliding covers to both sides, then start the pneumatic cylinder through control switch box, make hydraulic telescoping rod upwards promote, let the projecting apparatus body rise to the surface of desktop board, the rotatory layer board of projecting apparatus body bottom can let the more nimble rotation of projecting apparatus body, the adjustment of being convenient for, secondly, the table is pieced together with the combination to be convenient for remove, above, effectual its space conversion efficiency and the convenience of having promoted.

Description

Multifunctional projector conference table

Technical Field

The utility model relates to an office equipment technical field specifically is multi-functional projecting apparatus conference table.

Background

Present mobilizable modularization office decoration design has become more and more extensive, realize people according to the office environment that the work demand created the independent assortment, one of the biggest characteristics of mobilizable modularization office is that it needs each module space of fast assembly and disassembly, wherein the indispensable configuration in meeting space is projecting apparatus and office furniture, chinese patent CN200910036285.3 provides a many function combination conference table, the utility model discloses a special mechanism makes it slide, it is rotatory, make up into the many function conference table that has different functions, thereby realize the multi-functional of conference table, realize the multi-functional of conference room, improve the purpose of the availability factor of conference room.

However, this patent still has some shortcomings, for example, this patent still needs to utilize the ceiling type projector that traditional meeting space generally chooseed for use or directly puts the floor type projector, and its fixed mode makes the projector do not possess portable function or inconvenient to easily get into the dust, and its space conversion inefficiency, therefore need a just move and adjust convenient multi-functional projector conference table, so the utility model provides a multi-functional projector conference table.

SUMMERY OF THE UTILITY MODEL

Technical problem to be solved

The utility model provides a not enough to prior art, the utility model provides a multifunctional projector meeting table possesses conveniently, is convenient for remove, and advantages such as module space conversion efficiency height have solved traditional meeting space and have generally chooseed ceiling type projecting apparatus for use, and its fixed position makes the projection debugging inconvenient and do not possess the problem that portable function and module space conversion efficiency hang down.

(II) technical scheme

For realize above-mentioned convenient, be convenient for remove, purpose that module space conversion efficiency is high, the utility model provides a following technical scheme: a multifunctional projector conference table comprises a table top plate, wherein a table support is fixedly arranged at the bottom of the table top plate, four table legs are fixedly arranged at the bottom of the table support, anti-skidding blocks are fixedly arranged at the bottoms of the table legs, connecting sleeves are fixedly arranged on the surfaces of the four table legs, connecting rods are fixedly arranged on one opposite sides of the four connecting sleeves in pairs, an equipment groove is formed in the table support, a hydraulic cylinder is fixedly arranged at the bottom of the equipment groove, a hydraulic telescopic rod is fixedly arranged at the top of the hydraulic cylinder, a supporting plate is fixedly arranged at the top of the hydraulic telescopic rod, a rotating limiting plate is movably arranged in the supporting plate, a rotating supporting plate is fixedly arranged at the top of the rotating limiting plate, a projector body is fixedly arranged at the top of the rotating supporting plate, a control switch box is fixedly arranged at the left side of the table support, and wireless charging panels are fixedly arranged in the table, the bottom fixed mounting of wireless panel that charges has the socket piece, the surface movable mounting of desktop board has rotatory lid, the lateral wall fixed mounting of rotatory lid has rotatory card strip, the inside of desktop board and the top that is located the equipment groove have been seted up two and have been accomodate the groove, two accomodate the equal movable mounting in inside in groove has dustproof sliding cover, two the equal fixed mounting in top of dustproof sliding cover has protruding piece, two the equal fixed mounting in one side that dustproof sliding cover carried on the back mutually has the weight, two spacing spout has all been seted up to the bottom of accomodating the groove, two the equal fixed mounting in bottom of weight has two limit slide, the interior fixed mounting of equipment groove has the buffer block.

Preferably, the shape of desktop board is the square, and the material of desktop board is timber, and the opening that corresponds with the equipment groove has been seted up on the surface at desktop board middle part, and open-ended width is than the big zero point five centimetres of width of rotatory layer board, and the mounting groove that corresponds with the wireless panel that charges has been seted up to the inside of desktop board, and the material of table support is the chamotte plastics, and the mounting groove that corresponds with pneumatic cylinder and control switch box has been seted up to the inside of table support.

Preferably, the four table legs and the connecting rod are made of aluminum alloy, the four table legs are fixedly arranged at the bottom of the table support in a splayed mode, the anti-slip blocks are made of industrial rubber, and anti-slip lines are formed in the bottoms of the anti-slip blocks.

Preferably, the quantity of the wireless panel that charges is two, and five USB jacks have been seted up at the top of the wireless panel that charges, and three hole power jack have been seted up to the diapire of socket piece, and the shape of rotatory lid is circular, and the material of rotatory lid is the chamotte plastics, and rotatory lid passes through the rotatory card strip and desktop board threaded connection of plastics material, and five square mouths that correspond with the USB jack are seted up on the surface of rotatory card strip.

Preferably, the material of layer board is the chamotte plastics, and the rotatory groove that corresponds with rotatory limiting plate, rotatory layer board is seted up to the inside of layer board, and the section shape of rotatory groove is ' protruding ' font, and the top movable mounting of rotatory groove has stainless steel's roll pearl, and rotatory layer board is circular.

Preferably, two the material of dustproof sliding cover is the chamotte plastics, and the shape of dustproof sliding cover is the rectangle, and the weight plate is the stainless steel, and the weight plate passes through limit slide and limit slide sliding connection, the buffer block is rubber, and the quantity of buffer block is two.

(III) advantageous effects

Compared with the prior art, the utility model provides a multifunctional projector conference table possesses following beneficial effect:

1. the utility model discloses a multifunctional projector conference table, when idle or not needing the projector, the equipment groove is sealed through two dustproof sliding covers, so that the external dust can not fall on the projector body, when needing to use the projector body, the two dustproof sliding covers slide to two sides, then the hydraulic cylinder is started through the control switch box, so that the hydraulic telescopic rod is pushed upwards, the projector body is raised to the surface of the table panel, the rotary supporting plate at the bottom of the projector body can make the projector body more flexibly rotate, and is convenient to adjust, secondly, the table panel area is not large, and the table is conveniently moved and combined, thereby effectively improving the space conversion efficiency and convenience, in addition, a stainless steel weight plate is arranged at one side opposite to the two dustproof sliding covers, and a limit slider is arranged at the bottom of the weight plate, for supporting two dust-proof sliding covers.

2. The utility model discloses multi-functional projector conference table through two wireless charging panels of internally mounted at the desktop board, and the user is used for computer or cell-phone to charge when meeting conveniently, before the use, only need be rotatory with the swivel cap for the square mouth on swivel cap surface can with the wireless USB jack one-to-one that charges the panel top, both facilitate the use can avoid the dust to get into the USB jack when idle again, thereby influence the wireless use that charges the panel, above effectual promotion the utility model discloses a multi-functionality, so this the utility model provides a multi-functional projector conference table.

Drawings

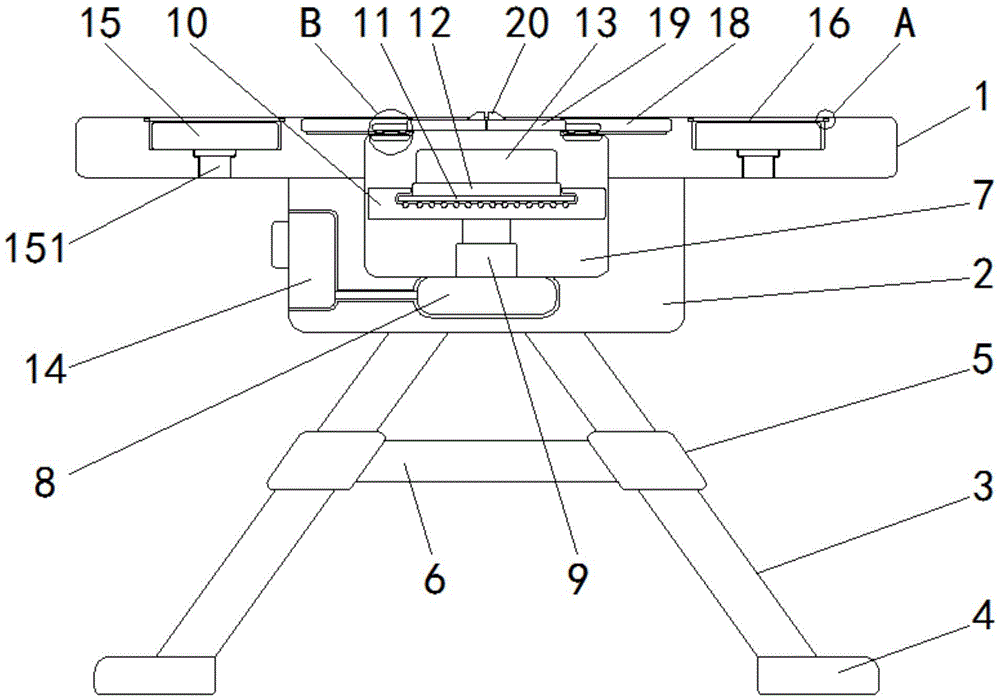

Fig. 1 is a schematic structural view of a multifunctional projector conference table provided by the present invention;

fig. 2 is an enlarged schematic structural view of a position a of the multifunctional projector conference table provided by the utility model;

fig. 3 is an enlarged schematic structural diagram of a position B of the multifunctional projector conference table provided by the utility model.

In the figure: 1 desktop board, 2 table holds in the palm, 3 table legs, 4 non slipping spur, 5 connecting sleeve, 6 connecting rods, 7 equipment grooves, 8 pneumatic cylinders, 9 hydraulic telescoping rod, 10 layer boards, 11 rotatory limiting plates, 12 rotatory layer boards, 13 projecting apparatus bodies, 14 control switch boxes, 15 wireless panels that charge, 151 socket piece, 16 rotatory lid, 17 rotatory calorie of strip, 18 accomodate the groove, 19 dustproof sliding covers, 20 protruding pieces, 21 weight, 22 spacing spout, 23 spacing slider, 24 buffer blocks.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.

Referring to fig. 1-3, the multifunctional projector conference table comprises a table top plate 1, a table support 2 is fixedly installed at the bottom of the table top plate 1, four table legs 3 are fixedly installed at the bottom of the table support 2, anti-slip blocks 4 are fixedly installed at the bottoms of the table legs 3, the four table legs 3 and connecting rods 6 are made of aluminum alloy, the four table legs 3 are fixedly installed at the bottom of the table support 2 in a splayed shape, the anti-slip blocks 4 are made of industrial rubber, anti-slip patterns are formed at the bottoms of the anti-slip blocks 4, connecting sleeves 5 are fixedly installed on the surfaces of the four table legs 3, the connecting rods 6 are fixedly installed at two opposite sides of the four connecting sleeves 5, an equipment groove 7 is formed in the table support 2, a hydraulic cylinder 8 is fixedly installed at the bottom of the equipment groove 7, a hydraulic telescopic rod 9 is fixedly installed at the top of the, a rotation limiting plate 11 is movably arranged in the supporting plate 10, a rotation supporting plate 12 is fixedly arranged at the top of the rotation limiting plate 11, the supporting plate 10 is made of chamotte plastic, a rotation groove corresponding to the rotation limiting plate 11 and the rotation supporting plate 12 is arranged in the supporting plate 10, the cross section of the rotation groove is in a 'convex' shape, a rolling bead made of stainless steel is movably arranged at the top of the rotation groove, the rotation supporting plate 12 is circular, a projector body 13 is fixedly arranged at the top of the rotation supporting plate 12, a control switch box 14 is fixedly arranged at the left side of the table support 2, the table top plate 1 is square, the table top plate 1 is made of wood, an opening corresponding to the equipment groove 7 is arranged on the surface of the middle part of the table top plate 1, the width of the opening is larger than the width of the rotation supporting plate 12 by five centimeters at zero point, a mounting groove corresponding to the wireless charging panel 15 is arranged in, the table support 2 is internally provided with mounting grooves corresponding to the hydraulic cylinder 8 and the control switch box 14, the table top board 1 is internally and fixedly provided with wireless charging panels 15 at the left and right sides of the equipment groove 7, the bottom of the wireless charging panel 15 is fixedly provided with a socket block 151, the surface of the table top board 1 is movably provided with a rotary cover 16, the side wall of the rotary cover 16 is fixedly provided with rotary clamping strips 17, the number of the wireless charging panels 15 is two, the top of the wireless charging panel 15 is provided with five USB jacks, the bottom wall of the socket block 151 is provided with a three-hole power jack, the rotary cover 16 is circular, the rotary cover 16 is made of chamotte plastic, the rotary cover 16 is in threaded connection with the table top board 1 through the rotary clamping strips 17 made of plastic materials, the surface of the rotary clamping strips 17 is provided with five square holes corresponding to the USB jacks, the table top board 1 is internally and positioned at the top of the equipment groove 7, two equal movable mounting in inside of accomodating groove 18 have dustproof sliding cover 19, the equal fixed mounting in top of two dustproof sliding covers 19 has protruding piece 20, two equal fixed mounting in one side that dustproof sliding cover 19 carried on the back mutually have a weight 21, two bottom of accomodating groove 18 have all been seted up spacing spout 22, two equal fixed mounting in bottom of two weight 21 have two spacing slider 23, the interior fixed wall fixed mounting of equipment groove 7 has buffer block 24, two dustproof sliding cover 19's material is the chamotte plastics, dustproof sliding cover 19's shape is the rectangle, weight 21 is the stainless steel, weight 21 passes through spacing slider 23 and spacing slider 23 sliding connection, buffer block 24 is rubber, the quantity of buffer block 24 is two.

To sum up, the multifunctional projector conference table of the present invention, when idle or when the projector is not needed, seals the device groove 7 through the two dustproof sliding covers 19, so that the external dust can not fall onto the projector body 13, when the projector body 13 is needed, slides the two dustproof sliding covers 19 to both sides, then starts the hydraulic cylinder 8 through the control switch box 14, so that the hydraulic telescopic rod is pushed upwards, the projector body 13 is lifted to the surface of the table top plate 1, the rotary supporting plate 12 at the bottom of the projector body 13 can make the projector body 13 rotate more flexibly, so as to facilitate adjustment, secondly, the area of the table top plate 1 is not large, so as to facilitate moving and combining the table, thereby effectively improving the space conversion efficiency and convenience thereof, furthermore, a stainless steel weight plate 21 is installed on one side of the two dustproof sliding covers 19 opposite to each other, and a limiting slide block 23 is installed at the bottom of the ballast plate 21 to support the two dustproof sliding covers 19.

And, the utility model discloses multi-functional projector conference table, through two wireless charging panel 15 of internally mounted at desktop board 1, the user is used for computer or cell-phone to charge when opening the meeting conveniently, before the use, only need be rotatory with rotatory lid 16 for the square mouth on rotatory lid 16 surface and the wireless USB jack one-to-one at charging panel 15 top can, both facilitate the use can avoid the dust to get into the USB jack when idle again, thereby influence the wireless use of charging panel 15, above effectual promotion the utility model discloses a multifunctionality, so the utility model provides a multi-functional projector conference table.

It is noted that, herein, relational terms such as first and second, and the like may be used solely to distinguish one entity or action from another entity or action without necessarily requiring or implying any actual such relationship or order between such entities or actions. Also, the terms "comprises," "comprising," or any other variation thereof, are intended to cover a non-exclusive inclusion, such that a process, method, article, or apparatus that comprises a list of elements does not include only those elements but may include other elements not expressly listed or inherent to such process, method, article, or apparatus. Without further limitation, the use of the phrase "comprising a. -. said" to define an element does not exclude the presence of other like elements in a process, method, article, or apparatus that comprises the element.

Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.

Claims

1. Multifunctional projector conference table, including desktop board (1), its characterized in that: the table comprises a table top plate (1), a table support (2) is fixedly mounted at the bottom of the table top plate (1), four table legs (3) are fixedly mounted at the bottom of the table support (2), anti-skidding blocks (4) are fixedly mounted at the bottom of the table legs (3), connecting sleeves (5) are fixedly mounted on the surfaces of the four table legs (3), connecting rods (6) are fixedly mounted on one side of each two opposite sides of each connecting sleeve (5), an equipment groove (7) is formed in the table support (2), a hydraulic cylinder (8) is fixedly mounted at the bottom of the equipment groove (7), a hydraulic telescopic rod (9) is fixedly mounted at the top of the hydraulic telescopic rod (8), a supporting plate (10) is fixedly mounted at the top of the hydraulic telescopic rod (9), a rotary limiting plate (11) is movably mounted in the supporting plate (10), and a rotary supporting plate (12) is fixedly mounted, the top of the rotary supporting plate (12) is fixedly provided with a projector body (13), the left side of the table support (2) is fixedly provided with a control switch box (14), the inside of the table top plate (1) is fixedly provided with a wireless charging panel (15) at the left side and the right side of the equipment groove (7), the bottom of the wireless charging panel (15) is fixedly provided with a socket block (151), the surface of the table top plate (1) is movably provided with a rotary cover (16), the side wall of the rotary cover (16) is fixedly provided with a rotary clamping strip (17), the inside of the table top plate (1) is provided with two accommodating grooves (18) at the top of the equipment groove (7), the insides of the two accommodating grooves (18) are movably provided with dustproof sliding covers (19), the tops of the two dustproof sliding covers (19) are fixedly provided with raised blocks (20), and the two sides of the dustproof sliding covers (19) are fixedly provided with weights (21), two spacing spout (22), two have all been seted up to the bottom of accomodating groove (18) the equal fixed mounting in bottom of weight board (21) has two spacing slider (23), the interior fixed wall fixed mounting of equipment groove (7) has buffer block (24).

2. The multifunctional projector conference table of claim 1, wherein: the shape of desktop board (1) is the square, and the material of desktop board (1) is timber, and the opening that corresponds with equipment groove (7) is seted up on the surface at desktop board (1) middle part, and open-ended width is five centimetres big zero points than the width of rotatory layer board (12), and the mounting groove that corresponds with wireless panel (15) that charges is seted up to the inside of desktop board (1), and the material that the table held in the palm (2) is the chamotte plastics, and the mounting groove that corresponds with pneumatic cylinder (8) and control switch box (14) is seted up to the inside that the table held in the palm (2).

3. The multifunctional projector conference table of claim 1, wherein: four the table legs (3) and the connecting rods (6) are made of aluminum alloy, four the table legs (3) are fixedly arranged at the bottom of the table support (2) in a splayed shape, the anti-skid blocks (4) are made of industrial rubber, and anti-skid lines are arranged at the bottom of the anti-skid blocks (4).

4. The multifunctional projector conference table of claim 1, wherein: the quantity of wireless panel (15) that charges is two, and five USB jacks have been seted up at the top of wireless panel (15) that charges, and three hole supply jack have been seted up to the diapire of socket piece (151), and the shape of rotatory lid (16) is circular, and the material of rotatory lid (16) is the chamotte plastics, and rotatory lid (16) are through rotatory card strip (17) and desktop board (1) threaded connection of plastics material, and five square mouths that correspond with the USB jack are seted up on the surface of rotatory card strip (17).

5. The multifunctional projector conference table of claim 1, wherein: the material of layer board (10) is the chamotte plastics, and the swivelling chute that corresponds with rotatory limiting plate (11), rotatory layer board (12) is seted up to the inside of layer board (10), and the section shape of swivelling chute is ' protruding ' font, and the top movable mounting of swivelling chute has stainless steel's roll pearl, and rotatory layer board (12) are circular.

6. The multifunctional projector conference table of claim 1, wherein: two the material of dustproof sliding cover (19) is the chamotte plastics, and the shape of dustproof sliding cover (19) is the rectangle, and weight board (21) are the stainless steel, and weight board (21) are through limit slider (23) and limit slider (23) sliding connection, buffer block (24) are rubber, and the quantity of buffer block (24) is two.
