Abstract
本实用新型涉及排水技术领域，且公开了一种带有拼接结构的HDPE高密度聚乙烯缠绕管，所述管体的外部固定安装有插接块，所述插接块的正面固定安装有第一固定件，所述第一固定件的内部固定安装有连接杆，所述连接杆的左侧固定安装有握把，所述插接块的右侧固定连接有对接块。该带有拼接结构的HDPE高密度聚乙烯缠绕管，通过连接杆贯穿并连接第一固定件与第二固定件，使得管体之间可以通过插接块和对接块相互拼接，在初步拼接后可以通过按压板压缩弹簧将连接杆与第二固定件限位，最后通过旋转转轴将扣件与连接杆的空槽相连接即可形成固定，方便快捷并且结构稳固，对大量的管道安装工程来说可以减少时间提高效率。
The utility model relates to the technical field of drainage, and discloses an HDPE high-density polyethylene winding pipe with a splicing structure. A fixing piece, a connecting rod is fixedly installed inside the first fixing piece, a handle is fixedly installed on the left side of the connecting rod, and a docking block is fixedly connected with the right side of the plug-in block. The HDPE high-density polyethylene winding pipe with a splicing structure penetrates through and connects the first fixing piece and the second fixing piece through the connecting rod, so that the pipe bodies can be spliced with each other through the plug-in block and the butt-joint block. After the preliminary splicing The connecting rod and the second fixing member can be limited by pressing the plate compression spring, and finally the fastener is connected with the hollow slot of the connecting rod by rotating the shaft to form a fixed position, which is convenient, fast and stable in structure, and is suitable for a large number of pipeline installation projects. Said to reduce time and improve efficiency.
Description
Technical Field
The utility model relates to a drainage technology field specifically is a HDPE high density polyethylene winding pipe with mosaic structure.
Background
The polyethylene winding pipe is made by extruding and welding a composite special-shaped strip material on a spiral winding welding faying surface, the inner wall of the polyethylene winding pipe is smooth, the pipe has the advantages of corrosion resistance, light weight, simple and convenient installation, large flow rate, long service life and the like, and can replace the pipe made of high-energy consumption materials, thereby belonging to an environment-friendly green product.
Because the polyethylene pipe belongs to novel environmental protection technology, be fit for replacing old pre-buried drain pipe in a large number, nevertheless because ordinary being difficult to connect, if connect insecure and cause the leakage scheduling problem easily, so provide a HDPE high density polyethylene winding pipe with mosaic structure and solve above-mentioned problem.
SUMMERY OF THE UTILITY MODEL
Technical problem to be solved
Not enough to prior art, the utility model provides a HDPE high density polyethylene winding pipe with mosaic structure possesses advantages such as the concatenation of being convenient for, has solved the high problem of the concatenation degree of difficulty.
(II) technical scheme
For the purpose of realizing the concatenation of being convenient for, the utility model provides a following technical scheme: the utility model provides a HDPE high density polyethylene winding pipe with mosaic structure, includes the body, the outside fixed mounting of body has the piece of pegging graft, the positive fixed mounting of piece of pegging graft has first mounting, the inside fixed mounting of first mounting has the connecting rod, the left side fixed mounting of connecting rod has the handle, the right side fixedly connected with butt joint piece of pegging graft, the positive fixed mounting of butt joint piece has the second mounting, the positive fixed mounting of second mounting has the pivot, the outside fixed mounting of pivot has the fastener board, the inside fixed mounting of fastener board has the fastener, the inside fixed mounting of connecting rod has the fixed rod seat, the one end fixedly connected with sleeve pipe of connecting rod inner wall is kept away from to the fixed rod seat, sheathed tube inside fixed mounting has the spring, the outside fixed mounting of spring has the press the clamp plate.
Preferably, the pipe body is respectively inserted into the connecting block and the butt-joint block, and the shapes of the connecting block and the butt-joint block are annular.
Preferably, a through groove is formed in the second fixing part, and the through groove is matched with the fastener in shape.
Preferably, the connecting rod penetrates through the first fixing part and the second fixing part respectively.
Preferably, the spring, the pressing plate, the fixing rod seat and the sleeve are integrated.
Preferably, the connecting rod and the handle are integrated, and the number of the connecting rod and the number of the handle are two.
(III) advantageous effects
Compared with the prior art, the utility model provides a HDPE high density polyethylene winding pipe with mosaic structure possesses following beneficial effect:
this HDPE high density polyethylene winding pipe with mosaic structure, run through and connect first mounting and second mounting through the connecting rod, make and splice each other through inserted block and butt joint piece between the body, can be spacing with connecting rod and second mounting through pressing down panel compression spring after preliminary concatenation, be connected the dead slot of fastener and connecting rod through rotatory pivot at last and can form fixedly, convenient and fast and the structure is firm, can reduce time raise the efficiency to a large amount of piping erection engineering.
Drawings

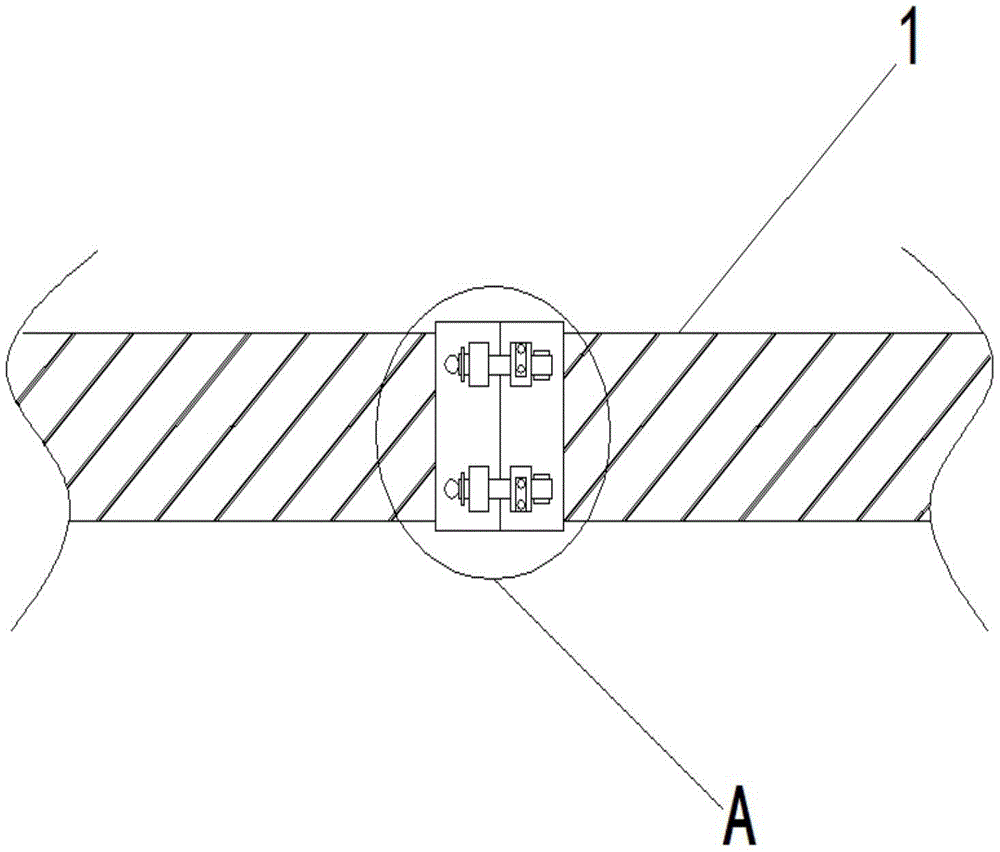

FIG. 1 is a schematic structural view of the present invention;
FIG. 2 is a sectional view of the connecting rod of the present invention;
FIG. 3 is an enlarged view of a portion of A in FIG. 1;
fig. 4 is a structural side view of a second fixing member of the present invention.
In the figure: the device comprises a pipe body 1, an insertion block 2, a first fixing piece 3, a connecting rod 4, a handle 5, a second fixing piece 6, a rotating shaft 7, a fastener plate 8, a fastener 9, a butt joint block 10, a spring 11, a pressing plate 12, a fixed rod seat 13 and a sleeve 14.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Referring to fig. 1-4, an HDPE winding pipe with a splicing structure comprises a pipe body 1, wherein an insertion block 2 is fixedly installed on the outside of the pipe body 1, a first fixing member 3 is fixedly installed on the front surface of the insertion block 2, a connecting rod 4 is fixedly installed inside the first fixing member 3, a handle 5 is fixedly installed on the left side of the connecting rod 4, the connecting rod 4 and the handle 5 are integrated into a whole, the number of the connecting rod 4 and the number of the handle 5 are two, a butt block 10 is fixedly connected to the right side of the insertion block 2, the pipe body 1 is respectively inserted into the insertion block 2 and the butt block 10, the shapes of the insertion block 2 and the butt block 10 are annular, a second fixing member 6 is fixedly installed on the front surface of the butt block 10, the connecting rod 4 respectively penetrates through the first fixing member 3 and the second fixing member 6, a rotating shaft 7 is fixedly installed on the front surface of the second fixing member 6, a fastener plate 8 is fixedly installed, logical groove has been seted up to the inside of second mounting 6, and leads to groove and fastener 9's shape looks adaptation, and the inside fixed mounting of connecting rod 4 has fixed rod seat 13, and the one end fixedly connected with sleeve pipe 14 of connecting rod 4 inner wall is kept away from to fixed rod seat 13, and spring 11, press the clamp plate 12, fixed rod seat 13 and sleeve pipe 14 are a whole, and the inside fixed mounting of sleeve pipe 14 has spring 11, and the outside fixed mounting of spring 11 has press clamp plate 12.
To sum up, this HDPE high density polyethylene winding pipe with mosaic structure, run through and connect first mounting 3 and second mounting 6 through connecting rod 4, make and splice each other through insertion block 2 and butt joint piece 10 between the body 1, can be spacing with connecting rod 4 and second mounting 6 through pressing down panel 12 compression spring 11 after preliminary concatenation, be connected fastener 9 and connecting rod 4's dead slot through rotatory pivot 7 at last and can form fixedly, convenient and fast and the structure is firm, can reduce time raise the efficiency to a large amount of piping erection engineering.
It is to be noted that the terms "comprises," "comprising," or any other variation thereof, are intended to cover a non-exclusive inclusion, such that a process, method, article, or apparatus that comprises a list of elements does not include only those elements but may include other elements not expressly listed or inherent to such process, method, article, or apparatus. Without further limitation, an element defined by the phrase "comprising an … …" does not exclude the presence of other identical elements in a process, method, article, or apparatus that comprises the element.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.
