本实用新型公开了一种用于尼龙颗粒生产的上料机，包括承重架、清洁箱、筛分组件、上料台、上料箱、送料组件、清洁组件、分筛管、物料盒和支撑杆,所述承重架的端面中央固定安装有清洁箱,所述清洁箱的顶部端面固定安装有上料台,所述清洁箱的内部设置有筛分组件,所述清洁箱的外部一侧设置有清洁组件,所述承重架的底部端面中央固定安装有上料箱,所述上料箱的内部一侧设置有分筛管,所述上料箱的外部一侧设置有送料组件,所述上料箱的内部另一侧安装有物料盒;该用于尼龙颗粒生产的上料机,支撑牢固,结构稳定性好,在使用时,能够有效将物料中的杂质分筛出来,从而降低杂质的含量;同时,上料平稳,具有良好的稳定性。
The utility model discloses a feeding machine for nylon particle production, which comprises a load-bearing frame, a cleaning box, a screening component, a feeding table, a feeding box, a feeding component, a cleaning component, a screening tube, a material box and a support A cleaning box is fixedly installed in the center of the end face of the load-bearing frame, a feeding table is fixedly installed on the top end face of the cleaning box, a screening assembly is arranged inside the cleaning box, and an outer side of the cleaning box is arranged There is a cleaning component, a feeding box is fixedly installed in the center of the bottom end face of the load-bearing frame, an inner side of the feeding box is provided with a sieve tube, and an outer side of the feeding box is provided with a feeding component. A material box is installed on the other side of the inside of the feeding box; the feeding machine used for the production of nylon granules has firm support and good structural stability. When in use, it can effectively screen out impurities in the material, thereby reducing impurities. At the same time, the feeding is stable and has good stability.
Description
Technical Field
The utility model relates to a nylon particles production facility field specifically is a material loading machine for nylon particles production.
Background
The feeding machine in the prior art is simple in structure and single in function, does not have the function of impurity removal, and therefore the materials contain impurities, and further the production quality of the nylon particles is influenced, so that the feeding machine for producing the nylon particles is necessary.
Disclosure of Invention
An object of the utility model is to provide a material loading machine for production of nylon granule, the support is firm, and structural stability is good, when using, can effectively sieve out the impurity in the material to reduce the content of impurity, simultaneously, the material loading is steady, has good stability.
The purpose of the utility model can be realized by the following technical scheme:
a feeding machine for nylon particle production comprises a bearing frame, a cleaning box, a screening component, a feeding table, a feeding box, a feeding component, a cleaning component, a screening pipe, a material box and supporting rods, wherein the cleaning box is fixedly installed in the center of the end face of the bearing frame, the feeding table is fixedly installed on the end face of the top of the cleaning box, the screening component is arranged inside the cleaning box, the cleaning component is arranged on one side of the outside of the cleaning box, the feeding box is fixedly installed in the center of the end face of the bottom of the bearing frame, the screening pipe is arranged on one side of the inside of the feeding box, the feeding component is arranged on one side of the outside of the feeding box, the material box is installed on the other side of the inside of the feeding box, and the supporting rods are fixedly installed around;
screening subassembly is including mixing the material motor, mixing work or material rest, striker plate, shale shaker, first unloading hole and second unloading hole, mix material motor fixed mounting at the outside opposite side of clean case, the one end of mixing the material motor is passed clean case fixed connection and is installed and mix the work or material rest, striker plate fixed mounting is in the inboard bottom of clean case, and the bottom end-to-end connection of striker plate installs the shale shaker, first unloading hole and second unloading hole are seted up respectively in the terminal surface both sides of bearing frame.
As a further aspect of the present invention: one end of the top of the sieve distribution pipe is communicated with the first blanking hole, and the top of the material box penetrates through the material loading box and is communicated with the second blanking hole.
As a further aspect of the present invention: clean subassembly includes ventilation case, dust remover, extension pipe and guide filter screen, ventilation case fixed mounting is in outside one side of clean case, inside one side fixed mounting of ventilation case has the dust remover, the one end air intake connection of dust remover installs the extension pipe, the guide filter screen sets up in inside one side of clean case.
As a further aspect of the present invention: one end of the extension pipe penetrates through the ventilation box and the cleaning box to be connected with the material guide cover, and the material guide filter screen is fixedly installed on one side of the end face of the material guide cover.
As a further aspect of the present invention: the feeding assembly comprises a feeding motor, a feeding barrel, a spiral feeding shaft, a feeding box and a blanking pipe, the feeding barrel is fixedly installed on one side end face of the feeding box, one end of the feeding barrel penetrates through the feeding box to be connected with the feeding motor, one end of the screening pipe is located at the top of the feeding barrel, the spiral feeding shaft is installed at one end of the feeding motor in a connected mode, the spiral feeding shaft is located inside the feeding barrel, the feeding box is fixedly installed at one end of the top of the feeding barrel, and the blanking pipe is installed on the bottom end face of the feeding box in an inserted mode.
As a further aspect of the present invention: and an anti-skid support is fixedly arranged on the end face of the bottom of the supporting rod.
The utility model has the advantages that: this a material loading machine for nylon particle production, the support is firm, and structural stability is good, and when using, dust pollution is few, can effectively divide the impurity in the material to sieve out through screening subassembly to reduce the content of impurity, and can carry out the screw conveyor through the pay-off subassembly with the material that divides the sieve out, at the in-process of carrying, the material loading is steady, carries effectually, has good stability.
Drawings
In order to facilitate understanding for those skilled in the art, the present invention will be further described with reference to the accompanying drawings.

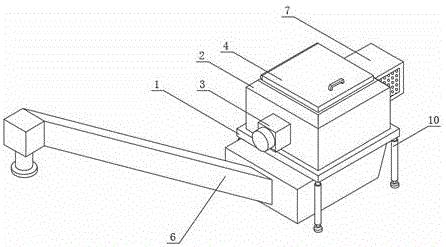

FIG. 1 is a schematic view of the overall structure of the present invention;
FIG. 2 is an overall cross-sectional view of the present invention;
FIG. 3 is a cross-sectional view of the utility model cleaning box;
in the figure: 1. a bearing frame; 2. a cleaning tank; 3. a screen assembly; 4. a feeding table; 5. feeding a material box; 6. a feeding assembly; 7. a cleaning assembly; 8. separating screen pipes; 9. a material box; 10. a support bar; 31. a material mixing motor; 32. a material stirring frame; 33. a striker plate; 34. vibrating screen; 35. a first blanking hole; 36. a second blanking aperture; 61. a feeding motor; 62. a feed cylinder; 63. a screw feed shaft; 64. a feeding box; 65. a blanking pipe; 71. a ventilation box; 72. a dust remover; 73. an extension tube; 74. a material guiding filter screen.
Detailed Description
The technical solution of the present invention will be described clearly and completely with reference to the following embodiments, and it should be understood that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. Based on the embodiments of the present invention, all other embodiments obtained by a person of ordinary skill in the art without creative efforts belong to the protection scope of the present invention.
As shown in fig. 1-3, a feeding machine for nylon particle production comprises a bearing frame 1, a cleaning box 2, a screening component 3, a feeding table 4, a feeding box 5, a feeding component 6, a cleaning component 7, a screening pipe 8, a material box 9 and a support rod 10, wherein the cleaning box 2 is fixedly installed in the center of the end surface of the bearing frame 1, the feeding table 4 is fixedly installed on the end surface of the top of the cleaning box 2, the screening component 3 is arranged inside the cleaning box 2, the screening component 3 comprises a mixing motor 31, a mixing frame 32, a material baffle 33, a vibrating screen 34, a first discharging hole 35 and a second discharging hole 36, the mixing motor 31 is fixedly installed on the other side of the outside of the cleaning box 2, one end of the mixing motor 31 penetrates through the cleaning box 2 and is fixedly connected with the mixing frame 32, the material baffle 33 is fixedly installed at the bottom of the inside of the cleaning box 2, and the end surface of the bottom of the material baffle 33 is connected with the, the first blanking hole 35 and the second blanking hole 36 are respectively arranged on two sides of the end face of the bearing frame 1, one end of the top of the screening pipe 8 is communicated with the first blanking hole 35, the top of the material box 9 penetrates through the upper material box 5 to be communicated with the second blanking hole 36, the screened materials are convenient to store, a cleaning assembly 7 is arranged on one side of the outer portion of the cleaning box 2, the cleaning assembly 7 comprises a ventilating box 71, a dust remover 72, an extension pipe 73 and a material guiding filter screen 74, the ventilating box 71 is fixedly arranged on one side of the outer portion of the cleaning box 2, the dust remover 72 is fixedly arranged on one side of the inner portion of the ventilating box 71, the extension pipe 73 is connected and arranged at one end of the dust remover 72 through an air inlet, the material guiding filter screen 74 is arranged on one side of the inner portion of the cleaning box 2, one end of the extension pipe 73 penetrates through the ventilating box 71 and the cleaning box 2 to be connected and provided with a material guiding cover, the material guiding filter screen 74 is fixedly arranged on one side of the end, the sieve distribution pipe 8 is arranged on one side inside the upper material box 5, the feeding assembly 6 is arranged on one side outside the upper material box 5, the feeding assembly 6 comprises a feeding motor 61, a feeding barrel 62, a spiral feeding shaft 63, a feeding box 64 and a blanking pipe 65, the feeding barrel 62 is fixedly installed on one side end face of the upper material box 5, one end of the feeding barrel 62 penetrates through the upper material box 5 and is connected with the feeding motor 61, one end of the sieve distribution pipe 8 is located at the top of the feeding barrel 62, one end of the feeding motor 61 is connected with the spiral feeding shaft 63, the spiral feeding shaft 63 is located inside the feeding barrel 62, one end of the top of the feeding barrel 62 is fixedly provided with the feeding box 64, the blanking pipe 65 is inserted and installed on the bottom end face of the feeding box 64, feeding is convenient, conveying is stable, conveying stability is improved, the material box 9 is installed on the other side inside the upper material box 5, the supporting rods 10 are fixedly installed on the periphery of, the antiskid effect is improved.
The utility model discloses a theory of operation: when the cleaning box is used, the bearing frame 1 can be supported by the support rod 10 and the anti-skid support at the bottom of the support rod 10, so that the bearing frame 1 can have a stable supporting effect on the cleaning box 2 and the feeding box 5, the structure is firm, and the anti-skid effect is good; materials required by production are injected into the cleaning box 2 through the feeding table 4, the materials are sieved and dedusted through the sieving component 3 and the cleaning component 7, the stirring motor 31 works and can stir the materials in the cleaning box 2 through the stirring frame 32, the deduster 72 in the ventilation box 71 works in the stirring process, dust can be cleaned through the extension pipe 73 and the guide filter screen 74, the stirred materials fall into the vibrating screen 34 through the baffle plate 33 to be sieved, impurities after being sieved fall into the material box 9 through the second blanking hole 36 on the end surface of the bearing frame 1 to be collected, the materials after being sieved fall into the sieving pipe 8 in the feeding box 5 through the first blanking hole 35 and are conveyed to the feeding component 6 through the sieving pipe 8, the feeding component 6 is used for feeding, the feeding motor 61 works and can drive the spiral feeding shaft 63 to rotate in the feeding barrel 62, the feeding cylinder 62 can screw the material in the rotating process, so that the material is conveyed to the feeding box 64 and then falls to the inside of the production equipment through the blanking pipe 65.
The preferred embodiments of the present invention disclosed above are intended only to help illustrate the present invention. The preferred embodiments are not intended to be exhaustive or to limit the invention to the precise embodiments disclosed. Obviously, many modifications and variations are possible in light of the above teaching. The embodiments were chosen and described in order to best explain the principles of the invention and its practical applications, to thereby enable others skilled in the art to best understand the invention for and utilize the invention. The present invention is limited only by the claims and their full scope and equivalents.
Claims (6)
1. A feeding machine for nylon particle production is characterized by comprising a bearing frame (1), a cleaning box (2), a screening component (3), a feeding platform (4), a feeding box (5), a feeding component (6), a cleaning component (7), a screening pipe (8), a material box (9) and a support rod (10), wherein the cleaning box (2) is fixedly installed in the center of the end face of the bearing frame (1), the feeding platform (4) is fixedly installed on the end face of the top of the cleaning box (2), the screening component (3) is arranged inside the cleaning box (2), the cleaning component (7) is arranged on one side of the outside of the cleaning box (2), the feeding box (5) is fixedly installed in the center of the end face of the bottom of the bearing frame (1), the screening pipe (8) is arranged on one side of the inside of the feeding box (5), the feeding component (6) is arranged on one side of the outside of the feeding box (5), the other side in the upper material box (5) is provided with a material box (9), and the periphery of the end surface of the bottom of the bearing frame (1) is fixedly provided with support rods (10);
screening subassembly (3) are including mixing material motor (31), mixing work or material rest (32), striker plate (33), shale shaker (34), first unloading hole (35) and second unloading hole (36), mix outside opposite side at clean box (2) of material motor (31) fixed mounting, the one end of mixing material motor (31) is passed clean box (2) fixed connection and is installed and mix work or material rest (32), striker plate (33) fixed mounting is in the inboard bottom of clean box (2), and the bottom end-to-end connection of striker plate (33) installs shale shaker (34), the terminal surface both sides at bearing frame (1) are seted up respectively in first unloading hole (35) and second unloading hole (36).
2. The feeder for nylon particle production according to claim 1, characterized in that one end of the top of the sieve distribution pipe (8) is communicated with the first blanking hole (35), and the top of the material box (9) is communicated with the second blanking hole (36) through the feeding box (5).
3. The feeding machine for nylon particle production according to claim 1, wherein the cleaning assembly (7) comprises a ventilation box (71), a dust remover (72), an extension pipe (73) and a material guiding filter screen (74), the ventilation box (71) is fixedly installed on one side of the outside of the cleaning box (2), the dust remover (72) is fixedly installed on one side of the inside of the ventilation box (71), the extension pipe (73) is installed at one end of the dust remover (72) in an air inlet connection mode, and the material guiding filter screen (74) is arranged on one side of the inside of the cleaning box (2).
4. The feeding machine for nylon particle production as claimed in claim 3, wherein one end of the extension pipe (73) passes through the ventilation box (71) and the cleaning box (2) and is connected with a material guiding cover, and the material guiding filter screen (74) is fixedly arranged on one side of the end face of the material guiding cover.
5. The feeding machine for nylon particle production as claimed in claim 1, wherein the feeding assembly (6) comprises a feeding motor (61), a feeding barrel (62), a spiral feeding shaft (63), a feeding box (64) and a blanking pipe (65), the feeding barrel (62) is fixedly installed on one side end face of the feeding box (5), one end of the feeding barrel (62) penetrates through the feeding box (5) to be connected with the feeding motor (61), one end of the screening pipe (8) is located at the top of the feeding barrel (62), one end of the feeding motor (61) is connected with the spiral feeding shaft (63), the spiral feeding shaft (63) is located inside the feeding barrel (62), one end of the top of the feeding barrel (62) is fixedly installed with the feeding box (64), and the blanking pipe (65) is installed on the bottom end face of the feeding box (64) in an inserting mode.
6. The feeding machine for nylon particle production as claimed in claim 1, wherein the bottom end face of the support rod (10) is fixedly provided with an anti-skid support.
