Abstract
The utility model discloses a wiring board structure that electric wire can be accomodate, including the tape measure winder, casing including the disc, the tape measure winder is located the casing, the winding has a plurality of rings of electric wires on the tape measure winder, a plurality of three hole sockets and USB interface have been seted up on the casing up end, three hole sockets, USB interface all with the terminal electric connection of electric wire, the outlet has been seted up on the casing outer peripheral face, outside the electric wire free end stretches out the casing through the outlet, electric wire free end electricity connecting plug, what the chucking was slided each other on the outlet is equipped with the electric wire that the button stretched out with real-time chucking, and simple structure accomodates the electric wire convenience, avoids the electric wire to receive wearing and tearing, has improved the life of wiring board.
Description
Technical Field
The utility model relates to a wiring board structure, more specifically say a bit, relate to a wiring board structure that electric wire can be accomodate, belong to the wiring board field.
Background
There are many types of wiring board in the market, but most electric wires all expose, always arrange the electric wire when accomodating, consuming time and wasting power, and the electric wire receives wearing and tearing easily, has reduced the life of wiring board, so the automatic recovery technique of circuit has actual using value.
SUMMERY OF THE UTILITY MODEL
In order to solve the prior art problem, the utility model provides a wire inserting plate structure that electric wire can be accomodate that has simple structure, accomodates technical characterstic such as convenient.
In order to achieve the above purpose, the utility model is realized by the following technical scheme:
the utility model provides a plug wire plate structure that electric wire can be accomodate, includes the tape measure winder, including the casing of disc, the tape measure winder is located the casing, the winding has a plurality of rings of electric wires on the tape measure winder, a plurality of three hole sockets and USB interface have been seted up on the casing up end, three hole sockets, USB interface all with the terminal electric connection of electric wire, the outlet has been seted up on the casing outer peripheral face, the electric wire free end is outside stretching out the casing through the outlet, electric wire free end electricity connecting plug, what can mutual slip chucking was equipped with the electric wire that the button stretched out with real-time chucking on the outlet.
Preferably, the electric wire close to the plug is connected with a blocking ball, the blocking ball is positioned outside the wire outlet, and the size and the dimension of the blocking ball are larger than those of the wire outlet so as to limit the position.
Preferably, the tape winding disc comprises two bottom plates, an annular inner shaft is connected between the bottom plates, an electric wire shaft is rotatably sleeved on the inner shaft, the electric wire is wound on the outer peripheral surface of the electric wire shaft, a connecting rod is connected to the center of the inner side surface of any one of the bottom plates in a perpendicular mode, a rigid tape is wound on the connecting rod and connected with the connecting rod, and the free end of the rigid tape is connected to the inner wall of the electric wire shaft.
Preferably, the electric wire is electrically connected with a switch to control the on-off of the three-hole socket and the USB interface, and the switch is positioned on the shell.
Preferably, three USB interfaces are positioned in the middle of the upper end face of the shell; three-hole sockets are arranged on the upper end face of the shell around the USB interface.
Has the advantages that: simple structure, it is convenient to accomodate the electric wire, avoids the electric wire to receive wearing and tearing, has improved the life of wiring board.
Drawings
Fig. 1 is a perspective view of the present invention.

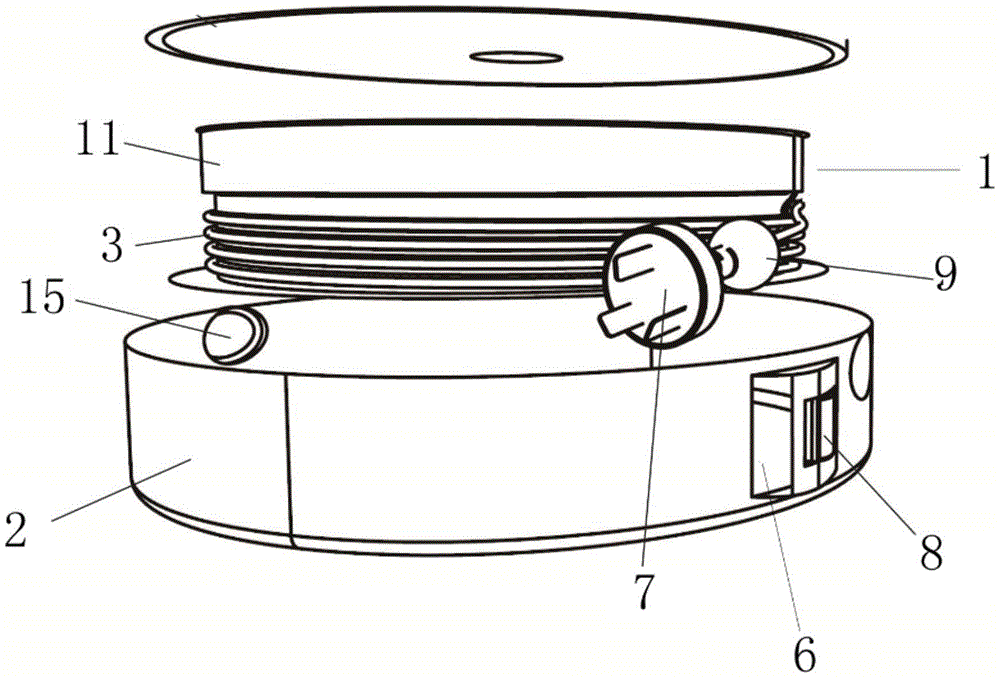

FIG. 2 is an exploded view of the present invention
Fig. 3 is a schematic structural view of the winding disc of the tape measure of the present invention.
Detailed Description
The present invention will be further described with reference to the drawings attached to the specification, but the present invention is not limited to the following embodiments.
As shown in fig. 1-3, the embodiment of a patch board structure with a storable electric wire includes a tape winding disc 1 including a disc-shaped housing 2, the tape winding disc 1 is located in the housing 2, a plurality of coils of electric wires 3 are wound on the tape winding disc 1, the upper end surface of the housing 2 is provided with a plurality of three-hole sockets 4 and a USB interface 5, the three-hole sockets 4 and the USB interface 5 are both electrically connected to the tail end of the electric wire 3, the outer peripheral surface of the housing 2 is provided with a wire outlet 6, the free end of the electric wire 3 extends out of the housing 2 through the wire outlet 6, the free end of the electric wire 3 is electrically connected to a plug 7, and the wire outlet 6 is provided with a button 8 capable of sliding and clamping the electric wire 3 extending in real time;
referring to fig. 1-3, the method of use: the sliding button 8 is released, the user pulls the plug 7 outwards, the electric wire 3 is pulled out, when the length is proper, the button 8 is pushed forwards to clamp the electric wire 3, when the user wants to recover, the button 8 is released, and the electric wire 3 is pulled back into the box under the action of the tape winding disc 1.
In a preferred embodiment, the electric wire 3 near the plug 7 is connected with a blocking ball 9, the blocking ball 9 is located outside the wire outlet 6, the size and the dimension of the blocking ball 9 are larger than those of the wire outlet 6 for limiting, when the electric wire 3 is desired to be recovered, the button 8 is loosened, the electric wire 3 is pulled back into the box under the action of the tape winding disc 1, and the blocking ball 9 is arranged, so that the situation that the electric wire 3 is wound by the tape winding disc 1 too fast to cause the plug 7 to impact the wire outlet 6 can be avoided, and the service life of the plug 7 is prolonged.
In a preferred embodiment, the tape winding disc 1 comprises two bottom plates 10, a circular inner shaft 11 is connected between the bottom plates 10, an electric wire spool 12 is rotatably sleeved on the inner shaft 11, the electric wire 3 is wound on the outer circumferential surface of the electric wire spool 12, a connecting rod 13 is connected to the center of the inner side surface of any one of the bottom plates, a rigid tape 14 is wound on the connecting rod 13, and the free end of the rigid tape 14 is connected to the inner wall of the electric wire spool 12;
the operation process is as follows: the sliding button 8 is loosened, a user pulls the plug 7 outwards, when the electric wire 3 is pulled, the electric wire shaft 12 can rotate around the inner shaft 11, at the moment, the rigid tape 14 is contracted along with the rotation of the electric wire shaft 12, when the length is proper, the button 8 is pushed forwards to clamp the electric wire 3, when the user wants to recover, the button 8 is loosened, the rigid tape 14 starts to recover, when the rigid tape 14 recovers, the electric wire shaft 12 can be driven to rotate quickly, the electric wire 3 can be pulled back into the box, the structure is simple, and the use is convenient.
In a preferred embodiment, the electric wire 3 is electrically connected with a switch 15 to control the on-off of the three-hole jack 4 and the USB interface 5, the switch 15 is located on the housing 2, and the switch 15 is used for controlling, so that the safety is improved, and the use is convenient.
In a preferred embodiment, three of the USB interfaces 5 are located in the middle of the upper end face of the housing 2; three hole sockets 4 have threely, and it arranges on casing 2 up end around USB interface 5, and the mode of arranging is convenient for insert a plurality of plugs, simple and practical.
Finally, it should be noted that the present invention is not limited to the above embodiments, and many variations are possible. All modifications which can be derived or suggested by a person skilled in the art from the disclosure of the invention should be considered as within the scope of the invention.
Claims (5)
1. A plug wire board structure that electric wire can accomodate, includes tape measure reel (1), its characterized in that: casing (2) including the disc, tape measure winder (1) is located casing (2), the winding has a plurality of rings of electric wires (3) on tape measure winder (1), a plurality of three hole sockets (4) and USB interface (5) have been seted up on casing (2) up end, three hole sockets (4), USB interface (5) all with electric wire (3) terminal electric connection, outlet (6) have been seted up on casing (2) outer peripheral face, outside electric wire (3) free end stretched out casing (2) through outlet (6), electric wire (3) free end electricity connecting plug (7), but what mutual slip chucking was equipped with on outlet (6) is equipped with electric wire (3) that button (8) stretched out with real-time chucking.
2. The electrical cord stowable patch panel structure of claim 1, wherein: the electric wire (3) close to the plug (7) is connected with a blocking ball (9), the blocking ball (9) is positioned outside the wire outlet (6), and the size and the dimension of the blocking ball (9) are larger than those of the wire outlet (6) for limiting.
3. A cord-stowable patch panel structure according to claim 1 or 2, wherein: the tape winding disc (1) comprises two bottom plates (10), a circular inner shaft (11) is connected between the bottom plates (10), an electric wire shaft (12) is sleeved on the inner shaft (11) in a rotatable mode, an electric wire (3) is wound on the outer peripheral face of the electric wire shaft (12), a connecting rod (13) is connected to the center of the inner side face of each bottom plate (10) in a perpendicular mode, a rigid tape (14) is wound on the connecting rod (13), and the free end of the rigid tape (14) is connected to the inner wall of the electric wire shaft (12).
4. The electrical cord stowable patch panel structure of claim 1, wherein: the electric wire (3) is electrically connected with a switch (15) to control the on-off of the three-hole jack (4) and the USB interface (5), and the switch (15) is positioned on the shell (2).
5. A cord-stowable patch panel structure according to claim 1 or 4, wherein: the three USB interfaces (5) are positioned in the middle of the upper end surface of the shell (2); three-hole sockets (4) are arranged on the upper end face of the shell (2) around the USB interface (5).
