Abstract
本实用新型公开一种自取水喷淋空气净化装置，其特征在于：所述的装置包括水平分布的进气管道，所述进气管道的一端开设有带有进气格栅的进气口，并且在靠近进气格栅一端的进气管道内设置有进气扇，所述进气管道另一端的下方连接有倾斜分布的倾斜过渡管道，所述倾斜过渡管道内设置有冷凝器，同时倾斜过渡管道的侧壁上还设置有与冷凝器相匹配的散热扇，所述倾斜过渡管道的底端则与水平分布的喷淋管道相连通，所述喷淋管道的末端开设有带有出气格栅的出气口，同时喷淋管道的顶部设置有通过喷淋泵控制的多个喷淋头，所述喷淋管道的底板倾斜分布，并且在底板的最低端处还设置有集水管。
The utility model discloses a self-intake water spraying air purification device, which is characterized in that the device comprises horizontally distributed air intake pipes, and one end of the air intake pipes is provided with an air inlet with an air intake grille , and an air intake fan is arranged in the air intake duct near one end of the air intake grille, an inclined transition duct is connected below the other end of the air intake duct, and a condenser is arranged in the inclined transition duct, and at the same time The side wall of the inclined transition pipe is also provided with a cooling fan matching the condenser, the bottom end of the inclined transition pipe is connected with the horizontally distributed spray pipe, and the end of the spray pipe is provided with an air outlet. At the same time, the top of the spray pipe is provided with a plurality of spray heads controlled by the spray pump, the bottom plate of the spray pipe is distributed obliquely, and a water collecting pipe is also provided at the lowest end of the bottom plate.
Description
Technical Field
The utility model relates to an air purification device, in particular to a self-water-taking spraying air purification device.
Background
At present, the indoor and outdoor air purification generally adopts the conventional modes of vacuum filtration, electrostatic dust removal, water mist spraying and the like. Wherein, the vacuum filtration uses a high-density filter screen material, the purification effect is poor, the filter screen is required to be frequently replaced, and the filter screen can not be degraded; the electrostatic dust removal technology adopts an electrostatic dust removal mode, the purification effect is general, the power consumption is large, and secondary pollution of ozone is easily caused; the spray filtration is relatively effective and efficient, but requires continuous input costs due to the need for continuous water supply, and is also a waste of water resources. There is therefore a need for a method or apparatus that addresses the above-mentioned problems.
Disclosure of Invention
The utility model relates to a solve the above-mentioned not enough that prior art exists, provide a simple structure, design benefit, rationally distributed can realize fountain air purification's device under the condition that does not need the external world to last to supply water.
The technical solution of the utility model is that: a self-watering spray air purification device is characterized in that: the device comprises an air inlet pipeline 1 which is horizontally distributed, one end of the air inlet pipeline 1 is provided with an air inlet grille 2, an air inlet fan 3 is arranged in the air inlet pipeline 1 which is close to one end of the air inlet grille 2, the lower part of the other end of the air inlet pipeline 1 is connected with an inclined transition pipeline 4 which is obliquely distributed, a condenser 5 is arranged in the inclined transition pipeline 4, a heat dissipation fan 6 which is matched with the condenser 5 is also arranged on the side wall of the inclined transition pipeline 4, the bottom end of the inclined transition pipeline 4 is communicated with a spraying pipeline 7 which is horizontally distributed, the tail end of the spraying pipeline 7 is provided with an air outlet grille 8, the top of the spraying pipeline 7 is provided with a plurality of spraying heads 10 which are controlled by a spraying pump 9, a bottom plate 11 of the spraying pipeline 7 is obliquely distributed, and a water collecting pipe 12 is,
a water collecting shell 13 is arranged below the spraying pipeline 7, a partition plate assembly arranged in the water collecting shell 13 divides the inner cavity of the partition plate assembly into a sewage cavity 14 and a spraying cavity 15, the spraying pipeline 7 and the sewage cavity 14 are mutually communicated by the water collecting pipe 12, the top of the water collecting shell 13 is also connected with a condensed water collecting pipe 16, the top end opening of the condensed water collecting pipe 16 is positioned on the bottom plate of the inclined transition pipeline 4, the partition plate assembly comprises a vertical plate and an inclined plate, a horizontally distributed filtering grid plate 17 is connected between the vertical plate and the inclined plate, the filtering grid plate 17 is positioned at the middle height of the water collecting shell 13, the inlet end of the spraying pump 9 is connected with a water pumping pipeline 18, and the bottom end of the water pumping pipeline 18 is positioned at the bottom of the spraying cavity 15,
a siphon mechanism is further arranged on the side surface of the water collecting shell 13, the siphon mechanism comprises a first pipeline 19, the bottom end of the first pipeline 19 is communicated with the bottom of the sewage cavity 14, the top end of the first pipeline 19 is connected with a transition cavity 20, and the transition cavity 20 is communicated with an opening at the top end of a second pipeline 21.
Compared with the prior art, the utility model, have following advantage:
this kind of structural style's water of asking for sprays air purification device, its simple structure, design benefit, rationally distributed, it needs the external water waste and the problem that the cost improves that continuously supplies water and cause to traditional fountain air purification device, designs out a special structure. The condenser is used for directly condensing water in the air into liquid water, and the liquid water is directly used for spraying the air with solid suspended matters, so that the air is purified on the premise of no need of external continuous water supply. The device has simple manufacturing process and low manufacturing cost, so the device has multiple advantages, is particularly suitable for popularization and application in the field, and has very wide market prospect.
Drawings

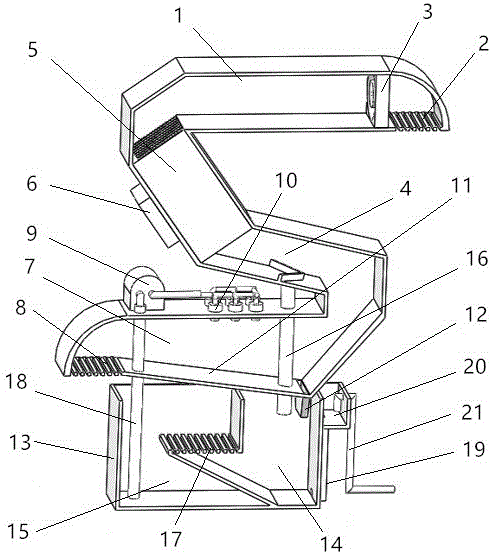

Fig. 1 is a schematic structural diagram of an embodiment of the present invention.
Detailed Description
The following description will explain embodiments of the present invention with reference to the drawings. As shown in fig. 1: a self-water-taking spraying air purification device comprises an air inlet pipeline 1 which is horizontally distributed, wherein one end of the air inlet pipeline 1 is provided with an air inlet grille 2, an air inlet fan 3 is arranged in the air inlet pipeline 1 which is close to one end of the air inlet grille 2, an inclined transition pipeline 4 which is obliquely distributed is connected below the other end of the air inlet pipeline 1, a condenser 5 is arranged in the inclined transition pipeline 4, a heat dissipation fan 6 which is matched with the condenser 5 is also arranged on the side wall of the inclined transition pipeline 4, the bottom end of the inclined transition pipeline 4 is communicated with a spraying pipeline 7 which is horizontally distributed, the tail end of the spraying pipeline 7 is provided with an air outlet grille 8, the top of the spraying pipeline 7 is provided with a plurality of spraying heads 10 which are controlled by a spraying pump 9, and the bottom plate 11 of the spraying pipeline 7 is, and a water collecting pipe 12 is further provided at the lowest end of the bottom plate 11,
a water collecting shell 13 is arranged below the spraying pipeline 7, a partition plate assembly arranged in the water collecting shell 13 divides the inner cavity of the partition plate assembly into a sewage cavity 14 and a spraying cavity 15, the spraying pipeline 7 and the sewage cavity 14 are mutually communicated by the water collecting pipe 12, the top of the water collecting shell 13 is also connected with a condensed water collecting pipe 16, the top end opening of the condensed water collecting pipe 16 is positioned on the bottom plate of the inclined transition pipeline 4, the partition plate assembly comprises a vertical plate and an inclined plate, a horizontally distributed filtering grid plate 17 is connected between the vertical plate and the inclined plate, the filtering grid plate 17 is positioned at the middle height of the water collecting shell 13, the inlet end of the spraying pump 9 is connected with a water pumping pipeline 18, and the bottom end of the water pumping pipeline 18 is positioned at the bottom of the spraying cavity 15,
a siphon mechanism is further arranged on the side surface of the water collecting shell 13, the siphon mechanism comprises a first pipeline 19, the bottom end of the first pipeline 19 is communicated with the bottom of the sewage cavity 14, the top end of the first pipeline 19 is connected with a transition cavity 20, and the transition cavity 20 is communicated with an opening at the top end of a second pipeline 21.
The utility model discloses from water intaking sprays air purification device's working process as follows: when air purification is needed, a control system of the device is started, firstly, the air inlet fan 3 is controlled to work, outside air is sucked into the air inlet pipeline 1, after the air is contacted with the condenser 5, moisture in the air is condensed into liquid water, the liquid water flows downwards along the inclined transition pipeline 4 and finally is collected into the sewage cavity 14 through the condensed water collecting pipe 16, after dry air enters the spraying pipeline 7, impurities such as solid particles and dust in the air fall down together with a water body sprayed by the spraying head 10 and are collected to the lowest end of the inclined bottom plate 11 and finally flow into the sewage cavity 14 through the water collecting pipe 12, and finally the air with the solid impurities removed is discharged through the air outlet grille 8, namely the air is purified after passing through the device;
the water body with solid impurities is collected in the sewage cavity 14, along with the rising of the water level, the surface water body can enter the spraying cavity 15 after being filtered by the filtering grid plate 17, and the relatively clean water is finally sucked by the spraying pump 9 and is finally sprayed out through the spraying head 10 so as to separate the solid impurities in the air;
when the water level in the sewage cavity 14 rises to the height of the transition cavity 20, under the action of the siphon principle, the water in the sewage cavity 14 enters the first pipeline 19 through the bottom end of the first pipeline 19 and is discharged through the transition cavity 20 and the second pipeline 21 in sequence, so that solid impurities deposited at the bottom of the sewage cavity 14 can be cleaned out as much as possible.
Claims (1)
1. A self-watering spray air purification device is characterized in that: the device comprises an air inlet pipeline (1) which is horizontally distributed, wherein an air inlet with an air inlet grille (2) is formed in one end of the air inlet pipeline (1), an air inlet fan (3) is arranged in the air inlet pipeline (1) which is close to one end of the air inlet grille (2), an inclined transition pipeline (4) which is obliquely distributed is connected below the other end of the air inlet pipeline (1), a condenser (5) is arranged in the inclined transition pipeline (4), a heat dissipation fan (6) which is matched with the condenser (5) is also arranged on the side wall of the inclined transition pipeline (4), the bottom end of the inclined transition pipeline (4) is communicated with a horizontally distributed spray pipeline (7), an air outlet with an air outlet grille (8) is formed in the tail end of the spray pipeline (7), and a plurality of spray heads (10) which are controlled by a spray pump (9) are arranged at the top of the spray pipeline (7), the bottom plates (11) of the spraying pipelines (7) are distributed in an inclined way, and the lowest end of the bottom plate (11) is also provided with a water collecting pipe (12),
the device is characterized in that a water collecting shell (13) is arranged below the spraying pipeline (7), a partition plate assembly arranged in the water collecting shell (13) divides an inner cavity of the partition plate assembly into a sewage cavity (14) and a spraying cavity (15), the water collecting pipe (12) is used for communicating the spraying pipeline (7) with the sewage cavity (14), the top of the water collecting shell (13) is also connected with a condensed water collecting pipe (16), the top end opening of the condensed water collecting pipe (16) is positioned on a bottom plate of the inclined transition pipeline (4), the partition plate assembly comprises a vertical plate and an inclined plate, a horizontally distributed filter grid plate (17) is connected between the vertical plate and the inclined plate, the filter grid plate (17) is positioned at the middle height of the water collecting shell (13), the inlet end of the spraying pump (9) is connected with a water pumping pipeline (18), and the bottom end of the water pumping pipeline (18) is positioned at the bottom of the spraying cavity (15),
a siphon mechanism is further arranged on the side face of the water collecting shell (13), the siphon mechanism comprises a first pipeline (19) with the bottom end communicated with the bottom of the sewage cavity (14), the top end of the first pipeline (19) is connected with a transition cavity (20), and the transition cavity (20) is communicated with an opening at the top end of a second pipeline (21).
