CN212591032U

CN212591032U - File storage box for information management

Info

Publication number: CN212591032U
Application number: CN202020337846.5U
Authority: CN
Inventors: 李永刚; 佟雪松; 潘善民; 邵桂超
Original assignee: State Grid Siji Testing Technology Beijing Co ltd
Current assignee: State Grid Siji Testing Technology Beijing Co ltd
Priority date: 2020-03-18
Filing date: 2020-03-18
Publication date: 2021-02-26
Anticipated expiration: 2030-03-18

Abstract

The utility model discloses a file storage box for information management, which comprises a file box, a placing plate frame and an outer box, wherein the file box comprises a box body and a box cover, the structure and the using process of the traditional file storage box are researched, the file storage box for information management is designed, a user can stably store larger file data in the file box, meanwhile, the user can also place some data with smaller volume in the outer box for use, when the user needs to store the data in the file box, the space between the placing plate frames can be adjusted according to the thickness and the volume of the data, and the user can also select one or more of a file shell, a file bag and a sealing bag to place the file for use, and the user can stack the placing plate frames together after placing the file, the file box can be free from a larger space for use.

Description

File storage box for information management

Technical Field

The utility model relates to a bin technical field specifically is a file bin for information management.

Background

In information management, people often use file cabinets or storage boxes to store data and files, and traditional file cabinets belong to the office furniture series. The cabinet for storing archives is a traditional harness for storing archives, generally refers to a case with a cover and a cabinet with a door, and is generally made of wood or metal, and some cabinets are also made into a combined type, are separated into cases and are stacked into cabinets.

The utility model discloses an inventor discovers, current bin simple structure, and the using-way is single, and the in-process user that uses can only select how to place own data etc. according to the inside interval size and the area of storage box, can't come the regulation space size according to the actual need of oneself, and the mode that the data was placed to traditional bin is single simultaneously, and the user of being inconvenient for classifies placing, brings more inconvenience for the user when looking for.

SUMMERY OF THE UTILITY MODEL

An object of the utility model is to provide a file bin for information management, aim at improving current bin simple structure, the user is single in the use, the in-process user that uses can only select how to place own data etc. according to the inside interval size and the area of storage box, can't come the accommodation space size according to the actual need of oneself, the mode that data was placed to traditional bin is single simultaneously, the user of not being convenient for is categorised and is placed, bring more inconvenient problem for the user when looking for.

The utility model discloses a realize like this:

a file storage box for information management comprises a file box, a placing plate frame and an outer box, wherein the file box comprises a box body and a box cover, the box cover is installed on the front end face of the box body, the box cover is rotatably connected with the box body, the placing plate frame comprises a positioning rod and a plate body, the positioning rod is uniformly arranged in the box body, the positioning rod is vertically and fixedly connected with the box body, the plate body is uniformly arranged in the middle of the positioning rod, the plate body is longitudinally and slidably connected with the positioning rod, the outer box is fixedly installed on the outer side face of the box body, the problem that the existing storage box is simple in structure and single in use mode is solved, a user can only select to place own data and the like according to the space size and the area in the storage box in the using process, the space size cannot be adjusted according to own actual needs, and meanwhile, the user of not being convenient for carries out classification and places, bring more inconvenient problem for the user when looking for, guarantee through the structure setting to the file case that the user can install through the box and place grillage and outer container and use, guarantee the inside security of box simultaneously through the case lid, guarantee through the structure setting to placing the grillage that the user can remove the position of plate body on the locating lever wantonly, and then realize the purpose in nimble regulation and place the space, guarantee through the structure setting to the outer container that the user can place some temporary documents, conveniently take fast, need not the switch case lid that relapses.

Further, the plate body up end is provided with the file shell, the file shell middle part still is provided with a plurality of bar grooves, and file shell and plate body fixed connection, guarantees through the structure setting to the file shell that the user can stably place the data in the bar groove, and the file shell adopts soft material to make, also can compress fold when not using.

Further, the right side of document shell is provided with a plurality of file bags, file bag and plate body rotate to be connected, guarantee that the user can be stable turn over to read through the structure setting to the file bag and observe the use.

Further, a drawing plate is further installed on the lower end face of the plate body and is connected with the plate body in a sliding mode, the structure of the drawing plate is arranged to ensure that a user can store data at the lower end of the plate body, and the user can store the data in a classified mode.

Furthermore, a plurality of sealing bags are installed on the upper end face of the drawing plate and fixedly connected with the drawing plate, and the safety of storing data is guaranteed through the structural arrangement of the sealing bags.

Furthermore, the side of plate body still is provided with fastening screw, fastening screw passes through screw thread and plate body normal running fit, guarantees through the structure setting to fastening screw that the user can fix the use with the locating lever with the plate body is stable.

Compared with the prior art, the beneficial effects of the utility model are that: the utility model discloses a study traditional file bin structure and use, design a file bin for information management, the person of facilitating the use can be stable deposit great file data in the file incasement portion, the user can also place the less data of some volumes and use in outer container inside simultaneously, can adjust the interval of placing between the grillage according to the thickness and the volume of data when the user need deposit the data in the file incasement portion, and the user can also select at the file shell, file bag and sealed bag one of them or a plurality of file use of placing, and the user can also stack the grillage together placing after having placed the file, let the file can empty and put bigger space and use.

Drawings

In order to more clearly illustrate the technical solutions of the embodiments of the present invention, the drawings that are required to be used in the embodiments will be briefly described below, it should be understood that the following drawings only illustrate some embodiments of the present invention, and therefore should not be considered as limiting the scope, and for those skilled in the art, other related drawings can be obtained according to the drawings without inventive efforts.

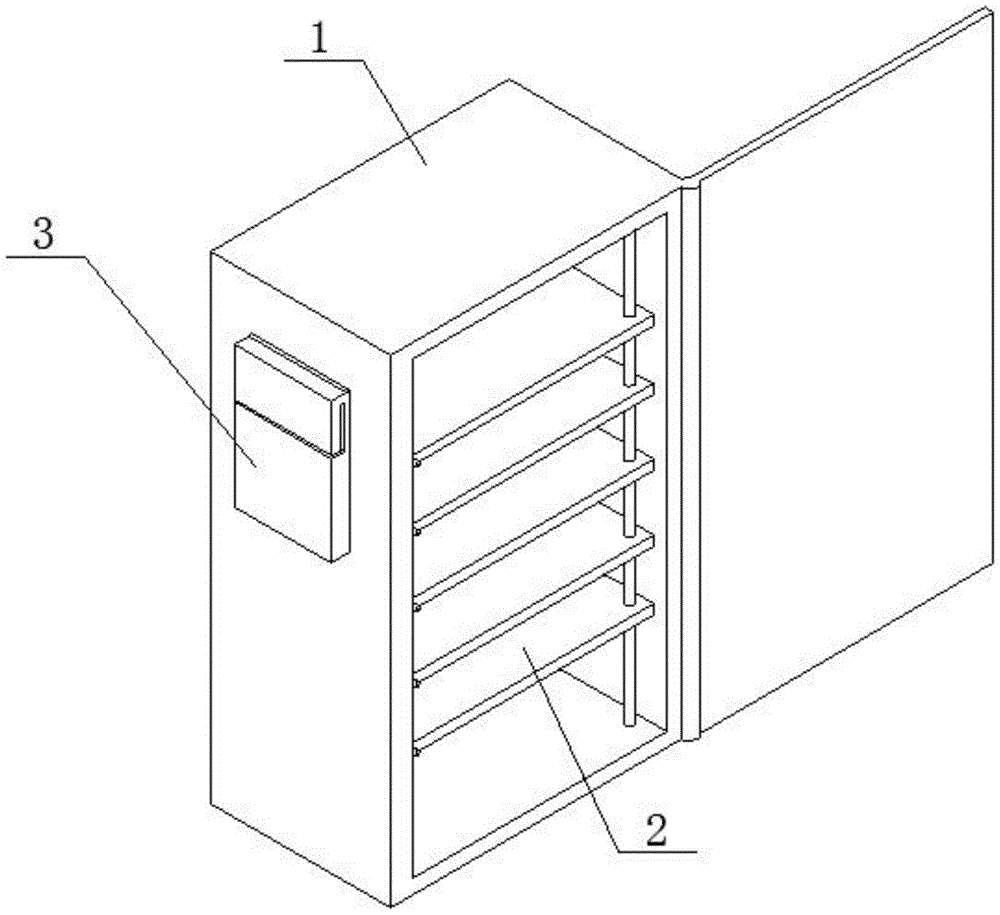

Fig. 1 is a perspective view of the device of the present invention;

FIG. 2 is a front view of the device of FIG. 1;

FIG. 3 is a schematic structural view of the placement rack shown in FIG. 1;

fig. 4 is a front view of the device of fig. 3.

In the figure: 1. a file box; 11. a box body; 12. a box cover; 2. placing a plate frame; 21. positioning a rod; 22. a plate body; 221. a document shell; 222. a strip-shaped groove; 223. a file pocket; 23. a drawing plate; 231. sealing the bag; 24. fastening screws; 3. an outer box.

Detailed Description

To make the objects, technical solutions and advantages of the embodiments of the present invention clearer, the drawings of the embodiments of the present invention are combined to clearly and completely describe the technical solutions of the embodiments of the present invention, and obviously, the described embodiments are some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention. Thus, the following detailed description of the embodiments of the present invention, presented in the accompanying drawings, is not intended to limit the scope of the invention, as claimed, but is merely representative of selected embodiments of the invention.

Referring to fig. 1, 2, 3 and 4, a file storage box for information management, including a file box 1, a rack 2 and an outer box 3, the file box 1 includes a box body 11 and a box cover 12, it is ensured that a user can install the rack 2 and the outer box 3 through the box body 11 for use by setting the structure of the file box 1, meanwhile, the safety inside the box body 11 is ensured through the box cover 12, the box cover 12 is installed on the front end surface of the box body 11, and the box cover 12 is rotatably connected with the box body 11, through researching the structure and the use process of the traditional file storage box, the file storage box for information management is designed, the user can stably store larger file data inside the file box 1, and the user can also place some data with smaller volume inside the outer box 3 for use, when the user needs to store data inside the file box 1, the thickness and the volume of the data between the rack 2 can be adjusted according to the thickness and the volume of the data The space, and the user can also choose to place the file in one or more of the file shell 221, the file pocket 223 and the sealing pocket 231 for use, and the user can also stack the placing plate frames 2 together after the file is placed, so that the file box 1 can be used in a larger space, which effectively solves the problems that the existing storage box has a simple structure and a single use mode, the user can only select how to place own data according to the space size and the area inside the storage box in the use process, the space size cannot be adjusted according to the actual needs of the user, and meanwhile, the traditional storage box has a single data placing mode, is not convenient for the user to place in a classified manner and brings more inconvenience to the user when searching;

the placing plate frame 2 comprises a positioning rod 21 and a plate body 22, the positioning rod 21 is uniformly arranged inside the box body 11, the positioning rod 21 is vertically and fixedly connected with the box body 11, the plate body 22 is uniformly arranged in the middle of the positioning rod 21, the plate body 22 is longitudinally and slidably connected with the positioning rod 21, the position of the plate body 22 on the positioning rod 21 can be randomly moved by a user through the structural arrangement of the placing plate frame 2, the purpose of flexibly adjusting the placing space is further realized, temporary files can be placed by the user through the structural arrangement of the outer box 3, the temporary files are convenient and quick to take without repeatedly opening and closing the box cover 12, a file shell 221 is arranged on the upper end face of the plate body 22, a plurality of strip-shaped grooves 222 are further formed in the middle of the file shell 221, the file shell 221 is fixedly connected with the plate body 22, and the stable data placement of the user in the strip, the file shell 221 is made of soft materials and can be compressed and folded when not in use, the right side of the file shell 221 is provided with a plurality of file pockets 223, the file pockets 223 are rotatably connected with the plate body 22, the structure of the file pockets 223 is set to ensure that a user can stably browse and observe the file, the lower end surface of the plate body 22 is also provided with a pull-out plate 23, the pull-out plate 23 is slidably connected with the plate body 22, the structure of the pull-out plate 23 is set to ensure that the user can store and use data at the lower end of the plate body 22, and the user can conveniently classify and store and use the data;

a plurality of sealing bags 231 are installed to pull board 23 up end, sealing bags 231 and pull board 23 fixed connection, the security of depositing the data is guaranteed through the structure setting to sealing bags 231, the side of plate body 22 still is provided with fastening screw 24, fastening screw 24 passes through screw thread and plate body 22 normal running fit, it can be with the stable and locating lever 21 fixed use of plate body 22 to guarantee the user through the structure setting to fastening screw 24, outer container 3 fixed mounting is on the lateral surface of box 11.

The device designed as described above can basically satisfy the use of a file storage box for information management, but the designer has made further improvements to the device in order to further improve the functions thereof.

The above description is only a preferred embodiment of the present invention and is not intended to limit the present invention, and various modifications and changes may be made by those skilled in the art. Any modification, equivalent replacement, or improvement made within the spirit and principle of the present invention should be included in the protection scope of the present invention.

Claims

1. The utility model provides a file bin for information management, includes file box (1), places grillage (2) and outer container (3), its characterized in that: file case (1) includes box (11) and case lid (12), the preceding terminal surface at box (11) is installed in case lid (12), and case lid (12) rotate with box (11) and be connected, place grillage (2) including locating lever (21) and plate body (22), the even setting of locating lever (21) is in the inside of box (11), and locating lever (21) and box (11) perpendicular fixed connection, the even setting of plate body (22) is at the middle part of locating lever (21), and plate body (22) and locating lever (21) longitudinal sliding connection, outer container (3) fixed mounting is on the lateral surface of box (11).

2. The file storage box for information management as claimed in claim 1, wherein the upper end face of the plate body (22) is provided with a file shell (221), the middle part of the file shell (221) is further provided with a plurality of strip-shaped grooves (222), and the file shell (221) is fixedly connected with the plate body (22).

3. A document storage box for information management according to claim 2, wherein a plurality of document pockets (223) are provided on the right side of the document case (221), and the document pockets (223) are rotatably connected to the plate body (22).

4. A file storage box for information management according to claim 3, characterized in that the lower end face of the plate body (22) is further provided with a drawing plate (23), and the drawing plate (23) is connected with the plate body (22) in a sliding manner.

5. The file storage box for information management as claimed in claim 4, wherein a plurality of sealing bags (231) are installed on the upper end surface of the drawing plate (23), and the sealing bags (231) are fixedly connected with the drawing plate (23).

6. A file storage case for information management according to claim 5, characterized in that the side of the plate (22) is further provided with a fastening screw (24), and the fastening screw (24) is rotatably engaged with the plate (22) through threads.
