CN212583037U

CN212583037U - Light wall slat

Info

Publication number: CN212583037U
Application number: CN202021139896.9U
Authority: CN
Inventors: 周文
Original assignee: Shenzhen Shengying New Building Materials Co ltd
Current assignee: Shenzhen Shengying New Building Materials Co ltd
Priority date: 2020-06-17
Filing date: 2020-06-17
Publication date: 2021-02-23
Anticipated expiration: 2030-06-17

Abstract

The utility model relates to a light wall slat, including the wallboard body, two sides that the wallboard body is relative are the installation face respectively and inlay and establish the face, the fixed mounting bar that is provided with on the installation face, inlay and establish on the face fixed being provided with two and inlay and establish the strip, and two inlay and establish the interval between the strip and have the space, when two adjacent wallboards splice, the mounting bar inlays to establish and inlays at two and establish between the strip, it establishes the strip for the activity strip to inlay with the positive adjacent of wallboard body, the activity strip articulates on the wallboard body, the activity strip is the running surface with the side of inlaying and establishing the face butt, the axis of rotation of activity strip is close to the positive one side of wallboard body for the running surface, the fixed fixing device that is provided with on the wallboard body, when the running surface of activity strip with inlay and establish the face butt, fixing device. Can be convenient take out the wallboard body from between two adjacent wallboard bodies to can be convenient dismantle it get off.

Description

Light wall slat

Technical Field

The application relates to the field of partition wall slats for buildings, in particular to a light wall slat.

Background

At present, the light batten for the building partition wall is mainly used for indoor partitions and used as a partition wall. The light batten for the partition wall commonly used at present is an independent plate body, all the plate bodies are spliced together according to actual needs, and adhesive is added at an interface. However, the adhesive has a strong odor immediately after being stuck, and cracks are easily generated due to drying after being used for a period of time, which affects the use and the appearance.

For example, chinese patent No. CN205476040U discloses a lightweight composite partition slat, wherein four longitudinal equidistant ribs are disposed in the longitudinal direction of the composite partition slat, three transverse equidistant ribs are disposed in the transverse direction of the composite partition slat, the ribs divide the composite partition slat into six equally sized block spaces, and the equal sized heat insulating material is filled in the block spaces of the composite partition slat. The tenon and the mortise which correspond to each other are arranged on the two sides of the composite partition wall batten, so that the construction and the installation are convenient.

In view of the above-mentioned related art, the inventor believes that there is a defect that it is inconvenient to take out the wall panel body when replacing the wall panel.

SUMMERY OF THE UTILITY MODEL

In order to facilitate people to change the wallboard body, this application provides a light wall slat.

The application provides a light wall slat adopts following technical scheme:

the utility model provides a light wall slat, including the wallboard body, two sides that the wallboard body is relative are the installation face respectively and inlay and establish the face, the fixed mounting bar that is provided with on the installation face, inlay and establish on the face fixed being provided with two and inlay and establish the strip, and two inlay and establish the interval between the strip and have the space, during the concatenation of two adjacent wallboards, the mounting bar inlays to establish and inlays at two and establish between the strip, it establishes the strip for the activity strip to inlay with the positive adjacent of wallboard body, the activity strip articulates on the wallboard body, the activity strip is the running surface with the side of inlaying and establishing the face butt, the axis of rotation of activity strip is close to the positive one side of wallboard body for the running surface, the fixed fixing device that is provided with on the wallboard body, when the running surface of activity strip with inlay and establish the face.

Through adopting above-mentioned technical scheme, make one of them inlay and establish the strip for the activity strip, when needs dismantle the wallboard body, through rotating the activity strip, make the activity face of activity strip with inlay and establish the face separation, later promote the wallboard body, because do not have the spacing of activity strip, can be convenient take out the wallboard body from between two adjacent wallboard bodies to can be convenient dismantle it get off. When needs were installed, place the wallboard body between two adjacent wallboard bodies earlier, later rotate the activity strip, make the activity face of activity strip with inlay and establish a butt, later fix the position of activity strip through fixing device to make whole wall resume into a whole, it is also very convenient to install.

Preferably, the fixing device comprises a locking part arranged on the embedding surface and a locking groove arranged on the movable surface, the locking part comprises a locking barb hinged on the embedding surface, the inner side wall of the locking groove is provided with the barb groove, the side surface provided with the barb groove is a barb surface, the rotation axis of the locking barb is parallel to the embedding surface and parallel to the barb surface, the abutting elastic part is arranged in the locking groove, and the abutting elastic part is positioned on the side surface opposite to the barb surface; the locking barb can be inserted into the locking groove and pushed by the abutting elastic piece to enable the locking barb to hook the barb groove.

Through adopting above-mentioned technical scheme, the hasp overhead kick can rotate, and when the hasp overhead kick was worn to establish in the locking inslot, the hasp overhead kick can rotate and buckle and live the overhead kick groove to fix the activity strip on the wallboard body. Through being provided with the butt elastic component, can promote to wear to establish the hasp overhead kick in the locking inslot, make the hasp overhead kick catch the overhead kick groove, the difficult hasp overhead kick that appears slides out from the overhead kick inslot, and then makes the movable strip appear not hard up phenomenon.

Preferably, the inside wall in locking groove on articulated have a limiting plate, the limiting plate articulates on the side relative with the barb face, and the rotation axis of limiting plate is parallel with the rotation axis of hasp barb, the butt elastic component is arranged in one side of keeping away from the barb face in the limiting plate, the limiting plate articulates the one end that is arranged in the locking inslot inside wall and is close to locking groove open-ended one side in the butt elastic component.

Through adopting above-mentioned technical scheme, the limiting plate articulates at the locking inslot, and at ordinary times, the locking groove can erect on the butt elastic component, when rotating the activity strip and making the hasp overhead hook wear to establish into the locking inslot, the hasp overhead hook can with the limiting plate butt. When the hasp barb deepened the locking inslot gradually, the hasp barb can extrude the limiting plate gradually, makes the limiting plate extrude butt elastic component to make butt elastic component extrude the limiting plate, finally make the limiting plate promote the hasp barb buckle and live in the barb inslot. It can make the hasp overhead kick insert the locking inslot, and difficult edgewise extrusion butt elastic component leads to appearing the phenomenon that butt elastic component damaged, fine protection butt elastic component.

Preferably, inlay and establish and seted up the rotation groove on the face, fixedly connected with release link on the hasp overhead kick, one side of keeping away from the hasp overhead kick is located the rotation axis of hasp overhead kick to the release link, the release link is worn to establish and is rotated the inslot, the overhead kick groove is seted up on the locking inslot lateral wall is close to the positive side of wallboard body, has seted up the logical groove that resets on the front of keeping away from the wallboard body in the rotation inslot.

Through adopting above-mentioned technical scheme, when dismantling, through penetrating a push rod in the logical inslot that resets, make the push rod extrude the release link, the release link drives the hasp overhead kick and rotates. Because the logical groove of reseing is seted up on the side at the wallboard back, and the overhead kick groove is seted up on the locking inslot lateral wall is close to the positive side of wallboard body, when the release link pivoted, can drive the hasp overhead kick and roll out from the overhead kick inslot. When the locking barb is rotated out of the barb groove, the movable strip can rotate. The structure is simple, and the movable strip is very convenient to rotate.

Preferably, the abutting elastic piece is a rubber block, and the thickness of one end, close to the opening of the locking groove, of the rubber block is smaller than that of one end, far away from the opening of the locking groove, of the rubber block.

Through adopting above-mentioned technical scheme, butt elastic component is the block rubber, and it is more even when promoting the limiting plate to the block rubber sets to the wedge, and the block rubber is kept away from locking groove open-ended one end thickness thicker, support that can be better plays the limiting plate.

Preferably, one end of the reset lever, which is far away from the locking barb, is fixedly connected with a pressing plate.

Through adopting above-mentioned technical scheme, through being provided with the pressure board, when penetrating the push rod to the logical inslot that resets, the push rod can be easier extrudeed and press the pressure board to drive the release link and rotate.

Preferably, a sealing adhesive tape is stuck at the notch of the reset through groove.

Through adopting above-mentioned technical scheme, after the wallboard body is installed, will reset the opening that leads to the groove through sealed sticky tape and seal up, the workman of being convenient for is follow-up whitewashes the wallboard body, and the difficult opening that leads to the groove that resets that appears is blockked up the phenomenon, the follow-up dismantlement of being convenient for.

Preferably, activity strip and wallboard body between through hinge connection, and all offer the mounting groove that is used for inlaying the hinge on the front of activity strip and wallboard body, the thickness of hinge is the same with the thickness of mounting groove.

Through adopting above-mentioned technical scheme, because the thickness of hinge is the same with the thickness of mounting groove, consequently installing the hinge, and the embedding of wallboard body establishes the face and the activity face laminating back of activity strip, and the front of wallboard still keeps the horizontally state, and the workman of being convenient for is follow-up to be decorated.

Drawings

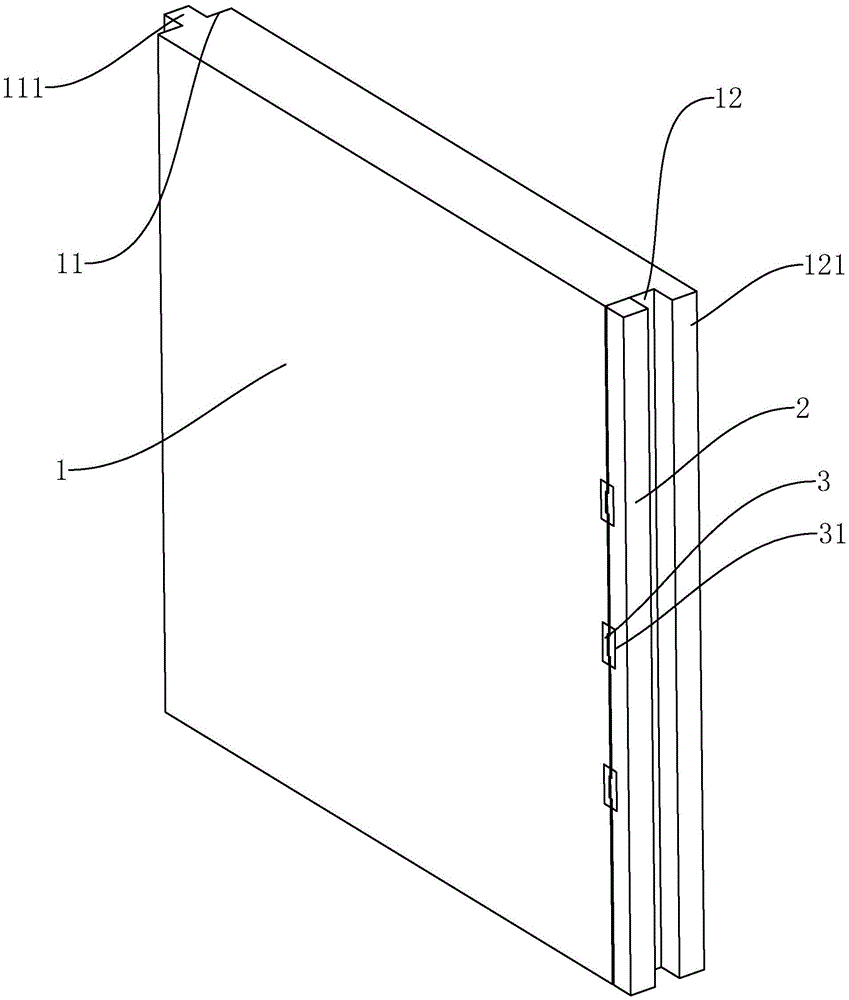

Fig. 1 is a schematic structural diagram of the present embodiment.

Fig. 2 is a schematic structural view of the fixing device.

Fig. 3 is an enlarged view at a in fig. 2.

Description of reference numerals: 1. a wall panel body; 11. a mounting surface; 111. mounting a bar; 12. an embedding surface; 121. embedding a strip; 2. a movable bar; 21. a movable surface; 3. a hinge; 31. mounting grooves; 4. a locking groove; 41. locking and hooking; 42. a reverse hook surface; 43. an inverted hook groove; 44. abutting against the elastic member; 45. a limiting plate; 5. a rotating groove; 51. an axis rod; 52. a reset lever; 53. a pressing plate; 54. and a reset through groove.

Detailed Description

The present application is described in further detail below with reference to figures 1-3.

The embodiment of the application discloses a light wall batten. Referring to fig. 1, a lightweight wall panel includes a panel body 1, and left and right side surfaces of the panel body 1 are referred to as a mounting surface 11 and an embedding surface 12, respectively. A vertically arranged mounting bar 111 is integrally formed on the mounting surface 11, and two vertically arranged embedding bars 121 are integrally formed on the embedding surface 12. When two adjacent wallboards are spliced, the mounting bar 111 is embedded between the two embedding bars 121.

Referring to fig. 2 and 3, an embedding strip 121 close to the front surface of the wall board body 1 in the wall board body 1 is a movable strip 2, and the side surface of the movable strip 2 attached to the embedding surface 12 is a movable surface 21. The movable strip 2 is connected with the wallboard body 1 through the hinge 3, and the rotating axis of the movable strip 2 and the movable surface 21 are in the same line close to one side of the front surface of the wallboard body 1. All seted up mounting groove 31 on the front of activity strip 2 and wallboard body 1, the thickness of hinge 3 equals with the thickness of mounting groove 31, and hinge 3 inlays to be established in mounting groove 31.

Referring to fig. 2 and 3, a fixing means is provided on the wall panel body 1. The fixing device comprises a locking groove 4 arranged on the movable surface 21 and a rotating groove 5 arranged on the embedding surface 12. An axial rod 51 parallel to the front surface of the wall board body 1 is fixedly installed at the notch of the locking groove 4, and the axial rod 51 is parallel to the embedding surface 12. The axis rod 51 is hinged with a latch barb 41 and a reset rod 52, the reset rod 52 is integrally formed on the latch barb 41, the latch barb 41 and the reset rod 52 are respectively positioned at two sides of the axis rod 51, and the reset rod 52 is always positioned in the rotating groove 5. The side surface of the locking groove 4 close to the front surface of the wallboard body 1 is a reverse hook surface 42, a reverse hook groove 43 is formed in the reverse hook surface 42, and the lock catch reverse hook 41 can rotate to the position where the lock catch reverse hook 41 hooks the reverse hook groove 43. An abutting elastic piece 44 is fixedly adhered to the side surface of the inner side wall of the locking groove 4 far away from the inverted hook surface 42, the abutting elastic piece 44 is a rubber block, and the thickness of the abutting elastic piece 44 close to one end of the opening of the locking groove 4 is smaller than that of the abutting elastic piece 44 far away from one end of the opening of the locking groove 4. The abutting elastic piece 44 is adjacent to the inverted hook groove 43, a limiting plate 45 is hinged to the side face, away from the inverted hook face 42, of the inner side wall of the locking groove 4, the rotating axis of the limiting plate 45 is parallel to the axis of the axis rod 51, and the hinged end of the inner side wall of the limiting plate 45 and the inner side wall of the locking groove 4 is located on one side, close to the opening of the locking groove 4, of the abutting elastic piece 44. When the limiting plate 45 is attached to the abutting elastic member 44 and the limiting plate 45 is attached to the abutting elastic member 44, one end of the limiting plate 45 is adjacent to the inverted hook groove 43, and the abutting elastic member 44 is located on one side of the limiting plate 45 away from the inverted hook surface 42.

Referring to fig. 2 and 3, a pressing plate 53 is integrally formed at an end of the reset lever 52 away from the latch barbs 41. The side of the rotating groove 5 far from the front face of the wall board body 1 is provided with a resetting through groove 54, and a sealing adhesive tape is adhered to the notch of the resetting through groove 54.

The implementation principle of the light wall lath of the embodiment of the application is as follows: make one of them inlay and establish strip 121 for activity strip 2, when needs dismantle wallboard body 1, through penetrating a push rod in the logical groove 54 that resets, make the push rod extrude the pressing plate 53 on the release link 52 to drive release link 52 and rotate, and then make release link 52 drive hasp barb 41 and rotate. Because the reset through groove 54 is formed on the side surface of the back surface of the wall board, and the inverted hook groove 43 is formed on the side surface of the inner side wall of the locking groove 4 close to the front surface of the wall board body 1, when the reset rod 52 rotates, the lock catch inverted hook 41 can be driven to rotate out of the inverted hook groove 43. When the locking barb 41 is rotated out of the barb groove 43, the movable strip 2 can rotate. Through rotating activity strip 2, make activity strip 2 activity face 21 with inlay and establish the face 12 separation, later promote wallboard body 1 because do not have activity strip 2 spacing, can be convenient take out wallboard body 1 from between two adjacent wallboard bodies 1 to can be simple dismantle. When needs are installed, place wallboard body 1 between two adjacent wallboard bodies 1 earlier, later rotate movable strip 2, make hasp overhead kick 41 can wear to establish into locking groove 4 in, under the promotion of butt elastic component 44, can make hasp overhead kick 41 catch on overhead kick 43 to fix movable strip 2 on wallboard body 1. The locking barb 41 is not easy to slide out from the barb groove 43, so that the movable strip 2 is not loosened.

The above embodiments are preferred embodiments of the present application, and the protection scope of the present application is not limited by the above embodiments, so: all equivalent changes made according to the structure, shape and principle of the present application shall be covered by the protection scope of the present application.

Claims

1. The utility model provides a light wall slat, includes wallboard body (1), two sides that wallboard body (1) is relative are installation face (11) respectively and inlay and establish face (12), install face (11) and go up fixed mounting bar (111) that is provided with, inlay and establish face (12) and go up fixed being provided with two and inlay and establish strip (121), and two inlay and establish the interval between strip (121) and have the space, during the concatenation of two adjacent wallboards, mounting bar (111) inlay and establish and inlay and establish between strip (121) two, its characterized in that: with wallboard body (1) openly adjacent inlay and establish strip (121) for activity strip (2), activity strip (2) articulate on wallboard body (1), activity strip (2) are activity face (21) with the side of inlaying establishing face (12) butt, the axis of rotation of activity strip (2) is close to wallboard body (1) positive one side for activity face (21), the fixed fixing device that is provided with on wallboard body (1), when activity face (21) of activity strip (2) with inlay and establish face (12) butt, fixing device can be fixed with activity strip (2).

2. A lightweight wall panel as set forth in claim 1, wherein: the fixing device comprises a locking part arranged on the embedding surface (12) and a locking groove (4) formed in the movable surface (21), the locking part comprises a lock catch barb (41) hinged to the embedding surface (12), the inner side wall of the locking groove (4) is provided with a barb groove (43), the side surface provided with the barb groove (43) is a barb surface (42), the rotation axis of the lock catch barb (41) is parallel to the embedding surface (12) and the barb surface (42), a butt elastic part (44) is arranged in the locking groove (4), and the butt elastic part (44) is positioned on the side surface opposite to the barb surface (42); the locking barb (41) can be inserted into the locking groove (4) and pushed by the abutting elastic piece (44), so that the locking barb (41) hooks the barb groove (43).

3. A lightweight wall panel as set forth in claim 2, wherein: the inside wall of locking groove (4) on articulated have limiting plate (45), limiting plate (45) articulate on the side relative with overhead hook face (42), and the axis of rotation of limiting plate (45) is parallel with the axis of rotation of hasp overhead hook (41), butt elastic component (44) are arranged in one side of keeping away from overhead hook face (42) in limiting plate (45), limiting plate (45) articulate the one end that is arranged in locking groove (4) inside wall butt elastic component (44) and are close to locking groove (4) open-ended one side.

4. A lightweight wall panel as set forth in claim 3, wherein: inlay and establish and seted up rotation groove (5) on face (12), fixedly connected with release link (52) on hasp barb (41), one side of keeping away from hasp barb (41) in release link (52) are located the rotation axis of hasp barb (41), release link (52) are worn to establish in rotation groove (5), set up on locking groove (4) inside wall is close to the positive side of wallboard body (1) in barb groove (43), keep away from on the front of wallboard body (1) in rotation groove (5) and seted up logical groove (54) that resets.

5. A light weight wall panel as defined in claim 4, wherein: the abutting elastic piece (44) is a rubber block, and the thickness of one end, close to the opening of the locking groove (4), of the rubber block is smaller than that of one end, far away from the opening of the locking groove (4).

6. A light weight wall panel as defined in claim 4, wherein: and one end of the reset rod (52) far away from the locking barb (41) is fixedly connected with a pressing plate (53).

7. A light weight wall panel as defined in claim 4, wherein: and a sealing adhesive tape is stuck at the notch of the reset through groove (54).

8. A lightweight wall panel as set forth in claim 1, wherein: the movable strip (2) and the wall board body (1) are connected through the hinge (3), the front surfaces of the movable strip (2) and the wall board body (1) are provided with the mounting groove (31) used for embedding the hinge (3), and the thickness of the hinge (3) is the same as that of the mounting groove (31).
