CN212575072U

CN212575072U - Eye protection glasses

Info

Publication number: CN212575072U
Application number: CN202020425208.9U
Authority: CN
Inventors: 郝彬; 高兴莲; 黄海燕
Original assignee: Union Hospital Tongji Medical College Huazhong University of Science and Technology
Current assignee: Union Hospital Tongji Medical College Huazhong University of Science and Technology
Priority date: 2020-03-28
Filing date: 2020-03-28
Publication date: 2021-02-23
Anticipated expiration: 2030-03-28

Abstract

The utility model provides a goggles, includes the lens, picture frame and regulation portion, the picture frame include lens holding frame with holding frame edge integrated into one piece's side wall, in the lens holding frame is fixed in to the lens nestification, the terminal border of side wall is equipped with first sealing, first sealing with side wall nested connection is sealed, the goggles both sides set up the second sealing, second sealing and first sealing integrated into one piece, the second sealing is the strip, and the middle part is to protruding, and is a pair of the second sealing is terminal to be connected through the regulation portion. The utility model discloses can solve current goggles protecting effect poor, easily produce the indentation, to the not friendly technical problem of myopia user.

Description

Eye protection glasses

Technical Field

The utility model belongs to the technical field of protective device, concretely relates to goggles.

Background

In some medical situations, such as treatment of infectious diseases, such as new coronaviruses, the viruses enter the human body from the eyes to cause infection, and during operation of infectious surgery, when blood or pus of a patient is contaminated on the eyes of medical staff, the patient also can cause infection, and the situations generally need to wear goggles. However, the existing goggles are not tightly attached to the face, and the two sides of the spectacle frame are suspended and do not play a role in protection; the goggles are heavy and the nose bridge part is indented due to long-time wearing.

The invention patent of patent number "CN 103460116" provides a spectacle frame, goggles and a method for assembling the goggles, wherein the two sides of the spectacle frame of the goggles are suspended and are difficult to protect; on the other hand, this kind of goggles is not friendly enough to the myopia user, if directly make the myopia lens with the lens, the cost is higher, and because data such as everyone's myopia number of degrees, interpupillary distance are all different, need obtain the service data just can make, and the time of spending is longer, unable mass production.

Disclosure of Invention

For overcoming the defects of the prior art, the utility model provides a goggles can solve the technical problem that current goggles protecting effect is poor, the indentation is easily produced, unfriendly to the myopia user.

The utility model adopts the following technical proposal:

the utility model provides a goggles, includes the lens, picture frame and regulation portion, the picture frame include lens holding frame with holding frame edge integrated into one piece's side wall, in the lens holding frame is fixed in to the lens nestification, the terminal border of side wall is equipped with first sealing, first sealing with side wall nested connection is sealed, the goggles both sides set up the second sealing, second sealing and first sealing integrated into one piece, the second sealing is the strip, and the middle part is to protruding, and is a pair of the second sealing is terminal to be connected through the regulation portion.

Preferably, a support part is arranged on the second sealing part, two ends of the support part are narrow, the middle part of the support part is wide, and two ends of the support part are respectively connected to the middle part or the tail end of the second sealing part.

Preferably, the two ends of the supporting part are respectively connected with the middle part or the tail end of the second sealing part and hinged or fixed.

Preferably, the supporting part is in a net shape or a sheet shape and has elasticity.

Preferably, the bottom of the lens containing frame and the side wall are in a herringbone shape and are matched with the shape of the nose of a human body, and the top of the part of the side wall, which is positioned on the nose, is provided with a groove.

Preferably, both ends of the adjusting part are hinged or fixed with the end part of the second sealing part.

Preferably, the first sealing part and the second sealing part are soft rubber or soft plastic.

Preferably, the adjusting part is an elastic band having a certain width.

A method of making eyewear comprising the steps of:

1) prefabricating parts: processing the mirror frame, the lens, the adjusting part, the first sealing part and the second sealing part by using an injection molding machine;

2) assembling: the lens is clamped and fixed in the lens containing frame of the lens frame and sealed, the first sealing part and the second sealing part are sleeved on the side periphery of the lens frame, and two ends of the adjusting part are arranged at the end parts of the pair of second sealing parts.

Preferably, both ends of the adjusting portion are fused and fixed to the ends of the pair of second sealing portions, or are provided at the ends of the pair of second sealing portions by a hinge.

Preferably, the support part is processed by an injection molding machine, and both ends of the support part are fused, adhered and fixed at the middle or the tail end of the second sealing part, or respectively arranged at the middle or the tail end of the second sealing part through a hinge.

The utility model discloses there is following positive beneficial effect:

(1) the mirror frame is provided with a side wall for protecting eyes in an all-round manner, the first sealing part is attached to the face and the nose bridge, the first sealing part can be self-adjusted along with the shape of the face, and the protection effect is good;

(2) the part of the side wall positioned on the nose is provided with a groove, the groove can be used for accommodating the myopia glasses, and the glasses legs of the myopia glasses can be accommodated in the second sealing part and fixed through the adjusting part; the accommodation requirement of the myopia glasses is met, and the sealing requirement is also met;

(3) the device can be produced and assembled in large scale and has universality;

(4) the supporting part is arranged and sleeved on the top of the head, so that the weight of the goggles is shared, and the indentation on the nose bridge is reduced.

Drawings

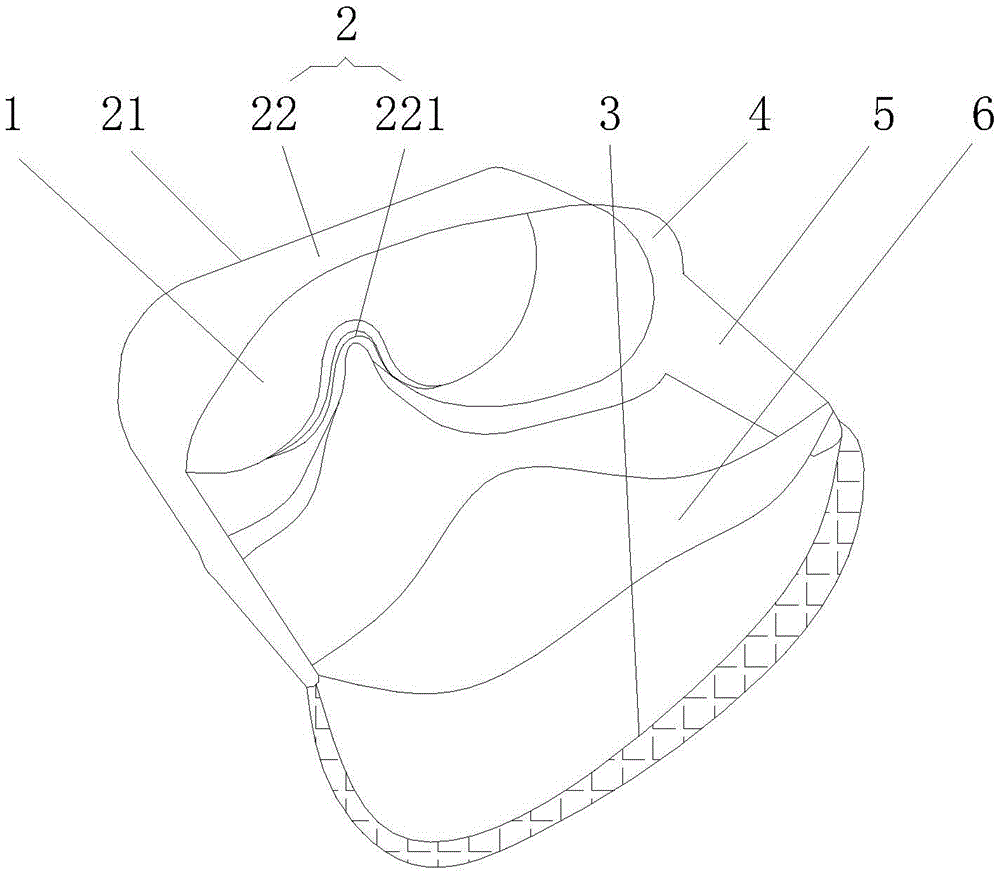

FIG. 1 is a schematic structural view of the goggles of the present invention;

FIG. 2 is a schematic representation of the use of an embodiment of the present invention;

FIG. 3 is a schematic illustration of the use of another embodiment of the present invention;

FIG. 4 is a schematic view of a myopia temple contained within the second seal;

fig. 5 is a schematic view of a connection structure of the side gusset and the first sealing part.

Numbering: the glasses comprise 1-lenses, 2-glasses frames, 21-lens containing frames, 22-side walls, 221-grooves, 3-adjusting parts, 4-first sealing parts, 5-second sealing parts, 6-supporting parts and 7-near glasses legs.

Detailed Description

The following describes the embodiments of the present invention with reference to the accompanying drawings.

The following examples are given for the purpose of illustrating the present invention in a clear manner and are not intended to limit the scope of the present invention. Other variations and modifications of the present invention will be apparent to those of ordinary skill in the art based on the following description, and it is within the spirit of the present invention that such variations and modifications are within the scope of the present invention.

Referring to each figure, the goggles comprise a lens 1, a goggle frame 2 and an adjusting part 3, wherein the goggle frame 2 comprises a lens accommodating frame 21 and a side wall 22 integrally formed at the edge of the accommodating frame 21, the lens 1 is fixed in the lens accommodating frame 21 in an embedded mode, a first sealing part 4 is arranged at the edge of the tail end of the side wall 22, the first sealing part 4 is connected and sealed with the side wall 22 in an embedded mode, second sealing parts 5 are arranged on two sides of the goggles, the second sealing parts 5 are integrally formed with the first sealing parts 4, the second sealing parts 5 are strip-shaped, the middle parts of the second sealing parts are outwards convex, and the tail ends of the second sealing parts 5 are connected through the adjusting part 3.

Further, a support part 6 is arranged on the second sealing part 5, two ends of the support part 6 are narrow, the middle part of the support part 6 is wide, and two ends of the support part 6 are respectively connected to the middle part or the tail end of the second sealing part 5. The supporting part can be sleeved on the top of the head, and the weight of the goggles is shared by arranging the supporting part, so that the indentation on the nose bridge is reduced.

Further, the two ends of the supporting part 6 are respectively connected to the middle or the tail end of the second sealing part 5 and hinged or fixed.

Further, the support portion 6 is in a net shape or a sheet shape and has elasticity. The supporting part 6 can be made into a net shape, and can be sleeved on the head and also can ventilate. The pressure can be dispersed when the tablet is prepared.

Furthermore, the bottoms of the lens accommodating frame 21 and the side wall 22 are in a herringbone shape and are matched with the shape of the nose of a human body, and a groove 221 is arranged at the top of the part of the side wall 22, which is positioned at the nose. The myopia glasses can be placed in the groove 221, the myopia glasses legs 7 are contained in the second sealing part 5, and the second sealing part 5 can prevent the myopia glasses legs 7 from being exposed to the external environment.

Further, the two ends of the adjusting part 3 are hinged or fixed with the end of the second sealing part 5.

Further, the first sealing portion 4 and the second sealing portion 5 are made of soft rubber or soft plastic.

Further, the adjusting part 3 is an elastic band having a certain width.

A method of making eyewear comprising the steps of:

1) prefabricating parts: processing a spectacle frame 2, a lens 1, an adjusting part 3, a first sealing part 4 and a second sealing part 5 by using an injection molding machine;

2) assembling: the lens 1 is clamped and fixed in the lens containing frame 21 of the lens frame 2 and sealed, the first sealing part 4 and the second sealing part 5 are sleeved on the side wall 22 of the lens frame 2, and two ends of the adjusting part 3 are arranged at the end parts of the pair of second sealing parts 5.

Further, both ends of the regulating portion 3 are fused and fixed to the end portions of the pair of second sealing portions 5, or are provided at the end portions of the pair of second sealing portions 5 by a hinge.

Further, the support part 6 is processed by an injection molding machine, and both ends of the support part 6 are fused, adhered and fixed to the middle or the end of the second sealing part 5, or respectively arranged at the middle or the end of the second sealing part 5 through a hinge.

The user who wears spectacles for myopia before using, the lens part of the spectacles for myopia rest in the recess, the mirror leg part is placed in second sealing 5, wears the goggles from the top of the head, adjusts the position of regulating part 3, the position of readjusting supporting part 6 makes supporting part 6 be located the top of the head, and goggles picture frame 2 is located the eye front side, and regulating part 3 is located the back brain, and second sealing 5 is located the face both sides.

To the user who does not wear myopia glasses, directly wear the goggles from the top of the head, adjust the position of regulating part 3, the position of readjustment supporting part 6 makes supporting part 6 be located the top of the head, and goggles picture frame 2 is located the eye front side, and regulating part 3 is located the hindbrain, and second sealing part 5 is located face both sides.

When the goggles of the utility model are used, one side of the first sealing part 4 is nested and connected with the side wall 22, and the other side is attached to the skin; the top and bottom of the second seal 5 are attached to the head and the cavity formed between the middle and the skin is used to hold the near vision temple 7. For the user who does not wear the myopia glasses, since the second sealing portion 5 is soft, the user is not affected by the adjustment and fixation of the adjusting portion 3.

The lens 1 can be sealed and fixed in the frame 2 by gluing, splicing and nesting.

Claims

1. The utility model provides a goggles, includes lens (1), picture frame (2) and regulating part (3), its characterized in that, picture frame (2) including lens holding frame (21) with lens holding frame (21) edge integrated into one piece's side wall (22), in lens (1) nested fixation in lens holding frame (21), side wall (22) end border is equipped with first sealing (4), first sealing (4) with side wall (22) nested connection and sealing, the goggles both sides set up second sealing (5), second sealing (5) and first sealing (4) integrated into one piece, second sealing (5) are the strip, and the middle part is to protruding, and is a pair of second sealing (5) are terminal to be connected through regulating part (3).

2. A protective eyewear according to claim 1, wherein the second sealing portion (5) is provided with a support portion (6), the support portion (6) having a narrow end and a wide middle portion, the ends of the support portion (6) being connected to the middle or the end of the second sealing portion (5), respectively.

3. A protective eyewear according to claim 2, characterised in that the support portion (6) is hinged or fixed at both ends to the middle or end of the second sealing portion (5), respectively.

4. A protective eyewear in accordance with claim 2, wherein the support portion (6) is in the form of a net or a sheet having a resilient property.

5. A protective goggles as claimed in claim 1, wherein said lens receiving frame (21) and side panel (22) are formed in a chevron shape at the bottom thereof to conform to the shape of the nose of a human body, and a recess (221) is formed in the top of the portion of said side panel (22) located on the nose.

6. A protective eyewear in accordance with claim 1, characterised in that the adjustment part (3) is hinged or fixed at both ends to the second sealing part (5).

7. A protective eyewear in accordance with claim 1, wherein the first and second sealing portions (4, 5) are of soft rubber or soft plastic.

8. Goggles as claimed in claim 1, characterised in that said adjustment part (3) is an elastic band having a certain width.
