The present application discloses a camera assembly and an automobile, and relates to the field of automobiles. The camera assembly includes a frame, a camera, a battery assembly and a circuit board, the frame is used for fixing the license plate, the battery assembly, the camera and the circuit board are mounted on the frame, the battery assembly is electrically connected with the circuit board, and the battery assembly is used to provide power to the camera and the circuit board, A charging port is provided on the circuit board, and the charging port is used to charge the battery assembly. In the camera assembly of the present application, a rechargeable battery assembly is installed, so that the camera assembly can not only install a license plate, but also supply power to the built-in camera. The complicated wiring operation of the camera in the prior art is eliminated, the installation time of the camera is greatly reduced, and the camera assembly has high versatility. The automobile provided by the present application includes the above-mentioned camera assembly, and therefore also has the characteristics of convenient installation of the camera and wide applicability.

Description

Camera subassembly and car

Technical Field

The utility model relates to an automotive filed particularly, relates to a camera subassembly and car.

Background

In order to obtain the image of the back of the car when the car is backed, a camera is generally required to be installed at the back of the car, and generally, the camera can be electrically connected to the tail lamp or the tail lamp of the car by means of punching, fixing by a tapping screw, fixing by clamping at the position of the license plate frame lamp and the like.

However, the camera behind the existing license plate frame is inconvenient to take electricity, a tail lamp cable is not well found or cannot be used, and the application range of the camera is limited.

SUMMERY OF THE UTILITY MODEL

An object of the utility model is to provide a camera subassembly and car, it can make things convenient for the camera to get the electricity, extensive applicability.

The embodiment of the utility model is realized like this:

in a first aspect, the embodiment of the utility model provides a camera assembly, including frame, battery pack, camera and circuit board, the frame is used for fixed license plate, and battery pack, camera and circuit board are installed in the frame, and battery pack, camera all are connected with the circuit board electricity, and battery pack is used for providing the electric quantity through the circuit board to camera and circuit board, is provided with the port that charges on the circuit board, and the port that charges is used for being connected with external power source to charge to battery pack.

In an alternative embodiment, the frame comprises a main frame and a back plate, the main frame is arranged at the edge of the back plate and protrudes out of the surface of the back plate, and the main frame surrounds a mounting area of the license plate.

In an optional embodiment, the back plate is rectangular, the inner side of the main frame is convexly provided with a clamping portion, and the clamping portion and the surface of the back plate are spaced to form a space for inserting the edge of the license plate.

In an alternative embodiment, the frame further comprises a pressure plate removably attached to the back plate, the pressure plate for pressing the license plate against the back plate.

In an optional embodiment, the pressing plate is provided with an elastic insert buckle, the back plate is provided with an insertion hole, and the pressing plate is in insert fit with the back plate.

In an optional embodiment, a positioning column is arranged on the back plate, an elastic part is sleeved on the positioning column, and the elastic part is used for abutting against the back face of the license plate.

In an alternative embodiment, the frame further comprises a containment box attached to the main frame, the containment box forming a containment box for containing the battery assembly.

In an alternative embodiment, the backboard is rectangular, the main frame is arranged on three sides of the backboard, and the accommodating box is arranged on the other side of the backboard.

In an alternative embodiment, the accommodating box is provided with an opening, and the opening is provided with a detachable bottom plate to seal the opening of the accommodating box.

In optional embodiment, be provided with the baffle in holding the box, the baffle is connected and is held two inner walls that the box is relative, is provided with on the baffle and crosses line groove and screw, crosses the line groove and is used for the power supply line to pass through, and the bottom plate passes through the bolt and is connected with the baffle.

In an alternative embodiment, the circuit board is installed in the accommodating box, the charging port is installed on the circuit board and exposed through a through hole formed in the accommodating box, and a detachable waterproof cover is arranged at the through hole of the accommodating box.

In an alternative embodiment, the main frame is provided with a mounting hole for mounting the camera, and the mounting hole penetrates from the outer side of the main frame to the inner side of the main frame.

In an alternative embodiment, the camera assembly further comprises a bracket, the camera is connected to the bracket, and the bracket is inserted into the inner side of the main frame from the outer side of the main frame through the mounting hole and is connected with the back plate.

In an optional embodiment, the battery pack further comprises an indicator light connected with the circuit board, and the indicator light is used for displaying the power condition of the battery pack.

In a second aspect, embodiments of the present invention provide an automobile, including the camera assembly provided by each embodiment of the above first aspect, the circuit board of the camera assembly is electrically connected to the controller of the automobile.

The embodiment of the utility model provides a beneficial effect is:

the embodiment of the utility model provides a camera component, including frame, battery pack, camera and circuit board, the frame is used for fixed license plate, and battery pack, camera and circuit board are installed in the frame, and battery pack, camera all are connected with the circuit board electricity, and battery pack is used for providing the electric quantity through the circuit board to camera and circuit board, is provided with the port of charging on the circuit board, and the port of charging is used for being connected with external power source to charge to battery component. In the camera assembly, the rechargeable battery assembly is installed, so that the camera assembly can be used for installing a license plate and supplying power for the camera. The complicated wiring operation of the camera in the prior art is omitted, the installation time of the camera is greatly reduced, and the camera assembly has high universality.

The automobile that this application embodiment provided has included foretell camera subassembly, consequently also has camera simple to operate, extensive applicability's characteristics.

Drawings

In order to more clearly illustrate the technical solutions of the embodiments of the present invention, the drawings that are required to be used in the embodiments will be briefly described below, it should be understood that the following drawings only illustrate some embodiments of the present invention, and therefore should not be considered as limiting the scope, and for those skilled in the art, other related drawings can be obtained according to the drawings without inventive efforts.

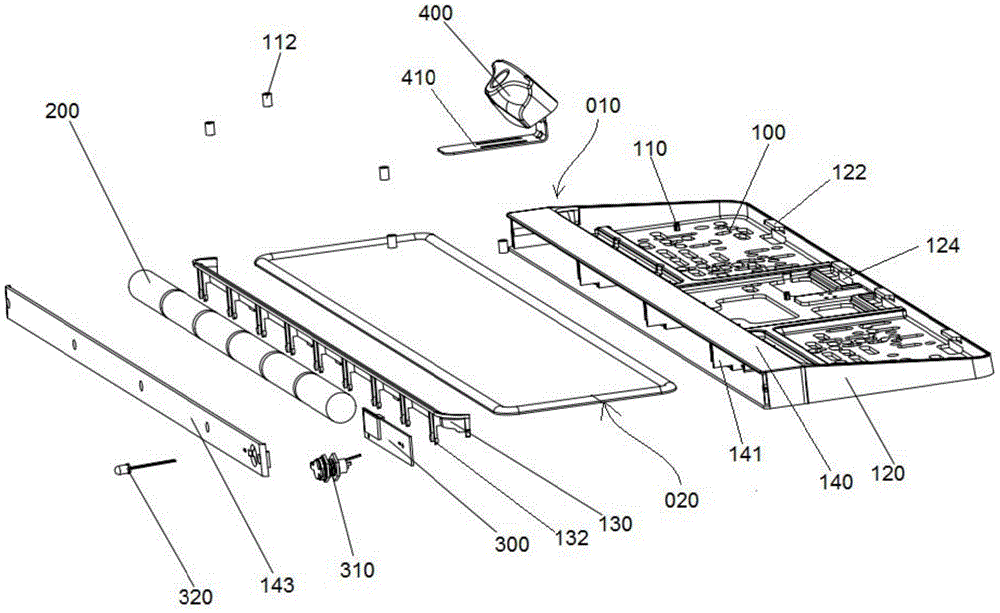

FIG. 1 is an exploded view of a camera assembly according to one embodiment of the present application;

FIG. 2 is a first cross-sectional view of a camera assembly according to one embodiment of the present application;

FIG. 3 is a second cross-sectional view of a camera assembly according to an embodiment of the present application;

FIG. 4 is a schematic view of a first perspective of a frame of a camera assembly according to an embodiment of the present application;

FIG. 5 is a second perspective view of a frame of a camera assembly according to an embodiment of the present application.

010-camera assembly; 100-a back plate; 110-a positioning column; 112-a resilient portion; 120-main frame; 122-a clamping part; 124-mounting holes; 130-a platen; 132-elastic eye-splice; 140-a containment box; 141-a separator; 142-a wire-passing groove; 143-a base plate; 144-a wire-passing hole; 200-a battery assembly; 300-a circuit board; 310-a charging port; 312-a waterproof cover; 320-an indicator light; 400-a camera; 410-a stent; 020-license plate.

Detailed Description

In order to make the objects, technical solutions and advantages of the embodiments of the present invention clearer, the embodiments of the present invention will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are some, but not all, embodiments of the present invention. The components of embodiments of the present invention, as generally described and illustrated in the figures herein, may be arranged and designed in a wide variety of different configurations.

Thus, the following detailed description of the embodiments of the present invention, presented in the accompanying drawings, is not intended to limit the scope of the invention, as claimed, but is merely representative of selected embodiments of the invention. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative efforts belong to the protection scope of the present invention.

It should be noted that: like reference numbers and letters refer to like items in the following figures, and thus, once an item is defined in one figure, it need not be further defined and explained in subsequent figures.

In the description of the present invention, it should be noted that the terms "center", "upper", "lower", "left", "right", "vertical", "horizontal", "inner", "outer", and the like indicate the position or positional relationship based on the position or positional relationship shown in the drawings, or the position or positional relationship which is usually placed when the product of the present invention is used, and are only for convenience of description and simplification of the description, but do not indicate or imply that the device or element referred to must have a specific position, be constructed and operated in a specific orientation, and thus, should not be construed as limiting the present invention. Furthermore, the terms "first," "second," "third," and the like are used solely to distinguish one from another and are not to be construed as indicating or implying relative importance.

Furthermore, the terms "horizontal", "vertical" and the like do not imply that the components are required to be absolutely horizontal or pendant, but rather may be slightly inclined. For example, "horizontal" merely means that the direction is more horizontal than "vertical" and does not mean that the structure must be perfectly horizontal, but may be slightly inclined.

In the description of the present invention, it should also be noted that, unless otherwise explicitly specified or limited, the terms "disposed," "mounted," "connected," and "connected" are to be construed broadly, e.g., as meaning either a fixed connection, a removable connection, or an integral connection; can be mechanically or electrically connected; they may be connected directly or indirectly through intervening media, or they may be interconnected between two elements. The specific meaning of the above terms in the present invention can be understood in specific cases to those skilled in the art.

FIG. 1 is an exploded view of a camera assembly 010 according to an embodiment of the subject application; fig. 2 is a first cross-sectional view of a camera assembly 010 according to an embodiment of the present application; fig. 3 is a second cross-sectional view of camera head assembly 010 in one embodiment of the subject application. Referring to fig. 1 to 3, a camera assembly 010 of the present embodiment includes a frame, a camera 400, a battery assembly 200 and a circuit board 300, wherein the frame is used for fixing a license plate 020, the battery assembly 200, the camera 400 and the circuit board 300 are mounted on the frame, the battery assembly 200 and the camera 400 are electrically connected to the circuit board 300, the battery assembly 200 is used for providing power to the camera 400 and the circuit board 300, a charging port 310 is disposed on the circuit board 300, and the charging port 310 is used for connecting with an external power source to charge the battery assembly 200. The camera assembly 010 provided by the embodiment of the application can be used for installing the license plate 020 and supplying power to the camera 400 provided by the embodiment of the application. The camera 400 can be directly connected with the battery assembly 200 or the circuit board 300 to obtain the electric quantity, so that the problem that a rear camera of an automobile in the prior art is inconvenient to connect with electricity is solved. Moreover, the battery assembly 200 comprises the rechargeable battery, so that the rechargeable battery can be charged when the automobile is idle, and the electric quantity supply of the camera is guaranteed.

Fig. 4 is a schematic view of a first perspective of a frame of a camera assembly 010 according to an embodiment of the present application; fig. 5 is a second perspective view of a frame of a camera head assembly 010 according to an embodiment of the present invention. In an alternative embodiment, the frame includes a main frame 120 and a back plate 100, as shown in fig. 1, 4 and 5, the main frame 120 is disposed at an edge of the back plate 100 and protrudes from a surface of the back plate 100, and the main frame 120 encloses a mounting area of a license plate 020.

Since the license plate 020 to be installed is rectangular, in the embodiment, the back plate 100 is rectangular, and the main frame 120 is disposed on three sides of the back plate 100, so that the area of the back plate 100 surrounded by the main frame 120 for installing the license plate 020 is rectangular. After the license plate 020 is installed on the frame, the license plate 020 is approximately parallel to the back plate 100, and the back surface of the license plate 020 is opposite to the back plate 100. In this embodiment, three sides of the back plate 100, on which the main frame 120 is disposed, respectively correspond to the upper end and the left and right ends of the license plate 020 when in use. For convenience of description, the upper and lower ends described hereinafter are oriented in a normal use state.

In this embodiment, a clamping portion 122 is protruded from an inner side of the main frame 120 at an upper end of the back plate 100, and the clamping portion 122 and the surface of the back plate 100 form a space for inserting the edge of the license plate 020. The number of the clamping portions 122 can be selected according to the requirement, and in the present embodiment, the number of the clamping portions 122 is 4.

In an alternative embodiment, the frame further comprises a pressing plate 130 detachably connected to the back plate 100, wherein the pressing plate 130 is used for pressing the license plate 020 on the back plate 100 to fix the license plate 020. Optionally, the pressing plate 130 is disposed near the lower end of the back plate 100 for pressing the lower end of the license plate 020.

In this embodiment, the pressing plate 130 is provided with an elastic buckle 132 (as shown in fig. 1), the back plate 100 is provided with a plug hole (not shown), and the pressing plate 130 is inserted into and matched with the back plate 100. The pressing plate 130 can be conveniently assembled and disassembled by the way that the elastic buckles 132 are matched with the jacks. As shown in fig. 1, in the present embodiment, each of the elastic buckles 132 includes two elastic hooks in a pair, and the elastic buckle 132 can hook the back plate 100 after being inserted into the insertion hole.

In this embodiment, the back plate 100 is provided with a positioning column 110, the positioning column 110 is sleeved with an elastic part 112, and the elastic part 112 is used for abutting against the back surface of the license plate 020. The elastic part 112 on the positioning column 110 is abutted against the back surface of the license plate 020, so that the license plate 020 can be fixed by the clamping part 122, the pressing plate 130 and the positioning column 110 from three positions respectively. Wherein the pressing plate 130 and the clamping portion 122 press the license plate 020 at the upper end and the lower end of the license plate 020, and the positioning column 110 (and the elastic portion 112) supports against the license plate 020 at the back of the license plate 020, so that the license plate 020 can be stably installed on the frame. In this embodiment, the positioning posts 110 are provided in plurality, and are spaced apart in the width direction (horizontal direction during use) of the back plate 100, and the elastic portion 112 can be selected as a silica gel sleeve, so as to play a certain buffering role, and prevent the license plate 020 from being damaged due to the abutting of the positioning posts 110. It should be understood that the number of the positioning posts 110 can be increased or decreased as required.

In an alternative embodiment, the main frame 120 is provided with a mounting hole 124 for mounting the camera 400, and the mounting hole 124 penetrates from the outer side of the main frame 120 to the inner side of the main frame 120.

In this embodiment, the camera 400 is connected to one end of a bracket 410, and the other end of the bracket 410 is inserted into the inner side of the main frame 120 through the mounting hole 124 from the outer side of the main frame 120 and connected to the back plate 100, and the specific connection manner may be that the camera is fixed to the back plate 100 by screws or bolts. The installation of various cameras 400 can be facilitated through the mode, and the device is wide in applicability, convenient to install and stable.

In an alternative embodiment, the frame further includes a receiving box 140 coupled to the main frame 120, the receiving box 140 forming the receiving box 140 for receiving the battery assembly 200. In the present embodiment, the main frame 120 is disposed on three sides of the backboard 100, and the accommodating box 140 is disposed on the other side of the backboard 100, i.e. the side of the lower end of the backboard 100.

In the present embodiment, the accommodation box 140 is provided with an opening, and the accommodation box 140 further includes a detachable bottom plate 143 provided at the opening to close the opening of the accommodation box 140. By providing the detachable bottom plate 143, the battery assembly 200 can be easily attached and detached. Further, in the present embodiment, in the use state, the opening of the accommodation box 140 faces downward.

In order to enhance the strength of the accommodating box 140 and facilitate the fixing of the bottom plate 143, a partition 141 is provided in the accommodating box 140, and the partition 141 connects two opposite inner walls of the accommodating box 140. The partition 141 is provided with a wire passing groove 142 and a screw hole, the wire passing groove 142 is used for a power supply wire to pass through (including a wire drawn out by the battery assembly 200 or a wire between the camera 400 and the circuit board 300), and the bottom plate 143 is connected with the partition 141 through a bolt. In the present embodiment, the accommodation box 140 has a bar shape and is disposed at the lower end of the backboard 100, the number of the partition boards 141 is plural, and the plural partition boards 141 are disposed at intervals in the length direction of the accommodation box 140.

It should be understood that the battery assembly 200 may be fixed in the accommodation box 140 by clipping, bonding, or the like, or may be fixed in the accommodation box 140 by potting.

In the present embodiment, the circuit board 300 is installed in the accommodation box 140, the charging port 310 is installed on the circuit board 300 and exposed through a through hole opened in the accommodation box 140, and a detachable waterproof cover 312 (see fig. 2) is provided at the through hole of the accommodation box 140 to protect the charging port 310. The charging port 310 may be a dc charging port. In the present embodiment, a through hole for exposing the charging port 310 is opened on the bottom plate 143.

In an alternative embodiment, an indicator light 320 is further included, which is connected to the circuit board 300, and the indicator light 320 is used for displaying the power condition of the battery assembly 200. The indicator light 320 may be a light emitting diode. In the present embodiment, the indicator lamp 320 is exposed outside the accommodation box 140 by making a hole in the bottom plate 143.

In addition, the accommodating box 140 is further provided with a wire through hole 144, and the wire through hole 144 is used for the circuit of the camera 400 to pass through and be connected to the circuit board 300. The camera 400 is connected to the circuit board 300 by passing around the rear surface of the license plate 020 to the accommodation box 140 through the mounting hole 124 along the bracket 410, and then passing through the wire through hole 144.

The embodiment of the present application further provides an automobile (not shown in the drawings), which includes the camera assembly 010 provided in the above embodiment of the present application. The circuit board 300 of the camera assembly 010 may be electrically connected with a controller of the automobile. The camera 400 does not work at ordinary times, and after receiving a reversing trigger instruction, the camera works by being electrified and transmits images to the vehicle-mounted display screen for display, so that electricity is saved.

To sum up, the embodiment of the utility model provides a camera assembly 010, including frame, camera 400, battery pack 200 and circuit board 300, the frame is used for fixed license plate 020, and battery pack 200, camera 400 and circuit board 300 are installed in the frame, and battery pack 200, camera 400 all are connected with circuit board 300 electricity, and battery pack 200 is used for providing the electric quantity to camera 400 and circuit board 300, is provided with charging port 310 on the circuit board 300, and charging port 310 is used for charging to battery pack 200. In the camera assembly 010 of the present application, the rechargeable battery assembly 200 is installed, so that the camera assembly 010 can install the license plate 020 and supply power to the camera 400 provided therewith. The complex wiring operation of the camera 400 in the prior art is omitted, the installation time of the camera 400 is greatly reduced, and the camera assembly 010 has high universality.

The automobile that this application embodiment provided has included foretell camera subassembly 010, consequently also has camera 400 simple to operate, extensive applicability's characteristics.
