Abstract
本实用新型属于医疗护理用品领域，具体公开了一种俯卧位双足防压疮垫及其足背动脉监测定位装置，包括套设于人体足部的防压疮垫本体；防压疮垫本体两端分别设置有与人体脚踝部和人体脚趾部匹配的环形结构，防压疮垫本体中部设置有与人体足背贴合的曲面结构，防压疮垫本体两端外侧设置有紧固结构；紧固结构包括扣带、扣环、公魔术贴和母魔术贴；扣环中部通过缝合与防压疮垫本体固定连接，扣带一端固定于扣环一侧，另一端穿过扣环另一侧形成环形结构，扣带外侧粘结固定有母魔术贴，扣带穿过扣环一段内侧粘结固定有公魔术贴；本实用新型能够防止人体在俯卧位时足背和脚趾由于受挤压造成的损伤。
The utility model belongs to the field of medical care products, and specifically discloses a prone position bipedal pressure ulcer prevention pad and a dorsal artery monitoring and positioning device thereof, comprising a pressure ulcer prevention pad body sleeved on the foot of a human body; The two ends are respectively provided with annular structures matched with the human ankle and the human toe, the middle of the anti-pressure sore pad body is provided with a curved surface structure that fits with the dorsum of the human foot, and the outer sides of the two ends of the anti-pressure sore pad body are provided with fastening structures; The fastening structure includes a buckle, a buckle, a male Velcro and a female Velcro; the middle of the buckle is fixedly connected to the body of the pressure ulcer prevention pad by sewing, one end of the buckle is fixed on one side of the buckle, and the other end passes through the other side of the buckle. A ring structure is formed on the side, a female Velcro is bonded and fixed on the outer side of the buckle, and a male Velcro is bonded and fixed on the inner side of a section of the buckle; the utility model can prevent the dorsum and toes of the human body from being squeezed when the human body is in a prone position. damage caused.
Description
Technical Field
The utility model relates to a medical care articles for use field specifically is a sore pad is prevented pressing by prone position both feet and instep artery monitoring positioner thereof.
Background
The prone position ventilation (ppv) refers to a strategy for lung protection ventilation by placing a patient in a prone position when mechanical ventilation is performed, so that the transmembrane pressure gradient can be reduced, alveolar ventilation can be increased, the ventilation blood flow ratio can be improved, and oxygenation of patients suffering from Acute Respiratory Distress Syndrome (ARDS) can be remarkably improved.
But various parts of the body can be damaged to different degrees due to compression when in a prone position, wherein compression of instep skin and observation of a patient needing to observe an instep artery are difficult points; the prior art discloses an instep artery monitor (patent number: CN 201720701994.9), which is provided with a blood sample detection module to monitor an instep artery, and can give an alarm when the artery of a patient is weak, so that medical staff can perform emergency treatment.
Most are integrated into one piece structure for present instep artery monitor, but instep artery detector probably causes cross infection between the patient when using between the patient of difference, if avoid used repeatedly, then the instep artery monitor after will using abandons, because instep artery monitor internally mounted has the response chip, and its response chip cost is higher, will produce a large amount of economic losses, also indirect increase economic pressure for patient.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide a sore pad is prevented pressing by prone position both feet and instep artery monitoring positioner thereof to solve the problem that provides among the above-mentioned background art.
In order to achieve the above object, the utility model provides a following technical scheme: a prone position double-foot pressure sore prevention pad and a dorsal foot artery monitoring and positioning device thereof; the scheme is realized by the dorsal foot artery monitoring and positioning device of the prone position double-foot pressure sore prevention pad and the prone position double-foot pressure sore prevention pad;
the prone position double-foot pressure sore prevention pad comprises a pressure sore prevention pad body sleeved on the foot of the human body; the two ends of the pressure sore prevention pad body are respectively of an annular structure matched with the ankle part and the toe part of the human body, the middle part of the pressure sore prevention pad body is of a curved surface structure attached to the instep of the human body, and fastening structures are arranged on the outer sides of the two ends of the pressure sore prevention pad body; the fastening structure comprises a buckle belt, a buckle ring, a male magic tape and a female magic tape; the middle part of the buckle ring is fixedly connected with the pressure sore prevention pad body through sewing, one end of the buckle belt is fixed on one side of the buckle ring, the other end of the buckle belt penetrates through the other side of the buckle ring to form an annular structure, a female magic tape is fixedly bonded on the outer side of the buckle belt, and a male magic tape is fixedly bonded on the inner side of the buckle belt penetrating through one section of the buckle ring; an instep bolster is fixed in the middle section of the pressure sore prevention pad body in a hollowed-out manner; an instep artery monitoring and positioning device is arranged inside the prone position double-foot pressure sore prevention pad; the instep artery monitoring and positioning device comprises an artery induction chip and a display screen, and grooves are formed in the surface of an instep pillow inside the prone position double-foot pressure sore prevention pad; the artery induction chip is arranged in the groove, and a blood oxygen monitoring module is arranged in the artery induction chip; a display screen is arranged on the outer side of the bottom of the pressure sore prevention pad body; the upper end and the lower end of the back surface of the display screen are provided with fixing supports, and the other ends of the fixing supports are fixed on the surface of the pressure sore prevention pad body; the display screen is connected with the blood oxygen monitoring module through a lead.
Preferably, the pressure sore prevention pad body is made of a silica gel material.
Preferably, a plurality of vent holes are formed in the inner side of the pressure sore prevention pad body; the instep bolster is made of memory cotton.
Preferably, the top and the middle part of the pressure sore prevention pad body are connected through a zipper.
Preferably, a GPS (global positioning system) positioner is arranged in the prone position double-foot pressure sore prevention pad, and a GPS module and a mobile communication module are arranged in the GPS positioner; the mobile communication module is respectively connected with the GPS module and the blood oxygen monitoring module through leads, and the mobile communication module is connected with the computer through a network.
Preferably, the surface of the fixing support is provided with a wire groove, and a display screen connecting wire is fixed in the wire groove.
Preferably, the surface of the groove is fixedly clamped with a cover plate; the surface of the cover plate is provided with a rubber buffer pad.
Compared with the prior art, the beneficial effects of the utility model are that:
1. the utility model provides a prone position double-foot pressure sore prevention pad, which is more firmly connected with the human body by arranging fastening structures at the outer sides of the two ends of the pad, and can be adaptively adjusted according to users; the instep bolster made of the memory cotton material is fixed in the middle of the pressure sore prevention pad body in a hollow mode, so that the instep and toes of a human body are prevented from being pressed when the human body is in a prone position, the memory cotton has a slow rebound characteristic, deformation cannot occur after repeated use, and the middle of the pressure sore prevention pad body can be attached to the instep of the patient after the patient is repeatedly used.
2. The utility model provides an instep artery monitoring and positioning device of prone position both feet pressure sore pad through set up the recess in instep bolster and with artery response chip through the effect of apron fix in the recess, make the blood oxygen monitoring module that sets up in the artery response chip can monitor the artery of human instep department, and after the patient that has infectious disease uses, can open the apron and take off the artery response chip in the recess, will prevent pressing sore pad body and abandon, one can avoid the cross infection that the used repeatedly caused between the patient; and secondly, the consumption of the induction chip can be saved, and the economic pressure of the patient is indirectly reduced.
Drawings
Fig. 1 is a schematic view of a three-dimensional structure of a prone position double-foot pressure sore prevention pad of embodiment 1 provided by the utility model;
fig. 2 is a schematic view of a three-dimensional structure of a prone position double-foot pressure sore prevention pad of embodiment 2 provided by the utility model;
fig. 3 is a schematic view of a three-dimensional structure of a prone position both-feet pressure sore prevention pad in embodiment 3 of the present invention;
fig. 4 is a schematic perspective view of an embodiment of the dorsum pedis artery monitoring and positioning device provided by the present invention;

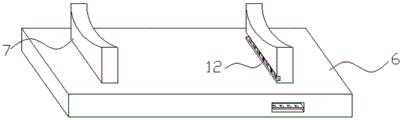

FIG. 5 is a perspective view of the display screen and the fixing bracket;
FIG. 6 is an enlarged schematic view at A in FIG. 2;
FIG. 7 is a circuit block diagram of the dorsal foot artery monitoring and positioning device of the present invention;
fig. 8 is an IC internal block diagram of the artery sensing chip according to the present invention.
In the figure: 1. the pressure sore prevention pad body; 2. a fastening structure; 201. a buckle belt; 202. a retaining ring; 203. male magic tape; 204. female magic tape; 3. a instep bolster; 4. a vent hole; 5. a GPS locator; 501. a GPS module; 502. a mobile communication module; 6. a display screen; 7. fixing a bracket; 8. a groove; 9. an artery induction chip; 901. a blood oxygen monitoring module; 10. a cover plate; 11. a rubber cushion pad; 12. a wire guide groove; 13. an opening; 14. a zipper.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
In the description of the present invention, it should be noted that the terms "vertical", "upper", "lower", "horizontal", and the like indicate orientations or positional relationships based on the orientations or positional relationships shown in the drawings, and are only for convenience of description and simplification of description, but do not indicate or imply that the device or element referred to must have a specific orientation, be constructed in a specific orientation, and be operated, and thus should not be construed as limiting the present invention.
In the description of the present invention, it should also be noted that, unless otherwise explicitly specified or limited, the terms "disposed," "mounted," "connected," and "connected" are to be construed broadly, e.g., as meaning either a fixed connection, a removable connection, or an integral connection; can be mechanically or electrically connected; they may be connected directly or indirectly through intervening media, or they may be interconnected between two elements. The specific meaning of the above terms in the present invention can be understood according to specific situations by those skilled in the art.
Example 1: referring to fig. 1, when in use, two ends of the pressure sore prevention pad body 1 are respectively sleeved on the ankle part and the toe part of the human body, the pressure sore prevention pad body 1 is made of a silica gel material, and the silica gel material has good fitting property, can be tightly fitted with the skin of the human body and does not cause discomfort to the human body; the middle part of the pressure sore prevention pad body 1 is of an arc surface structure attached to the surface of the instep of a human body, fastening structures 2 are arranged on the outer sides of two ends of the pressure sore prevention pad body 1, the fastening structures 2 in the figure 1 are a buckle belt 201, a buckle ring 202, a male magic tape 203 and a female magic tape 204, one end of the buckle belt 201 is fixed on one side of the buckle ring 202, the other end of the buckle belt 201 penetrates through the other side of the buckle ring 202 to form an annular structure, the outer side of the buckle belt 201 is fixedly bonded with the female magic tape 204, the buckle belt 201 penetrates through one section of the inner side of the buckle ring 202 to be fixedly bonded with the male magic tape 203, the male magic tape 203 and the female magic tape 204 are fixedly bonded, so that the two ends of the pressure sore prevention pad body 1 are firmly connected with the human body, and the male;
an instep bolster 3 is fixed in the middle section of the pressure sore prevention pad body 1 in a hollowed-out mode, the instep bolster 3 is made of memory cotton, the instep bolster 3 can prevent toes and an instep of a human body from being pressed when the human body is in a prone position, the memory cotton made of polyurethane materials has a slow rebound characteristic and can be restored to an original shape, deformation is avoided after repeated use, the middle of the pressure sore prevention pad body 1 can be attached to the instep of the patient after the patient is repeatedly used, a plurality of vent holes 4 are formed in the inner walls of two ends of the pressure sore prevention pad body 1, and volatilization of sweat on feet of the human body in the weather can be promoted when the patient is hot;
referring to fig. 4 to 6, fig. 4 is a schematic perspective view of a specific embodiment of the dorsum pedis artery monitoring and positioning device provided by the present invention, and fig. 5 is a schematic perspective view of the display screen 6 and the fixing bracket 7 in fig. 4; FIG. 6 is an enlarged schematic view at A in FIG. 4; wherein, the artery induction chip 9 is placed in the groove 8 opened on the surface of the instep bolster 3 and fixed by the cover plate 10, the surface of the cover plate 10 is provided with the rubber cushion pad 11, and the rubber cushion pad 11 prevents the artery induction chip 9 from being damaged by stamping and collision (see fig. 6 in detail); the blood oxygen monitoring module 901 is arranged in the artery induction chip 9, the display screen 6 is mounted on the outer side of the bottom of the pressure sore prevention pad body 1 through the fixing support 7, the surface of the fixing support 7 is provided with the wire groove 12, wires of the display screen 6 are placed in the wire groove 12, so that the phenomenon of winding and confusion (detailed shown in figure 5) is avoided, the blood oxygen monitoring module 901 is connected with the display screen 6 through the wires, and when the pressure sore prevention pad is used, human body pulses monitored by the artery induction chip 9 can be displayed on the display screen 6, so that diagnosis of a doctor is facilitated;
because the cost of the artery induction chip 9 is high, after a patient with infectious diseases uses the artery induction chip, the cover plate 10 can be opened, and the artery induction chip 9 in the groove 8 can be taken out, and the pressure sore prevention pad body 1 can be discarded, so that cross infection caused by repeated use of the patient can be avoided; and secondly, the dosage of the artery induction chip 9 can be saved, and the economic pressure of the patient is indirectly reduced.
Referring to fig. 7, fig. 7 is the utility model discloses instep artery monitoring positioner's circuit module picture, the utility model discloses it has GPS locator 5 to be located 1 surface mounting of pressure sore pad body, be provided with GPS module 501 and mobile communication module 502 in the GPS locator 5, mobile communication module 502 passes through the wire with GPS module 501 and blood oxygen monitoring module 901 respectively and is connected, mobile communication module 502 passes through the network and is connected with the computer, GPS module 501 and blood oxygen monitoring module 901 can send positioning information and human pulse to the computer through mobile communication module 502 respectively, the computer can be placed in the nurse station, so that the nursing staff observes at any time, also can prevent that the device from losing.
The utility model adopts a controller chip with the model number of AS083-SS1 purchased from the market, the artery induction chip is the prior art, and the circuit diagram of the artery induction chip can refer to FIG. 8; it should be understood that the middle artery induction chip of the present invention can be other types of chips that appear in the present and future.
It is worth noting that: the whole device is controlled by the master control button, and the equipment matched with the control button is common equipment, so that the device belongs to the prior art, and the electrical connection relation and the specific circuit structure of the device are not repeated.
Example 2: referring to fig. 2, its difference with embodiment 1 lies in that the fastening structure 2 of cover locating on preventing pressing sore pad body 1 upper end is replaced by the opening 13 that prevents pressing sore pad body 1 top both ends open-ended formation, when using, because prevent pressing sore pad body 1 and make by the silica gel material, can laminate with patient's ankle, and the silica gel material is the software material, itself has certain regulating power, its aim at: avoid ankle part injured patient because fastening structure 2's fixed action makes the situation of injury aggravation when using, it is more convenient to use moreover, conveniently dresses.
Example 3: referring to fig. 3, the difference from the embodiment 1 is that the top and the middle of the pressure sore prevention pad body 1 are connected by a zipper 14, and the purpose is as follows: is convenient for cleaning the pressure sore prevention pad body 1. This embodiment is stricter to the manufacturing process who prevents pressing sore pad to be not applicable to numerous patients in hospital, not conform to the sanitary requirement, but can be applied to in the daily protective articles for use, if the family uses, 1 prevents pressing sore pad can be given and provide a family and use, effectively practices thrift the cost, and cleaner health.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.
