Anti-collision transport case for food transportation
Technical Field
The utility model belongs to the technical field of the food transportation, especially, relate to a crashproof transport case is used in food transportation.
Background
The first concerns in the transport of food are safety, food safety, personnel safety, and vehicle safety. Secondly, food transport is of great importance to the hygiene of the food, especially for some perishable foods. Furthermore, the time of food transport, transport means and transport conditions are all related to the quality of the food. And food kind and a great deal on the market, the number is numerous and countless, the type is also inconsistent, and to different kinds of food, required protective structure is also different, to the food that is damaged by the extrusion collision easily when the transportation, then need corresponding crashproof structure to protect, and the container that needs box class usually during the transportation is stored, just need one kind can prevent to strike and damage the box of food and transport the protection, it has higher structural strength to need the box simultaneously, guarantee stable transportation, the limitation of current transport case structure is great, can't satisfy the demand in the in-service use, so urgent need can the modified technique on the market, in order to solve above-mentioned problem.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide a crashproof transport case is used in food transportation through setting up foam blotter, rubber pad, box, triangular prism shape cardboard, steel sheet, metal inserted bar, has solved current transport case and has not possessed good crashproof function and do not possess higher structural strength problem.
In order to solve the technical problem, the utility model discloses a realize through following technical scheme:
the utility model relates to an anticollision transport case for food transportation, including box, foam cushion, steel sheet, metal inserted bar and rubber pad, the steel sheet has all been pegged graft to four lateral surfaces of box, the lateral surface of steel sheet is fixed with the foam cushion, and steel sheet cooperation foam cushion design, steel sheet are used for increasing structural strength, and the foam cushion is used for increasing crashproof cushioning property, triangular prism shape cardboard has been placed to the inside diagonal angle of box, and the triangular prism shape cardboard is used for distinguishing the inner space of box, is used for increasing the buffering and categorised depositing food and eat, four outside corner surface lock joint of box have the rubber pad, and the rubber pad is used for increasing the crashproof buffering effect of edge, the upper end lock joint of box has the case lid, and the design of case lid is used for sealing the upper end of box, the bottom face of case lid is fixed with the up, the locking that adopts the design of lock joint to join in marriage the fastener again is fixed for overall structure is more stable, the four corners grafting of box inside has the metal inserted bar, and the metal inserted bar is used for increasing the structural strength of edge department, the bottom of box is fixed with the pad foot for support box is liftoff, increases dampproofing effect.
Furthermore, the clamping grooves are formed in four outer side faces of the box body, the steel plates are inserted into the clamping grooves, the height of each clamping groove is smaller than that of the box body, the steel plates are inserted into the clamping grooves and then parallel and level to the upper end face of the box body, the clamping grooves are matched with the steel plates in an inserted mode, and therefore the steel plates can be conveniently detached and assembled.
Furthermore, the arc-shaped grooves are symmetrically formed in the four outer side corner surfaces of the box body, rubber strips are fixed to the inner sides of the rubber pads, the rubber pads are fixedly fastened with the box body in the arc-shaped grooves in a buckled mode through the rubber strips, the arc-shaped grooves are located on the outer sides of the clamping grooves, and the arc-shaped grooves are matched with the rubber pads in a buckled mode, so that the rubber pads are convenient to disassemble, assemble and use.
Further, triangular prism shape cardboard has all been placed to the inside four corners of box, encloses into the first holding chamber of regional formation between four triangular prism shape cardboards, and the inside regional second holding chamber that forms that encloses into of four triangular prism shape cardboards utilizes triangle-shaped's stability, separates the inner space of box, forms a big first holding chamber and four little second holding chambers.
Further, slots are formed in four corners of the interior of the box body, the slots are located in the box body outside the first accommodating cavity and the second accommodating cavity, the metal insertion rods are inserted into the slots and are parallel and level to the upper end face of the box body, the metal insertion rods are matched with the slots in an inserting mode, the metal insertion rods are connected in an inserting mode, the metal insertion rods can be detached and assembled easily, and structural strength of the box body is improved.
Further, the all symmetries in the bottom four sides of case lid are fixed with the fixture block, the fixture block joint is in the side of box and the outside of steel sheet, and the surface of fixture block is equipped with first screw hole, the second screw hole has been seted up on the surface on steel sheet upper portion, and the position of first screw hole and second screw hole corresponds, and it is fixed to utilize the fixture block to carry out preliminary joint, and further screwing is fixed in the first screw hole of cooperation screw in and the second screw hole of fasteners such as bolt and nut afterwards.
The utility model discloses following beneficial effect has:
1. the utility model discloses a set up foam cushion, rubber pad, box, triangular prism shape cardboard, solved the problem that the transport case does not possess good crashproof function, make the utility model discloses better anticollision buffering effect has, realize the all-round anticollision protection of horizontal week side, avoid the food that rocks the striking and damage the inside transportation of box brought in the transportation, utilize foam cushion to carry out anticollision buffering protection to four sides of box, the anticollision buffering protection of corner part is realized to the lock joint of cooperation rubber pad, and triangular prism shape cardboard supports at the box is inside, form the fixed region of placing, place corresponding food again and transport the storage in first holding chamber and second holding chamber.
2. The utility model discloses a set up steel sheet, metal inserted bar, solved the transport case and did not possess higher structural strength's problem, make the utility model discloses the effectual structural strength who increases the transport case can recycle simultaneously, reduces the waste of material, utilizes the steel sheet to strengthen the structural strength of box side, utilizes grafting of metal inserted bar to improve the structural strength of box corner part, and these structures can all be dismantled and get off the reuse, save the cost.
Of course, it is not necessary for any particular product to achieve all of the above-described advantages at the same time.
Drawings
In order to more clearly illustrate the technical solutions of the embodiments of the present invention, the drawings used in the description of the embodiments will be briefly introduced below, and it is obvious that the drawings in the following description are only some embodiments of the present invention, and it is obvious for those skilled in the art that other drawings can be obtained according to these drawings without creative efforts.

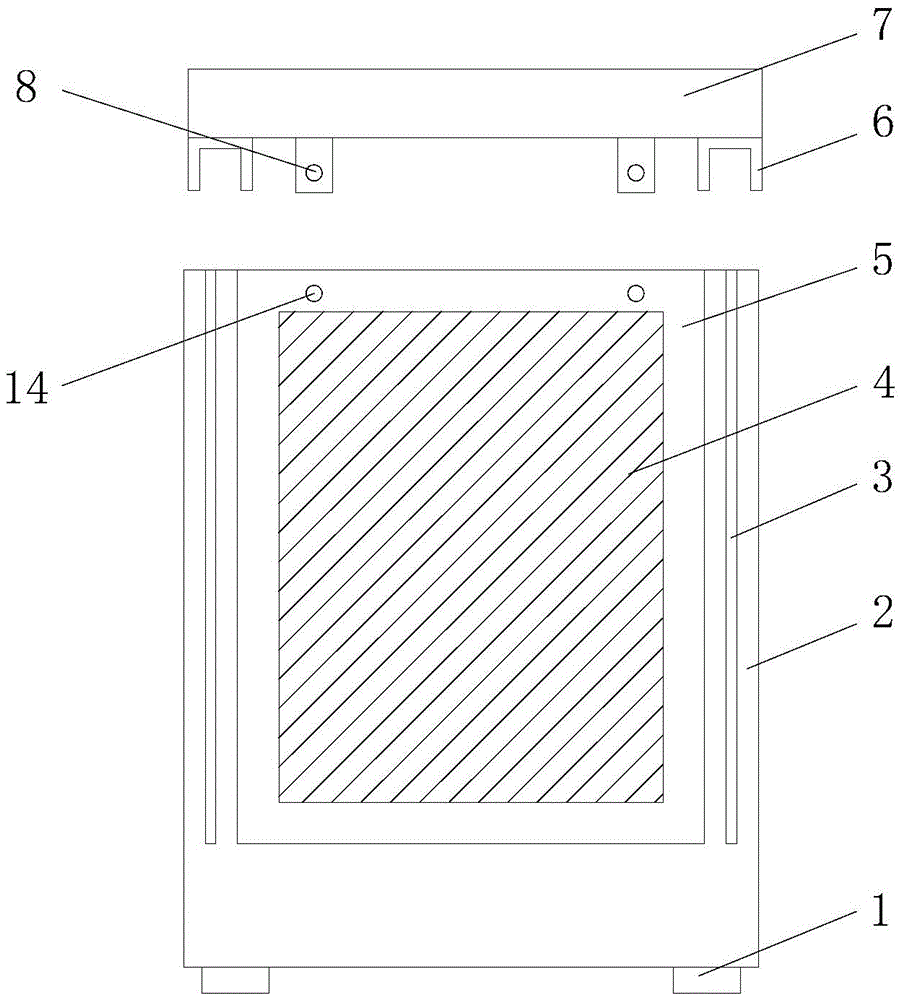

Fig. 1 is a schematic structural view of the present invention;
FIG. 2 is a top perspective view of the case of the present invention;
FIG. 3 is a top connection view of the case of the present invention;
FIG. 4 is an enlarged view of the structure A in FIG. 3 according to the present invention;
FIG. 5 is a perspective view of the rubber pad of the present invention;
FIG. 6 is a perspective view of the cover of the present invention;
FIG. 7 is a perspective view of a triangular prism shaped paperboard;
in the drawings, the components represented by the respective reference numerals are listed below:
1. a foot pad; 2. a box body; 3. an arc-shaped slot; 4. a foam cushion; 5. a steel plate; 6. a clamping block; 7. a box cover; 8. a first threaded hole; 9. a card slot; 10. a metal insert rod; 11. a rubber pad; 12. a triangular prism shaped paperboard; 13. a rubber strip; 14. a second threaded hole; 15. a slot; 16. a first accommodating cavity; 17. a second accommodating cavity.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments of the present invention, all other embodiments obtained by a person of ordinary skill in the art without creative efforts belong to the protection scope of the present invention.
Referring to fig. 1-7, the utility model relates to an anti-collision transport case for food transportation, which comprises a case body 2, a foam cushion pad 4, a steel plate 5, metal inserted rods 10 and rubber pads 11, wherein the four outer side surfaces of the case body 2 are all inserted with the steel plate 5, the outer side surfaces of the steel plate 5 are fixed with the foam cushion pad 4, triangular column-shaped paper boards 12 are placed at the opposite corners inside the case body 2, the surfaces of the four outer side corners of the case body 2 are buckled with the rubber pads 11, the upper end of the case body 2 is buckled with a case cover 7, the bottom end surface of the case cover 7 is buckled and fixed with the upper end surface of the case body 2 through a clamping block 6, the metal inserted rods 10 are inserted at the four corners inside the case body 2, the bottom of the case body 2 is fixed with the pad feet 1, the steel plate 5 is inserted into the four side surfaces of the case body 2 in, realize the high-efficient protection of corner part, increase structural strength, with the outside bight part lock joint rubber pad 11 of box 2 again, increase outlying corner protection, place triangular prism shape cardboard 12 in box 2 afterwards, realize the partition design, place the food of required transportation in triangular prism shape cardboard 12 surrounds the region that forms, prevent the collision each other between the food.
As shown in fig. 1-5 and 7, the arc grooves 3 are symmetrically formed in four outer side corner surfaces of the box body 2, the rubber strips 13 are fixed on the inner sides of the rubber pads 11, the rubber pads 11 are fastened and fixed with the box body 2 in the arc grooves 3 through the rubber strips 13, the arc grooves 3 are located on the outer sides of the clamping grooves 9, when the rubber pads 11 are assembled, the rubber strips 13 on the inner sides of the rubber pads are attached to the arc grooves 3 on the outer side surfaces of the box body 2, the rubber strips 13 are embedded into the arc grooves 3, and the rubber pads 11 are smoothly attached to the outer side surfaces of the box body 2.
Triangular prism shape cardboard 12 has all been placed in the inside four corners of box 2, enclose into the first holding chamber 16 of regional formation between four triangular prism shape cardboards 12, four inside regional formation second holding chambers 17 of enclosing of triangular prism shape cardboard 12, triangular prism shape cardboard 12 separates into four miniature second holding chambers 17 and a large-scale first holding chamber 16 with box 2 is inside, be used for placing a little large-scale food storage in the first holding chamber 16 and use, and four miniature second holding chambers 17 then are used for placing miniature food and use, be used for distinguishing, can prevent the damage that the collision each other in the transportation leads to between the food simultaneously, can reduce the breakage rate of food transportation.
As shown in fig. 1-4, the four outer side surfaces of the box body 2 are all provided with clamping grooves 9, the steel plate 5 is inserted into the clamping grooves 9, the clamping grooves 9 are smaller than the height of the box body 2, the steel plate 5 is inserted into the clamping grooves 9 and then aligned with the upper end surface of the box body 2, the clamping grooves 9 are designed, the steel plate 5 can be embedded into the surface of the outer side of the box body 2 without loosening, especially, after the box cover 7 is fixed, the steel plate 5 cannot easily fall off, and the upper end of the steel plate and the parallel and level of the box body 2 are designed, so that the box cover 7 can be more conveniently buckled.
Slot 15 has been seted up in the inside four corners of box 2, and slot 15 is located the box 2 in the first holding chamber 16 and the second holding chamber 17 outside, and metal inserted bar 10 inserts in slot 15 and with the up end parallel and level of box 2, adopts the design of slot 15, makes in metal inserted bar 10 can insert slot 15, guarantees the structural strength of 2 edges of box, prevents because the external damage that leads to the collision of 2 edges of box.
Wherein as shown in fig. 1, 6, the all symmetry in the bottom four sides of case lid 7 is fixed with fixture block 6, fixture block 6 joint is in the side of box 2 and the outside of steel sheet 5, and the surface of fixture block 6 is equipped with first screw hole 8, second screw hole 14 has been seted up on the surface on steel sheet 5 upper portion, and first screw hole 8 corresponds with the position of second screw hole 14, when closed case lid 7, with the upper end edge of fixture block 6 joint box 2 and steel sheet 5, after the lock joint is accomplished, first screw hole 8 and the coincidence of second screw hole 14, screw in the bolt this moment, can make case lid 7 and box 2 further fixed, the position of protection steel sheet 5 does not change simultaneously, can not loosen, higher overall structure nature has.
In the description herein, references to the description of "one embodiment," "an example," "a specific example," etc., mean that a particular feature, structure, material, or characteristic described in connection with the embodiment or example is included in at least one embodiment or example of the invention. In this specification, the schematic representations of the terms used above do not necessarily refer to the same embodiment or example. Furthermore, the particular features, structures, materials, or characteristics described may be combined in any suitable manner in any one or more embodiments or examples.
The preferred embodiments of the present invention disclosed above are intended only to help illustrate the present invention. The preferred embodiments are not intended to be exhaustive or to limit the invention to the precise embodiments disclosed. Obviously, many modifications and variations are possible in light of the above teaching. The embodiments were chosen and described in order to best explain the principles of the invention and its practical applications, to thereby enable others skilled in the art to best understand the invention for and utilize the invention. The present invention is limited only by the claims and their full scope and equivalents.

Claims (6)

1. The utility model provides a crashproof transport case is used in food transportation, includes box (2), foam cushion (4), steel sheet (5), metal inserted bar (10) and rubber pad (11), its characterized in that: four lateral surfaces of box (2) all peg graft and have steel sheet (5), the lateral surface of steel sheet (5) is fixed with foam cushion (4), triangular prism shape cardboard (12) have been placed to the inside diagonal angle of box (2), four outside corner surface lock joints of box (2) have rubber pad (11), the upper end lock joint of box (2) has case lid (7), the bottom face of case lid (7) passes through fixture block (6) and fixes with the up end lock joint of box (2), the inside four corners of box (2) are pegged graft and are had metal inserted bar (10), the bottom of box (2) is fixed with banket (1).
2. The anti-collision transport case for food transportation according to claim 1, wherein the four outer side surfaces of the case body (2) are all provided with clamping grooves (9), the steel plate (5) is inserted into the clamping grooves (9), the height of each clamping groove (9) is smaller than that of the case body (2), and the steel plate (5) is inserted into the clamping grooves (9) and then is flush with the upper end surface of the case body (2).
3. The anti-collision transport case for food transportation according to claim 1, wherein the four outer side corner surfaces of the case body (2) are symmetrically provided with arc-shaped grooves (3), the inner side of the rubber pad (11) is fixed with rubber strips (13), the rubber pad (11) is fastened and fixed with the case body (2) in the arc-shaped grooves (3) through the rubber strips (13), and the arc-shaped grooves (3) are located on the outer side of the clamping grooves (9).
4. The anti-collision transport case for food transportation according to claim 1, wherein triangular prism-shaped paper boards (12) are placed at four corners of the interior of the case body (2), the area enclosed between the four triangular prism-shaped paper boards (12) forms a first accommodating cavity (16), and the area enclosed inside the four triangular prism-shaped paper boards (12) forms a second accommodating cavity (17).
5. The anti-collision transport case for food transportation according to claim 1, wherein the slots (15) are formed at four corners inside the case body (2), the slots (15) are located inside the case body (2) outside the first accommodating cavity (16) and the second accommodating cavity (17), and the metal insertion rod (10) is inserted into the slots (15) and is flush with the upper end face of the case body (2).
6. The anti-collision transportation box for food transportation according to claim 1, wherein the four sides of the bottom of the box cover (7) are symmetrically fixed with fixture blocks (6), the fixture blocks (6) are clamped at the sides of the box body (2) and the outer side of the steel plate (5), the surface of each fixture block (6) is provided with a first threaded hole (8), the surface of the upper part of the steel plate (5) is provided with a second threaded hole (14), and the first threaded hole (8) corresponds to the second threaded hole (14).
