Abstract
本发明公开了一种动静脉置管的护理衣袖，其特征在于，由背心和二个袖管组成，背心和二个袖管通过拉链连接；通过拉链卸除二个袖管，背心可以单独使用；背心上左右分别在近锁骨处开有二个背心孔；二个袖管上分别在手腕和肘上部内侧处开有二个袖孔；各个孔上设有盖，其中一条边通过缝制固定在背心或二个袖管上，其它边通过粘扣固定在短背心或二个袖管上，因此，盖可以经拉开粘扣把置管暴露，便于对置管予以护理；盖采用透明材料，便于护理人员观察置管的状态；二个袖管上的向上面设有拉链，方便患者穿戴；在袖管口处分别设有二个袋，袋中可容纳系带；在袖管口处还对称缝有二根系带，必要时可对患者的手臂予以约束，防止患者在意识模糊时的拔管。
The invention discloses a nursing sleeve for arterial and venous catheterization, which is characterized in that it is composed of a vest and two sleeve tubes, the vest and the two sleeve tubes are connected by a zipper; the two sleeve tubes are removed through the zipper, and the vest can be used alone; There are two vest holes near the clavicle on the upper left and the left respectively; two arm holes are respectively opened on the two sleeve tubes at the inner side of the wrist and the upper part of the elbow; each hole is provided with a cover, one of which is fixed on the vest or the vest by sewing. On the two sleeve tubes, the other sides are fixed on the short vest or the two sleeve tubes through the Velcro, so the cover can be opened by pulling the Velcro button to expose the placement tube, which is convenient for nursing the placement tube; the cover is made of transparent material, which is convenient for nursing staff to observe The state of the tube; the two sleeve tubes are provided with zippers facing upwards, which is convenient for the patient to wear; two pockets are respectively arranged at the mouth of the cuff, and the pockets can accommodate the lace; there are also two laces sewn symmetrically at the mouth of the sleeve. If necessary, the patient's arm can be restrained to prevent extubation when the patient is confused.
Description
Technical Field
The invention relates to a nursing coat sleeve of an arteriovenous indwelling tube, and belongs to the technical field of medical care.
Background
The arteriovenous catheterization is an auxiliary treatment method which is required to be carried out by medical staff aiming at different diseases or various sudden conditions of a patient in the daily treatment of the patient. When the medical staff successfully places the catheter, the patient needs to face a series of risks of complications such as catheter slippage, catheter-related infection, catheter-related thrombosis and the like. Once such complications occur, injury to the patient, prolonged hospital stays, increased medical costs, and even serious consequences of death may result. During the hospitalization period of the patient, the maintenance of the arteriovenous indwelling catheter is one of the daily works of the nurse, and if the indwelling and nursing management is wrong, the contradiction between the doctor and the patient can be caused, so that the nurse has larger working pressure.
Among the catheterized patients are many elderly people who experience an increase in their perception, memory, logical thinking, emotional response, will, self-care, and immunity and decline gradually. The resistance to diseases is gradually weakened, and various diseases are more likely to occur. For example, clinical alzheimer patients are characterized by general dementia such as dysmnesia, aphasia, disuse, agnosia, visual space skill damage, executive dysfunction, personality and behavior change, and such patients may pull or pull the tube by themselves due to "forgetting", incapability of understanding the tube placing reason of medical staff and discomfort of the patients after tube placing, and further cause bleeding, infection and subcutaneous hematoma at the puncture site. Therefore, medical staff not only can carry out daily nursing and proper fixation on the catheter, but also can observe the indwelling condition of the catheter in a daily tour mode.
But a product which does not hinder arteriovenous catheterization and nursing of a patient, facilitates observation of catheterization conditions of medical personnel, can keep warm, avoids cold of the patient caused by repeated opening of a bedding and clothing or long-time opening of observation nursing, and can protect privacy of the patient and ensure safety of the patient does not exist in the current market.
Disclosure of Invention
The technical problem to be solved by the invention is how to facilitate medical care personnel to observe the tube, avoid the patient from catching a cold due to repeated opening of the bedding and clothing or long-time opening of observation and nursing, and protect the privacy of the patient and ensure the safety of the patient.
In order to solve the technical problems, the technical scheme of the invention is to provide a nursing coat-sleeve with arteriovenous indwelling tubes, which is characterized by comprising a vest and two sleeves, wherein the vest is connected with the two sleeves through zippers; the two sleeves are detached through the zippers, so that the vest can be used independently; the vest can also be a short vest, which is equivalent to a shoulder pad; two back core holes are respectively arranged on the left and the right of the back core near the clavicle, and the back core holes are square, rectangular, circular or elliptical; the two sleeves are respectively provided with two armholes at the inner sides of the wrist and the upper elbow, and the armholes are square, rectangular, circular or elliptical; the cover is arranged on each hole, one side of the cover is fixed on the vest or the two sleeves by sewing, and the other sides of the cover are fixed on the vest or the two sleeves by sticking buttons, so that the cover can expose the tube by pulling the sticking buttons open, and the tube can be conveniently arranged for nursing; the cover is made of transparent material, such as plastic film, etc., so that the nursing staff can observe the state of the tube; the zippers are arranged on the upper surfaces of the two sleeves, so that the patient can wear the sleeve conveniently; two bags are respectively arranged at the sleeve openings and can contain the tying belts; two laces are symmetrically sewed at the sleeve opening, so that the arms of the patient can be restrained if necessary, and the tube drawing of the patient in the process of vague consciousness is prevented.
The utility model has the advantages that: simple structure and convenient observation. The efficiency and the quality of putting the management and managing have effectively been improved, reduce the risk of the extubation or taking off the pipe of patient when the consciousness is fuzzy, in time discover the artery and vein and put the abnormal conditions of pipe, and cold-proof protection privacy has also reduced medical staff work load.
Drawings

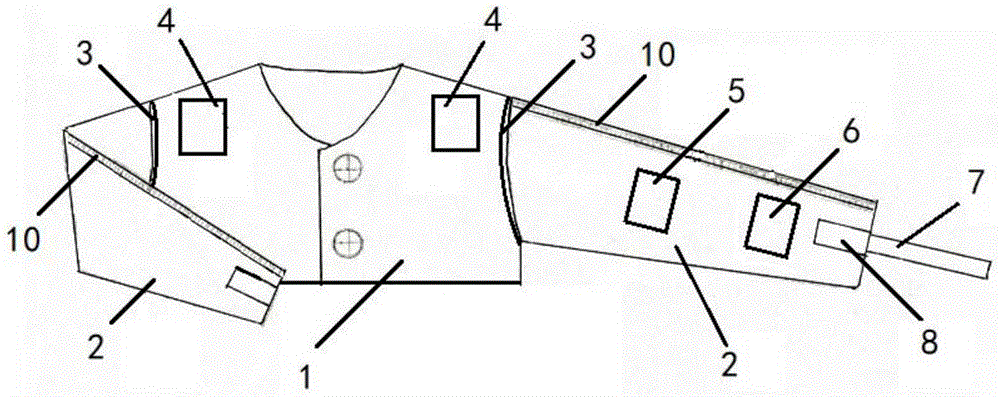

Fig. 1 is a schematic structural view of a nursing sleeve of a arteriovenous indwelling catheter provided by the present invention;
fig. 2 is a schematic structural view of a middle cover of a nursing sleeve of a arteriovenous indwelling catheter provided by the utility model.
Detailed Description
The present invention will be further described with reference to the following specific examples. It should be understood that these examples are for illustrative purposes only and are not intended to limit the scope of the present invention. Furthermore, it should be understood that various changes and modifications of the present invention may be made by those skilled in the art after reading the teachings of the present invention, and these equivalents also fall within the scope of the appended claims.
As shown in fig. 1, the nursing coat-sleeve for arteriovenous catheterization provided by the utility model comprises a vest 1 and two sleeves 2, wherein the vest 1 is connected with the two sleeves 2 through zippers 3; the vest 1 can be used independently by detaching the two sleeves 2 through the zipper 3; the vest 1 can also be a short vest, which is equivalent to a shoulder pad; two vest holes 4 are respectively arranged on the left and the right of the vest 1 near the clavicle, and the vest holes 4 are square, rectangular, circular or elliptical; the two sleeves 2 are respectively provided with two armholes 6 and 5 at the inner sides of the wrist and the upper elbow, and the armholes are square, rectangular, circular or elliptical; the vest hole and the armholes are provided with covers 9 (shown in figure 2), one side 9-1 is fixed on the vest 1 or the two sleeves 2 by sewing, and the other side is fixed on the vest 1 or the two sleeves 2 by thread gluing 9-2, therefore, the covers 9 can expose the tubes by pulling open the thread gluing to facilitate nursing the tubes; the cover 9 is made of transparent material, such as plastic film, etc., which is convenient for the nursing staff to observe the state of the tube; the zippers 10 are arranged on the upper surfaces of the two sleeve pipes 2, so that the patient can conveniently wear the sleeve pipes; two pockets 8 are respectively arranged at the openings of the sleeves 2 and can contain the tying belts 7; two laces 7 are symmetrically sewed at the position of the sleeve 2, so that the arm of the patient can be restrained if necessary, and the tube drawing of the patient in the process of vague consciousness can be prevented.
Claims (4)
1. A nursing coat sleeve for arteriovenous indwelling tubes is characterized by comprising a vest and two sleeves; the vest is connected with the two sleeves through the zippers, the two sleeves are detached through the zippers, and the vest can be used independently; two back core holes are respectively arranged on the left and the right of the back core at the positions close to the clavicles; two armholes are respectively arranged on the wrist and the inner side of the upper elbow part on the two sleeves; the vest hole and the armholes are provided with covers, one side of each cover is fixed on the vest or the two sleeves by sewing, the other sides of each cover are fixed on the vest or the two sleeves by thread gluing, and the covers are made of transparent materials; the upper surfaces of the two sleeves are provided with zippers which are convenient for the patient to wear, the sleeve openings are provided with two bags which can contain the lacings, and the sleeve openings are symmetrically fixed with two lacings.
2. The arteriovenous indwelling catheter care sleeve of claim 1, wherein the cover is a transparent plastic film.
3. The arteriovenous indwelling catheter care sleeve of claim 1, wherein the vest is a short vest or shoulder pad.
4. The arteriovenous indwelling catheter care sleeve of claim 1, wherein the dorsal and armholes are square, rectangular, circular or oval.
