Abstract
本实用新型公开了一种盐水应急球泡，包括上盖、盐水发电装置和照明模块，上盖设置在盐水发电装置的顶部，照明模块设置在盐水发电装置的底部，盐水发电装置包括中盖、镁棒、内盖、侧内盖、侧外盖，所述中盖设置在上盖的底部。本实用新型中的球泡由盐水发电提供电能输送于球泡的照明模块，使照明模块可以工作，达到照明或发光的作用，腔室内有镁棒，再加入一定浓度的盐水，使得产生化学反应，产生电能，照明模块利用导线与盐水发电装置连接，可以达到照明的作用，盐水可以打开内盖进行添加，实现盐水发电提供电能给球泡，只加入一定浓度的盐水，使用方便，不受使用场景的限制，能够很灵活的去使用，给使用者带来极大的便利。
The utility model discloses a salt water emergency bulb, which comprises an upper cover, a salt water power generation device and a lighting module. The upper cover is arranged on the top of the salt water power generation device, and the lighting module is arranged at the bottom of the salt water power generation device. Magnesium rod, inner cover, side inner cover, side outer cover, the middle cover is arranged at the bottom of the upper cover. The bulb in the utility model is powered by salt water to provide electric energy and transport it to the lighting module of the bulb, so that the lighting module can work and achieve the effect of lighting or luminescence. There is a magnesium rod in the chamber, and then a certain concentration of salt water is added to cause a chemical reaction. , to generate electricity, the lighting module is connected with the salt water power generation device by wires, which can achieve the effect of lighting. The salt water can be opened by opening the inner cover to add electricity to realize the salt water power generation to provide electricity to the bulb. Only a certain concentration of salt water is added, which is easy to use and does not need to be used. The limitations of the scene can be used flexibly, which brings great convenience to users.
Description
Technical Field
The utility model relates to the technical field of lighting technology, specifically be an emergent ball bubble of salt solution.
Background
At present, the electric energy of the existing emergency bulb on the market is mostly provided by commercial power or solar energy, the two modes can limit the service environment of the emergency bulb to a certain extent, the emergency bulb cannot be used flexibly, the practicability is lower, great inconvenience is brought to a user, and therefore the emergency bulb for salt water is provided.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide an emergent ball bubble of salt solution to solve the problem that proposes among the above-mentioned background art.
In order to achieve the above object, the utility model provides a following technical scheme: a saline emergency bulb comprises an upper cover, a saline power generation device and an illumination module, wherein the upper cover is arranged at the top of the saline power generation device, and the illumination module is arranged at the bottom of the saline power generation device;
the brine power generation device comprises a middle cover, a magnesium rod, an inner cover, a side inner cover and a side outer cover, wherein the middle cover is arranged at the bottom of the upper cover, a cavity is arranged at the top of the middle cover, the magnesium rod is arranged inside the cavity, the side inner cover and the side outer cover are both arranged on the outer side of the cavity, the inner cover is arranged at the top of the cavity, and an inner rotating cover is arranged at a through groove at the top of the inner cover;
the lighting module comprises a light source plate and a lamp shade, the light source plate is arranged in a groove in the bottom of the middle cover, and the lamp shade is arranged at the bottom of the middle cover.
Preferably, the top of the upper cover is provided with a hook.
Preferably, the top of the chamber penetrates through the upper cover and extends into the upper cover, and the inner surface of the upper cover is in threaded connection with the middle cover.
Preferably, a key board is arranged at the top of the inner cover, and the key board controls the light source board in an electric signal mode.
Preferably, the top of the lampshade penetrates through the middle cover and extends to the inside of the middle cover, and the outer surface of the lampshade is in threaded connection with the middle cover.
Preferably, the bottom of the outer surface of the middle cover is provided with a radiating fin.
Preferably, saline is arranged in the chamber, and a lead is arranged in the saline in the chamber and is electrically connected with the light source board.
Compared with the prior art, the beneficial effects of the utility model are as follows:
the utility model provides a ball bubble provides the electric energy by salt solution electricity generation and carries in the lighting module of ball bubble, make lighting module can work, reach illumination or luminous effect, there is the magnesium stick in the cavity, add the salt solution of certain concentration again, make and produce chemical reaction, produce the electric energy, lighting module utilizes the wire to be connected with salt solution power generation facility, can reach the effect of illumination, the salt solution can be opened the inner cup and add, realize that salt solution electricity generation provides the electric energy for the ball bubble, only add the salt solution of certain concentration, high durability and convenient use, do not receive the restriction of use scene, can be very nimble go to use, bring very big facility for the user.
Drawings

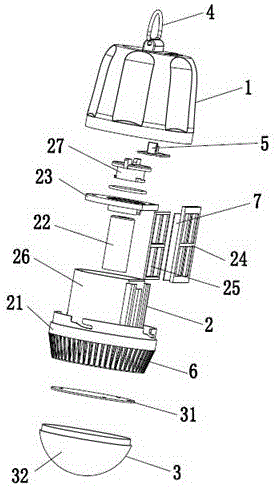

Fig. 1 is an exploded view of the structure of the present invention.
In the figure: the solar cell module comprises an upper cover 1, a brine power generation device 2, a middle cover 21, a magnesium rod 22, an inner cover 23, an inner cover 24, an outer cover 25, a cavity 26, an inner rotary cover 27, a lighting module 3, a light source plate 31, a lamp shade 32, a hook 4, a key plate 5, a heat dissipation fin 6 and an electrode film 7.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Referring to fig. 1, the emergency bulb for brine comprises an upper cover 1, a brine power generation device 2 and an illumination module 3, wherein the upper cover 1 is arranged at the top of the brine power generation device 2, and the illumination module 3 is arranged at the bottom of the brine power generation device 2.
Brine power generation facility 2 includes well lid 21, magnesium stick 22, inner cover 23, side inner cover 24, side outer cover 25, and well lid 21 sets up in the bottom of upper cover 1, and the top of well lid 21 is provided with cavity 26, and magnesium stick 22 sets up in the inside of cavity 26, and the outside at cavity 26 is all installed to side inner cover 24 and side outer cover 25, and inner cover 23 sets up at the top of cavity 26, and the logical groove department at inner cover 23 top is provided with interior rotatory lid 27.
The illumination module 3 includes a light source plate 31 and a lamp housing 32, the light source plate 31 is installed in a recess of the bottom of the middle cap 21, and the lamp housing 32 is disposed at the bottom of the middle cap 21.
In specific implementation, the electrode film 7 is further disposed in the cavity 26, and the electrode film 7 is a nickel-carbon composite film.
In the specific implementation, the top of the upper cover 1 is provided with a hook 4.
In the specific implementation, the top of the chamber 26 penetrates through the upper cap 1 and extends into the upper cap 1, and the inner surface of the upper cap 1 is screwed with the middle cap 21.
In practical implementation, the key sheet 5 is disposed on the top of the inner cover 23, and the key sheet 5 controls the light source board 31 by means of an electrical signal.
In practical implementation, the top of the lamp housing 32 penetrates through the middle cap 21 and extends to the inside thereof, and the outer surface of the lamp housing 32 is screwed with the middle cap 21.
In practical application, the bottom of the outer surface of the middle cover 21 is provided with heat dissipation fins 6.
In practical implementation, saline is provided in the chamber 26, and a lead is provided in the saline in the chamber 26 and electrically connected to the light source board 31.
During the use, the ball bubble provides the electric energy by salt solution power generation facility 2 and carries in the lighting module 3 of ball bubble, make lighting module 3 can work, reach the illumination or luminous effect, there is magnesium stick 22 in the cavity 26, still be provided with electrode film 7 in the cavity 26, add the salt solution of certain concentration again, make and produce chemical reaction, the generated power, lighting module 3 utilizes the wire to be connected with salt solution power generation facility 2, can reach the effect of illumination, salt solution can open inner cup 23 and add, realize that salt solution power generation provides the electric energy for the ball bubble, only add the salt solution of certain concentration, high durability and convenient use, do not restrict and use the scene.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.
Claims (7)
1. The emergent ball bubble of salt solution which characterized in that: the brine power generation device comprises an upper cover (1), a brine power generation device (2) and a lighting module (3), wherein the upper cover (1) is arranged at the top of the brine power generation device (2), and the lighting module (3) is arranged at the bottom of the brine power generation device (2);
the brine power generation device (2) comprises a middle cover (21), a magnesium rod (22), an inner cover (23), a side inner cover (24) and a side outer cover (25), wherein the middle cover (21) is arranged at the bottom of the upper cover (1), a cavity (26) is arranged at the top of the middle cover (21), the magnesium rod (22) is arranged in the cavity (26), the side inner cover (24) and the side outer cover (25) are both arranged on the outer side of the cavity (26), the inner cover (23) is arranged at the top of the cavity (26), and an inner rotating cover (27) is arranged at a through groove at the top of the inner cover (23);
the lighting module (3) comprises a light source plate (31) and a lampshade (32), the light source plate (31) is installed in a groove in the bottom of the middle cover (21), and the lampshade (32) is arranged at the bottom of the middle cover (21).
2. The emergency bulb of brine according to claim 1, wherein: the top of the upper cover (1) is provided with a hook (4).
3. The emergency bulb of brine according to claim 1, wherein: the top of the chamber (26) penetrates through the upper cover (1) and extends into the upper cover, and the inner surface of the upper cover (1) is in threaded connection with the middle cover (21).
4. The emergency bulb of brine according to claim 1, wherein: the top of inner cup (23) is provided with keypad (5), keypad (5) are through the mode of signal of telecommunication to light source board (31) control.
5. The emergency bulb of brine according to claim 1, wherein: the top of the lampshade (32) penetrates through the middle cover (21) and extends to the interior of the middle cover, and the outer surface of the lampshade (32) is in threaded connection with the middle cover (21).
6. The emergency bulb of brine according to claim 1, wherein: and the bottom of the outer surface of the middle cover (21) is provided with a radiating fin (6).
7. The emergency bulb of brine according to claim 1, wherein: saline water is arranged inside the cavity (26), and a lead is arranged in the saline water of the cavity (26) and is electrically connected with the light source board (31).
