The utility model discloses a counter for displaying cosmetics, which relates to the technical field of display counters and comprises a cabinet body, a first showcase and a second showcase, wherein the first showcase is fixed above the cabinet body, the second showcase is positioned above the first showcase, a rotating shaft is rotatably connected at the middle position between the first showcase and the second showcase, and the first showcase and the second showcase are rotatably connected through the rotating shaft; the middle positions above the left side and the right side of the first display cabinet are rotatably connected with a vertical block through a rotating rod, the upper end of the outer wall of the vertical block is provided with a round hole, and the middle positions below the left side and the right side of the second display cabinet are fixedly provided with round rods; side grooves are formed in the middle of the left side and the right side of the first display cabinet, bottom grooves are formed in the left side and the right side of the middle of the lower surface of the second display cabinet, and spot lamps are arranged above the inner walls of the side grooves and above the inner walls of the bottom grooves; the beneficial effects of the utility model reside in that: the flexibility of connection between the show cases is improved, so that the show cases can rotate independently, and the display effect and the flexibility are improved.
Description
Technical Field
The utility model belongs to the technical field of display sales counter technique and specifically relates to a sales counter is used in cosmetics display.
Background
A display case, a shelf that is used specifically to display merchandise, samples, products, or other items to be displayed. The cosmetic showcases are various in variety and wide in application, and various showcases can be seen in places where people move.
SUMMERY OF THE UTILITY MODEL
The utility model aims at the problem and not enough of above-mentioned existence, provide one kind and improve the flexibility of connecting between the show case for the show case can rotate alone, improves the sales counter for the cosmetics display of display effect and flexibility.
In order to achieve the purpose, the adopted technical scheme is as follows:
a counter for displaying cosmetics comprises a cabinet body, a first display cabinet and a second display cabinet, wherein the first display cabinet is fixed above the cabinet body, the second display cabinet is positioned above the first display cabinet, a rotating shaft is rotatably connected at the middle position between the first display cabinet and the second display cabinet, and the first display cabinet and the second display cabinet are rotatably connected through the rotating shaft; the middle positions above the left side and the right side of the first display cabinet are rotatably connected with vertical blocks through rotating rods, round holes are formed in the upper ends of the outer walls of the vertical blocks, and round rods are fixed at the middle positions below the left side and the right side of the second display cabinet;
side grooves are formed in the middle of the left side and the right side of the first display cabinet, bottom grooves are formed in the left side and the right side of the middle of the lower surface of the second display cabinet, and spot lamps are arranged above the inner walls of the side grooves and above the inner walls of the bottom grooves;
the disc bases are fixed to the bottom of the inner sides of the two side grooves and the left side and the right side of the middle portion above the first display cabinet, a through hole is formed in the upper portion of each disc base, an elastic ring is arranged in the center of the inner portion of the through hole, springs are fixed to the outer wall of each elastic ring and the center of the periphery of the inner wall of the through hole, and the elastic rings are connected with the disc bases into a whole through the springs.
Preferably, the first display case and the second display case are consistent in length and height.
Preferably, the round rod corresponds to the round hole, and the tail end of the round rod penetrates through the round hole to enable the first display cabinet to be connected with the second display cabinet.
Preferably, the two disc bases above the first display cabinet respectively correspond to the two bottom grooves vertically.
Preferably, the elastic ring is made of an elastic material, and the diameter of the elastic ring is smaller than that of the disc base.
Preferably, two storage cabinets which are symmetrical left and right are fixed below the cabinet body, and the front of each storage cabinet is hinged with a cabinet door for sealing the storage cabinet.
Preferably, three first partition boards which are horizontally and equidistantly arranged are vertically fixed inside the first display cabinet, and a transverse plate is fixed in the middle between the three first partition boards.
Preferably, a horizontal plate is horizontally fixed above the middle inside the second display cabinet, and three second partition plates which are equidistantly arranged are vertically fixed between the upper surface of the horizontal plate and the upper part of the inner wall of the second display cabinet.
By adopting the technical scheme, the beneficial effects are as follows:
because the first display cabinet and the second display cabinet are rotationally connected through the rotating shaft, a user can rotate and rotate the second display cabinet on the first display cabinet through the rotating shaft, and the angle between the second display cabinet and the first display cabinet is adjusted according to the required requirements, so that the display counter can display cosmetics to customers in multiple angles, and the display effect of the display counter is improved;
through the two side grooves in the first showcase and the bottom groove in the second showcase, a user can independently place some cosmetics which are relatively exploded in the side grooves and the bottom groove, the brightness of the side grooves and the bottom groove can be increased through the spotlight, the effect of the display counter is further enhanced, and as the side grooves are formed in the left side and the right side of the first showcase, the user can see the cosmetics in the first showcase from the left side and the right side, and the display and placement effects of the left side and the right side of the first showcase are effectively improved;
because the elastic ring is made by elastic material to the elastic ring passes through the spring and links to each other with the disc base, effectively increases the elasticity between elastic ring and the disc base, when the bottom diameter of cosmetics is great, alright in order directly to prop big embedding disc base with the elastic ring, also fix the extrusion of cosmetics on the disc base simultaneously, improve the steadiness of cosmetics.
Drawings
In order to more clearly illustrate the technical solutions of the embodiments of the present invention, the drawings of the embodiments of the present invention will be briefly described below. The drawings are intended to depict only some embodiments of the invention, and not all embodiments of the invention are limited thereto.

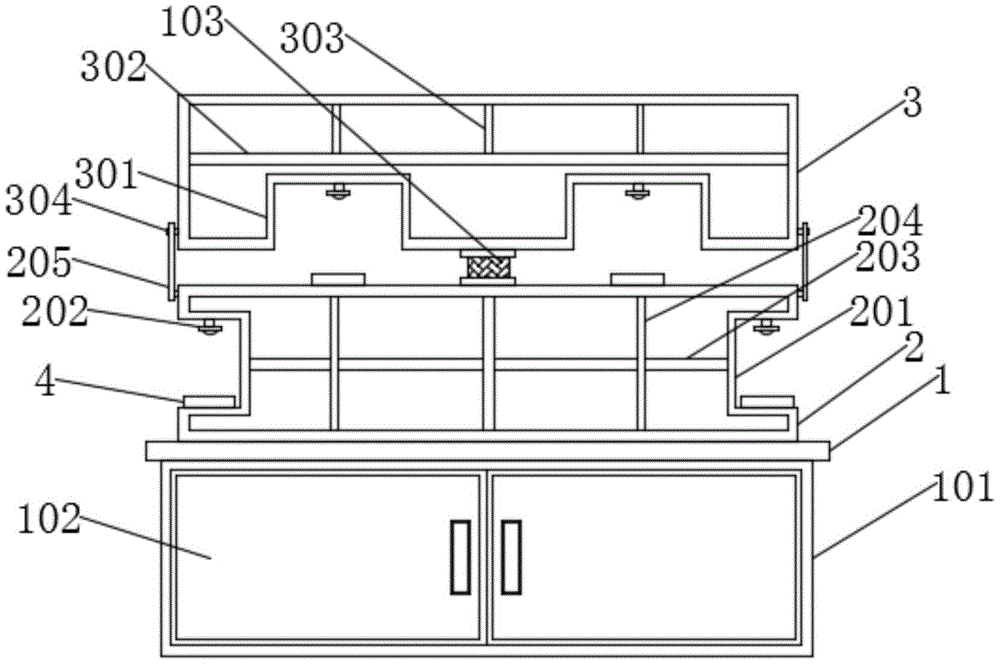

Fig. 1 is a schematic view of the overall front plan structure of the present invention;
FIG. 2 is a schematic view of the overall side plan structure of the present invention;
fig. 3 is a schematic view of the three-dimensional structure of the disc base of the present invention.
The labels in the figure are: the novel multifunctional showcase comprises a cabinet body 1, a locker 101, a cabinet door 102, a rotating shaft 103, a showcase I2, a side groove 201, a spotlight 202, a transverse plate 203, a partition plate I204, a vertical block 205, a round hole 206, a showcase II 3, a bottom groove 301, a horizontal plate 302, a partition plate II 303, a round rod 304, a disc base 4, a through hole 401, an elastic ring 402 and a spring 403.
Detailed Description
In order to make the purpose, technical features and technical effects of the technical solution of the present invention clearer, the drawings of the embodiments of the present invention are combined together, and the example solution of the embodiments of the present invention is clearly and completely described.
Referring to fig. 1 to 3, the present application is a cosmetic display counter, which comprises a cabinet body 1, a first showcase 2 and a second showcase 3, wherein the first showcase 2 is fixed above the cabinet body 1, the second showcase 3 is positioned above the first showcase 2, a rotating shaft 103 is rotatably connected at the middle position between the first showcase 2 and the second showcase 3, the first showcase 2 and the second showcase 3 are rotatably connected through the rotating shaft 103, and the lengths and heights of the first showcase 2 and the second showcase 3 are consistent;
the middle positions above the left side and the right side of the first display cabinet 2 are rotatably connected with a vertical block 205 through rotating rods, the upper end of the outer wall of the vertical block 205 is provided with a round hole 206, the middle positions below the left side and the right side of the second display cabinet 3 are fixedly provided with round rods 304, the round rods 304 correspond to the round holes 206, and the tail ends of the round rods 304 penetrate through the round holes 206 to enable the first display cabinet 2 to be connected with the second display cabinet 3;
in the first embodiment, as the first showcase 2 and the second showcase 3 are rotatably connected through the rotating shaft 103, a user can rotate and rotate the second showcase 3 on the first showcase 2 through the rotating shaft 103, and adjust the angle between the second showcase 3 and the first showcase 2 according to a required requirement, so that cosmetics can be displayed to a client by the display counter in multiple angles, and the display effect of the display counter is improved;
when a user rotates the second display cabinet 3 back to the original position through the rotating shaft 103, the stand block 205 can be rotated upwards through the rotating rod, the round hole 206 corresponds to the round rod 304, the user penetrates the tail end of the round rod 304 through the round hole 206 and fixes the first display cabinet 2 and the second display cabinet 3, so that the second display cabinet 3 cannot be rotated through the rotating shaft 103, if the user needs to adjust the angle of the second display cabinet 3 again, the round rod 304 only needs to be separated from the round hole 206, and the user can freely rotate the second display cabinet 3, and the whole operation process is simple, convenient and fast;
the middle of the left side and the right side of the first display cabinet 2 is provided with a side groove 201, the left side and the right side of the middle of the lower surface of the second display cabinet 3 are provided with a bottom groove 301, and spot lamps 202 are arranged above the inner wall of the side groove 201 and the inner wall of the bottom groove 301;
the disc bases 4 are fixed at the bottoms of the inner sides of the two side grooves 201 and the left side and the right side of the middle part above the first showcase 2, a through hole 401 is formed in the upper part of each disc base 4, an elastic ring 402 is arranged in the center of the inner part of each through hole 401, springs 403 are fixed on the outer wall of each elastic ring 402 and the center of the periphery of the inner wall of each through hole 401, each elastic ring 402 is connected with the disc base 4 into a whole through the springs 403, the two disc bases 4 above the first showcase 2 respectively correspond to the two bottom grooves 301 up and down, each elastic ring 402 is made of elastic materials, and the diameter of each;
in the second embodiment, through the two side slots 201 in the first showcase 2 and the bottom slot 301 in the second showcase 3, a user can independently place some cosmetics which are relatively exploded in the side slots 201 and the bottom slot 301, and through the disc base 4, the user can insert the bottom of the cosmetics into the elastic ring 402 in the disc base 4, since the elastic ring 402 is made of an elastic material and the elastic ring 402 is connected with the disc base 4 through the spring 403, the elasticity between the elastic ring 402 and the disc base 4 is effectively increased, when the diameter of the bottom of the cosmetics is large, the elastic ring 402 can be directly inserted into the disc base 4, and simultaneously the cosmetics are also fixed on the disc base 4 by pressing, the stability of the cosmetics is improved, the spot lamp 202 is powered on, the brightness of the side slots 201 and the bottom slot 301 can be increased through the spot lamp 202, the effect of the display counter is further enhanced, and since the side slots are opened at the left and right sides of the first showcase 2, therefore, the customers can see the cosmetics in the first showcase 2 from the left side and the right side, and the display and placing effects of the left side and the right side of the first showcase 2 are effectively improved;
two bilateral symmetrical storage cabinets 101 are fixed below the cabinet body 1, and the front sides of the two storage cabinets 101 are hinged with cabinet doors 102 for sealing the two storage cabinets 101;
in the third embodiment, through the two storage cabinets 101, a user can put some cosmetics in the storage cabinets 101, and the cabinet door 102 can close the storage cabinets 101 to prevent dust from entering;
three first partition boards 204 which are horizontally and equidistantly arranged are vertically fixed inside the first showcase 2, and a transverse plate 203 is fixed in the middle between the three first partition boards 204;
in the fourth embodiment, by the first partition plate 204 and the transverse plate 203 in the first showcase 2, partial cosmetics can be displayed one by one between the first partition plate 204 and the transverse plate 203;
a horizontal plate 302 is horizontally fixed at the upper middle part in the second display cabinet 3, and three partition plates 303 which are arranged at equal intervals are vertically fixed between the upper surface of the horizontal plate 302 and the upper part of the inner wall of the second display cabinet 3;
in the fifth embodiment, by the second partition 303 and the horizontal plate 302 inside the second showcase 3, a part of cosmetics can be displayed one by one at a position between the second partition 303 and the horizontal plate 302.
In the present specification, each embodiment is described with emphasis on differences from other embodiments, and the same or similar parts between the embodiments may be referred to each other.
Unless otherwise defined, technical or scientific terms used in the present embodiments should have the ordinary meaning as understood by those having ordinary skill in the art to which the present invention belongs. In the present specification, the terms "upper", "lower", "left" and "right" are used for the sake of clarity only, and are not intended to limit the scope of the present invention, and changes or adjustments of the relative relationship thereof are also considered to be the scope of the present invention without substantial changes in the technical content. The terms "connected" or "coupled" and the like are not restricted to physical or mechanical connections, but may include electrical connections, whether direct or indirect.
Exemplary embodiments of the present invention have been described in detail with reference to the preferred embodiments, however, it will be understood by those skilled in the art that various modifications and changes may be made to the above specific embodiments without departing from the scope of the present invention, and various combinations of the technical features and structures of the present invention may be implemented without departing from the scope of the present invention, which is defined by the appended claims.
Claims (8)
1. A cosmetic display counter comprises a cabinet body (1), a first display cabinet (2) and a second display cabinet (3), and is characterized in that:
the first display cabinet (2) is fixed above the cabinet body (1), the second display cabinet (3) is positioned above the first display cabinet (2), a rotating shaft (103) is rotatably connected at the middle position between the first display cabinet (2) and the second display cabinet (3), and the first display cabinet (2) and the second display cabinet (3) are rotatably connected through the rotating shaft (103); the middle position above the left side and the right side of the first display cabinet (2) is rotatably connected with a vertical block (205) through a rotating rod, the upper end of the outer wall of the vertical block (205) is provided with a round hole (206), and the middle position below the left side and the right side of the second display cabinet (3) is fixedly provided with a round rod (304);
the middle of the left side and the right side of the first display cabinet (2) is provided with a side groove (201), the left side and the right side of the middle of the lower surface of the second display cabinet (3) are provided with a bottom groove (301), and spot lamps (202) are arranged above the inner wall of the side groove (201) and above the inner wall of the bottom groove (301);
the novel show case is characterized in that disc bases (4) are fixed to the bottom of the inner side of each side groove (201) and the left side and the right side of the middle portion above the first show case (2), a through hole (401) is formed in the upper portion of each disc base (4), an elastic ring (402) is arranged in the center of the inner portion of each through hole (401), springs (403) are fixed to the outer wall of each elastic ring (402) and the center of the periphery of the inner wall of each through hole (401), and the elastic rings (402) are connected with the disc bases (4) into a whole through the springs (403).
2. The cosmetic display counter of claim 1, wherein: the length and the height of the first display cabinet (2) are consistent with those of the second display cabinet (3).
3. The cosmetic display counter of claim 1, wherein: the round rod (304) corresponds to the round hole (206), and the tail end of the round rod (304) penetrates through the round hole (206) to enable the first display cabinet (2) to be connected with the second display cabinet (3).
4. The cosmetic display counter of claim 1, wherein: the two disc bases (4) above the first showcase (2) respectively correspond to the two bottom grooves (301) up and down.
5. The cosmetic display counter of claim 1, wherein: the elastic ring (402) is made of elastic materials, and the diameter of the elastic ring (402) is smaller than that of the disc base (4).
6. The cosmetic display counter of claim 1, wherein: two bilateral symmetry lockers (101) are fixed below the cabinet body (1), and the front of each locker (101) is hinged with a closed cabinet door (102).
7. The cosmetic display counter of claim 1, wherein: three first partition plates (204) which are horizontally and equidistantly arranged are vertically fixed inside the first display cabinet (2), and a transverse plate (203) is fixed in the middle between the three first partition plates (204).
8. The cosmetic display counter of claim 1, wherein: a horizontal plate (302) is horizontally fixed at the upper middle part in the second display cabinet (3), and three second partition plates (303) which are arranged at equal intervals are vertically fixed between the upper surface of the horizontal plate (302) and the upper part of the inner wall of the second display cabinet (3).
