Abstract
The utility model provides a afforestation atomizer that grows seedlings. The garden greening seedling raising spraying device comprises a substrate; the water tank is fixedly arranged on the top of the base plate; the center seat is fixedly arranged on the top of the base plate; the main pipeline is fixedly arranged on the central seat; the telescopic pipe is arranged on one side, away from the water tank, of the central seat, and one end, away from the water tank, of the main pipeline extends into the telescopic pipe; the two sealing rings are fixedly sleeved on the main pipeline, and the outer rings of the sealing rings are in sealing contact with the inner wall of the telescopic pipe; the water storage pipe is arranged on one side, far away from the water tank, of the central seat. The utility model provides a afforestation atomizer that grows seedlings has that the irrigation range is adjustable, alleviate the work burden, can be to the simple filterable advantage of irrigation liquid.
Description
Technical Field
The utility model relates to a gardens technical field especially relates to a afforestation atomizer that grows seedlings.
Background
Landscaping is a beautiful natural environment and rest area created by applying engineering technology and artistic means in a certain region and by means of terrain modification, tree planting, flower and grass planting, building and garden path arrangement and the like. In landscaping, a plurality of nurseries are often found, the nurseries are used for people to view and beautify gardens, small seedlings generally need to be irrigated for a period of time in the early stage of nursery construction, and can grow into adult flower gardens, and the irrigation mode is that manual irrigation is carried out by manually pushing a spray trolley.
However, the irrigation mode is found when in use, because some nursery areas are large, the traditional irrigation trolley is difficult to irrigate seedlings on the same horizontal line at one position, the trolley needs to be pushed to the other side, the workload of irrigation personnel is increased, and in the transportation process of nutrient solution for irrigation, external impurities easily fall into the nutrient solution, so that the atomization spray head is blocked, and the atomization irrigation effect is reduced.
Therefore, there is a need to provide a new spraying device for seedling cultivation in landscaping to solve the above technical problems.
SUMMERY OF THE UTILITY MODEL
The technical problem solved by the utility model is to provide an irrigation scope is adjustable, alleviate work burden, can be to irrigation liquid simple filterable afforestation atomizer that grows seedlings.
In order to solve the technical problem, the utility model provides a afforestation atomizer that grows seedlings includes: a substrate; the water tank is fixedly arranged on the top of the base plate; the center seat is fixedly arranged on the top of the base plate; the main pipeline is fixedly arranged on the central seat; the telescopic pipe is arranged on one side, away from the water tank, of the central seat, and one end, away from the water tank, of the main pipeline extends into the telescopic pipe; the two sealing rings are fixedly sleeved on the main pipeline, and the outer rings of the sealing rings are in sealing contact with the inner wall of the telescopic pipe; the water storage pipe is arranged on one side, away from the water tank, of the central seat, and one end, away from the water tank, of the telescopic pipe is fixedly connected with the water storage pipe; the water distribution branch pipes are fixedly arranged on the water storage pipe; the plurality of atomizing spray heads are respectively and fixedly arranged on the plurality of water distribution branch pipes; the two linking slide bars are fixedly arranged on one side of the central seat far away from the water tank; the two bridging plates are fixedly arranged on the telescopic pipe, and the two linking slide rods respectively penetrate through the two bridging plates and are in sliding connection with the corresponding bridging plates; the movable plate is fixedly arranged on the telescopic pipe; the screw rod is rotatably arranged on the central seat, penetrates through the movable plate and is in threaded connection with the movable plate; the motor is arranged on one side, close to the water tank, of the central seat, and an output shaft of the motor is fixedly connected with one end of the screw rod; the booster water pump is fixedly arranged on the top of the base plate; one end of the water suction pipe is fixedly arranged on a water inlet of the booster water pump, and the other end of the water suction pipe is communicated with the water tank; one end of the water outlet pipe is fixedly arranged on a water outlet of the booster water pump, and the other end of the water outlet pipe is fixedly connected with the main pipeline; the water injection pipe is fixedly arranged at the top of the water tank; the filter screen, the filter screen fixed mounting be in on the inner wall of water injection pipe.
Preferably, four linking columns distributed in a rectangular array are fixedly installed at the bottom of the base plate, and universal wheels are fixedly installed at the bottoms of the linking columns.
Preferably, a push-pull rod is fixedly mounted at the top of the base plate, and the push-pull rod is concave.
Preferably, two support rods are fixedly mounted at the top of the base plate, and the top ends of the two support rods are fixedly connected with the central seat.
Preferably, one end of the connecting slide rod, which is far away from the water tank, is fixedly provided with a limiting top plate.
Preferably, one side of the central seat close to the water tank is fixedly provided with a connecting table, and the bottom of the connecting table is fixedly connected with the motor.
Compared with the prior art, the utility model provides a afforestation atomizer that grows seedlings has following beneficial effect:
the utility model provides a afforestation atomizer that grows seedlings, in the use, pour into irrigation liquid into toward the water tank in, the filter screen is wherein great impurity filtering, improve irrigation liquid's purity, the jam condition of atomizer has effectively been solved, remove irrigation position with this device afterwards, and start booster pump, irrigation liquid just passes through the atomizer blowout, irrigate spraying to the seedling, when irrigating other seedlings on same water flat line, starter motor, the screw rod just can rotate, drive the direction motion of fly leaf toward keeping away from the center seat then, move to the specified distance back until atomizer, close the motor, rethread above-mentioned step irrigate can, regulatory function through flexible pipe, the irrigation scope of this device at single parking point has been improved, irrigation personnel's work burden has been reduced.
Drawings

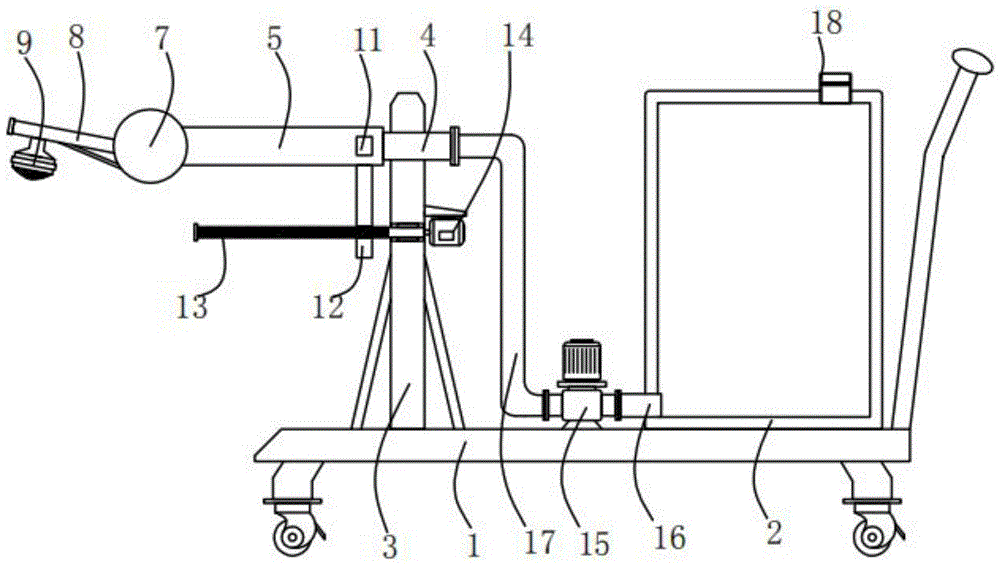

Fig. 1 is a schematic structural view of a preferred embodiment of the spraying device for seedling cultivation in landscaping provided by the present invention;
fig. 2 is a schematic top view of the present invention;
FIG. 3 is an enlarged view of portion A of FIG. 2;
FIG. 4 is a schematic structural view of the water injection pipe of the present invention;
reference numbers in the figures: 1. the water-saving device comprises a base plate, 2, a water tank, 3, a center seat, 4, a main pipeline, 5, an extension pipe, 6, a sealing ring, 7, a water storage pipe, 8, a water distribution branch pipe, 9, an atomizing nozzle, 10, a connecting slide rod, 11, a bridging plate, 12, a movable plate, 13, a screw rod, 14, a motor, 15, a booster water pump, 16, a water suction pipe, 17, a water outlet pipe, 18, a water injection pipe, 19 and a filter screen.
Detailed Description
The present invention will be further described with reference to the accompanying drawings and embodiments.
Please refer to fig. 1, fig. 2, fig. 3 and fig. 4, wherein fig. 1 is a schematic structural diagram of a preferred embodiment of the spraying device for seedling cultivation in landscaping according to the present invention; fig. 2 is a schematic top view of the present invention; FIG. 3 is an enlarged view of portion A of FIG. 2; fig. 4 is a schematic structural view of the water injection pipe of the present invention. Afforestation atomizer that grows seedlings includes: a substrate 1; the water tank 2 is fixedly arranged on the top of the base plate 1; the central seat 3 is fixedly arranged on the top of the base plate 1; the main pipeline 4 is fixedly arranged on the central seat 3; the telescopic pipe 5 is arranged on one side, away from the water tank 2, of the central seat 3, and one end, away from the water tank 2, of the main pipeline 4 extends into the telescopic pipe 5; the two sealing rings 6 are fixedly sleeved on the main pipeline 4, and the outer rings of the sealing rings 6 are in sealing contact with the inner wall of the telescopic pipe 5; the water storage pipe 7 is arranged on one side, away from the water tank 2, of the central seat 3, and one end, away from the water tank 2, of the telescopic pipe 5 is fixedly connected with the water storage pipe 7; the water distribution branch pipes 8 are fixedly arranged on the water storage pipe 7; the atomizing nozzles 9 are respectively and fixedly arranged on the water distribution branch pipes 8; the two linking slide bars 10 are fixedly arranged on one side, far away from the water tank 2, of the central seat 3; the two bridging plates 11 are fixedly arranged on the telescopic tube 5, and the two connecting slide rods 10 respectively penetrate through the two bridging plates 11 and are in sliding connection with the corresponding bridging plates 11; a movable plate 12, wherein the movable plate 12 is fixedly installed on the telescopic pipe 5; the screw 13 is rotatably installed on the central seat 3, and the screw 13 penetrates through the movable plate 12 and is in threaded connection with the movable plate 12; the motor 14 is arranged on one side, close to the water tank 2, of the central seat 3, and an output shaft of the motor 14 is fixedly connected with one end of the screw 13; the booster water pump 15 is fixedly arranged on the top of the base plate 1; one end of the water suction pipe 16 is fixedly arranged on the water inlet of the booster water pump 15, and the other end of the water suction pipe 16 is communicated with the water tank 2; one end of the water outlet pipe 17 is fixedly arranged on the water outlet of the booster water pump 15, and the other end of the water outlet pipe 17 is fixedly connected with the main pipeline 4; the water injection pipe 18 is fixedly arranged at the top of the water tank 2; and the filter screen 19 is fixedly arranged on the inner wall of the water injection pipe 18.
Four linking columns distributed in a rectangular array are fixedly installed at the bottom of the base plate 1, and universal wheels are fixedly installed at the bottom of the linking columns.
And a push-pull rod is fixedly arranged at the top of the base plate 1 and is concave.
The top of base plate 1 is fixed with two bracing pieces, two the top of bracing piece all with center seat 3 fixed connection.
And a limiting top plate is fixedly arranged at one end of the connecting slide rod 10 far away from the water tank 2.
One side of the central seat 3 close to the water tank 2 is fixedly provided with a connecting table, and the bottom of the connecting table is fixedly connected with the motor 14.
The utility model provides a afforestation atomizer that grows seedlings's theory of operation as follows:
during the use, pour into irrigation liquid into water tank 2 through water injection pipe 8, irrigation liquid just can be earlier through filter screen 19's filtration, make wherein great impurity by effective filtering, improve irrigation liquid's purity, remove appointed irrigation position with this device through the push-and-pull rod afterwards, then start booster water pump 15, booster water pump 15 just can extract irrigation liquid, irrigation liquid just loops through water suction pipe 16, outlet pipe 17, trunk line 4 and flexible pipe 5 get into in water storage pipe 7, along with the continuous extraction of booster water pump 15, irrigation liquid just can get into in a plurality of branch water pipe 8, finally there is atomizer 9 blowout, then spray irrigation to the seedling of below.
When needs irrigate other seedlings on same water flat line, only need starter motor 14, motor 14's output shaft just can rotate, like this alright drive screw 13 and rotate, screw 13's rotation, alright drive fly leaf 12 toward the direction motion of keeping away from center seat 3, then drive flexible pipe 5 motion, the motion track of flexible pipe 5 can effectively be restricted to the linking slide bar 10 that sets up, and two-layer sealing ring 6 can prevent liquid to expose in the great degree, move to the appointed distance after atomizer 9, alright close motor 14, then irrigate through above-mentioned step can.
Compared with the prior art, the utility model provides a afforestation atomizer that grows seedlings has following beneficial effect:
the utility model provides a afforestation atomizer that grows seedlings, in the use, pour into irrigation liquid into toward water tank 2, filter screen 19 will wherein great impurity filtering, improve irrigation liquid's purity, the jam condition of atomizer 9 has effectively been solved, remove irrigation position with this device afterwards, and start booster pump 15, irrigation liquid just passes through atomizer 9 blowout, spray irrigation to the seedling, when irrigating other seedlings on same water flat line, starter motor 14, screw rod 13 just can rotate, then drive fly leaf 12 toward the direction motion of keeping away from centre seat 3, move the back to the specified distance until atomizer 9, close motor 14, rethread above-mentioned step irrigate can, regulatory function through flexible pipe 5, the irrigation scope of this device at single parking point has been improved, irrigation personnel's work burden has been reduced.
The above only is the embodiment of the present invention, not limiting the scope of the present invention, all the equivalent structures or equivalent processes of the present invention are used in the specification and the attached drawings, or directly or indirectly applied to other related technical fields, and the same principle is included in the protection scope of the present invention.
Claims (6)
1. The utility model provides a afforestation atomizer that grows seedlings which characterized in that includes:
a substrate;
the water tank is fixedly arranged on the top of the base plate;
the center seat is fixedly arranged on the top of the base plate;
the main pipeline is fixedly arranged on the central seat;
the telescopic pipe is arranged on one side, away from the water tank, of the central seat, and one end, away from the water tank, of the main pipeline extends into the telescopic pipe;
the two sealing rings are fixedly sleeved on the main pipeline, and the outer rings of the sealing rings are in sealing contact with the inner wall of the telescopic pipe;
the water storage pipe is arranged on one side, away from the water tank, of the central seat, and one end, away from the water tank, of the telescopic pipe is fixedly connected with the water storage pipe;
the water distribution branch pipes are fixedly arranged on the water storage pipe;
the plurality of atomizing spray heads are respectively and fixedly arranged on the plurality of water distribution branch pipes;
the two linking slide bars are fixedly arranged on one side of the central seat far away from the water tank;
the two bridging plates are fixedly arranged on the telescopic pipe, and the two linking slide rods respectively penetrate through the two bridging plates and are in sliding connection with the corresponding bridging plates;
the movable plate is fixedly arranged on the telescopic pipe;
the screw rod is rotatably arranged on the central seat, penetrates through the movable plate and is in threaded connection with the movable plate;
the motor is arranged on one side, close to the water tank, of the central seat, and an output shaft of the motor is fixedly connected with one end of the screw rod;
the booster water pump is fixedly arranged on the top of the base plate;
one end of the water suction pipe is fixedly arranged on a water inlet of the booster water pump, and the other end of the water suction pipe is communicated with the water tank;
one end of the water outlet pipe is fixedly arranged on a water outlet of the booster water pump, and the other end of the water outlet pipe is fixedly connected with the main pipeline;
the water injection pipe is fixedly arranged at the top of the water tank;
the filter screen, the filter screen fixed mounting be in on the inner wall of water injection pipe.
2. A garden greening seedling raising spraying device as claimed in claim 1, wherein four connecting columns are fixedly mounted at the bottom of the base plate and distributed in a rectangular array, and universal wheels are fixedly mounted at the bottoms of the connecting columns.
3. A spraying device for seedling cultivation for garden greening as claimed in claim 1, wherein a push-pull rod is fixedly mounted on the top of the base plate, and the push-pull rod is concave.
4. A garden greening seedling raising spraying device as claimed in claim 1, wherein two support rods are fixedly mounted at the top of the base plate, and the top ends of the two support rods are fixedly connected with the central seat.
5. A spraying device for seedling cultivation for garden greening as claimed in claim 1, wherein a limiting top plate is fixedly mounted at one end of the linking slide rod away from the water tank.
6. A garden greening seedling raising spraying device as claimed in claim 1, wherein a connecting table is fixedly mounted on one side of the central seat close to the water tank, and the bottom of the connecting table is fixedly connected with the motor.
