Abstract
The utility model belongs to the technical field of medical instruments, and relates to a flushing device, in particular to a perianal flushing device for colorectal and anal surgery, which comprises a drainage tube, wherein one end of the drainage tube is connected with a hemispherical flow guide part; a flushing pipe is arranged in the drainage pipe, and an opening matched with the flushing pipe is arranged on the drainage pipe; the flow guide part is connected with a washing part corresponding to the washing pipe, one end of the washing pipe close to the flow guide part is connected with a washing head assembly corresponding to the washing part, washing holes are formed in the washing head assembly and the washing part, and one end of the washing pipe far away from the washing head assembly is connected with a liquid storage bottle; the drainage tube is sleeved with a semi-ellipsoidal drainage disc, the flow guide part and the drainage tube are both provided with drainage holes corresponding to the drainage disc, and the periphery of the drainage disc is connected with a circular attaching film; the utility model discloses the effectual washing waste liquid that has solved the washing in-process is uncontrolled, the problem of the clothing of making dirty easily.
Description
Technical Field
The utility model belongs to the technical field of medical instrument, a washing unit is related to, concretely relates to perianal washing unit of colon rectum anal surgery.
Background
After the operation treatment of patients with anorectal diseases, doctors need to use physiological saline or disinfectant to clean wounds clinically so as to reduce the risk of postoperative infection. At present, people usually adopt a mode of flushing by a syringe or directly pouring to flush perianal wounds. However, the syringe is used for washing, so that the problems of low washing efficiency and the need of filling washing liquid for many times during washing are solved, the direct pouring mode also has the problem of incomplete washing, the requirements of people for use cannot be met, and in addition, the physiological saline or disinfectant and the waste liquid after washing are not controlled in the washing process, so that clothes are easily polluted, and great troubles are brought to patients.
SUMMERY OF THE UTILITY MODEL
To the above situation, for overcoming prior art's defect, the utility model provides a colorectal anal surgery perianal washing unit, the effectual washing waste liquid that has solved in the washing process is uncontrolled, the problem of the clothing of making dirty easily.
In order to achieve the above purpose, the utility model adopts the following technical scheme: a perianal flushing device for colorectal and anal surgery comprises a drainage tube, wherein one end of the drainage tube is connected with a hemispherical flow guide part; a flushing pipe is arranged in the drainage pipe, and an opening matched with the flushing pipe is arranged on the drainage pipe; the flow guide part is connected with a washing part corresponding to the washing pipe, one end of the washing pipe close to the flow guide part is connected with a washing head assembly corresponding to the washing part, washing holes are formed in the washing head assembly and the washing part, and one end of the washing pipe far away from the washing head assembly is connected with a liquid storage bottle; the drainage tube is sleeved with a semi-ellipsoidal drainage disc, the flow guide part and the drainage tube are respectively provided with a drainage hole corresponding to the drainage disc, and the periphery of the drainage disc is connected with a circular attaching film.
Furthermore, the drainage tube is sleeved with an adjusting device matched with the liquid guide disc, the adjusting device comprises a fixed cylinder sleeved on the drainage tube, and a movable cylinder fixedly connected with the liquid guide disc is screwed on the fixed cylinder.
Furthermore, the flushing head assembly comprises a dispersion disc connected with one end of the flushing pipe close to the flow guide portion, the dispersion disc is connected with a flushing head, the flushing hole is formed in the flushing head, and a supporting disc matched with the flushing head is arranged on the inner wall of the flushing portion.
Furthermore, a fixing ring matched with the flushing pipe is arranged on the inner wall of the drainage pipe.
Furthermore, the flushing head and the flushing part are both of hemispherical structures, and the diameters of the flushing part and the flow guide part are the same.
Furthermore, the drainage tube and the flushing tube are both elastic hoses, and the drainage tube and the flushing tube are both made of medical rubber materials.
The utility model has the advantages that:
the utility model discloses when using, will wash portion and drain dish and aim at patient's perianal department, will paste the annex membrane and paste on patient's skin and fix wash portion and drain dish on patient's health through pasting the annex membrane promptly, make the user need not to hold the drain dish part always, liberate user's a hand, prevent to lead to the sour numb of arm because of holding for a long time, reduce user's intensity of labour. Waste liquid after washing is collected through using the drain dish, through drainage tube with waste liquid drainage to corresponding position, prevents that waste liquid from flowing to other places of patient, improves the travelling comfort that the patient washed.
Drawings

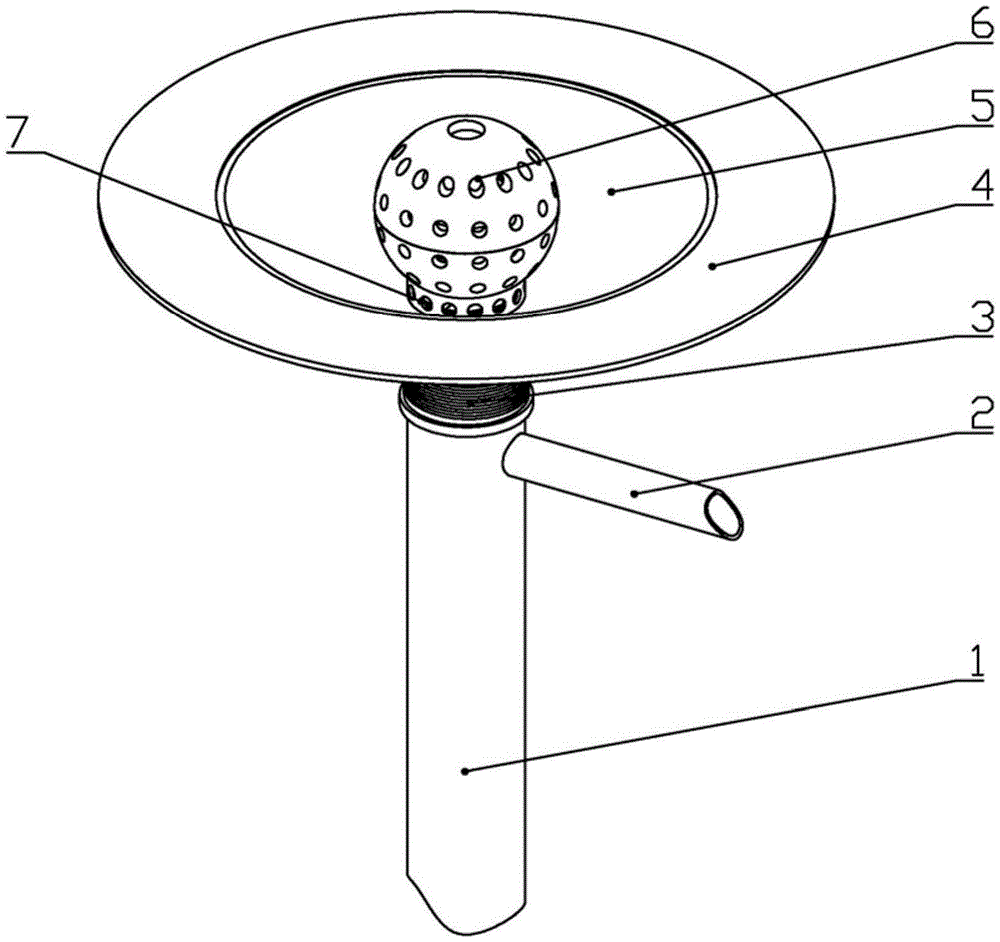

Fig. 1 is an isometric view of the present invention;
FIG. 2 is a front view of the present invention;
fig. 3 is a cross-sectional view of fig. 2 according to the present invention;
fig. 4 is an enlarged schematic view of the area of fig. 3A in the present invention;
in the figure: 1. drainage tube, 2, flushing tube, 3, fixed cylinder, 4, adhesive film, 5, liquid guide disc, 6, flushing part, 7, drainage hole, 8, fixing ring, 9, dispersion disc, 10, support disc, 11, flushing head, 12 and flow guide part.
Detailed Description
A perianal flushing device for colorectal and anal surgery comprises a drainage tube 1, wherein a collection bottle is connected to the drainage tube 1, and one end of the drainage tube 1 is connected with a hemispherical flow guide part 12; a washing pipe 2 is arranged in the drainage pipe 1, an opening matched with the washing pipe 2 is formed in the drainage pipe 1, and the washing pipe 2 extends out of the drainage pipe 1 along the opening; the flow guide part 12 is connected with a washing part 6 corresponding to the washing pipe 2, one end of the washing pipe 2 close to the flow guide part 12 is connected with a washing head assembly corresponding to the washing part 6, washing holes are formed in the washing head assembly and the washing part 6, one end of the washing pipe 2 far away from the washing head assembly is connected with a liquid storage bottle, and washing liquid (physiological saline or disinfectant) is filled in the liquid storage bottle; the drainage tube 1 is sleeved with a semi-ellipsoidal drainage disc 5, the flow guide part 12 and the drainage tube 1 are both provided with drainage holes 7 corresponding to the drainage disc 5, and the periphery of the drainage disc 5 is connected with a circular attaching film 4.
When the utility model is used, a user aims the washing part 6 and the liquid guide disc 5 at the perianal part of a patient and pastes the adhesive film 4 on the skin of the patient; the drainage tube 1 is connected with a waste liquid collecting bottle, the flushing tube 2 is connected with the liquid storage bottle, flushing liquid (physiological saline or disinfectant) is injected into the flushing tube 2 through the liquid storage bottle, the flushing liquid flows to the flushing head component along the flushing tube 2, the flushing liquid is sprayed out through the flushing holes in the flushing head component and the flushing part 6 to clean the wound of a patient, the cleaned waste liquid flows into the drainage tube 1 along the liquid guide disc 5 through the flow guide part 12 and the drainage hole 7 in the drainage tube 1, and the waste liquid flows to the waste liquid collecting bottle through the drainage tube 1; the utility model uses the liquid guide disc 5 to collect the waste liquid after washing, and the waste liquid is collected into the waste liquid collecting bottle through the drainage tube 1, so that the waste liquid is prevented from flowing to other parts of the patient, and the comfort of washing the patient is improved; the washing part 6 and the liquid guide disc 5 are fixed on the body of a patient through the adhesive film 4, one hand of the user is released, the arm is prevented from being tingled due to long-time holding, and the labor intensity of the user is reduced.
Furthermore, an adjusting device matched with the liquid guide disc 5 is sleeved on the drainage tube 1, the adjusting device comprises a fixed cylinder 3 sleeved on the drainage tube 1, and a movable cylinder fixedly connected with the liquid guide disc 5 is screwed on the fixed cylinder 3; the distance from the liquid guide disc 5 to the flushing part 6 is adjusted through the adjusting device, so that the distance between the flushing part 6 and the perianal region is adjusted, and the flushing effect is improved.
Furthermore, the flushing head assembly comprises a dispersion disc 9 connected with one end of the flushing pipe 2 close to the flow guide part 12, the dispersion disc 9 is of a circular truncated cone-shaped structure, a flushing head 11 is connected on the dispersion disc 9, a flushing hole is formed in the flushing head 11, and a supporting disc 10 matched with the flushing head 11 is arranged on the inner wall of the flushing part 6; the dispersion disc 9 is arranged to guide the flushing liquid, so that the flushing liquid can uniformly flow out of the flushing head 11, and the flushing effect is improved; set up supporting disk 10 and improve the utility model discloses a stability.
Furthermore, the inner wall of the drainage tube 1 is provided with a fixing ring 8 matched with the flushing tube 2, the fixing ring 8 is arranged to fix the flushing tube 2, and the stability of the flushing tube 2 is improved.
Furthermore, the flushing head 11 and the flushing part 6 are both of a hemispherical structure, the diameters of the flushing part 6 and the flow guide part 12 are the same, so that the connecting part of the flushing part 6 and the flow guide part 12 is smoother, the flushing head 11 and the flushing part 6 are of a hemispherical structure, the flushing effect is improved,
further, the drainage tube 1 and the flushing tube 2 are both elastic hoses, and the drainage tube 1 and the flushing tube 2 are both made of medical rubber materials.
The utility model discloses a working process does:
according to the condition of a patient, a user rotates the liquid guide disc 5 to drive the movable cylinder to rotate along the fixed cylinder 3, the position of the liquid guide disc 5 on the drainage tube 1 is changed, and the distance between the flushing part 6 and the perianal is adjusted; a drainage tube 1 is connected with a waste liquid collecting bottle, and a washing tube 2 is connected with a liquid storage bottle; the user aims the washing part 6 and the liquid guide disc 5 at the perianal position of the patient and pastes the adhesive film 4 on the skin of the patient; the liquid storage bottle is used for injecting washing liquid (physiological saline or disinfectant) into the washing pipe 2, and the flow rate and the pressure at the washing hole can be changed by changing the height of the liquid storage bottle; the washing liquid flows to the dispersion disc 9 along the washing pipe 2, the dispersion disc 9 disperses the washing liquid to the washing head 11, the washing liquid is sprayed out through the washing holes on the washing head 11 and the washing holes on the washing part 6 to clean the wound of a patient, the cleaned waste liquid flows to the flow guide part 12 and the drainage pipe 1 along the liquid guide disc 5, the waste liquid flows into the drainage pipe 1 through the flow guide part 12 and the drainage hole 7 on the drainage pipe 1, and the waste liquid flows to the waste liquid collecting bottle through the drainage pipe 1.
Claims (6)
1. A perianal flushing device for colorectal and anal surgery is characterized in that: comprises a drainage tube (1), one end of the drainage tube (1) is connected with a hemispherical flow guide part (12); a flushing pipe (2) is arranged in the drainage pipe (1), and an opening matched with the flushing pipe (2) is arranged on the drainage pipe (1); the flow guide part (12) is connected with a washing part (6) corresponding to the washing pipe (2), one end of the washing pipe (2) close to the flow guide part (12) is connected with a washing head assembly corresponding to the washing part (6), and washing holes are formed in the washing head assembly and the washing part (6); the drainage tube (1) is sleeved with a semi-ellipsoidal drainage disc (5), drainage holes (7) corresponding to the drainage disc (5) are formed in the flow guide part (12) and the drainage tube (1), and a circular attaching film (4) is connected to the periphery of the drainage disc (5).
2. The perianal irrigation device for colorectal anal surgery of claim 1, wherein: the drainage tube (1) is sleeved with an adjusting device matched with the liquid guide disc (5), the adjusting device comprises a fixed cylinder (3) sleeved on the drainage tube (1), and a movable cylinder fixedly connected with the liquid guide disc (5) is screwed on the fixed cylinder (3).
3. The perianal irrigation device for colorectal anal surgery of claim 1, wherein: the flushing head assembly comprises a dispersion disc (9) connected with one end, close to the flow guide portion (12), of the flushing pipe (2), a flushing head (11) is connected onto the dispersion disc (9), a flushing hole is formed in the flushing head (11), and a supporting disc (10) matched with the flushing head (11) is arranged on the inner wall of the flushing portion (6).
4. The perianal irrigation device for colorectal anal surgery of claim 1, wherein: the inner wall of the drainage tube (1) is provided with a fixing ring (8) matched with the flushing tube (2).
5. The perianal irrigation device for colorectal anal surgery of claim 3, wherein: the flushing head (11) and the flushing part (6) are both of a hemispherical structure, and the diameters of the flushing part (6) and the flow guide part (12) are the same.
6. The perianal irrigation device for colorectal anal surgery of claim 1, wherein: the drainage tube (1) and the flushing tube (2) are both elastic hoses, and the drainage tube (1) and the flushing tube (2) are both made of medical rubber materials.
