CN212346287U

CN212346287U - Heatable vacuum cup

Info

Publication number: CN212346287U
Application number: CN201920737157.0U
Authority: CN
Inventors: 罗洋
Original assignee: Hubei University
Current assignee: Hubei University
Priority date: 2018-11-29
Filing date: 2019-05-22
Publication date: 2021-01-15
Anticipated expiration: 2029-05-22

Abstract

The utility model discloses a heatable thermos cup, comprising a cup body, the bottom fixedly connected with base of cup, the bottom inner wall fixed mounting of base has the battery, the bottom inner wall of cup rotates and is connected with first pivot, the outside fixedly connected with heating block of first pivot, the inner wall fixedly connected with heating wire of heating block, be connected with the wire between heating block and the battery, the bottom of cup is rotated and is connected with rotatory ring, rotatory ring and heating block fixed connection, fixedly connected with heat insulating board between the both sides inner wall of cup, and the through-hole has been seted up at the middle part of heat insulating board, and the heat insulating board is equipped with the expansion plate in through-hole department. Compared with the prior art, the utility model discloses set up heating block, battery, bowl cover, heat insulating board, expansion plate and push rod, can make the thermos cup both can adorn the boiling water, can adorn normal atmospheric temperature water again, and can mix it when needing, the water in the thermos cup heaies up in setting up of heating block, reaches suitable temperature.

Description

Heatable vacuum cup

Technical Field

The utility model relates to the technical field of articles for daily use, especially, relate to a heatable thermos cup.

Background

In many families, usually adopt the insulating pot to boil water, shift to the thermos cup after boiling, the thermos cup is the container of flourishing water that is made by stainless steel plus vacuum layer generally, the top has the lid, it is sealed tight, vacuum heat insulation layer enables liquid such as the water of dress inside to delay the heat dissipation, in order to reach the purpose that keeps warm, however, in practical application, thermos cup heat preservation effect is often very unsatisfactory, especially the thermos cup that the volume is less can only keep warm even for several hours, can not satisfy people's requirement to the heat preservation effect far away, and current thermos cup can only preserve hot water, can not put room temperature water and hot water together, can not stand to drink the water of suitable temperature when needing to drink, for this we propose a heatable thermos cup.

SUMMERY OF THE UTILITY MODEL

The utility model aims at solving the problem that the existing vacuum cup can not be heated, and the hot and cold water can not be added simultaneously by layering, and the provided vacuum cup can be heated.

In order to achieve the above purpose, the utility model adopts the following technical scheme:

a heatable vacuum cup comprises a cup body, wherein the bottom end of the cup body is fixedly connected with a base, a storage battery is fixedly arranged on the inner wall of the bottom end of the base, a first rotating shaft is rotatably connected with the inner wall of the bottom end of the cup body, a heating block is fixedly connected to the outer part of the first rotating shaft, a heating wire is fixedly connected to the inner wall of the heating block, a conducting wire is connected between the heating block and the storage battery, a rotating ring is rotatably connected with the bottom end of the cup body and fixedly connected with the heating block, a heat insulation plate is fixedly connected between the inner walls of two sides of the cup body, a through hole is formed in the middle of the heat insulation plate, a telescopic plate is arranged at the through hole of the heat insulation plate, a first fixing block is arranged between the inner walls of two sides of the heat insulation plate, a through hole is formed in the, the bottom end of the connecting rod is fixedly connected with the expansion plate.

Preferably, the top end of the connecting rod is provided with a second fixed block, the middle of the second fixed block is provided with a through hole, a first spring is arranged between the first fixed block and the second fixed block, and the first spring is sleeved outside the connecting rod.

Preferably, the equal fixedly connected with buckle in both sides of cup, the top of cup is equipped with the bowl cover, the equal fixedly connected with third pivot in both sides of bowl cover, the outside fixedly connected with pothook of third pivot, pothook and buckle looks adaptation, be equipped with torsion spring between pothook and the third pivot.

Preferably, a through hole is formed in the middle of the top end of the cup cover, a push rod is arranged at the through hole of the cup cover, and the diameter of the push rod is matched with the size of the through hole of the second fixing block.

Preferably, two second pivots of top fixedly connected with of bowl cover, two the equal fixedly connected with top cap in outside of second pivot, the equal fixedly connected with bottom plate in bowl cover both sides bottom, the equal fixedly connected with telescopic link in top one side of bottom plate.

Preferably, a through hole is formed in one side, away from the telescopic rod, of the bottom plate, a second spring is fixedly connected to the inner wall of one side of the telescopic rod, and a baffle is fixedly connected to one end of the telescopic rod.

The utility model has the advantages that:

1. by arranging the heating block and the storage battery, when the temperature of water in the vacuum cup is low, the storage battery supplies electricity to the heating block, so that the heating wire generates heat to heat the water in the vacuum cup, and the temperature of the water is raised to reach the proper temperature;

2. through having set up bowl cover, heat insulating board, expansion plate and push rod, the push rod pushes down and makes the telescopic link get into the heat insulating board, and the water in the heat preservation chamber can get into the normal temperature chamber, both can make the hot and cold water mix, can pour out hot water alone again.

Compared with the prior art, the utility model discloses set up heating block, battery, bowl cover, heat insulating board, expansion plate and push rod, can make the thermos cup both can adorn the boiling water, can adorn normal atmospheric temperature water again, and can mix it when needing, the water in the thermos cup heaies up in setting up of heating block, reaches suitable temperature.

Drawings

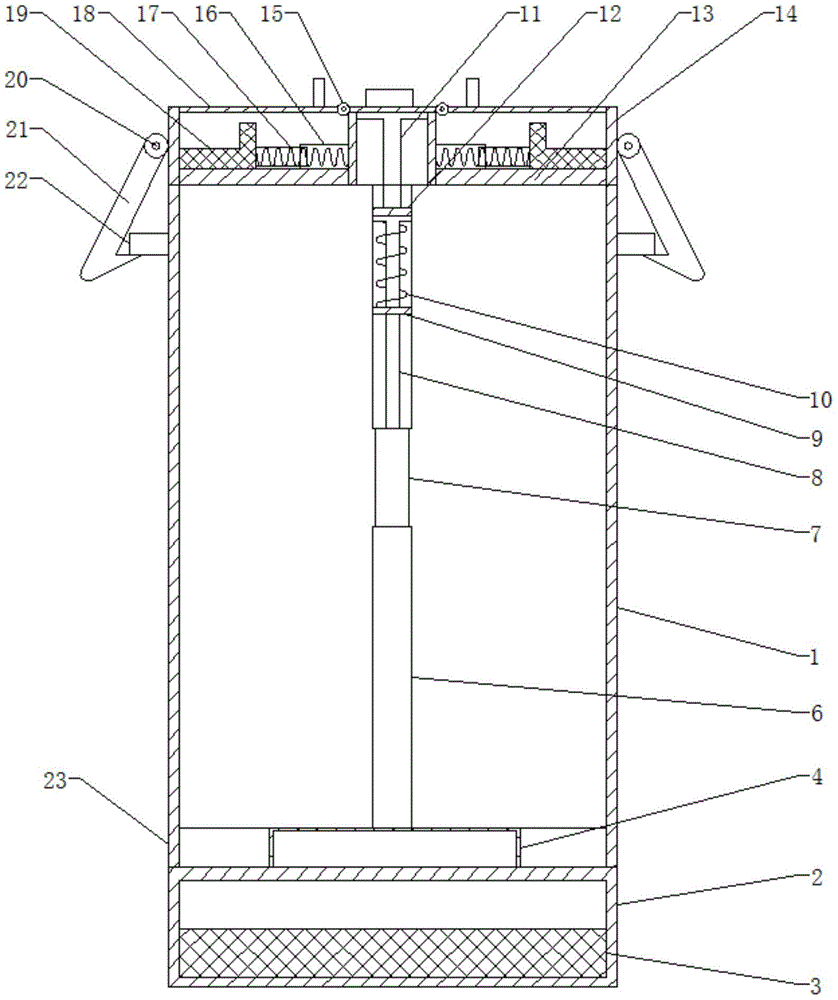

Fig. 1 is a schematic front view of a heatable vacuum cup according to the present invention;

FIG. 2 is a schematic side view of a heatable vacuum cup according to the present invention;

fig. 3 is a schematic view of a top view structure of the heatable vacuum cup of the present invention.

In the figure: the cup comprises a cup body 1, a base 2, a storage battery 3, a heating block 4, a first rotating shaft 5, a heat insulation plate 6, a telescopic plate 7, a connecting rod 8, a first fixing block 9, a first spring 10, a push rod 11, a second fixing block 12, a bottom plate 13, a cup cover 14, a second rotating shaft 15, a telescopic rod 16, a second spring 17, a top cover 18, a baffle plate 19, a third rotating shaft 20, a clamping hook 21, a clamping buckle 22 and a rotating ring 23.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments.

Referring to fig. 1-3, a heatable vacuum cup comprises a cup body 1, a base 2 is fixedly connected to the bottom end of the cup body 1, a storage battery 3 is fixedly installed on the inner wall of the bottom end of the base 2, a first rotating shaft 5 is rotatably connected to the inner wall of the bottom end of the cup body 1, a heating block 4 is fixedly connected to the outside of the first rotating shaft 5, a heating wire is fixedly connected to the inner wall of the heating block 4, a conducting wire is connected between the heating block 4 and the storage battery, a rotating ring 23 is rotatably connected to the bottom end of the cup body 1, the rotating ring 23 is fixedly connected with the heating block 4, a heat insulation plate 6 is fixedly connected between the inner walls of the two sides of the cup body 1, a through hole is formed in the middle part of the heat insulation plate 6, a telescopic plate 7 is arranged at the through hole position of the heat, the connecting rod 8 extends to the bottom end of a first fixing block 9 at a through hole, the bottom end of the connecting rod 8 is fixedly connected with a telescopic plate 7, a second fixing block 12 is arranged at the top end of the connecting rod 8, a through hole is formed in the middle of the second fixing block 12, a first spring 10 is arranged between the first fixing block 9 and the second fixing block 12, the first spring 10 is sleeved outside the connecting rod 8, buckles 22 are fixedly connected to both sides of the cup body 1, a cup cover 14 is arranged at the top end of the cup body 1, a third rotating shaft 20 is fixedly connected to both sides of the cup cover 14, a hook 21 is fixedly connected to the outside of the third rotating shaft 20, the hook 21 is matched with the buckle 22, a torsion spring is arranged between the hook 21 and the third rotating shaft 20, a through hole is formed in the middle of the top end of the cup cover 14, a push rod 11 is arranged at the through hole, the diameter of the push rod 11 is matched with, the equal fixedly connected with top cap 18 in outside of two second pivot 15, the equal fixedly connected with bottom plate 13 in bowl cover 14 both sides bottom, the equal fixedly connected with telescopic link 16 in top one side of bottom plate 13, the through-hole has been seted up to one side that telescopic link 16 was kept away from to bottom plate 13, the equal fixedly connected with second spring 17 of one side inner wall of telescopic link 16, the equal fixedly connected with baffle 19 of one end of telescopic link 16.

The working principle is as follows: when the heatable vacuum cup is used, cavities on two sides of a heat insulation plate 6 can be heated, one side of the vacuum cup has a heat insulation function, a cup cover 14 is covered, a clamping hook 21 is sleeved on a clamping buckle 22, the cup cover 14 is covered, when water needs to be poured, a top fixing block at the top end of a top cover 18 can be pressed, the top cover 18 is opened, a sliding baffle plate 19 compresses a second spring 17 and a telescopic rod 16, water can be poured from a bottom plate 13, when the water in normal temperature is insufficient or the temperature is low, the push rod 11 can be pressed to enable the push rod 11 to press a connecting rod 8, the connecting rod 8 compresses a first spring 10, the telescopic plate 7 descends into the heat insulation plate 6, the water in the heat insulation chamber can flow into a normal temperature chamber at the moment, the push rod 11 is released to enable the telescopic plate 7 to be closed, when the temperature of the heat insulation chamber and the normal temperature chamber is low, a power supply can be started to enable a storage battery 3 to energize a heating block, the water in the cup can be reheated, the heating block 4 can be rotated around the first rotating shaft 5 by rotating the rotating ring 23, and the heating block 4 can enter the heat preservation cavity and the normal temperature cavity for heating.

The above, only be the concrete implementation of the preferred embodiment of the present invention, but the protection scope of the present invention is not limited thereto, and any person skilled in the art is in the technical scope of the present invention, according to the technical solution of the present invention and the utility model, the concept of which is equivalent to replace or change, should be covered within the protection scope of the present invention.

Claims

1. A heatable vacuum cup comprises a cup body (1) and is characterized in that a base (2) is fixedly connected to the bottom end of the cup body (1), a storage battery (3) is fixedly mounted on the inner wall of the bottom end of the base (2), a first rotating shaft (5) is rotatably connected to the inner wall of the bottom end of the cup body (1), a heating block (4) is fixedly connected to the outer portion of the first rotating shaft (5), a heating wire is fixedly connected to the inner wall of the heating block (4), a lead is connected between the heating block (4) and the storage battery, a rotating ring (23) is rotatably connected to the bottom end of the cup body (1), the rotating ring (23) is fixedly connected with the heating block (4), a heat insulation plate (6) is fixedly connected between the inner walls of two sides of the cup body (1), a through hole is formed in the middle of the heat insulation plate (6), and a telescopic, be equipped with first fixed block (9) between the both sides inner wall of heat insulating board (6), the through-hole has been seted up at the middle part of first fixed block (9), first fixed block (9) are equipped with connecting rod (8) in through-hole department, connecting rod (8) extend to the bottom of first fixed block (9) at through-hole department, the bottom and expansion plate (7) fixed connection of connecting rod (8).

2. A heatable vacuum cup as claimed in claim 1, characterized in that a second fixed block (12) is arranged at the top end of the connecting rod (8), a through hole is arranged in the middle of the second fixed block (12), a first spring (10) is arranged between the first fixed block (9) and the second fixed block (12), and the first spring (10) is sleeved outside the connecting rod (8).

3. A heatable vacuum cup as claimed in claim 1, characterized in that the cup body (1) is fixedly connected with buckles (22) on both sides, the top end of the cup body (1) is provided with a cup cover (14), the cup cover (14) is fixedly connected with a third rotating shaft (20) on both sides, a hook (21) is fixedly connected to the outside of the third rotating shaft (20), the hook (21) is adapted to the buckles (22), and a torsion spring is arranged between the hook (21) and the third rotating shaft (20).

4. A heatable vacuum cup as claimed in claim 3, characterized in that the top end of the cup cover (14) is provided with a through hole in the middle, the cup cover (14) is provided with a push rod (11) at the through hole, the diameter of the push rod (11) is adapted to the size of the through hole of the second fixed block (12).

5. A heatable vacuum cup as claimed in claim 3, characterized in that two second shafts (15) are fixedly connected to the top of the cup cover (14), a top cover (18) is fixedly connected to the outside of both second shafts (15), a bottom plate (13) is fixedly connected to the bottom of both sides of the cup cover (14), and a telescopic rod (16) is fixedly connected to one side of the top of the bottom plate (13).

6. A heatable vacuum cup as claimed in claim 5, characterized in that the bottom plate (13) is provided with a through hole on the side away from the telescopic rod (16), the inner wall of one side of the telescopic rod (16) is fixedly connected with a second spring (17), and one end of the telescopic rod (16) is fixedly connected with a baffle (19).
