Abstract
The utility model belongs to the technical field of medical auxiliary equipment, in particular to a medicine basket convenient for medicine taking in a drugstore, aiming at the problems that the medicine basket in the prior art has single structure function and causes certain trouble for medicine taking, thereby reducing the working efficiency, the utility model provides a proposal that comprises a medicine basket, the bottom of the medicine basket is provided with a cavity body, a bottom plate is movably clamped in the cavity body and is parallel to the bottom of the medicine basket, one side of the bottom plate extends to the outer side of the medicine basket and is fixedly connected with a baffle plate, one side of the baffle plate is close to the bottom plate and is symmetrically and fixedly connected with two sliding plates, the utility model realizes the adjustment and the clamping of the bottom plate through the clamping matching of a clamping rod, a limiting spring and an arc-shaped clamping groove, thereby realizing the adjustment of the storage space of the medicine basket, and can store the medicine by classification or distribution through two spaces, and through the clamping of a medicine taking list, greatly improves the practicability of the whole medicine basket, thereby bringing low price for medical staff.
Description
Technical Field
The utility model relates to a medical auxiliary instrument technical field especially relates to a medicine basket convenient to drugstore gets it filled.
Background
The hospital pharmacy is a comprehensive department integrating management, technology, management and service. The pharmacy not only needs to ensure that the accurate and qualified medicine is provided for the patient, but also needs to ensure that the patient can safely and effectively use the medicine, and the medical expense is more economic and reasonable.
And present hospital's drugstore staff is getting it filled used medicine basket for the patient and is mostly fixed frame, structural function is single, get the dose when big on the large side when the patient, at this moment just need use two medicine baskets, if take two simultaneously and will certainly lead to the fact certain influence to getting it filled, and in case take too much to cause dropping of medicine easily, if divide twice to get it filled, not only waste time and energy, and the mistake appears easily, consequently, brought the work degree of difficulty for medical staff, thereby work efficiency has been reduced, so we have proposed the medicine basket of being convenient for the drugstore to get it filled, a problem for solve the aforesaid and propose.
Disclosure of Invention
The utility model aims at solving the structural function singleness that has medicine basket among the prior art, cause certain trouble to getting it filled to reduce work efficiency's shortcoming, and the medicine basket of being convenient for the drugstore of proposing getting it filled.
In order to achieve the above purpose, the utility model adopts the following technical scheme:
medicine basket convenient to drugstore gets it filled, including medicine basket, medicine basket's bottom is equipped with the cavity, the activity joint has the bottom plate in the cavity, and the bottom plate is parallel with medicine basket's bottom, one side of bottom plate extends to medicine basket's the outside and fixedly connected with baffle, two slides of a side symmetry fixedly connected with that the baffle is close to the bottom plate, medicine basket's both sides outside symmetry is equipped with two spouts, and one side of two slides extend respectively to the inside that corresponds the spout and with the inner wall sliding connection of spout, medicine basket and one side that the baffle was kept away from each other all are equipped with the handle.
Preferably, the bilateral inner wall symmetry equidistance of cavity is equipped with a plurality of arc draw-in grooves, the bilateral symmetry of bottom plate is equipped with two recesses, two equal sliding connection has the kelly in the recess, and one side that two kellies kept away from each other all extend to the outside of bottom plate and with a plurality of arc draw-in groove activity joint, through the kelly joint in the arc draw-in groove, can fix spacingly to the bottom plate.
Preferably, two the equal fixedly connected with spacing spring in one side that the kelly is close to each other, and one side that two spacing springs are close to each other respectively with the one side inner wall fixed connection that two recesses are close to each other, can play the spacing effect of support to the kelly through spacing spring.
Preferably, two the equal fixedly connected with arc magnetic sheet of the one end that the kelly is close to corresponding arc draw-in groove, it is a plurality of the equal fixedly connected with arc iron sheet of inner wall of arc draw-in groove, and arc magnetic sheet and arc iron sheet magnetic contact, through the magnetic contact of arc magnetic sheet and arc iron sheet, can play further firm effect to the bottom plate.
Preferably, the top of medicine basket is close to one side fixedly connected with stand that corresponds the handle, one side that the stand is close to the handle is equipped with inclined plane and fixedly connected with clip, conveniently carries out the centre gripping to the list of getting it filled through the clip, and the setting through inclined plane makes things convenient for medical staff conveniently to look over the list of getting it filled when holding the basket of getting it filled.
The utility model discloses in, the medicine basket of being convenient for the drugstore to get it filled draws the baffle at first through the handle to get to drive the slide and slide in the spout, when the kelly removed next arc draw-in groove, drive the kelly and imbed in the arc draw-in groove under the spring action of spacing spring, realize the effect to the regulation of bottom plate and activity joint, the regulation through the bottom plate can not only increase the space of depositing the medicine, can also realize the classification and the distribution effect of medicine through two independent spaces, greatly increased the functionality of medicine basket.
Through arc magnetic sheet and arc iron sheet magnetic contact, can further strengthen the joint effect of kelly and arc draw-in groove to this realization is to the firm effect of bottom plate.
Can carry out the centre gripping to the list of getting it filled through the clip, make things convenient for medical staff to get it filled according to the list, through the inclined plane setting of stand, can make things convenient for looking over of medical staff to the list of getting it filled.
The utility model discloses a joint cooperation of kelly, spacing spring and arc draw-in groove is convenient to the regulation and the joint of bottom plate to this realization is adjusted the parking space of medicine basket, and can deposit the classification or the distribution of medicine through two spaces, through the centre gripping to getting the medicine inventory, has improved the practicality of whole medicine basket greatly, thereby has brought the cheap for medical staff.
Drawings

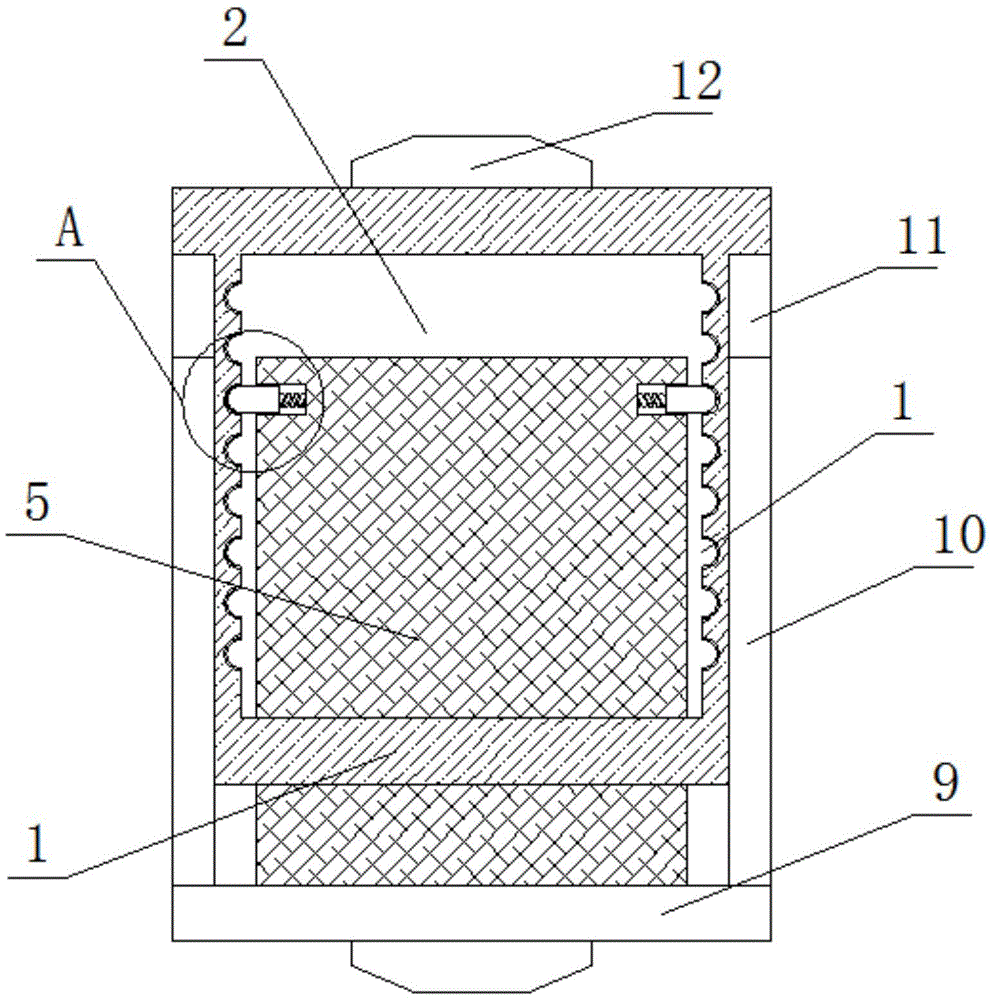

FIG. 1 is a top cross-sectional view of the overall structure of the medicine basket of the present invention for facilitating the medicine taking in the pharmacy;
FIG. 2 is an enlarged view of the structure of part A of the medicine basket for facilitating the medicine taking in the pharmacy;
fig. 3 is a side view of the medicine basket structure of the medicine basket convenient for the drugstore to take medicine.
In the figure: 1 medicine basket, 2 cavitys, 3 arc draw-in grooves, 4 arc iron sheet, 5 bottom plates, 6 recesses, 7 kellies, 8 spacing springs, 9 baffles, 10 slides, 11 spout, 12 handles, 13 stands, 14 clips.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments.
Example one
Referring to fig. 1-3, medicine basket convenient to drugstore gets it filled, including medicine basket 1, medicine basket 1's bottom is equipped with cavity 2, cavity 2 internal activity joint has bottom plate 5, and bottom plate 5 is parallel with medicine basket 1's bottom, one side of bottom plate 5 extends to medicine basket 1's the outside and fixedly connected with baffle 9, baffle 9 is close to two slides 10 of one side symmetry fixedly connected with of bottom plate 5, medicine basket 1's both sides outside symmetry is equipped with two spouts 11, and one side of two slides 10 extend to the inside that corresponds spout 11 respectively and with the inner wall sliding connection of spout 11, medicine basket 1 all is equipped with handle 12 with one side that baffle 9 kept away from each other.
Example two
The improvement is further based on the first embodiment:
the utility model discloses in, the bilateral inner wall symmetry equidistance of cavity 2 is equipped with a plurality of arc draw-in grooves 3, and the bilateral symmetry of bottom plate 5 is equipped with two recesses 6, and equal sliding connection has kelly 7 in two recesses 6, and one side that two kellies 7 kept away from each other all extend to the outside of bottom plate 5 and with a plurality of arc draw-in grooves 3 activity joints, through kelly 7 joints in arc draw-in groove 3, can fix spacingly to bottom plate 5.
The utility model discloses in, the equal fixedly connected with spacing spring 8 in one side that two kellies 7 are close to each other, and one side that two spacing springs 8 are close to each other respectively with one side inner wall fixed connection that two recesses 6 are close to each other, can play the spacing effect of support to kellies 7 through spacing spring 8.
The utility model discloses in, two kellies 7 are close to the equal fixedly connected with arc magnetic sheet of one end that corresponds arc draw-in groove 3, the equal fixedly connected with arc iron sheet 4 of the inner wall of a plurality of arc draw-in grooves 3, and arc magnetic sheet and the contact of 4 magnetism of arc iron sheet, through the contact of the magnetism of arc magnetic sheet and arc iron sheet 4, can play further firm effect to bottom plate 5.
The utility model discloses in, the top of medicine basket 1 is close to one side fixedly connected with stand 13 that corresponds handle 12, and one side that stand 13 is close to handle 12 is equipped with inclined plane and fixedly connected with clip 14, conveniently carries out the centre gripping to the list of getting it filled through clip 14, and the setting up through the inclined plane makes things convenient for medical staff to look over the list of getting it filled when holding medicine basket 1.
In the utility model, firstly, the baffle 9 is pulled through the handle 12 to drive the sliding plate 10 to slide in the chute 11, the clamping rod 7 contacts with the inner wall of the cavity 2 to drive the clamping rod 7 to move in the groove 6 when leaving the arc-shaped clamping groove 3, at the moment, the limiting spring 8 is in a further compression state, when the clamping rod 7 moves to the next arc-shaped clamping groove 3, the clamping rod 7 is driven to be embedded into the arc-shaped clamping groove 3 under the elastic action of the limiting spring 8, so as to realize the regulation and movable clamping effect on the bottom plate 5, the space for storing the medicine can be increased through the regulation of the bottom plate 5, the classification and distribution effect of the medicine can be realized through two independent spaces, the functionality of the medicine basket 1 is greatly increased, the clamping effect of the clamping rod 7 and the arc-shaped clamping groove 3 can be further strengthened through the magnetic contact of the arc-shaped magnetic sheet and the arc-shaped iron sheet 4, thereby realizing the, the medicine taking list can be clamped through the clamp 14, so that medical staff can take medicines conveniently according to the list, and the medicine taking list can be conveniently checked by the medical staff through the inclined plane of the stand column.
The above, only be the concrete implementation of the preferred embodiment of the present invention, but the protection scope of the present invention is not limited thereto, and any person skilled in the art is in the technical scope of the present invention, according to the technical solution of the present invention and the utility model, the concept of which is equivalent to replace or change, should be covered within the protection scope of the present invention.
Claims (5)
1. Medicine basket convenient to drugstore is got it filled, including medicine basket (1), its characterized in that, the bottom of medicine basket (1) is equipped with cavity (2), cavity (2) interior activity joint has bottom plate (5), and bottom plate (5) are parallel with the bottom of medicine basket (1), one side of bottom plate (5) extends to the outside and the fixedly connected with baffle (9) of medicine basket (1), baffle (9) are close to two slides (10) of a side symmetry fixedly connected with of bottom plate (5), the both sides outside symmetry of medicine basket (1) is equipped with two spout (11), and one side of two slide (10) extend to respectively correspond the inside of spout (11) and with the inner wall sliding connection of spout (11), medicine basket (1) all is equipped with handle (12) with one side that baffle (9) kept away from each other.
2. The medicine basket convenient for medicine taking in a pharmacy according to claim 1, wherein a plurality of arc-shaped clamping grooves (3) are symmetrically and equidistantly arranged on the inner wall of the two sides of the cavity (2), two grooves (6) are symmetrically arranged on the two sides of the bottom plate (5), clamping rods (7) are slidably connected in the two grooves (6), and one sides, far away from each other, of the two clamping rods (7) extend to the outer side of the bottom plate (5) and are movably clamped with the arc-shaped clamping grooves (3).
3. The medicine basket convenient for pharmacy medicine taking according to claim 2, wherein one side of each of the two clamping rods (7) close to each other is fixedly connected with a limiting spring (8), and one side of each of the two limiting springs (8) close to each other is fixedly connected with the inner wall of one side of each of the two grooves (6) close to each other.
4. The medicine basket convenient for medicine taking in pharmacies according to claim 2, wherein the ends of the two clamping rods (7) close to the corresponding arc-shaped clamping grooves (3) are fixedly connected with arc-shaped magnetic sheets, the inner walls of the plurality of arc-shaped clamping grooves (3) are fixedly connected with arc-shaped iron sheets (4), and the arc-shaped magnetic sheets are in magnetic contact with the arc-shaped iron sheets (4).
5. The medicine basket convenient for pharmacy medicine taking is characterized in that a stand column (13) is fixedly connected to one side, close to the corresponding handle (12), of the top of the medicine basket (1), and a slope is arranged on one side, close to the handle (12), of the stand column (13) and a clamp (14) is fixedly connected to one side.
