Abstract
The utility model discloses a press from chargeable portable ultraviolet lamp of locking-type relates to the portable disinfection technology field of ultraviolet lamp. The pressing self-locking type rechargeable portable ultraviolet lamp comprises a control and charging module, a fixed lamp holder, a spring, a sliding lamp holder, an inner protection grid, a lamp tube, a rechargeable battery, a silica gel pad, a sealing cover, a limiting block, a shell and a pressing self-locking device, wherein the inner protection grid and the lamp tube are arranged on the top surface of the sliding lamp holder from outside to inside respectively, and the sliding lamp holder, the inner protection grid and the lamp tube and the inner wall of a battery bin form a sliding structure. The pressing self-locking type rechargeable portable ultraviolet lamp adopts a pressing self-locking storage mode, the use convenience is improved, meanwhile, the strength of the structure is guaranteed to a certain extent, the lamp still has good mechanical performance after being stored for many times, the lamp tube has better durability under the protection of the inner protection grid, and the carrying and effective use problems of the high-power ultraviolet lamp tube are solved.
Description
Technical Field
The utility model relates to a portable disinfection technical field of ultraviolet lamp specifically is a press from chargeable portable ultraviolet lamp of locking-type.
Background
The ultraviolet disinfection lamp is also called as an ultraviolet germicidal lamp. A lamp for sterilizing by ultraviolet sterilization. The ultraviolet ray sterilizing lamp radiates ultraviolet rays with the wavelength of 253.7nm outwards. The ultraviolet ray has the strongest sterilizing capability, and can be used for sterilizing water, air, clothes and the like. The ultraviolet ray disinfection lamp irradiates for about 5min to kill bacteria and viruses carried on clothes. It can also be used for air sterilization in laboratory and operating room requiring clean air, and can kill bacteria in air by irradiating for about 30 min.
The portable ultraviolet lamp has better storage performance, and can conveniently disinfect accommodation articles and environment in the travelling process. Most of the conventional portable ultraviolet lamps are folded or telescopically stored, but the storage structure can reduce the strength of the ultraviolet lamp body, so that the lamp body is easy to damage, and the storage structure can be worn to reduce the storage performance after being stored and unfolded for many times.
SUMMERY OF THE UTILITY MODEL
Technical problem to be solved
To prior art not enough, the utility model provides a press from chargeable portable ultraviolet lamp of locking-type has solved that traditional portable ultraviolet lamp adopts folding or telescopic accomodating mostly, but this kind of structure of accomodating can reduce the intensity of ultraviolet lamp body, lets the lamp body damage easily, can make the structure of accomodating receive the problem that wearing and tearing lead to accomodating the nature to reduce after accomodating and expanding many times.
(II) technical scheme
In order to achieve the above purpose, the utility model discloses a following technical scheme realizes: a pressing self-locking type rechargeable portable ultraviolet lamp comprises a control and charging module, a fixed lamp holder, a spring, a sliding lamp holder, an inner protection grid, a lamp tube, a rechargeable battery, a silica gel pad, a sealing cover, limiting blocks, battery bins and a pressing self-locking device, wherein the fixed lamp holder is internally provided with the control and charging module, the top surface of the fixed lamp holder is fixedly connected with four battery bins which are arranged in a surrounding way, the rechargeable battery is arranged in each battery bin, the bottom of each battery bin is provided with a battery protection PCB (printed circuit board), the center of the top surface of the fixed lamp holder is provided with the pressing self-locking device, the top end of the inner wall of each battery bin is fixedly provided with the limiting blocks, the limiting blocks are two in number and can prevent the sliding lamp holder from moving to the outside of the battery bins, the limiting blocks are integrally formed with the fixed lamp holder and the, the sliding lamp holder is elastically connected with the lamp tube through silica gel, the sliding lamp holder is in clearance fit with the inner wall of the battery compartment, and the sliding lamp holder, the inner protection grid, the lamp tube and the inner wall of the battery compartment form a sliding structure;
a spring is arranged between the bottom surface of the sliding lamp holder and the top surface of the fixed lamp holder, the sliding lamp holder is matched with the pressing self-locking device, the sliding lamp holder can contact the pressing self-locking device only by pressing the spring, the sliding lamp holder can be locked by pressing down once after contacting and pressing the pressing self-locking device, the sliding lamp holder can be unlocked by pressing down once again, and the sliding lamp holder can be pushed out along the inner wall of the battery bin by the spring after unlocking;
the control and charging module is electrically connected with the rechargeable battery and the lamp tube respectively.
Preferably, an electronic ballast is arranged in the sliding lamp holder, and the rechargeable battery supplies power to the lamp tube through the electronic ballast.
Preferably, one side of the sealing cover, which is attached to the inner protection grid, is provided with a silica gel pad.
Preferably, the sealing cover is provided with an external thread, and the inner side of the top end of the battery compartment is provided with an internal thread matched with the external thread arranged on the sealing cover.
Preferably, the sealing cover is connected with the battery bin in a buckling mode.
Preferably, the control and charging module has the functions of multi-gear timing, control, human body detection fault detection alarm, charging protection and direct current input socket.
Preferably, the lamp tube is an ultraviolet lamp or an ozone lamp.
Preferably, the sealing cover, the battery compartment and the fixed lamp holder can be cylindrical or cuboid.
(III) advantageous effects
The utility model provides a press from chargeable portable ultraviolet lamp of locking-type. The method has the following beneficial effects:
(1) the pressing self-locking type rechargeable portable ultraviolet lamp adopts a storage mode of pressing self-locking, the convenience degree of use is increased, meanwhile, the strength of the structure per se has certain guarantee, and the rechargeable portable ultraviolet lamp still has good mechanical performance after being stored for many times.
(2) The pressing self-locking type rechargeable portable ultraviolet lamp is provided with the inner protection grid outside the lamp tube, so that the portable ultraviolet lamp has better protection property in the use state.
Drawings

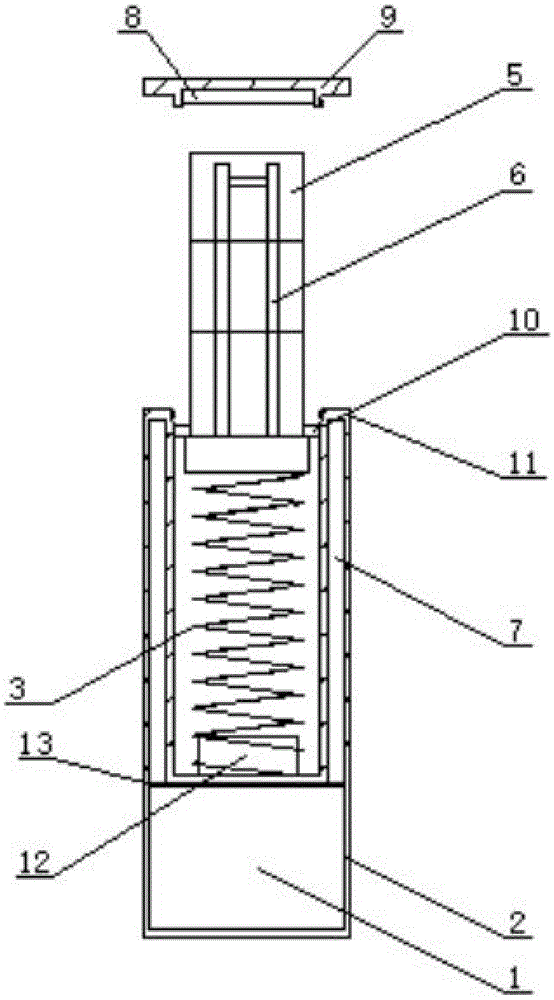

FIG. 1 is a schematic view of the portable ultraviolet lamp;
FIG. 2 is a sectional view of the portable ultraviolet lamp in a stored state;
fig. 3 is a schematic view of the working state of the portable ultraviolet lamp.
In the figure: 1. a control and charging module; 2. fixing the lamp holder; 3. a spring; 4. a sliding lamp holder; 5. an inner protective grid; 6. a lamp tube; 7. a rechargeable battery; 8. a silica gel pad; 9. a sealing cover; 10. a limiting block; 11. A battery compartment; 12. pressing the self-locking device; 13. the battery protects the PCB board.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Referring to fig. 1-3, the present invention provides a technical solution: the utility model provides a press from chargeable portable ultraviolet lamp of locking-type, includes control and the module 1 that charges, fixed lamp stand 2, spring 3, slip lamp stand 4, interior protection net 5, fluorescent tube 6, rechargeable battery 7, silica gel pad 8, sealed lid 9, stopper 10, battery compartment 11 and press self-lock device 12, its characterized in that: a control and charging module 1 is arranged in a fixed lamp holder 2, the top surface of the fixed lamp holder 2 is fixedly connected with four battery bins 11 which are arranged in a surrounding way, a charging battery 7 is arranged in each battery bin 11, the bottom of the battery bin 11 is provided with a battery protection PCB 13, the center of the top surface of the fixed lamp holder 2 is provided with a pressing self-locking device 12, the top end of the inner wall of the battery bin 11 is fixedly provided with two limit blocks 10, the limit blocks 10 can prevent a sliding lamp holder 4 from moving outwards of the battery bin 11, the limit blocks 10 are integrally formed with the fixed lamp holder 2 and the battery bin 11, the top surface of the sliding lamp holder 4 is provided with an inner protection grid 5 and a lamp tube 6 from outside to inside respectively, the sliding lamp holder 4 is elastically connected with the lamp tube 6 through silica gel, the sliding lamp holder, the inner protective grid 5, the lamp tube 6 and the inner wall of the battery compartment 11 form a sliding structure;
the spring 3 is arranged between the bottom surface of the sliding lamp holder 4 and the top surface of the fixed lamp holder 2, the sliding lamp holder 4 is matched with the pressing self-locking device 12, the sliding lamp holder 4 can contact the pressing self-locking device 12 only by the pressing spring 3, the sliding lamp holder 4 can be locked by pressing downwards once after contacting the pressing self-locking device 12, the sliding lamp holder can be unlocked by pressing once again, and the sliding lamp holder 4 can be pushed out along the inner wall of the battery bin 11 by the spring 3 after unlocking.
Control and charging module 1 respectively with rechargeable battery 7, fluorescent tube 6 electric connection, be provided with electronic ballast in the slip lamp stand 4, rechargeable battery 7 supplies power for fluorescent tube 6 through electronic ballast, one side of sealed lid 9 and the laminating of interior protection net 5 is provided with silica gel pad 8, be provided with the external screw thread on the sealed lid 9, the inboard on 11 tops of battery compartment is provided with the internal thread that matches with the external screw thread that sets up on the sealed lid 9, can also adopt sealed lid 9 and 11 buckle connections of battery compartment, control and charging module 1 have many grades regularly, control, human body detection fault detection reports an emergency and asks for help or increased vigilance, protection for charging and direct current input socket function, fluorescent tube 6 is ultraviolet lamp or ozone lamp, sealed lid 9, battery compartment 11, the shape of fixed lamp stand 2 can be cylindric.
For carrying conveniently, the lamp tube 6 and the inner protection grid 5 are hidden in the battery compartment 11, the outer sealing cover 9 is fixed at the top end of the battery compartment 11, when ultraviolet/ozone disinfection and sterilization are needed, the sealing cover 9 is opened, the top end of the inner protection grid 5 is lightly pressed, the spring 3 and the pressing self-locking device 12 are unlocked under stress, the lamp tube 6 is driven by the sliding lamp holder 4 to pop out, the limiting block 10 can prevent the sliding lamp holder 4 from being ejected out by the spring, the rechargeable battery 7 provides power for the work of the lamp tube 6, the top end of the inner protection grid 5 is lightly pressed after the disinfection and sterilization is finished, the sliding lamp holder 4 drives the lamp tube 6 and the inner protection grid 5 to be put into the fixed lamp holder 2, meanwhile, the sliding lamp holder 4 is locked by the spring 3 and the. The control and charging module 1 has the functions of multi-gear timing, control, human body detection fault detection and alarm, charging protection and direct current input socket.
In conclusion, the pressing self-locking type rechargeable portable ultraviolet lamp adopts a pressing self-locking storage mode, the use convenience is improved, meanwhile, the strength of the structure has certain guarantee, the lamp still has good mechanical performance after being stored for many times, and the lamp tube has better durability under the protection of the inner protection grid.
It is noted that, herein, relational terms such as first and second, and the like may be used solely to distinguish one entity or action from another entity or action without necessarily requiring or implying any actual such relationship or order between such entities or actions. Also, the terms "comprises," "comprising," or any other variation thereof, are intended to cover a non-exclusive inclusion, such that a process, method, article, or apparatus that comprises a list of elements does not include only those elements but may include other elements not expressly listed or inherent to such process, method, article, or apparatus.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.
Claims (9)
1. The utility model provides a press chargeable portable ultraviolet lamp of self-locking type, includes control and charging module (1), fixed lamp stand (2), spring (3), slip lamp stand (4), interior protection net (5), fluorescent tube (6), rechargeable battery (7), silica gel pad (8), sealed lid (9), stopper (10), battery compartment (11) and press self-lock device (12), its characterized in that: the battery charging device is characterized in that a control and charging module (1) is arranged in the fixed lamp holder (2), four battery bins (11) which are arranged in a surrounding manner are fixedly connected to the top surface of the fixed lamp holder (2), a charging battery (7) is arranged in each battery bin (11), a battery protection PCB (13) is arranged at the bottom of each battery bin (11), a pressing self-locking device (12) is arranged in the center of the top surface of the fixed lamp holder (2), a limiting block (10) is fixedly arranged at the top end of the inner wall of each battery bin (11), the number of the limiting blocks (10) is two, the limiting blocks (10) can prevent the sliding lamp holder (4) from moving outwards of each battery bin (11), the limiting blocks (10) are integrally formed with the fixed lamp holder (2) and the battery bins (11), and an inner protection grid (5) and a lamp tube (6) are respectively arranged on the top surface, the sliding lamp holder (4) is elastically connected with the lamp tube (6) through silica gel, the sliding lamp holder (4) is in clearance fit with the inner wall of the battery bin (11), and the sliding lamp holder (4), the inner protection grid (5), the lamp tube (6) and the inner wall of the battery bin (11) form a sliding structure;
a spring (3) is arranged between the bottom surface of the sliding lamp holder (4) and the top surface of the fixed lamp holder (2), the sliding lamp holder (4) is matched with the pressing self-locking device (12), the sliding lamp holder (4) can contact the pressing self-locking device (12) only by pressing the spring (3), the sliding lamp holder (4) can be locked by pressing down once after contacting the pressing self-locking device (12), the sliding lamp holder can be unlocked by pressing down once again, and the sliding lamp holder (4) can be pushed out along the inner wall of the battery bin (11) by the spring (3) after unlocking;
the control and charging module (1) is electrically connected with the rechargeable battery (7) and the lamp tube (6) respectively.
2. The push self-locking rechargeable portable ultraviolet lamp of claim 1, wherein: an electronic ballast is arranged in the sliding lamp holder (4), and the rechargeable battery (7) supplies power to the lamp tube (6) through the electronic ballast.
3. The push self-locking rechargeable portable ultraviolet lamp of claim 2, wherein: and a silica gel pad (8) is arranged on one side of the sealing cover (9) which is attached to the inner protection grid (5).
4. The push self-locking rechargeable portable ultraviolet lamp of claim 3, wherein: the sealing cover (9) is provided with an external thread, and the inner side of the top end of the battery bin (11) is provided with an internal thread matched with the external thread arranged on the sealing cover (9).
5. The push self-locking rechargeable portable ultraviolet lamp of claim 3, wherein: the sealing cover (9) is connected with the battery bin (11) in a buckling mode.
6. The push self-locking rechargeable portable ultraviolet lamp of claim 4 or 5, wherein: the control and charging module (1) has the functions of multi-gear timing, control, human body detection fault detection and alarm, charging protection and direct current input socket.
7. The push self-locking rechargeable portable ultraviolet lamp of claim 6, wherein: the lamp tube (6) is an ultraviolet lamp or an ozone lamp.
8. The push self-locking rechargeable portable ultraviolet lamp of claim 7, wherein: the sealing cover (9), the battery bin (11) and the fixed lamp holder (2) are cylindrical.
9. The push self-locking rechargeable portable ultraviolet lamp of claim 7, wherein: the sealing cover (9), the battery bin (11) and the fixed lamp holder (2) are cuboid.
