Abstract

The utility model discloses a slitting machine for tape production, which comprises a slitting box, the top of the inner cavity of the slitting box is provided with a conveying roller, and the bottom of the inner cavity of the slitting box is provided with a rotating shaft, A blade is sleeved on the surface, a fixing box is installed on both sides of the blade, the top and bottom of the inner cavity of the fixing box are sleeved with a screw sleeve, the inner cavity of the screw sleeve is threadedly connected with a screw, and the screw A rotating plate is fixedly connected to the outer side of the screw, and a fixing plate is arranged on the inner side of the screw rod. The inner side of the fixing plate is adapted to the rotating shaft. The left side of the rotating shaft penetrates and extends to the left side of the slitting box. The left side of the surface is sleeved with a driven wheel. The utility model cooperates with each other through the slitting box, the conveying roller, the rotating shaft, the blade, the fixed box, the driven wheel, the belt, the driving wheel, the material receiving box, the collecting shaft, the motor, the fixing plate, the screw rod, the screw sleeve and the rotating plate. When the slitting machine is in use, the slitting width can be adjusted.

Description

A slitting machine for tape production

technical field

The utility model relates to the technical field of tape production, in particular to a slitting machine for tape production.

Background technique

Tape can be divided into: high temperature tape, double-sided tape, insulating tape, special tape, pressure-sensitive tape, die-cutting tape according to its function. Different functions are suitable for different industry needs. A layer of adhesive is applied to the surface of the tape.

When the tape is used in production, it is necessary to use a slitting machine to slit the tape. However, when the existing slitting machines on the market are in use, the slitting width cannot be adjusted according to the needs of the staff, resulting in slitting. The machine is not practical.

Utility model content

The purpose of the utility model is to provide a slitting machine for tape production, which has the advantage of adjusting the slitting width of the slitting machine, and solves the problem that the existing slitting machine cannot adjust the slitting width.

In order to achieve the above purpose, the utility model provides the following technical solutions: a slitting machine for tape production, comprising a slitting box, the top of the inner cavity of the slitting box is provided with a conveying roller, and the bottom of the inner cavity of the slitting box is provided with a conveying roller. There is a rotating shaft, the surface of the rotating shaft is sleeved with a blade, both sides of the blade are equipped with a fixing box, the top and bottom of the inner cavity of the fixing box are sleeved with a screw sleeve, and the inner cavity of the screw sleeve is sleeved with a screw sleeve. A screw is threadedly connected, the outer side of the screw is fixedly connected with a rotating plate, the inner side of the screw is provided with a fixing plate, the inner side of the fixing plate is adapted to the rotating shaft, and the left side of the rotating shaft penetrates and extends to the slitting The left side of the box, the left side of the surface of the rotating shaft is sleeved with a driven wheel, the top of the slitting box is provided with a receiving box, the right side of the receiving box is provided with a motor, and the output end of the motor is provided with a receiving box. There is a collecting shaft, the left side of the collecting shaft runs through the receiving box and extends to the left side of the receiving box, the left side of the surface of the collecting shaft is sleeved with a driving wheel, and the surface of the driving wheel passes through the belt. Connected to the driven wheel.

Preferably, support columns are fixedly connected to both sides of the bottom of the slitting box, and anti-skid pads are fixedly connected to the bottoms of the two support columns.

Preferably, the connection between the two sides of the conveying roller and the slitting box is movably connected by a movable base, and the conveying roller is located at the center of the top of the inner cavity of the slitting box.

Preferably, the connection between the left side of the motor and the receiving box is fixedly connected by welding, and the motor is located at the center of the right side of the receiving box.

Preferably, the inner side of the fixing plate is provided with a rubber pad, and the inner side of the rubber pad is provided with anti-skid particles.

Compared with the prior art, the beneficial effects of the present utility model are as follows:

1. The utility model cooperates with each other through the slitting box, the conveying roller, the rotating shaft, the blade, the fixed box, the driven wheel, the belt, the driving wheel, the receiving box, the collecting shaft, the motor, the fixed plate, the screw, the screw sleeve and the turning plate. , the slitting width can be adjusted when the slitting machine is in use, which avoids that the slitting width cannot be adjusted according to the needs of the staff when the existing slitting machine is in use, resulting in the slitting The machine is not practical, and it is suitable for promotion.

2. The utility model can play a fixed role on the slitting machine through the support column and the anti-skid pad, so that the slitting machine has a better effect during use, and avoids the situation that the slitting machine moves during use, thereby causing the slitting machine to move. The condition that the cutting machine does not work well.

Description of drawings

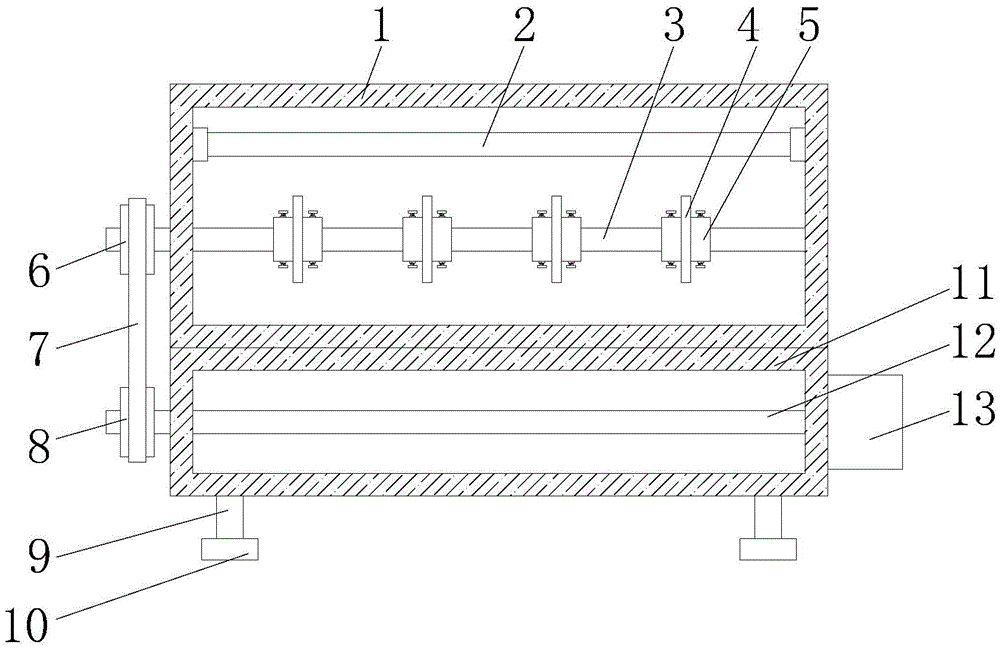

Fig. 1 is the structural representation of the utility model;

Figure 2 is a schematic diagram of the structure of the inner cavity of the fixed box of the present invention;

FIG. 3 is a schematic diagram of the structure of the blade and the right side of the fixing box of the present invention.

In the picture: 1. Slitting box; 2. Conveying roller; 3. Rotating shaft; 4. Blade; 5. Fixed box; 6. Driven wheel; 7. Belt; 8. Driving wheel; 9. Support column; 10. Anti-skid pad ; 11, receiving box; 12, collecting shaft; 13, motor; 14, fixing plate; 15, screw; 16, screw sleeve; 17, turning plate.

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. example. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present invention.

In the description of the utility model, it should be noted that the terms "upper", "lower", "inner", "outer", "front end", "rear end", "two ends", "one end" and "the other end" The orientation or positional relationship indicated by etc. is based on the orientation or positional relationship shown in the accompanying drawings, which is only for the convenience of describing the present invention and simplifying the description, rather than indicating or implying that the referred device or element must have a specific orientation, with a specific orientation. Therefore, it should not be construed as a limitation on the present invention. Furthermore, the terms "first" and "second" are used for descriptive purposes only and should not be construed to indicate or imply relative importance.

In the description of the utility model, it should be noted that, unless otherwise expressly specified and limited, the terms "installed", "provided with", "connected", etc., should be understood in a broad sense, for example, "connected" may be a fixed connection It can also be a detachable connection or an integral connection; it can be a mechanical connection or an electrical connection; it can be a direct connection, or an indirect connection through an intermediate medium, or the internal communication between the two components. For those of ordinary skill in the art, the specific meanings of the above terms in the present invention can be understood in specific situations.

The standard parts used in this application document can be purchased from the market, and can be customized according to the description in the description and the attached drawings. The specific connection method of each part adopts the mature bolts, rivets, welding, etc. in the prior art. Conventional means, machinery, parts and equipment are of conventional types in the prior art.

The utility model has a slitting box 1, a conveying roller 2, a rotating shaft 3, a blade 4, a fixed box 5, a driven wheel 6, a belt 7, a driving wheel 8, a support column 9, an anti-skid pad 10, a receiving box 11, and a collecting shaft 12. The components of the motor 13, the fixing plate 14, the screw rod 15, the screw sleeve 16 and the rotating plate 17 are all general standard parts or components known to those skilled in the art, and their structures and principles are all known by the technical manual. Or known by conventional test methods.

Please refer to Fig. 1-3, a slitting machine for tape production, including a slitting box 1, both sides of the bottom of the slitting box 1 are fixedly connected with support columns 9, and the bottoms of the two support columns 9 are fixedly connected with The anti-skid pad 10, the utility model can play a fixed role on the slitting machine through the support column 9 and the anti-skid pad 10, so that the slitting machine has a better effect during use, and avoids the situation of moving the slitting machine during use. , which leads to the situation that the use effect of the slitting machine is not good. The top of the inner cavity of the slitting box 1 is provided with a conveying roller 2, and both sides of the conveying roller 2 are connected with the slitting box 1 through the movable base. The roller 2 is located at the center of the top of the inner cavity of the slitting box 1. The bottom of the inner cavity of the slitting box 1 is provided with a rotating shaft 3, the surface of the rotating shaft 3 is sleeved with a blade 4, and both sides of the blade 4 are provided with a fixed box 5, which is fixed. The top and bottom of the inner cavity of the box 5 are sleeved with a screw sleeve 16, the inner cavity of the screw sleeve 16 is threadedly connected with a screw rod 15, the outer side of the screw rod 15 is fixedly connected with a rotating plate 17, and the inner side of the screw rod 15 is provided with a fixed plate 14, fixed The inner side of the plate 14 is provided with a rubber pad, and the inner side of the rubber pad is provided with anti-skid particles, the inner side of the fixed plate 14 is adapted to the rotating shaft 3, the left side of the rotating shaft 3 penetrates and extends to the left side of the slitting box 1, and the rotating shaft 3 The left side of the surface is sleeved with a driven wheel 6, the top of the slitting box 1 is provided with a receiving box 11, the right side of the receiving box 11 is provided with a motor 13, and the connection between the left side of the motor 13 and the receiving box 11 passes through The welding form is fixedly connected, and the motor 13 is located at the center of the right side of the receiving box 11. The output end of the motor 13 is provided with a collecting shaft 12. The left side of the collecting shaft 12 penetrates the receiving box 11 and extends to the receiving box 11. The left side of the surface of the collecting shaft 12 is sleeved with a driving wheel 8, and the surface of the driving wheel 8 is connected with the driven wheel 6 through a belt 7. The blade 4, the fixed box 5, the driven wheel 6, the belt 7, the driving wheel 8, the receiving box 11, the collecting shaft 12, the motor 13, the fixing plate 14, the screw 15, the screw sleeve 16 and the turning plate 17 cooperate with each other and can be When the slitting machine is in use, it can adjust the slitting width, which avoids that the slitting width cannot be adjusted according to the needs of the staff when the existing slitting machine is in use, which makes the slitting machine unpractical. condition, suitable for promotion.

When adjusting the width, the rotating plate 17 is reversely rotated, the screw 15 is driven to rotate by the rotating plate 17, the screw sleeve 16 cooperates with the screw 15 to move upward, and the screw 15 drives the fixed plate 14 to move upward, and the fixed plate 14 does not contact the rotating shaft 3. After the adjustment is completed, the rotating plate 17 is rotated forwardly, the rotating plate 17 drives the screw 15 to rotate, the screw sleeve 16 cooperates with the screw 15 to move down, and the screw 15 drives The fixing plate 14 moves downward, the fixing box 5 is fixed by the fixing plate 14, and the blade 4 is fixed by the fixing box 5, and it can be used;

When the slitting machine is in use, the tape is placed in the conveying roller 2, the motor 13 runs, the collecting shaft 12 is driven to rotate by the motor 13, the driving wheel 8 is driven to rotate by the collecting shaft 12, and the driving wheel 8 and the belt 7 cooperate with each other. Drive the driven wheel 6 to rotate, drive the rotating shaft 3 to rotate through the driven wheel 6, drive the blade 4 to rotate through the rotating shaft 3, cut the tape through the blade 4, and collect the cut tape through the collecting shaft 12. The shaft 12 is detachable to take the cut tape.

Although the embodiments of the present invention have been shown and described, it will be understood by those skilled in the art that various changes and modifications can be made to these embodiments without departing from the principles and spirit of the present invention , alternatives and modifications, the scope of the present invention is defined by the appended claims and their equivalents.

Claims (5)

1. A slitting machine for tape production, comprising a slitting box (1), characterized in that: the top of the inner cavity of the slitting box (1) is provided with a conveying roller (2), and the slitting box (1) ) The bottom of the inner cavity is provided with a rotating shaft (3), the surface of the rotating shaft (3) is sleeved with a blade (4), and both sides of the blade (4) are provided with a fixed box (5), the fixed box (5) The top and bottom of the inner cavity are sleeved with a screw sleeve (16), the inner cavity of the screw sleeve (16) is threadedly connected with a screw (15), and the outer side of the screw (15) is fixedly connected with a turning plate (17), the inner side of the screw (15) is provided with a fixing plate (14), the inner side of the fixing plate (14) is adapted to the rotating shaft (3), and the left side of the rotating shaft (3) penetrates and extends To the left side of the slitting box (1), the left side of the surface of the rotating shaft (3) is sleeved with a driven wheel (6), and the top of the slitting box (1) is provided with a receiving box (11), so The right side of the receiving box (11) is provided with a motor (13), the output end of the motor (13) is provided with a collecting shaft (12), and the left side of the collecting shaft (12) penetrates the receiving box (11) and extends to the left side of the receiving box (11), a driving wheel (8) is sleeved on the left side of the surface of the collecting shaft (12), and the surface of the driving wheel (8) passes through the belt (7). ) is drivingly connected with the driven wheel (6). 2. A kind of tape production slitting machine according to claim 1 is characterized in that: both sides of the bottom of the slitting box (1) are fixedly connected with support columns (9), and two support columns ( The bottoms of 9) are fixedly connected with anti-skid pads (10). 3. A kind of tape production slitting machine according to claim 1, is characterized in that: the joints of both sides of described conveying roller (2) and slitting box (1) are all movably connected by movable base, and The conveying roller (2) is located at the center of the top of the inner cavity of the slitting box (1). 4. A kind of tape production slitting machine according to claim 1, is characterized in that: the junction of the left side of described motor (13) and the receiving box (11) is fixedly connected by welding, and the motor (13) 13) Located in the center of the right side of the receiving box (11). 5 . The slitting machine for tape production according to claim 1 , wherein a rubber pad is provided on the inner side of the fixing plate ( 14 ), and anti-skid particles are provided on the inner side of the rubber pad. 6 .
