The utility model relates to an easy-to-adhere color box for packaging lamps, side plates are symmetrically arranged on two sides of a bottom plate, one side of a top plate is connected with an attaching plate, the top of the side plate is connected with a first reinforcing plate, the bottom of the side plate is connected with a second reinforcing plate, the top of the top plate is connected with a first tearing paste, the bottom of the top plate is connected with a first attaching part, the top of the bottom plate is connected with a second tearing paste, the bottom of the bottom plate is connected with a second attaching part, the attaching stability of the second tearing paste and the first tearing paste is improved through the first reinforcing plate, the attaching stability of the second attaching part and the first attaching part is improved through the second reinforcing plate, the second tearing paste is conveniently connected with the second tearing paste through glue on a glue passing hole, the glue passing hole is connected with a strip of the second tearing paste, the first tearing paste is conveniently torn through a tearing groove, a paper sheet between two punching strips is conveniently torn through the punching strip on the first tearing paste, conveniently tear the scraps of paper of punching a hole strip through tearing the while of first tearing the subsides.

Description

Lamp packaging color box easy to adhere
Technical Field
The utility model belongs to the technical field of the carton technique and specifically relates to an easy colored box of lamps and lanterns packing that bonds.
Background
Paper packing carton adopts cardboard to cut the back and uses sticky tape or glue to seal and form mostly, and inside holds the goods, to some comparatively valuable or fragile article, most packing carton all play the protection to inside product through the foam box as interior box, but foam box intensity is also relatively poor, can not play the guard action to article after the extrusion breakage, and adopt the sealing tape sealed, be difficult to open, and paper material's packing carton does not have compressive capacity usually because of the material reason.
SUMMERY OF THE UTILITY MODEL
In order to overcome the defects of the prior art, the utility model aims to provide a lamp packing color box which is easy to adhere and open and has stable structure.
The utility model discloses the technical scheme who adopts does:
the utility model provides a lamps and lanterns packing color box that easily bonds, including roof and bottom plate, the bilateral symmetry of bottom plate is equipped with the curb plate, one of them curb plate is connected with the roof, one side of roof is connected with the laminating piece, the laminating piece passes through the adhesive tape and is connected with the curb plate, the top of curb plate is connected with first reinforcement piece, and its bottom is connected with the second reinforcement piece, the top of roof is connected with first tearing, and its bottom is connected with first portion of pasting, the top of bottom plate is connected with the second and tears the subsides, and its bottom is connected with the portion of pasting of second, the portion of pasting of second and first portion of pasting are all connected with the second reinforcement piece through glue, one side that the second torn the subsides passes through glue with first reinforcement piece and is connected, the opposite side passes through glue and tears the subsides.
As preferred, the one side that the bottom plate was kept away from to the second tears the subsides is equipped with the strip that punches a hole, and the strip that punches a hole is equipped with two, and is parallel arrangement each other, and one side that first tearing is close to the roof is equipped with the gluey hole, and the even a plurality of having arranged in the gluey hole of crossing, and the activity laminating in one side of the strip that punches a hole.
Preferably, the glue passing hole is obliquely arranged.
As the preferred, the one end that the roof was kept away from to first tearing subsides is equipped with tears the fluting, tears the fluting and is the semicircle setting.
Preferably, the first pasting part is connected with a plurality of first protruding pieces, the second pasting part is connected with a plurality of second protruding pieces, the second protruding pieces and the first protruding pieces are staggered, the first protruding pieces are connected with the second pasting part, and the second protruding pieces are connected with the first pasting part.
The beneficial effects of the utility model reside in that:
this various box of lamps and lanterns packing of easily gluing improves the laminating firmness of second tear with first tear through first reinforcement piece, improve the laminating firmness of second portion of pasting and first portion of pasting through the second reinforcement piece, through glue on the glue hole, it is connected to conveniently tear the subsides with the second, it is protruding to prevent that glue department from forming, conveniently tear first tear the subsides through tearing the groove, conveniently tear scraps of paper between two strips that punch a hole through the strip that punches a hole, it is connected with the strip that punches a hole that the second tears the subsides to tear through the glue hole that crosses on the first tear, conveniently tear the scraps of paper of the strip that punches a hole through tearing when tearing first tear the subsides.
Drawings

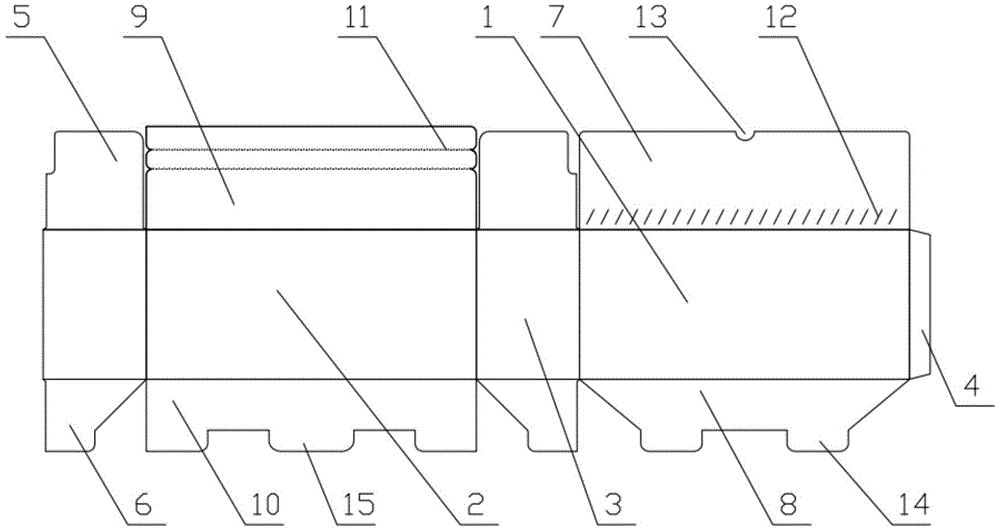

Fig. 1 is an expanded schematic view of the present invention.
Fig. 2 is a schematic structural diagram of the present invention.
In the figure: 1. a top plate; 2. a base plate; 3. a side plate; 4. a bonding sheet; 5. a first reinforcing sheet; 6. a second reinforcing sheet; 7. a first tear tape; 8. a first adhesive portion; 9. second tearing and pasting; 10. a second adhesive portion; 11. punching a strip; 12. passing through a glue hole; 13. tearing a groove; 14. a first tab; 15. a second tab.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Referring to fig. 1-2, the present invention provides a technical solution: the utility model provides an easy lamps and lanterns packing color box who bonds, includes roof 1 and bottom plate 2, its characterized in that: the bilateral symmetry of bottom plate 2 is equipped with curb plate 3, one of them curb plate 3 is connected with roof 1, one side of roof 1 is connected with laminating piece 4, laminating piece 4 passes through the adhesive tape and is connected with curb plate 3, the top of curb plate 3 is connected with first reinforcement piece 5, and its bottom is connected with second reinforcement piece 6, the top of roof 1 is connected with first tearing 7, and its bottom is connected with first portion 8 of pasting, the top of bottom plate 2 is connected with the second and tears 9, and its bottom is connected with second portion 10 of pasting, second portion 10 of pasting and first portion 8 of pasting all are connected with second reinforcement piece 6 through glue, the second is torn one side of 9 and is connected through glue with first reinforcement piece 5, the opposite side passes through glue and is connected with first 7 of tearing.
For the convenience of tearing, in this embodiment, preferably, one side of the second tear tape 9 away from the bottom plate 2 is provided with two punched strips 11, the punched strips 11 are arranged in parallel, one side of the first tear tape 7 close to the top plate 1 is provided with a plurality of glue holes 12, and the glue holes 12 are uniformly distributed and movably attached to one side of the punched strips 11.
In order to facilitate the glue passing hole 12 to serve as a storage place for glue after the glue enters, and prevent the glue adhering place from forming a protrusion, in this embodiment, it is preferable that the glue passing hole 12 is disposed in an inclined manner.
In order to facilitate the opening and improve the comfort of the user, in this embodiment, preferably, one end of the first tear tape 7 away from the top plate 1 is provided with a tear groove 13, and the tear groove 13 is disposed in a semicircular shape.
In order to improve the structural stability, in this embodiment, preferably, the first pasting part 8 is connected with a plurality of first protruding pieces 14, the second pasting part 10 is connected with a plurality of second protruding pieces 15, the second protruding pieces 15 are staggered with respect to the first protruding pieces 14, the first protruding pieces 14 are connected with the second pasting part 10, and the second protruding pieces 15 are connected with the first pasting part 8.
The utility model discloses a theory of operation and use flow: improve the second through first reinforcement piece 5 and tear the laminating degree of stability of pasting 9 and first tearing 7, improve the laminating degree of stability of pasting 10 and first portion of pasting 8 of second through second reinforcement piece 6, through glue on glue hole 12, conveniently tear with the second and paste 9 and be connected, it is protruding to prevent that glue department from forming, conveniently tear first tearing 7 through tearing fluting 13, conveniently tear two scraps of paper between 11 that punch a hole through 11, it is connected with the strip 11 that punches a hole of punching a hole of second tearing 9 through the glue hole 12 on the first strip 7 that tears, conveniently tear the scraps of paper of strip 11 that punches a hole when tearing first tearing 7.
