CN212241730U - Waste plastic classification crusher

Info

Publication number: CN212241730U
Application number: CN202020958814.7U
Authority: CN
Inventors: 莫贤聪
Original assignee: Guangdong Xianchang Environmental Protection Technology Co ltd
Current assignee: Guangdong Xianchang Environmental Protection Technology Co ltd
Priority date: 2020-05-28
Filing date: 2020-05-28
Publication date: 2020-12-29
Anticipated expiration: 2030-05-28

Abstract

The utility model relates to a breaker technical field, and a categorised breaker of waste plastic is disclosed, comprising a base plate, the case is handled to the last lateral wall fixedly connected with of bottom plate, the feed inlet has been seted up to the last lateral wall of handling the case, it is equipped with intermittent type breaker to handle the incasement, intermittent type breaker's the fixed intercommunication of lower extreme has the discharging pipe, the lateral wall of handling the case left and right sides is rotated through the bearing symmetry and is connected with two reciprocal lead screws, the left end of two reciprocal lead screws all runs through the lateral wall and the fixedly connected with driven gear who handles the case, two fixed blocks of the left side outer wall symmetry fixedly connected with of handling the case, the lateral wall of one side in opposite directions of. The utility model discloses can extrude the waste plastics after smashing, reduce waste plastics's volume, convenient transportation is stored and is smashed waste plastics after and make things convenient for operating personnel to collect the waste plastics after the extrusion.

Description

Waste plastic classification crusher

Technical Field

The utility model relates to a breaker technical field especially relates to a categorised breaker of rubbish plastic.

Background

The plastic crusher is also called as a crusher and is mainly used for crushing various plastic plastics and rubbers such as plastic profiles, pipes, rods, silk threads, films and waste rubber products, the granules can be directly used by an extruder or injection molding and can also be recycled through basic granulation, and the plastic crusher is also a peripheral device of an injection molding machine and is a machine capable of crushing and recovering defective products and water gap materials produced by the injection molding machine.

The classified crusher of waste plastics who proposes in patent grant publication No. CN 207549214U's patent, the on-line screen storage device comprises a base, the left side fixedly connected with transmission case at base top, the bottom fixedly connected with motor of transmission case inner chamber, the output shaft of motor passes through the first belt pulley of shaft coupling fixedly connected with, first belt pulley is connected with the second belt pulley through belt transmission, the axle center fixedly connected with axis of rotation on second belt pulley right side, the right side fixedly connected with work box at base top to the left side of work box and the right side fixed connection of transmission case, turn right first division board of fixedly connected with and second division board in proper order from a left side in the bottom of work box inner chamber. This patent has solved traditional breaker and can not classify broken problem, it is better to make plastics crushing effect, great improvement work efficiency, this patent is in putting into the waste bin with the plastics after the plastics are broken directly after, because there can be the clearance between each piece of plastics after the plastics are smashed, the plastics that lead to few weight will fill up the waste bin, need operating personnel to frequently get and put the clearance waste bin, operating personnel's work load has been increased and the work efficiency of breaker has been influenced.

SUMMERY OF THE UTILITY MODEL

The utility model aims at solving among the prior art in the plastics after directly will smashing with the plastics after smashing put into the waste bin, because all can have the clearance between each piece of plastics after the plastics are smashed, the plastics that lead to little weight will fill up the waste bin, need operating personnel to frequently get and put clearance waste bin, increased operating personnel's work load and influenced breaker work efficiency's problem, and the categorised breaker of a rubbish plastics that provides.

In order to achieve the above purpose, the utility model adopts the following technical scheme:

a waste plastic classification crusher comprises a bottom plate, wherein a treatment box is fixedly connected to the upper side wall of the bottom plate, a feed inlet is formed in the upper side wall of the treatment box, an intermittent crushing device is arranged in the treatment box, a discharge pipe is fixedly communicated with the lower end of the intermittent crushing device, two reciprocating lead screws are symmetrically and rotatably connected to the side walls of the left side and the right side of the treatment box through bearings, the left ends of the two reciprocating lead screws penetrate through the side wall of the treatment box and are fixedly connected with driven gears, two fixed blocks are symmetrically and fixedly connected to the outer wall of the left side of the treatment box, the side walls of the opposite sides of the two fixed blocks are rotatably connected with a same transmission shaft through bearings, transmission gears matched with the driven gears are fixedly connected to the two ends of the transmission shaft, driven gears are fixedly sleeved on the rod walls of the, the lateral wall fixedly connected with driving motor of mounting panel, driving motor's output fixedly connected with and driven gear assorted driving gear, two the outer equal thread bush of reciprocal lead screw is equipped with two thread cylinders, is located the left side two the same stripper plate of lateral wall fixedly connected with of one side in opposite directions of thread cylinder, be located the right side two the same movable plate of lateral wall fixedly connected with of one side in opposite directions of thread cylinder, two backup pads of the lateral wall symmetry fixedly connected with of movable plate the lateral wall of one side in opposite directions of backup pad is rotated through the pivot and is connected with same loading board, the lateral wall of stripper plate is seted up and is worn the mouth with loading board assorted.

Preferably, the lower side wall of the movable plate is symmetrically and fixedly connected with two vertical plates, the side wall of one opposite side of the two vertical plates is rotationally connected with the same connecting shaft through a rotating shaft, the lower side wall of the bearing plate is fixedly connected with a connecting rod, the lower end of the connecting rod is provided with a first connecting frame, the upper side wall of the first connecting frame is symmetrically and fixedly connected with two fixed plates, the side wall of one opposite side of the two fixed plates is rotationally connected with the lower end of the connecting rod through a rotating shaft, the front side wall and the rear side wall of the first connecting frame are both provided with sliding holes, one end of the connecting shaft is positioned in the first connecting frame and is symmetrically and fixedly connected with two sliding rods matched with the sliding holes, the right side wall of the movable plate is fixedly connected with a hydraulic cylinder, the lower end of the hydraulic cylinder is provided with a second connecting frame, the front side wall and the rear side, two the lateral wall of limiting plate opposite side rotates through the output of pivot and pneumatic cylinder to be connected, the one end that first connecting frame was kept away from to the connecting axle is located the second connecting frame and symmetry fixedly connected with two and slip mouthful assorted slide-axes.

Preferably, the threads of the surfaces of the reciprocating screw rods are opposite.

Preferably, the discharge gate has been seted up to the left side wall of handling the case, handle the same smooth frame of lateral wall fixedly connected with around the case, the smooth frame left end is located outside handling the case through the discharge gate.

Preferably, the upper side wall of the treatment box is fixedly connected with a feed hopper which is covered outside the feed inlet.

Preferably, the four corners of the lower surface of the bottom plate are fixedly connected with self-locking wheels.

Compared with the prior art, the utility model provides a categorised breaker of rubbish plastic possesses following beneficial effect:

1. this categorised breaker of waste plastic through the processing case that sets up, feed inlet, intermittent type breaker, discharging pipe, reciprocal lead screw, driven gear, fixed block, transmission shaft, driven gear, mounting panel, driving motor, driving gear, drive gear, screw thread section of thick bamboo, stripper plate, movable plate, backup pad, loading board and the mouth of wearing, can extrude the waste plastic after smashing, reduces waste plastic's volume, makes things convenient for the transportation to store the waste plastic after smashing.

2. This categorised breaker of waste plastic through setting up riser, connecting axle, connecting rod, connection frame, slide opening, fixed plate, slide bar, pneumatic cylinder, second connection frame, slip mouth, limiting plate and slide-shaft, can be after the extrusion is smashed the waste plastic after, rotatory loading board slides extrusion's waste plastic in the frame and slides out the processing case and make things convenient for operating personnel to collect.

And the part that does not relate to among the device all is the same with prior art or can adopt prior art to realize, the utility model discloses avoid can extrude the waste plastics after smashing, reduce waste plastics's volume, make things convenient for the transportation to store the waste plastics after smashing and make things convenient for operating personnel to collect the waste plastics after the extrusion.

Drawings

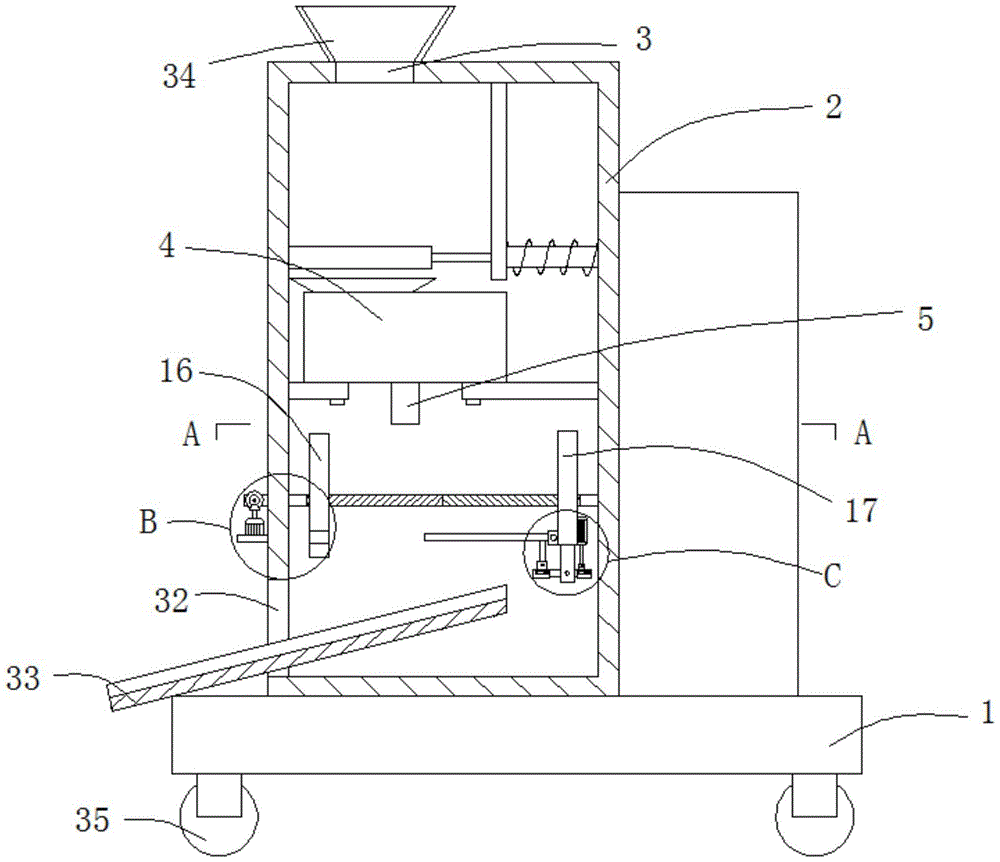

Fig. 1 is a schematic structural view of a waste plastic classification crusher provided by the present invention;

FIG. 2 is a cross-sectional view taken along line A-A of FIG. 1;

FIG. 3 is an enlarged view of portion B of FIG. 1;

fig. 4 is an enlarged schematic view of a portion C in fig. 1.

In the figure: 1 bottom plate, 2 treatment boxes, 3 feeding ports, 4 intermittent crushing devices, 5 discharging pipes, 6 reciprocating screw rods, 7 driven gears, 8 fixed blocks, 9 transmission shafts, 10 driven gears, 11 mounting plates, 12 driving motors, 13 driving gears, 14 transmission gears, 15 threaded cylinders, 16 extrusion plates, 17 moving plates, 18 supporting plates, 19 bearing plates, 20 through holes, 21 vertical plates, 22 connecting shafts, 23 connecting rods, 24 first connecting frames, 25 fixed plates, 26 sliding rods, 27 hydraulic cylinders, 28 second connecting frames, 29 sliding ports, 30 limiting plates, 31 sliding shafts, 32 discharging ports, 33 sliding frames, 34 feeding hoppers, 35 self-locking wheels and 36 sliding holes.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments.

In the description of the present invention, it is to be understood that the terms "upper", "lower", "front", "rear", "left", "right", "top", "bottom", "inner", "outer", and the like indicate orientations or positional relationships based on the orientations or positional relationships shown in the drawings, and are only for convenience of description and simplicity of description, and do not indicate or imply that the device or element being referred to must have a particular orientation, be constructed and operated in a particular orientation, and therefore, should not be construed as limiting the present invention.

Referring to fig. 1-4, a waste plastic classification crusher comprises a bottom plate 1, a processing box 2 is fixedly connected to the upper side wall of the bottom plate 1, a feeding port 3 is arranged on the upper side wall of the processing box 2, an intermittent crushing device 4 is arranged in the processing box 2, a discharging pipe 5 is fixedly communicated with the lower end of the intermittent crushing device 4, two reciprocating lead screws 6 are symmetrically and rotatably connected to the side walls of the left side and the right side of the processing box 2 through bearings, the left ends of the two reciprocating lead screws 6 penetrate through the side wall of the processing box 2 and are fixedly connected with a driven gear 7, two fixed blocks 8 are symmetrically and fixedly connected to the outer wall of the left side of the processing box 2, the side wall of the opposite side of the two fixed blocks 8 is rotatably connected with a same transmission shaft 9 through bearings, transmission gears 14 matched with the driven gear 7 are fixedly connected, the lateral wall fixedly connected with mounting panel 11 of handling case 2, the lateral wall fixedly connected with driving motor 12 of mounting panel 11, driving motor 12's output fixedly connected with and driven gear 10 assorted driving gear 13, two equal thread bush are equipped with two screw thread cylinders 15 outside the reciprocating screw 6, the same stripper plate 16 of lateral wall fixedly connected with that is located two screw thread cylinders 15 in one side in opposite directions on left side, the same movable plate 17 of lateral wall fixedly connected with that is located two screw thread cylinders 15 in opposite directions one side on right side, two backup pads 18 of lateral wall symmetry fixedly connected with of movable plate 17, the lateral wall of two backup pads 18 in opposite directions one side is rotated through the pivot and is connected with same loading board 19, the lateral wall of stripper plate 16 is seted up and is worn.

The lower side wall of the moving plate 17 is symmetrically and fixedly connected with two vertical plates 21, the side wall of one opposite side of the two vertical plates 21 is rotationally connected with a same connecting shaft 22 through a rotating shaft, the lower side wall of the bearing plate 19 is fixedly connected with a connecting rod 23, the lower end of the connecting rod 23 is provided with a first connecting frame 24, the upper side wall of the first connecting frame 24 is symmetrically and fixedly connected with two fixing plates 25, the side wall of one opposite side of the two fixing plates 25 is rotationally connected with the lower end of the connecting rod 23 through a rotating shaft, the front side wall and the rear side wall of the first connecting frame 24 are both provided with sliding holes 36, one end of the connecting shaft 22 is positioned in the first connecting frame 24 and is symmetrically and fixedly connected with two sliding rods 26 matched with the sliding holes 36, the right side wall of the moving plate 17 is fixedly connected with a hydraulic cylinder 27, the lower end of the hydraulic cylinder 27 is provided with a second connecting frame, the lateral walls of the opposite sides of the two limiting plates 30 are rotatably connected with the output end of the hydraulic cylinder 27 through rotating shafts, one end, far away from the first connecting frame 24, of the connecting shaft 22 is located in the second connecting frame 28, and the two sliding shafts 31 matched with the sliding ports 29 are symmetrically and fixedly connected, so that an operator can conveniently collect extruded waste plastics.

The threads on the surface of the reciprocating screw rod 6 are opposite, and the extrusion plate 16 and the moving plate 17 can be controlled to move towards the direction close to each other at the same time.

Handle case 2's left side wall and seted up discharge gate 32, handle the same sliding frame 33 of lateral wall fixedly connected with around case 2, outside sliding frame 33 left end was located and is handled case 2 through discharge gate 32, case 2 was handled to convenient extrusion's waste plastic roll-off.

The upper side wall fixedly connected with cover of handling case 2 establishes the feeder hopper 34 outside feed inlet 3, makes things convenient for waste plastic to get into in handling case 2.

The four corners of the lower surface of the bottom plate 1 are fixedly connected with self-locking wheels 35, so that the moving convenience of the device is improved.

In the utility model, in using, start driving motor 12, it is rotatory to drive transmission shaft 9 through mutually supporting of driving gear 13 and driven gear 10, it is rotatory to drive two reciprocating screw 6 through mutually supporting of driven gear 7 and drive gear 14, it removes to drive screw thread section of thick bamboo 15 through screw-thread fit, screw thread section of thick bamboo 15 drives stripper plate 16 and movable plate 17 to the direction that is close to each other to suitable position, make loading board 19 insert in wearing the mouth 20, then pause driving motor 12, the waste plastics after will smashing fall on loading board 19, start driving motor 12 here, make stripper plate 16 and movable plate 17 move to the direction that is close to each other once more, extrude waste plastics, reduce waste plastics's volume, the convenient transportation stores waste plastics after smashing; after extrusion, the extrusion plate 16 and the moving plate 17 are driven to move to proper positions in the direction away from each other through the mutual matching of the reciprocating screw rod 6 and the threaded cylinder 15, then the hydraulic cylinder 27 is started to drive the bearing plate 19 to rotate to the proper position, and the extruded waste plastic slides into the sliding frame 33 and slides out of the processing box, so that an operator can collect the waste plastic conveniently.

The above, only be the concrete implementation of the preferred embodiment of the present invention, but the protection scope of the present invention is not limited thereto, and any person skilled in the art is in the technical scope of the present invention, according to the technical solution of the present invention and the utility model, the concept of which is equivalent to replace or change, should be covered within the protection scope of the present invention.

Claims

1. The utility model provides a waste plastic classification breaker, includes bottom plate (1), its characterized in that, the last lateral wall fixedly connected with of bottom plate (1) handles case (2), the last lateral wall of handling case (2) has seted up feed inlet (3), be equipped with intermittent type breaker (4) in handling case (2), the fixed intercommunication of lower extreme of intermittent type breaker (4) has discharging pipe (5), the lateral wall of handling case (2) left and right sides is connected with two reciprocal lead screws (6) through bearing symmetry rotation, two the left end of reciprocal lead screw (6) all runs through the lateral wall of handling case (2) and fixedly connected with driven gear (7), the left side outer wall symmetry fixedly connected with two fixed blocks (8) of handling case (2), two the lateral wall of one side in opposite directions of fixed block (8) is connected with same transmission shaft (9) through bearing rotation, the equal fixedly connected with in both ends of transmission shaft (9) and driven gear (7) assorted drive gear (14), the fixed cover of pole wall of transmission shaft (9) is equipped with driven gear (10), the lateral wall fixedly connected with mounting panel (11) of processing case (2), the lateral wall fixedly connected with driving motor (12) of mounting panel (11), the output fixedly connected with of driving motor (12) and driven gear (10) assorted driving gear (13), two the outer equal thread bush of reciprocal lead screw (6) is equipped with two screw thread section of thick bamboo (15), is located the left side two the same stripper plate (16) of lateral wall fixedly connected with of one side in opposite directions of screw thread section of thick bamboo (15), be located the right side two the same movable plate (17) of lateral wall fixedly connected with one side in opposite directions of screw thread section of thick bamboo (15), the lateral wall symmetry fixedly connected with two backup pads (18) of movable, the lateral wall of two backup pad (18) one side in opposite directions is connected with same loading board (19) through the pivot rotation, wear mouth (20) with loading board (19) assorted are seted up to the lateral wall of stripper plate (16).

2. The classified crusher of garbage plastics according to claim 1, characterized in that the lower sidewall of the moving plate (17) is symmetrically and fixedly connected with two risers (21), the sidewall of one side of the two risers (21) opposite to each other is rotatably connected with a same connecting shaft (22) through a rotating shaft, the lower sidewall of the bearing plate (19) is fixedly connected with a connecting rod (23), the lower end of the connecting rod (23) is provided with a first connecting frame (24), the upper sidewall of the first connecting frame (24) is symmetrically and fixedly connected with two fixing plates (25), the sidewall of one side of the two fixing plates (25) opposite to each other is rotatably connected with the lower end of the connecting rod (23) through a rotating shaft, the front and rear sidewalls of the first connecting frame (24) are both provided with sliding holes (36), one end of the connecting shaft (22) is positioned in the first connecting frame (24) and is symmetrically and fixedly connected with two sliding rods (26) matched with the sliding holes (36), the right side wall fixedly connected with pneumatic cylinder (27) of movable plate (17), the lower extreme of pneumatic cylinder (27) is equipped with second connecting frame (28), slip mouth (29) have all been seted up to the lateral wall around second connecting frame (28), two limiting plates (30) of the last lateral wall symmetry fixedly connected with of second connecting frame (28), two limiting plate (30) rotate through the output of pivot with pneumatic cylinder (27) to the lateral wall of one side in opposite directions and are connected, the one end that first connecting frame (24) was kept away from in connecting axle (22) is located second connecting frame (28) and symmetry fixedly connected with two and slip mouthful (29) assorted slide axle (31).

3. A waste plastics sorting crusher according to claim 2, characterized in that the threads of the surfaces of the reciprocating screw (6) are opposite.

4. A waste plastic classification crusher according to claim 1, characterized in that the left side wall of the treatment box (2) is provided with a discharge port (32), the front and rear side walls of the treatment box (2) are fixedly connected with the same sliding frame (33), and the left end of the sliding frame (33) is positioned outside the treatment box (2) through the discharge port (32).

5. A waste-plastic classifying-crushing machine according to claim 1, characterized in that the upper side wall of the processing box (2) is fixedly connected with a feed hopper (34) covering the feed opening (3).

6. A waste-plastic sorting crusher according to claim 1, characterized in that self-locking wheels (35) are fixedly connected to the four corners of the lower surface of the bottom plate (1).
