Abstract

The utility model relates to a disinfection device for emergency nursing, comprising a support mechanism, a cleaning mechanism, a sterilization mechanism, a box body and a box door. It includes a motor, a rotating shaft and a placing frame. The motor and the rotating shaft are connected by a transmission mechanism, and the placing frame is fixed on the top of the rotating shaft. The cleaning mechanism includes a water tank, a steam generator, a booster pump, a steam spray head and a spray head, and the lower part of the water tank The water pipes are respectively connected with the water inlets of the steam generator and the booster pump. The gas outlet of the steam generator is connected with a gas delivery pipe with a steam nozzle, and the water outlet of the booster pump is connected with a water delivery pipe with a shower nozzle; the sterilization mechanism includes: UV lamp and protective cover; can achieve the effect of thorough cleaning and disinfection of medical equipment.

Description

A kind of disinfection device for emergency nursing

technical field

The utility model belongs to the technical field of medical equipment, in particular to a disinfection device for emergency nursing.

Background technique

The emergency department of each hospital is the department with the most severe patients, the most types of diseases, and the heaviest rescue and management tasks in the hospital. It is the only way for all emergency patients to be admitted to the hospital. However, the traditional manual cleaning method has been abandoned due to its low efficiency. The existing emergency department disinfection devices mostly use ultraviolet disinfection or the coexistence of ultraviolet disinfection and water cleaning during disinfection, but such disinfection devices will produce disinfection dead corners, leading to disinfection. Incomplete, it is difficult to rinse off the more difficult to clean stains; therefore, how to overcome the above existing technical problems and defects has become a key problem to be solved.

SUMMARY OF THE INVENTION

The purpose of the invention of the present invention is to overcome the defects described in the background art, so as to realize a sterilizing device which is convenient to use, cleans and sterilizes thoroughly.

In order to achieve the above purpose of the invention, the technical scheme of the present utility model is: a disinfection device for emergency nursing, comprising a support mechanism, a cleaning mechanism, a sterilization mechanism, a box body and a box door, and the support mechanism, the cleaning mechanism and the sterilization mechanism are respectively provided with In the lower part, upper part and middle part of the box body, an upper support frame and a lower support frame are respectively arranged inside the box body from top to bottom. The support mechanism includes a motor, a rotating shaft and a placing frame. connected by a transmission mechanism, the placement frame is fixed on the top of the rotating shaft, and the rotating shaft is rotatably connected to the lower support frame through a bearing; the cleaning mechanism includes a water tank, a steam generator, a booster pump, a steam spray head and a spray spray head , the lower part of the water tank is connected with the water inlet of the steam generator and the booster pump respectively through the water pipe, the air outlet of the steam generator is connected with a gas delivery pipe with a steam nozzle, and the water outlet of the booster pump is connected with a nozzle with a spray nozzle. The water delivery pipe of the shower head; the sterilization mechanism includes an ultraviolet lamp and a protective cover, the ultraviolet lamp is fixed on the inner wall of the box body, and a protective cover is provided on the inner wall of the box above the ultraviolet lamp.

Further, the motor is a stepping motor, and the transmission mechanism includes a driving wheel and a driven wheel, the driving wheel is fixed on the output shaft of the motor, and the driven wheel is fixed on the lower end of the rotating shaft.

Further, the driving wheel and the driven wheel are driven by a belt or a chain, or the driving wheel and the driven wheel are directly engaged for transmission.

Further, an upper deflector and a lower deflector are arranged between the lower support frame and the placement frame, the upper deflector is fixedly connected to the rotating shaft, and a sealing ring is arranged between the upper deflector and the rotating shaft. There is no contact between the lower guide plate and the rotating shaft to avoid mutual wear between the lower guide plate and the rotating shaft, and a water outlet pipe is arranged at the connection between the lower guide plate and the box.

Further, the steam nozzles are evenly arranged on the straight section at the lower part of the gas delivery pipe, and the steam nozzles are arranged above the left half of the placing frame; the spray nozzles are evenly arranged on the straight section at the lower part of the water delivery pipe, and the The sprinkler head is set above the right half of the placement frame.

Further, a waterproof membrane is provided on the outside of the ultraviolet lamp, and the protective cover is an annular protective cover, which protects the ultraviolet lamp.

Further, a water inlet pipe and a water level gauge are arranged on the upper part of the water tank to detect the water level in the water tank, a heating plate is arranged on the inner wall of the box around the placement frame, and an exhaust fan is arranged on the upper part of the box body. A filter screen is arranged on the outside to dry the medical equipment.

Further, the box door is arranged on the outer wall of the box body corresponding to the placement frame, and a travel switch is arranged between the box door and the box body, and the travel switch controls the opening and closing of the ultraviolet lamp and the motor.

Beneficial effects of the utility model: The utility model uses the high-temperature steam generated by the steam generator to carry out preliminary disinfection of medical instruments, and dissolves oil stains, blood stains and other difficult-to-clean stains on the surface of the medical instruments and in the gaps, so that the cleaning of medical instruments is more efficient. It is clean and can sterilize the gaps of medical equipment. Using a booster pump to increase the pressure of the water can better wash away the stains dissolved by the steam, which can effectively improve the cleaning effect; the travel switch between the box door and the box body Control the motor and UV light, the travel switch will open with the door, turn off the motor and UV light to protect the safety of users.

Description of drawings

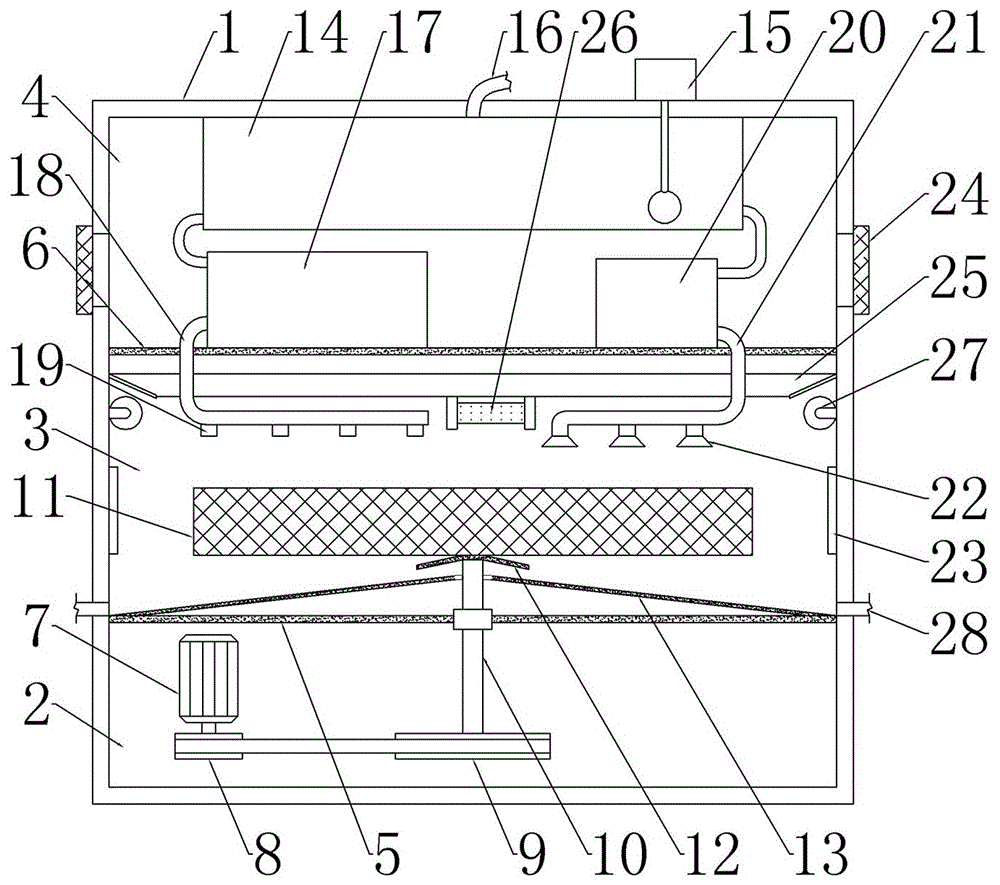

Figure 1 is a schematic structural diagram of a disinfection device for emergency nursing of the present invention.

In the figure: 1, box 2, lower box 3, middle box 4, upper box 5, lower support frame 6, upper support frame 7, motor 8, driving wheel 9, driven wheel 10, rotating shaft 11, placement Frame 12, upper deflector 13, lower deflector 14, water tank 15, water level gauge 16, water inlet pipe 17, steam generator 18, gas pipe 19, steam nozzle 20, booster pump 21, water pipe 22, spray Nozzle 23, electric heating plate 24, exhaust fan 25, protective cover 26, ultraviolet lamp 27, ultraviolet lamp cover 28 water outlet.

Detailed ways

The present utility model will be described in more detail below with reference to the accompanying drawings and through specific embodiments.

In the description of the present invention, it should be understood that the terms "upper", "lower", "front", "rear", "left", "right", "top", "bottom", "inside", The orientation or positional relationship indicated by "outside" is based on the orientation or positional relationship shown in the accompanying drawings, which is only for the convenience of describing the present invention and simplifying the description, rather than indicating or implying that the indicated device or element must have a specific orientation , are constructed and operated in a specific orientation, and therefore should not be construed as a limitation of the present invention.

Referring to FIG. 1 , a disinfection device for emergency nursing in this embodiment includes a support mechanism, a cleaning mechanism, a sterilization mechanism, a box body 1 and a box door, and the box door is arranged on the outer wall of the box body 1 corresponding to the placement frame 11 , a travel switch is arranged between the box door and the box body, and the travel switch controls the opening and closing of the ultraviolet lamp and the motor. , the box body 1 is provided with an upper support frame 6 and a lower support frame 5 from top to bottom. The support mechanism includes a motor 7, a rotating shaft 10 and a placement frame 11. The motor 7 and the rotating shaft 10 are arranged between Connected by a transmission mechanism, the motor is a stepping motor, and the transmission mechanism includes a driving wheel 8 and a driven wheel 9, the driving wheel 8 is fixed on the output shaft of the motor 7, and the driven wheel 9 is fixed on the lower end of the rotating shaft 10, so The driving wheel 8 and the driven wheel 9 are driven by a belt or a chain, or the driving wheel 8 and the driven wheel 9 are directly meshed for transmission. The placement frame 11 is fixed on the top of the rotating shaft 10, and the rotating shaft 10 is supported by bearings The frame 5 is rotatably connected, an upper baffle 12 and a lower baffle 13 are arranged between the lower support frame 5 and the placing frame 11, the upper baffle 12 is fixedly connected with the rotating shaft 10, and the upper baffle 12 A sealing ring is arranged between the rotating shaft 10 and the lower baffle 13 and the rotating shaft 10 is not in contact, so as to avoid mutual wear between the lower baffle 13 and the rotating shaft 10, and the lower baffle 13 is in phase with the box body 1. A water outlet pipe 28 is provided at the junction; the cleaning mechanism includes a water tank 14, a steam generator 17, a booster pump 20, a steam nozzle 19 and a spray nozzle 22, and the upper part of the water tank 14 is provided with a water inlet pipe 16 and a water level gauge 15, The water level in the water tank is detected, the lower part of the water tank 14 is connected with the water inlet of the steam generator 17 and the booster pump 20 through water pipes, respectively, and the air outlet of the steam generator 17 is connected with the air pipe 18 with the steam nozzle 19, so The steam spray head 19 is evenly arranged on the straight section of the lower part of the gas transmission pipe 18, the steam spray head 19 is arranged above the left half of the placement frame 11, and the water outlet of the booster pump 20 is connected with a water outlet with a spray spray head 22. The water pipe 21, the spray nozzle 22 is evenly arranged on the straight section of the lower part of the water delivery pipe 21, the spray nozzle 22 is arranged above the right half of the placing frame 11, and the sterilization mechanism includes an ultraviolet lamp 26 and a protective cover 25 , the ultraviolet lamp 26 is fixed on the inner wall of the box body 1, the outer side of the ultraviolet lamp 26 is provided with a waterproof membrane, and both ends of the ultraviolet lamp 26 are provided with an ultraviolet lamp shade 27 to protect the circuit of the ultraviolet lamp, and the protective cover 25 It is a ring-shaped protective cover, which plays a protective role for the ultraviolet lamp. The inner wall of the box body 1 above the ultraviolet lamp 26 is provided with a protective cover 25, and the inner wall of the box body 1 around the placement frame 11 is provided with a heating plate 23. An exhaust fan 24 is arranged on the upper part of the box body 1, and a filter screen is arranged on the outer side of the exhaust fan 24 to dry the medical device.

When in use, the medical device is placed in the placing frame, the motor drives the placing frame to rotate at a constant speed, the medical device in the placing frame is sterilized with high-temperature steam, and then the medical device is sprayed with high-pressure water to clean the medical device. The cleaning water flows out through the water outlet pipe, starts the electric heating plate and the exhaust fan, dries the medical equipment, and finally turns on the ultraviolet lamp to sterilize the medical equipment. For equipment, the travel switch between the box door and the box body controls the motor and the UV light. The travel switch will open the box door and turn off the motor and the UV light to protect the safety of the user.

Unless otherwise defined, technical or scientific terms used herein shall have the ordinary meaning as understood by one of ordinary skill in the art to which this invention belongs. The use of words such as "a" or "an" in the specification and claims of this application does not necessarily imply a quantitative limitation. "Comprising" or "comprising" and similar words mean that the elements or things appearing before the word encompass the elements or things recited after the word and their equivalents, but do not exclude other elements or things. "Connected" or "connected" and the like are not limited to physical or mechanical connections, but may include electrical connections, whether direct or indirect.

Exemplary embodiments of the present invention are described in detail above with reference to the preferred embodiments. However, those skilled in the art can understand that, without departing from the concept of the present invention, various modifications can be made to the above-mentioned specific embodiments. Variations and modifications, and various combinations of the technical features and structures proposed by the present utility model can be carried out without exceeding the protection scope of the present utility model.

Claims (8)

1. The utility model provides a degassing unit is used in emergency nursing, includes supporting mechanism, wiper mechanism, the mechanism of disinfecting, box and chamber door, supporting mechanism, wiper mechanism and the mechanism of disinfecting set up respectively in the lower part of box, upper portion and middle part, its characterized in that: an upper support frame and a lower support frame are respectively arranged in the box body from top to bottom, the support mechanism comprises a motor, a rotating shaft and a placing frame, the motor and the rotating shaft are connected through a transmission mechanism, the placing frame is fixed at the top of the rotating shaft, and the rotating shaft is rotatably connected with the lower support frame through a bearing; the cleaning mechanism comprises a water tank, a steam generator, a booster pump, a steam nozzle and a spray nozzle, wherein the lower part of the water tank is respectively connected with the steam generator and a water inlet of the booster pump through water pipes, a gas outlet of the steam generator is connected with a gas pipe with the steam nozzle, and a water outlet of the booster pump is connected with a water pipe with the spray nozzle; the sterilization mechanism comprises an ultraviolet lamp and a protective cover, the ultraviolet lamp is fixed on the inner wall of the box body, and the protective cover is arranged on the inner wall of the box body above the ultraviolet lamp.

2. The emergency care disinfection device of claim 1, wherein: the motor is a stepping motor, the transmission mechanism comprises a driving wheel and a driven wheel, the driving wheel is fixed on an output shaft of the motor, and the driven wheel is fixed at the lower end of the rotating shaft.

3. The emergency care disinfecting device according to claim 2, wherein: the driving wheel and the driven wheel are in transmission through a belt or a chain, or the driving wheel and the driven wheel are in direct meshing transmission.

4. The emergency care disinfection device of claim 1, wherein: an upper guide plate and a lower guide plate are arranged between the lower support frame and the placing frame, the upper guide plate is fixedly connected with the rotating shaft, and a water outlet pipe is arranged at the joint of the lower guide plate and the box body.

5. The emergency care disinfection device of claim 1, wherein: the steam spray heads are uniformly arranged on the straight section at the lower part of the gas transmission pipe, and the steam spray heads are arranged above the left half part of the placing frame; the spray nozzles are uniformly arranged on the straight section at the lower part of the water delivery pipe, and the spray nozzles are arranged above the right half part of the placing frame.

6. The emergency care disinfection device of claim 1, wherein: the outer side of the ultraviolet lamp is provided with a waterproof membrane, and the protective cover is an annular protective cover.

7. The emergency care disinfection device of claim 1, wherein: the water tank upper portion is provided with inlet tube and fluviograph, it is provided with the hot plate to place on the box inner wall around the frame, box upper portion is provided with the air exhauster, the air exhauster outside is provided with the filter screen.

8. The emergency care disinfection device of claim 1, wherein: the box door is arranged on the outer wall of the box body corresponding to the placing frame, and a travel switch is arranged between the box door and the box body.
