Abstract
An improved adsorption type massage instrument comprises a driving mechanism and an adsorption cavity massage head, wherein the upper end of the adsorption cavity massage head is provided with a universal connector, the driving mechanism is connected with the adsorption cavity massage head through the universal connector, an elastic panel is arranged in the massage head of the adsorption cavity, the universal connector comprises a mounting plate and a spherical column body, the mounting plate is a rectangular plate which is symmetrically connected, a spherical cavity is arranged in the middle of the connecting end of the mounting plate, the spherical end of the spherical column body is matched with the spherical cavity, the cylindrical end of the spherical column body is connected with the driving mechanism, an improved generation adsorbs formula massage appearance, adsorb the chamber massage head and be connected with drive aircraft nose universal joint head, the during operation adsorbs the chamber massage head can the activity deflect, better laminating massage position adsorbs the soft silica gel panel of the elasticity of chamber massage head, reduces the vibrations power when soft, has further improved the travelling comfort when using.
Description
Technical Field
The utility model belongs to massager equipment field especially relates to an improved generation adsorbs formula massage appearance.
Background
For some working people and computer people who lack of sedentary movement, the neck, the shoulders, the hands and the waist and the back of the people often feel uncomfortable, manual massage is inconvenient, a special person has high long-term massage cost and consumes time, and the massager can promote the blood circulation of the neck in a vibration or beating massage mode, relieve the discomfort caused by keeping a certain fixed posture for a long time, thereby achieving the effects of relieving fatigue and effectively preventing diseases.
Among the prior art, the massage appearance is mainly to the neck massage, and first fixed connection of massage is on actuating mechanism, because the restriction of material and structure, the vacuum pump during operation is massaged to first fixed shrink, and the first unable deflection of massage, massage effect is limited, and is relatively poor with the sense of touch of skin contact, and when lasting the work for a long time, the neck is uncomfortable easily.
SUMMERY OF THE UTILITY MODEL
The utility model provides an improved adsorption type massage device aiming at the defects of the prior art.
In order to solve the above problems, the utility model adopts the following technical proposal:
the improved adsorption type massage instrument comprises a driving mechanism and an adsorption cavity massage head, wherein a universal connector is arranged at the upper end of the adsorption cavity massage head, the driving mechanism and the adsorption cavity massage head are connected through the universal connector, and an elastic panel is arranged in the adsorption cavity massage head.
Further, universal connector includes mounting panel and spherical cylinder, the mounting panel is symmetrical connection's rectangular plate, and mounting panel link middle part is equipped with spherical cavity, and the spherical end and the cooperation of spherical cavity of spherical cylinder, the cylindricality end and the actuating mechanism of spherical cylinder are connected.
Further, actuating mechanism includes casing, circuit board, evacuation pump and shock dynamo, the casing is the oval cavity of silica gel arc, and the circuit board is the L shaped plate, and the evacuation pump is the cylinder, and circuit board and evacuation pump fixed mounting are at casing inner chamber both ends, and evacuation pump and absorption chamber massage head tube coupling, shock dynamo fixed mounting are in casing inner chamber middle part one side, evacuation pump and shock dynamo respectively with circuit board electric connection.
Furthermore, the elastic panel of the massage head of the adsorption cavity is a soft silica gel panel with a cone frustum column cavity.
Further, adsorb first upper surface in chamber massage and evenly be equipped with the sealed perpendicular silica gel column chamber in upper end, the first inside chamber connecting screw that adsorbs in the cladding of silica gel column chamber lower extreme adsorbs the chamber massage, adsorbs first upper surface middle part in chamber massage and is equipped with the hemisphere groove, and the hemisphere groove is equipped with sunken groove all around, and sunken groove and the connecting hole position one-to-one of mounting panel, the mounting panel periphery of connecting actuating mechanism and adsorbing between the chamber massage head is equipped with the elasticity guard shield.
Furthermore, a cylindrical key switch is arranged on the circuit board, a column hole is formed in the upper wall of the shell above the cylindrical key switch, and the cylindrical key switch is matched with the column hole.
Compared with the prior art, the utility model discloses an implement the effect as follows:
an improved generation adsorbs formula massage appearance, adsorb chamber massage head and be connected with drive aircraft nose universal joint head, the during operation adsorbs chamber massage head can the activity deflect, better laminating massage position adsorbs the soft silica gel panel of elasticity of chamber massage head, soft reduces the vibrations power in the time, has further improved the travelling comfort when using.
Drawings

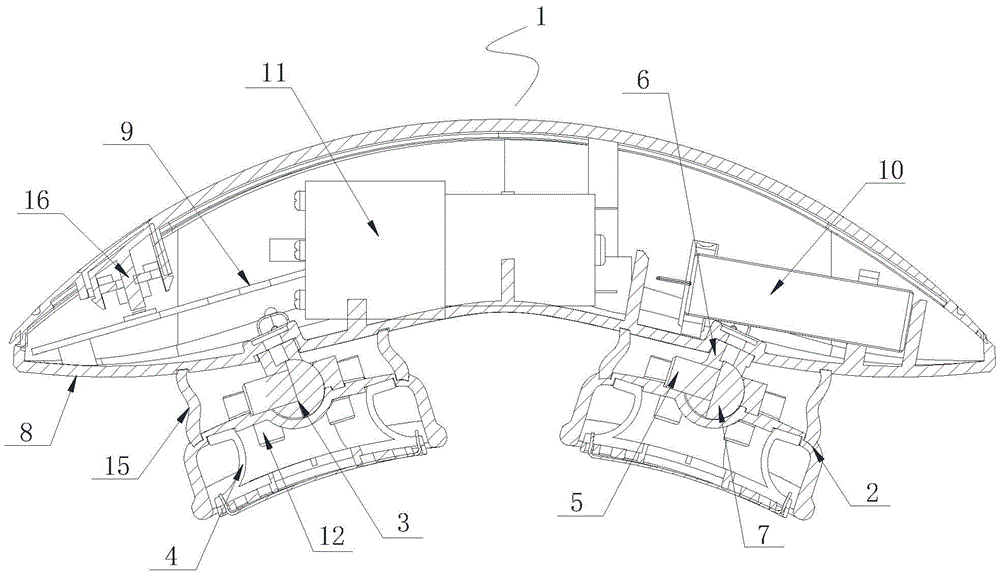

Fig. 1 is a schematic sectional view of an improved adsorption type massage apparatus according to the present invention;
fig. 2 is a schematic view of an appearance structure of an improved adsorption type massage apparatus of the present invention;
fig. 3 is a schematic structural view of an improved driving mechanism of the adsorption type massage apparatus of the present invention;
fig. 4 is a schematic view of a massage head structure of an adsorption cavity of an improved adsorption type massage apparatus according to the present invention;
fig. 5 is a schematic view of an improved adsorption type massage apparatus wife as a massage head explosion structure.
Detailed Description
The present invention will be described with reference to specific embodiments.
As shown in fig. 1-5, the improved adsorption type massage apparatus comprises a driving mechanism 1 and an adsorption cavity massage head 2, wherein a universal connector 3 is arranged at the upper end of the adsorption cavity massage head 2, the driving mechanism 1 and the adsorption cavity massage head 2 are connected through the universal connector 3, and an elastic panel 4 is arranged in the adsorption cavity massage head 2.
Through the spherical column 6 of universal connector 3 and the ball of mounting panel 5 changes the structure, realized the absorption chamber of massage appearance massage head 2 and actuating mechanism 1's universal rotation, it is nimble to absorb chamber massage head 2 deflection, the massage appearance during operation, it can with the better laminating in massage position to absorb chamber massage head 2, it adopts elasticity panel 4 to absorb chamber massage head 2, the sense of touch soft with human massage position contact, the massage comfort of massage appearance has further been improved.
Actuating mechanism 1 includes casing 8, circuit board 9, evacuation pump 10 and shock dynamo 11, casing 8 is the oval cavity of silica gel arc, circuit board 9 is the L shaped plate, evacuation pump 10 is the cylinder, circuit board 9 and evacuation pump 10 fixed mounting are at 8 inner chamber both ends of casing, evacuation pump 10 and absorption chamber massage head 2 tube coupling, shock dynamo 11 fixed mounting is in 8 inner chamber middle part one side of casing, evacuation pump 10 and shock dynamo 11 respectively with circuit board 9 electric connection, through circuit board 9 control, evacuation pump 10 during operation will adsorb chamber massage head 2 internal air and take out, the shrink of absorption chamber massage head 2 adsorbs the absorption and presses the position, shock dynamo 11 vibrations realizes the effect of vibrations massage, evacuation pump 10 during stop work, adsorb chamber massage head 2 reconversion and break away from with the massage position, moreover, the steam generator is simple in structure, high durability and convenient use.
The elastic panel 4 of the adsorption cavity massage head 2 is a cone frustum column cavity soft silica gel panel, so that the soft characteristic of the adsorption cavity massage head 2 is improved, the contact touch feeling with a massage part is comfortable, the massage comfort of the massage instrument is further improved, and when the vacuum pumping pump 10 stops working, the elastic panel 4 automatically resets under the self soft silica gel characteristic.
Adsorb chamber massage head 2 upper surface and evenly be equipped with the sealed perpendicular silica gel column chamber 12 in upper end, the inside chamber connection screw that adsorbs of chamber massage head is adsorbed in the cladding of silica gel column chamber lower extreme, adsorb chamber massage head 2 upper surface middle part and be equipped with hemisphere groove 16, hemisphere groove 16 is equipped with sunken groove 17 all around, sunken groove 17 and mounting panel 5's connecting hole position one-to-one, when making adsorb chamber and mounting panel 5 screwed connection, the screw is difficult for causing the airtight cavity of absorption chamber massage head 2 damaged, guarantee that the gas tightness is good, make evacuation pump 10 during operation, the negative pressure adsorption effect of massage appearance is good, it is equipped with elastic shield 15 to connect actuating mechanism and the mounting panel 5 periphery of adsorbing between the chamber massage head, when adsorbing chamber massage head 2 can normally shrink, the outward appearance is more pleasing to the eye.
The circuit board 9 is provided with a cylindrical key switch 16, the upper wall of the shell 8 above the cylindrical key switch 16 is provided with a column hole 17, the cylindrical key switch 16 is matched with the column hole 17, the cylindrical key switch 16 is convenient to use, the work control of the massager is simple, and the appearance is attractive and elegant.
To sum up, an improved generation adsorbs formula massage appearance, adsorb chamber massage head 2 and be connected with drive aircraft nose universal joint 3, the during operation adsorbs chamber massage head 2 can the activity deflection, better laminating massage position, adsorbs the soft silica gel panel of the elasticity of chamber massage head 2, reduces the shaking force when providing soft sense of touch, has further improved the travelling comfort when the massage appearance uses.
The above description is only exemplary of the present invention and should not be taken as limiting the scope of the present invention, as any modifications, equivalents, improvements and the like made within the spirit and principles of the present invention are intended to be included within the scope of the present invention.
Claims (6)
1. The improved adsorption type massage instrument comprises a driving mechanism and an adsorption cavity massage head and is characterized in that a universal connector is arranged at the upper end of the adsorption cavity massage head, the driving mechanism and the adsorption cavity massage head are connected through the universal connector, and an elastic panel is arranged in the adsorption cavity massage head.
2. The improved adsorption massager of claim 1 wherein the universal connector comprises a mounting plate and a spherical cylinder, the mounting plate is a rectangular plate with symmetrical connection, a spherical cavity is arranged in the middle of the connecting end of the mounting plate, the spherical end of the spherical cylinder is matched with the spherical cavity, and the cylindrical end of the spherical cylinder is connected with the driving mechanism.
3. The improved adsorption type massage apparatus according to claim 1, wherein the driving mechanism comprises a housing, a circuit board, a vacuum pump and a vibration motor, the housing is a silica gel arc-shaped elliptical cavity, the circuit board is an L-shaped board, the vacuum pump is a cylinder, the circuit board and the vacuum pump are fixedly installed at two ends of an inner cavity of the housing, the vacuum pump is connected with the adsorption cavity massage head pipeline, the vibration motor is fixedly installed at one side of the middle part of the inner cavity of the housing, and the vacuum pump and the vibration motor are electrically connected with the circuit board respectively.
4. The improved adsorption type massage apparatus as claimed in claim 1, wherein the elastic panel of the adsorption cavity massage head is a cone frustum column cavity soft silica gel panel.
5. The improved adsorption type massage apparatus as claimed in claim 2, wherein the upper surface of the massage head of the adsorption chamber is uniformly provided with a vertical silica gel column chamber with a sealed upper end, the lower end of the silica gel column chamber covers the connection screw of the adsorption chamber inside the massage head of the adsorption chamber, the middle part of the upper surface of the massage head of the adsorption chamber is provided with a hemispherical groove, the periphery of the hemispherical groove is provided with a sunken groove, the sunken groove is in one-to-one correspondence with the connection hole position of the mounting plate, and the periphery of the mounting plate connecting the driving mechanism and the massage head of the adsorption chamber is provided with an elastic shield.
6. The improved absorption massager of claim 3 wherein the circuit board is provided with a cylindrical key switch, the upper wall of the housing above the cylindrical key switch is provided with a cylindrical hole, and the cylindrical key switch is matched with the cylindrical hole.
