Abstract
The utility model discloses a range unit for electric power construction, which comprises a fixing plate and i, the bottom outer wall of fixed plate is provided with the supporting leg, and the top outer wall of fixed plate is provided with the connecting plate, one side outer wall of connecting plate is provided with rotary damper, and one side inner wall of rotary damper rotates and is connected with the dwang, the top outer wall of dwang is provided with the fixed column, and the one end outer wall of fixed column is provided with the distancer body, one side outer wall of distancer body is provided with laser emitter and laser receiver respectively, and one side outer wall of distancer body rotates and is connected with the pivot. The utility model discloses when people need not use the distancer body, people take out clamping screw from first screw hole, and people shelter from laser emitter and laser receiver through rotating the protective cover afterwards to effectual camera lens of having avoided laser emitter and laser receiver scrapes the flower, has influenced staff's normal work.
Description
Technical Field
The utility model relates to an electric power construction technical field especially relates to a range unit for electric power construction.
Background
In the electric power construction process, often need ascend a height to install or change electric power fitting (like electric power fitting, insulator etc.), often need install according to appointed installation distance when installing these electric power fitting, and the instrument that is used for measuring electric power fitting mounted position at present generally adopts the tape measure, but because hardly carry out accurate control to the position in handheld use, consequently can cause certain measuring error, so laser range finder carries out distance measurement commonly used by us.
At present, laser range finder on the market is not only complicated in structure, and the function is single moreover, and traditional laser range finder can't use under the bad condition of light, has reduced work efficiency, and does not have protection device on laser emitter and the laser receiver, makes the lens on it cause to scrape flower and foul pollution very easily, has reduced measurement accuracy, influences the engineering progress. Therefore, a distance measuring device for power construction is needed to solve the above problems.
SUMMERY OF THE UTILITY MODEL
The utility model aims at solving the shortcoming that exists among the prior art, and the range unit for electric power construction who provides.
In order to achieve the above purpose, the utility model adopts the following technical scheme:
the utility model provides a range unit for electric power construction, includes the fixed plate, the bottom outer wall of fixed plate is provided with the supporting leg, and the top outer wall of fixed plate is provided with the connecting plate, one side outer wall of connecting plate is provided with rotary damper, and one side inner wall of rotary damper rotates and is connected with the dwang, the top outer wall of dwang is provided with the fixed column, and the one end outer wall of fixed column is provided with the distancer body, one side outer wall of distancer body is provided with laser emitter and laser receiver respectively, and one side outer wall of distancer body rotates and is connected with the pivot, the one end of pivot is provided with the protective cover, one side outer wall of distancer body is opened respectively has first screw hole and second screw hole, and.
As the utility model discloses scheme further again, the top outer wall of distancer body is provided with the support frame, and the one end outer wall of support frame is provided with the telescope body.
As the utility model discloses scheme further again, the top outer wall of connecting plate is provided with the bracing piece, and the one end outer wall of bracing piece is provided with the sunshading board.
As the utility model discloses scheme further again, one side outer wall of distancer body is opened there is the mounting groove, and the inside LED lamp that is provided with of mounting groove.
As a further proposal, the internal thread of the first threaded hole is connected with a fixing screw.
As the utility model discloses scheme further again, the one end outer wall of fixed column is provided with the fixing base, and one side outer wall of fixing base is provided with electric putter.
As a further proposal, the outer wall of one end of the electric push rod is provided with a clamping plate.
The utility model has the advantages that:
1. through the arrangement of the rotating rod, the fixed column and the range finder body, when people carry out range finding work, people can rotate the rotating rod to drive the fixed column and the range finder body to rotate, so that the measuring angle of the range finder body can be adjusted, and the device can be suitable for measuring in different regions;
2. through the arrangement of the protective cover, the first threaded hole, the second threaded hole, the rotating shaft and the fixing screw rod, when people do not need to use the range finder body, people take the fixing screw rod out of the first threaded hole, and then people shield the laser transmitter and the laser receiver by rotating the protective cover, so that the problem that the normal work of workers is influenced by scraping of lenses of the laser transmitter and the laser receiver is effectively avoided;
3. through electric putter, fixing base and the grip block that sets up, people can place the distancer body in the fixing base bottom and start electric putter afterwards, and electric putter drives the grip block and removes and can fix the distancer body to make things convenient for the dismouting work of people to the distancer body.
Drawings

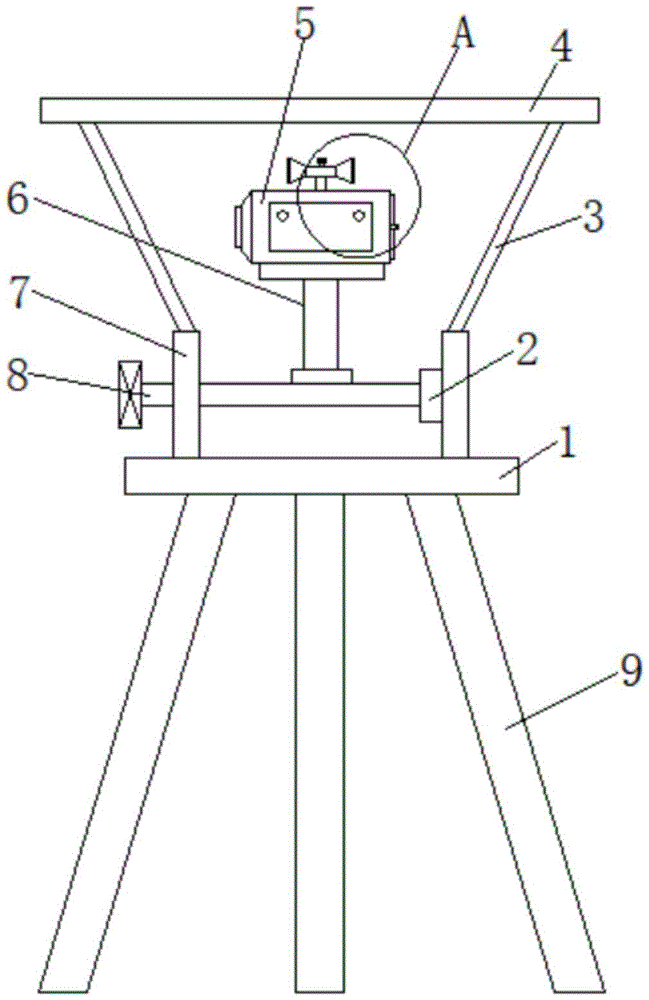

Fig. 1 is a schematic structural diagram of a distance measuring device for electric power construction according to embodiment 1;
fig. 2 is a schematic view of a partially enlarged structure at a position a of a distance measuring device for electric power construction according to embodiment 1;
fig. 3 is a schematic side view of a distance measuring instrument body of the distance measuring device for electric power construction according to embodiment 1;
fig. 4 is a schematic view of a protective cover of the distance measuring device for electric power construction in embodiment 1;
fig. 5 is a schematic view of a fixing base structure of a distance measuring device for electric power construction according to embodiment 2;
fig. 6 is a schematic diagram of a clamping plate structure of the distance measuring device for electric power construction according to embodiment 2.
In the figure: 1 fixed plate, 2 rotary damper, 3 bracing pieces, 4 sunshading boards, 5 distancer bodies, 6 fixed columns, 7 connecting plates, 8 dwang, 9 supporting legs, 10 telescope bodies, 11 protective covers, 12 pivots, 13 mounting grooves, 14LED lamps, 16 first screw holes, 17 set screw, 18 laser emitter, 19 laser receiver, 20 second screw holes, 21 fixing bases, 22 grip blocks, 23 electric putter.
Detailed Description
The technical solution of the present patent will be described in further detail with reference to the following embodiments.
Reference will now be made in detail to embodiments of the present patent, examples of which are illustrated in the accompanying drawings, wherein like or similar reference numerals refer to the same or similar elements or elements having the same or similar function throughout. The embodiments described below with reference to the drawings are exemplary only for the purpose of explaining the present patent and are not to be construed as limiting the present patent.
In the description of this patent, it is to be understood that the terms "center," "upper," "lower," "front," "rear," "left," "right," "vertical," "horizontal," "top," "bottom," "inner," "outer," and the like are used in the orientations and positional relationships indicated in the drawings for the convenience of describing the patent and for the simplicity of description, and are not intended to indicate or imply that the referenced devices or elements must have a particular orientation, be constructed and operated in a particular orientation, and are not to be considered limiting of the patent.
In the description of this patent, it is noted that unless otherwise specifically stated or limited, the terms "mounted," "connected," and "disposed" are to be construed broadly and can include, for example, fixedly connected, disposed, detachably connected, disposed, or integrally connected and disposed. The specific meaning of the above terms in this patent may be understood by those of ordinary skill in the art as appropriate.
Example 1
Referring to fig. 1 to 4, a distance measuring device for electric power construction includes a fixed plate 1, a supporting leg 9 connected to the outer wall of the bottom of the fixed plate 1 by a bolt, the outer wall of the top of the fixed plate 1 is connected with a connecting plate 7 through a bolt, the outer wall of one side of the connecting plate 7 is connected with a rotary damper 2 through a bolt, and the inner wall of one side of the rotary damper 2 is rotatably connected with a rotating rod 8, the outer wall of the top part of the rotating rod 8 is connected with a fixed column 6 through a bolt, the outer wall of one end of the fixed column 6 is connected with a distance measuring instrument body 5 through a bolt, the outer wall of one side of the distance measuring instrument body 5 is respectively provided with a laser emitter 18 and a laser receiver 19, and the outer wall of one side of distancer body 5 is connected with pivot 12 in a rotating manner, and the one end of pivot 12 is provided with protective cover 11, and the outer wall of one side of distancer body 5 is opened first screw hole 16 and second screw hole 20 respectively, and first screw hole 16 is the same with the specification of second screw hole 20.
Wherein, the top outer wall of distancer body 5 has the support frame through bolted connection, and the one end outer wall of support frame has telescope body 10 through bolted connection, and the top outer wall of connecting plate 7 has bracing piece 3 through bolted connection, and the one end outer wall of bracing piece 3 has sunshading board 4 through bolted connection, and one side outer wall of distancer body 5 is opened has mounting groove 13, and the inside LED lamp 14 that is provided with of mounting groove 13, and the inside threaded connection of first screw hole 16 has clamping screw 17.
The working principle is as follows: people are carrying out the range finding during operation, can rotate dwang 8, drive the rotation of fixed column 6 and distancer body 5 through dwang 8, can adjust the measurement angle of distancer body 5, thereby make the device can be applicable to the measurement in different regions, when people need not use distancer body 5, people take out clamping screw 17 from first screw hole 16, people rotate protective cover 11 through pivot 12 afterwards and shelter from laser emitter 18 and laser receiver 19, thereby the flower is scraped to effectual camera lens of having avoided laser emitter 18 and laser receiver 19, staff's normal work has been influenced.
Example 2
Referring to fig. 5 to 6, in the distance measuring device for electric power construction, in this embodiment, compared with embodiment 1, an outer wall of one end of a fixing column 6 is connected with a fixing seat 21 through a bolt, an outer wall of one side of the fixing seat 21 is connected with an electric push rod 23 through a bolt, and an outer wall of one end of the electric push rod 23 is connected with a clamping plate 22 through a bolt.
The working principle is as follows: when people work in distance measurement, the distance measuring instrument body 5 can be placed at the bottom of the fixed seat 21, then the electric push rod 23 is started, the electric push rod 23 drives the clamping plate 22 to move so as to fix the distance measuring instrument body 5, thereby facilitating the disassembly and assembly work of people on the distance measuring instrument body 5, then people can rotate the rotating rod 8, the rotating rod 8 drives the fixed column 6 and the distance measuring instrument body 5 to rotate, so that the measuring angle of the distance measuring instrument body 5 can be adjusted, thereby the device can be suitable for the measurement of different regions, when people do not need to use the distance measuring instrument body 5, one takes the fixing screw 17 out of the first threaded hole 16, and then one turns the protecting cover 11 through the rotation shaft 12 to shield the laser transmitter 18 and the laser receiver 19, therefore, the lens scratching of the laser transmitter 18 and the laser receiver 19 is effectively avoided, and the normal work of workers is influenced.
The above, only be the concrete implementation of the preferred embodiment of the present invention, but the protection scope of the present invention is not limited thereto, and any person skilled in the art is in the technical scope of the present invention, according to the technical solution of the present invention and the utility model, the concept of which is equivalent to replace or change, should be covered within the protection scope of the present invention.
Claims (7)
1. The utility model provides a range unit for electric power construction, includes fixed plate (1), its characterized in that, the bottom outer wall of fixed plate (1) is provided with supporting leg (9), and the top outer wall of fixed plate (1) is provided with connecting plate (7), one side outer wall of connecting plate (7) is provided with rotary damper (2), and one side inner wall rotation of rotary damper (2) is connected with dwang (8), the top outer wall of dwang (8) is provided with fixed column (6), and the one end outer wall of fixed column (6) is provided with distancer body (5), one side outer wall of distancer body (5) is provided with laser emitter (18) and laser receiver (19) respectively, and one side outer wall rotation of distancer body (5) is connected with pivot (12), the one end of pivot (12) is provided with protective cover (11), first screw hole (16) and second screw hole(s) (2) have been opened respectively to one side outer wall of dista 20) And the first threaded hole (16) and the second threaded hole (20) have the same specification.
2. The distance measuring device for power construction as claimed in claim 1, wherein the outer wall of the top of the distance measuring instrument body (5) is provided with a support frame, and the outer wall of one end of the support frame is provided with a telescope body (10).
3. The distance measuring device for electric power construction as claimed in claim 2, wherein the top outer wall of the connecting plate (7) is provided with the support rod (3), and the outer wall of one end of the support rod (3) is provided with the sun shield (4).
4. The distance measuring device for power construction as claimed in claim 3, wherein an installation groove (13) is formed on one outer wall of the distance measuring instrument body (5), and an LED lamp (14) is arranged in the installation groove (13).
5. The distance measuring device for electric power construction as claimed in claim 4, wherein a fixing screw (17) is threadedly connected to an inner portion of the first threaded hole (16).
6. The distance measuring device for electric power construction as claimed in claim 2 or 3, wherein a fixing seat (21) is provided on an outer wall of one end of the fixing column (6), and an electric push rod (23) is provided on an outer wall of one side of the fixing seat (21).
7. The distance measuring device for electric power construction as claimed in claim 6, wherein a clamping plate (22) is provided on an outer wall of one end of the electric push rod (23).
