CN212166196U

CN212166196U - Mask storage and disinfection device

Info

Publication number: CN212166196U
Application number: CN202020179617.5U
Authority: CN
Inventors: 方玉飞; 郭旭
Original assignee: Ningbo Huamei Hospital University of CAS
Current assignee: Ningbo Huamei Hospital University of CAS
Priority date: 2020-02-18
Filing date: 2020-02-18
Publication date: 2020-12-18
Anticipated expiration: 2030-02-18

Abstract

The utility model provides a degassing unit is accomodate to gauze mask belongs to disinfection technical field. The treatment to the gauze mask in it has solved current life, and in the garbage bin was directly abandoned to general people, nevertheless there was the germ on a lot of gauze masks, breeds the problem of infection easily. The utility model comprises a body which is divided into an upper shell and a lower shell; the upper shell is provided with a mask receiving port, an electric turnover cover of the receiving port, a control device, a disinfectant spraying device and a switch button; the lower shell is provided with a cavity for accommodating the mask; the upper shell and the lower shell are connected through threads; the electric turnover cover of the receiving port is driven to operate by a motor, and a closing sensor for detecting the closing of the electric turnover cover of the receiving port is also arranged on the upper shell; the control device is electrically connected with the motor, the switch button, the disinfectant spraying device and the closing sensor. The utility model has the advantage of convenient use.

Description

Mask storage and disinfection device

Technical Field

The utility model belongs to the technical field of the disinfection, concretely relates to degassing unit is accomodate to gauze mask.

Background

To the processing of gauze mask in the current life, in general people all directly discarded the garbage bin, nevertheless there was the germ on a lot of gauze masks, breed the infection easily, especially current new coronavirus, the spreading nature is extremely strong, if the gauze mask does not carry out effective processing, produces cross infection very easily, consequently very necessarily sets up a special gauze mask in family and accomodates sterile device.

SUMMERY OF THE UTILITY MODEL

The utility model aims at providing a degassing unit is accomodate to convenient to use's gauze mask to the above-mentioned problem that exists among the prior art.

In order to realize the purpose of the utility model, the utility model adopts the following technical scheme: a mask accommodating and disinfecting device comprises a body, wherein the body is divided into an upper shell and a lower shell; the upper shell is provided with a mask receiving opening, an electric turnover cover of the receiving opening, a control device, a disinfectant spraying device and a switch button; the lower shell is provided with a cavity for accommodating the mask; the upper shell and the lower shell are connected through threads; the upper shell is provided with a closing sensor for detecting the closing of the electric flip cover of the receiving port; the control device is electrically connected with the motor, the switch button, the disinfectant spraying device and the closing sensor. When the mask is used, after the mask is folded, the switch button is pressed, the control device controls the motor to drive the electric flip cover of the receiving port to open, then the mask is placed in the mask receiving port, the switch is pressed again or the electric flip cover of the receiving port is manually closed, the closing sensor senses that the electric flip cover of the receiving port is closed, the disinfectant spraying device operates to disinfect the fallen mask, the use is convenient, and the mask can be effectively sealed and stored, so that germs can not be spread out; when the mask is treated, the upper shell and the lower shell are detached, then the mask is put into a separate garbage bag, and harmful garbage and the like are put into the mask.

Furthermore, antiseptic solution sprinkler including hold the bottle, be used for extracting the electric water pump of liquid and be used for spraying the spherical shower nozzle of antiseptic solution, electric water pump with hold the bottle and pass through threaded connection, just electric water pump pass through threaded connection and go up on the casing. The holding bottle is internally provided with 84 disinfectant or 75-degree alcohol, viruses can be effectively killed, especially, the existing new crown pneumonia viruses are sprayed out by allowing the disinfectant to flow into the spherical nozzle through the electric water pump, and the spherical nozzle is provided with a plurality of sprayed micropores and can spray the disinfectant into a mist shape, so that the mask is effectively disinfected, and the holding bottle is convenient to disassemble and assemble.

Furthermore, an upturned door for facilitating disassembly and assembly of the accommodating bottle is further arranged on the upper shell, and the upturned door is hinged to the upper shell. The containing bottle can be very conveniently disassembled and assembled by opening the upturning door, and liquid adding operation is carried out.

Furthermore, the electric flip cover of the containing opening is also provided with an ultraviolet lamp for disinfecting the containing opening of the mask, and the ultraviolet lamp is in communication connection with the control device. After the electric flip cover of the containing opening is closed, the control device can open the ultraviolet lamp to continuously disinfect the containing opening of the mask, so that germs on the mask are effectively prevented from breeding at the containing opening of the mask.

Furthermore, still including installing a plurality of fans of blowing on last casing and the inlet air duct who is connected with the gauze mask storage port, the fan of blowing wind direction orientation casing position down. Put into the gauze mask when mouthful taking in, can provide suction for the gauze mask mouth taking in through inlet air channel through the fan of blowing, make the gauze mask can more smoothly enter the gauze mask under the effect of gravity and suction take in mouthful, and prevent that the air of the inside from blowing outward, after the electronic flip of mouth taking in closes, antiseptic solution sprinkler starts the back, the fan of blowing can make the internal circulating wind channel that forms of casing and inferior valve, make the antiseptic solution not only can disinfect the gauze mask, can also disinfect each place of the internal portion of casing and inferior valve, disinfection efficiency has further been guaranteed.

Furthermore, the upper shell is further provided with a sealing device arranged below the mask storage opening, the sealing device comprises a push-pull type electromagnet and a sealing plate, and the upper shell is further provided with a groove matched with the sealing plate. The channel of the mouth containing port of the mask can be closed by the closing device after the disinfectant spraying device works for a period of time, when the next mask is put in, the air in the mask can be effectively prevented from being discharged from the channel, the push-pull type electromagnet acts to push the sealing plate into the groove to complete sealing and blocking, and the structure is simple; the push-pull electromagnet is a common small standard part in the market, and the structure of the push-pull electromagnet is not described in detail here.

Furthermore, a heating device for heating and disinfecting the mask is arranged on the lower shell. When the disinfectant in the disinfectant spraying device is used up and cannot be used, the disinfectant cannot be purchased in a short time, a proper amount of tap water can be added into the lower shell, then the lower shell is heated by the heating device, then the upper shell is improved, the upper shell is put into the mouth cover, and the existing new coronavirus can be effectively inactivated or other germs can be effectively killed by hot water with the temperature higher than 56 ℃, so that the use of the disinfectant is effectively saved.

Furthermore, the lower shell is also provided with a drain pipe for draining water, and the drain pipe is also provided with a drain valve. The water in the lower case can be conveniently drained through the drain pipe and the drain valve.

Furthermore, a chamfer is arranged at the opening of the mouth of the mask storage port. The chamfer can increase the caliber of the mouth of the mask, but cannot enlarge the channel inside, so that the mask can be conveniently put into the mouth.

Furthermore, the air inlet channel is obliquely arranged upwards. The air inlet channel mouth that the slope set up can be breathed in to the gauze mask storage port of top more effectively.

Compared with the prior art, the mask storage and disinfection device adopting the technical scheme has the following beneficial effects:

the utility model discloses a degassing unit is accomodate to gauze mask has following advantage:

1: through the electronic flip of storage port and antiseptic solution sprinkler, can accomodate and disinfect the gauze mask very conveniently, stop the propagation of virus.

Drawings

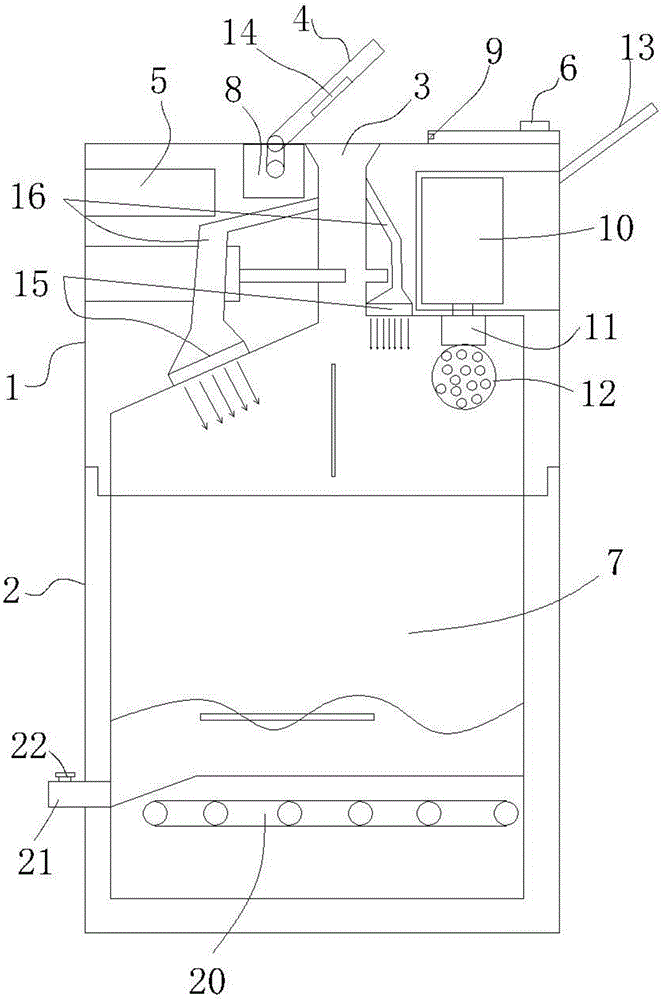

Fig. 1 is a first schematic structural diagram of the present invention;

fig. 2 is a schematic structural diagram of the present invention.

In the figure, 1, an upper shell; 2. a lower housing; 3. a mask receiving opening; 4. the receiving opening is electrically turned over; 5. a control device; 6. a switch button; 7. a cavity; 8. a motor; 9. turning off the sensor; 10. a receiving bottle; 11. a water pump; 12. a spherical nozzle; 13. an upturning door; 14. an ultraviolet lamp; 15. a blower fan; 16. an air inlet channel; 17. a push-pull electromagnet; 18. a sealing plate; 19. a groove; 20. a heating device; 21. a drain pipe; 22. a drain valve; 23. and (6) chamfering.

Detailed Description

The following are specific embodiments of the present invention and the accompanying drawings are used to further describe the technical solution of the present invention, but the present invention is not limited to these embodiments.

Example 1:

as shown in fig. 1 and 2, the mask storage and disinfection device comprises a body which is divided into an upper shell 1 and a lower shell 2; the upper shell 1 is provided with a mask receiving port 3, a receiving port electric flip 4, a control device 5, a disinfectant spraying device and a switch button 6; the lower shell 2 is provided with a cavity 7 for accommodating the mask; the upper shell 1 and the lower shell 2 are connected through threads; the electric turnover cover 4 of the receiving port is driven to operate by a motor 8, and a closing sensor 9 for detecting the closing of the electric turnover cover 4 of the receiving port is also arranged on the upper shell 1; the control device 5 is electrically connected with the motor 8, the switch button 6, the disinfectant spraying device and the closing sensor 9. Wherein the motor 8 is a common micro motor 8 on the market, and the control device 5 is a common control main board on the market, which is not described herein; the closing sensor 9 may be an existing infrared sensor or a touch sensor, and when the flip cover contacts the sensor, a signal is sent to the control device 5.

Specifically, antiseptic solution sprinkler is including holding bottle 10, the electric water pump 11 that is used for extracting liquid and the spherical shower nozzle 12 that is used for spraying the antiseptic solution, and electric water pump 11 passes through threaded connection with holding bottle 10, and electric water pump 11 passes through threaded connection and goes up on casing 1. The containing bottle 10 is internally provided with 84 disinfectant or 75-degree alcohol, viruses can be effectively killed, particularly, the existing new corolla pneumovirus can be effectively killed, the disinfectant flows into the spherical nozzle 12 through the electric water pump 11 and is sprayed out, the spherical nozzle 12 is provided with a plurality of sprayed micropores, the disinfectant can be sprayed into mist, a mask can be effectively disinfected, and the containing bottle 10 is convenient to disassemble and assemble.

Specifically, the upper shell 1 is further provided with an upturned door 13 for facilitating disassembly and assembly of the accommodating bottle 10, and the upturned door 13 is hinged to the upper shell 1. The receiving bottle 10 can be very conveniently disassembled and assembled by opening the flip-up door 13 to perform the liquid adding operation.

Specifically, the electric flip cover 4 of the receiving port is further provided with an ultraviolet lamp 14 for disinfecting the mask receiving port 3, and the ultraviolet lamp 14 is in communication connection with the control device 5. After the electric flip cover 4 of the containing opening is closed, the control device 5 can open the ultraviolet lamp 14 to continuously disinfect the mask containing opening 3, so that germs on the mask are effectively prevented from breeding on the mask containing opening 3.

Specifically, still including installing a plurality of fans 15 of blowing on last casing 1 and the inlet air duct 16 of being connected with gauze mask storage port 3, fan 15 of blowing wind direction orientation is to the position of lower casing 2. When putting into gauze mask oral cavity 3, can provide suction for gauze mask oral cavity 3 through inlet air duct 16 through fan 15 of blowing, make the gauze mask can enter the gauze mask oral cavity 3 more smoothly under the effect of gravity and suction, and prevent that the air of the inside from blowing toward outer, after the electronic flip 4 of oral cavity closes, antiseptic solution sprinkler starts the back, fan 15 of blowing can make the wind channel of the inside formation circulation of epitheca 1 and inferior valve body 2, make the antiseptic solution not only can disinfect to the gauze mask, can also disinfect to each place of epitheca 1 and inferior valve body 2 inside, disinfection efficiency has further been guaranteed.

Specifically, the upper shell 1 is further provided with a sealing device arranged below the mask storage port 3, the sealing device comprises a push-pull electromagnet 17 and a sealing plate 18, and the upper shell 1 is further provided with a groove 19 matched with the sealing plate 18. The channel of the mouth mask receiving opening 3 can be closed by the closing device after the disinfectant spraying device works for a period of time, when the next mouth mask is put in, the air in the mouth mask can be effectively prevented from being discharged from the channel, the push-pull type electromagnet 17 acts to push the sealing plate 18 into the groove 19 to complete sealing and blocking, and the structure is simple; the push-pull electromagnet 17 is a small standard component commonly available in the market, and the structure thereof is not described in detail here.

Preferably, a chamfer 23 is arranged at the opening of the mask receiving opening 3. The chamfer 23 can increase the caliber of the mask receiving opening 3, but cannot enlarge the channel inside, so that the mask can be conveniently put in.

Preferably, the air supply channel 16 is disposed obliquely upward. The intake duct 16 provided obliquely upward can more effectively suck air into the mask storage port 3 above.

When the mask is used, after the mask is folded, the switch button 6 is pressed, the control device 5 controls the motor 8 to drive the electric flip cover 4 of the receiving port to be opened, then the mask is placed into the mask receiving port 3, the switch is pressed again or the electric flip cover 4 of the receiving port is manually closed, the closing sensor 9 senses that the electric flip cover 4 of the receiving port is closed, the disinfectant spraying device operates to disinfect the fallen mask, the use is convenient, and the mask can be effectively sealed and stored, so that germs cannot be spread out; when the mask is treated, the upper shell 2 and the lower shell 2 are only needed to be disassembled, then the mask is put into a separate garbage bag in a communicating mode, and harmful garbage and the like are put into the mask.

Example 2:

the present embodiment is different from embodiment 1 in that a heating device 20 for heat-sterilizing a mask is provided on the lower case 2. When the disinfectant in the disinfectant spraying device is used up and cannot be used, and the disinfectant cannot be purchased in a short time, a proper amount of tap water can be added into the lower shell 2, then the lower shell is heated by the heating device 20, then the upper shell 1 is improved, and then the lower shell is put into the mouth cover, so that the existing new coronavirus can be effectively inactivated or other germs can be effectively killed by hot water with the temperature higher than 56 ℃, and the use of the disinfectant is effectively saved. The heating device 20 is a heating tube structure commonly available in the market, and the structure thereof will not be described in detail here.

Preferably, a drain pipe 21 for draining water is further provided on the lower housing 2, and a drain valve 22 is further provided on the drain pipe 21. The water of the lower housing 2 can be conveniently drained through the drain pipe 21 and the drain valve 22.

The specific embodiments described herein are merely illustrative of the spirit of the invention. Various modifications, additions and substitutions for the specific embodiments described herein may be made by those skilled in the art without departing from the spirit of the invention or exceeding the scope of the invention as defined in the accompanying claims.

Although terms such as the upper case 1, the lower case 2, the mask storage port 3, the storage port electric lid 4, the control device 5, the switch button 6, the chamber 7, the motor 8, the closing sensor 9, the storage bottle 10, the water pump 11, the ball nozzle 12, the flip-up door 13, the ultraviolet lamp 14, the blower fan 15, the air intake passage 16, the push-pull type electromagnet 17, the sealing plate 18, the groove 19, the heating device 20, the drain pipe 21, the drain valve 22, the chamfer 23, etc. are used more frequently herein, the possibility of using other terms is not excluded. These terms are used merely to more conveniently describe and explain the nature of the present invention; they are to be construed in a manner that is inconsistent with the spirit of the invention.

Claims

1. A mask accommodating and disinfecting device is characterized by comprising a body, wherein the body is divided into an upper shell (1) and a lower shell (2); the upper shell (1) is provided with a mask receiving opening (3), a receiving opening electric flip cover (4), a control device (5), a disinfectant spraying device and a switch button (6); the lower shell (2) is provided with a cavity (7) for accommodating the mask; the upper shell (1) and the lower shell (2) are connected through threads; the electric turnover cover (4) of the storage port is driven to operate by a motor (8), and a closing sensor (9) for detecting the closing of the electric turnover cover (4) of the storage port is also arranged on the upper shell (1); the control device (5) is electrically connected with the motor (8), the switch button (6), the disinfectant spraying device and the closing sensor (9).

2. The mask storage and disinfection device of claim 1, wherein the disinfection solution spraying device comprises a containing bottle (10), an electric water pump (11) for pumping liquid and a spherical nozzle (12) for spraying disinfection solution, the electric water pump (11) and the containing bottle (10) are in threaded connection, and the electric water pump (11) is in threaded connection with the upper shell (1).

3. A mask storage and sterilization apparatus according to claim 2, wherein the upper housing (1) is further provided with an upturned door (13) for conveniently dismounting and mounting the bottle (10), and the upturned door (13) is hinged on the upper housing (1).

4. The mask storage and disinfection device according to claim 1, wherein the electric mouth-opening flip cover (4) is further provided with an ultraviolet lamp (14) for disinfecting the mask storage opening (3), and the ultraviolet lamp (14) is in communication connection with the control device (5).

5. A mask storage and sterilization apparatus according to claim 1, further comprising a plurality of blowing fans (15) mounted on the upper housing (1) and an air intake passage (16) connected to the mask storage opening (3), wherein the blowing fans (15) blow air toward the lower housing (2).

6. A mask storage and sterilization device according to claim 1, wherein a sealing device is further disposed on the upper case (1) below the mask storage opening (3), the sealing device comprises a push-pull type electromagnet (17) and a sealing plate (18), and a groove (19) engaged with the sealing plate (18) is further disposed on the upper case (1).

7. A mask storage and sterilization device according to claim 1, wherein the lower housing (2) is provided with a heating device (20) for heating and sterilizing the mask.

8. A mask storage and sterilization device according to claim 7, wherein a drain pipe (21) for draining water is further provided on the lower housing (2), and a drain valve (22) is further provided on the drain pipe (21).

9. A mask storage and sterilization device according to claim 1, wherein a chamfer (23) is provided at the opening of the mask storage opening (3).

10. A mask receiving and disinfecting device as claimed in claim 5, characterized in that said air intake channel (16) is arranged obliquely upwards.
