Electric tooth brush

Technical Field

The utility model discloses be applied to the technical field of the instrument of washing one's face and rinsing one's mouth, in particular to electric toothbrush.

Background

The electric toothbrush is a tool for cleaning teeth by driving a brush head to generate high-frequency vibration or rotation through a motor core. The high-frequency vibration can greatly simplify the actions required by people during tooth brushing and save the tooth brushing time. Meanwhile, dental plaque and tartar can be removed more effectively. However, most of the handles in the market are designed in a circular shape, so that the handles are inconvenient to grasp; generally only longitudinal brush heads are provided; meanwhile, the products on the market are provided with toothbrush sterilization boxes, the sterilization boxes and the main machine box are integrated, cannot be separated, are heavy, have insufficient temporary space and the like, and are internally provided with large-current UV sterilization and disinfection lamps; most products on the market adopt a USB charging interface charging or wireless charging mode, the former needs calibration butt joint, and the latter is high in cost.

SUMMERY OF THE UTILITY MODEL

The utility model aims to solve the technical problem that the prior art is not enough to be overcome, and provides a simple structure, convenient and portable electric toothbrush charges.

The utility model adopts the technical proposal that: the utility model discloses a host computer, brush head assembly, receiver and the base that disinfects, brush head assembly with the vibrating arm looks adaptation of host computer, the receiver is including the column casing and the top cap of mutually supporting, the base that disinfects is including the frame and the bottom of mutually supporting, be equipped with on the frame with the spread groove of column casing looks adaptation, be equipped with two at least fixture blocks on the column casing, correspond on the spread groove be equipped with fixture block complex L shape draw-in groove, still be equipped with the bactericidal lamp on the frame, the bottom surface of spread groove still be equipped with the standing groove of host computer looks adaptation.

According to the scheme, the storage box and the sterilization base are opened and locked by adopting the rotary buckle position, and the operation is convenient. The design of removable split portable, two parts are all small and exquisite and accomodate easily after the split. The sterilizing lamp is arranged on the base to sterilize toothbrushes, and the host is placed in the placing groove to enable the sterilizing lamp to sterilize the host and the brush head on the host by irradiating ultraviolet rays. The columnar shell is matched with the top cover to package the host.

One preferred scheme is, the utility model discloses still inhale the charging wire including magnetism, the host computer with all set up on the frame with the magnetism suction connector of charging wire looks adaptation is inhaled to magnetism, magnetism on the frame inhale connect with the bactericidal lamp electricity is connected, magnetism on the host computer is inhaled to connect rather than built-in battery electricity and is connected.

It is thus clear from the above-mentioned scheme, through adopting magnetism to inhale the operation that the charging structure charges and has exempted traditional charging and need the butt joint interface, convenient and fast only needs to be close to public female joint and can realize automatic butt joint. Through the magnetism is inhaled the charging wire and is connected the realization with outside power supply and do the bactericidal lamp power supply. The germicidal lamp is a common UV germicidal lamp in the market.

Further preferred scheme is, be equipped with on the bottom with magnetism inhales charging wire complex charging wire temporary storage tank.

By above-mentioned scheme, through setting up charging wire temporary storage slot is convenient for deposit and carry of charging wire are inhaled to magnetism.

One preferred scheme is that the holding section of the host machine is a triangular prism with a vertical edge in a round angle shape, one side of the holding section of the host machine is provided with a control button, and the other two sides of the holding section of the host machine are provided with anti-slip corrugations.

According to the scheme, the triangular prism with the vertical edge in the shape of a circular horn is designed to enable a user to grasp the triangular prism more comfortably, and the triangular prism is more fit with the bending of phalanges of the user compared with a circular or oval design. Meanwhile, the anti-slip corrugation is arranged, so that a user can more easily grasp the main machine.

One preferred scheme is that a positioning rib is arranged on the main machine and is perpendicular to the axial direction of the main machine.

According to the scheme, the main machine cannot topple over when placed on a horizontal desktop through the arrangement of the positioning ribs, and the bristles are prevented from contacting the desktop.

Preferably, the brush head assembly comprises a longitudinal brush head and a transverse brush head, the bristles of the longitudinal brush head are distributed in an axial direction parallel to the brush rod, and the bristles of the transverse brush head are distributed in an axial direction perpendicular to the brush rod.

According to the scheme, the transverse brush head is large in tooth brushing range, the upper teeth and the lower teeth can be cleaned and nursed simultaneously, and tooth brushing efficiency is improved.

One preferred scheme is that a brush head temporary storage groove is formed in the bottom cover and is adapted to the longitudinal brush head and the transverse brush head.

According to the scheme, the brush heads which are not used temporarily can be collected and stored by arranging the brush head temporary storage groove.

Drawings

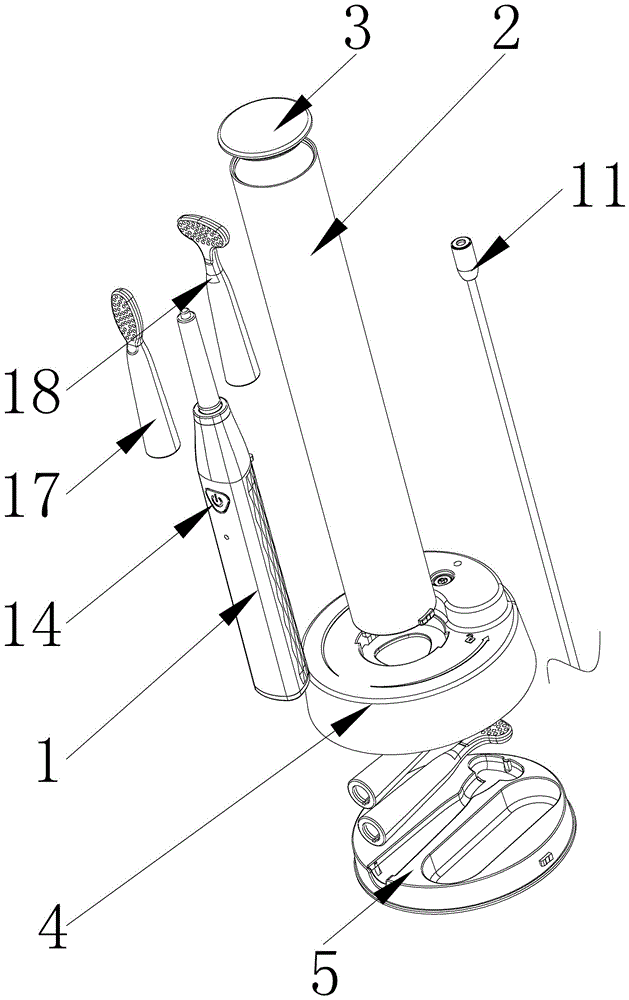

Fig. 1 is a schematic diagram of the explosion structure of the present invention;

FIG. 2 is a schematic perspective view of the host;

fig. 3 is an exploded view of the sterilization base.

Detailed Description

As shown in fig. 1 to 3, in this embodiment, the utility model discloses a host computer 1, brush head assembly, receiver and the base that disinfects, brush head assembly with the vibrating arm looks adaptation of host computer 1, the receiver is including column casing 2 and top cap 3 of mutually supporting, the base that disinfects includes frame 4 and bottom 5 of mutually supporting, be equipped with on frame 4 with the spread groove 6 of 2 looks adaptations of column casing, be equipped with two at least fixture blocks 7 on the column casing 2, correspond on the spread groove 6 be equipped with fixture block 7 complex L shape draw-in groove 8, still be equipped with bactericidal lamp 9 on the frame 4, the bottom surface of spread groove 6 still be equipped with the standing groove 10 of 1 looks adaptations of host computer. The base 4 is provided with a knob clamping groove, and the bottom cover 5 is provided with a knob buckle. The width of the fixture block 7 is gradually increased along the opening direction, a limiting groove is formed in the middle of the fixture block 7, a limiting convex block matched with the limiting groove is arranged on the L-shaped clamping groove 8, the limiting convex block is matched with the limiting groove to achieve better locking, and meanwhile, the limiting convex block can be matched with the limiting groove through the gradual increase of the width of the fixture block 7 along the opening direction.

In this embodiment, the utility model discloses still include magnetism and inhale charging wire 11, host computer 1 with all set up on the frame 4 with the magnetism of inhaling the 11 looks adaptations of charging wire 12 is inhaled to magnetism, magnetism on the frame 4 connect 12 with the bactericidal lamp 9 electricity is connected, magnetism on the host computer 1 connects 12 rather than built-in battery electricity is connected.

In this embodiment, be equipped with on the bottom 5 with charge wire 11 complex charging wire temporary storage tank 13 is inhaled to magnetism.

In this embodiment, the section of gripping of host computer 1 is the triangular prism that vertical edge is the fillet form, the one side of the section of gripping of host computer 1 is equipped with control button 14, the other two sides of the section of gripping of host computer 1 are equipped with anti-skidding ripple 15.

In this embodiment, the main frame 1 is provided with a positioning rib 16, and the positioning rib 16 is perpendicular to the axial direction of the main frame 1.

In this embodiment the brushhead assembly includes a longitudinal brushhead 17 and a transverse brushhead 18, the bristles of the longitudinal brushhead 17 lying parallel to the axial direction of the wand and the bristles of the transverse brushhead 18 lying perpendicular to the axial direction of the wand.

In this embodiment, a brush head temporary storage groove 19 is formed on the bottom cover 5, and the brush head temporary storage groove 19 is adapted to the longitudinal brush head 17 and the transverse brush head 18. The edge of the brush head temporary storage groove 19 is provided with a plurality of limiting blocks, the limiting blocks are in limiting fit with the longitudinal brush head 17 and the transverse brush head 18, and the longitudinal brush head 17 and the transverse brush head 18 are prevented from shaking.

Claims

1. An electric toothbrush, characterized in that: it includes host computer (1), brush head assembly, receiver and the base of disinfecting, brush head assembly with the vibrating arm looks adaptation of host computer (1), the receiver is including column casing (2) and top cap (3) of mutually supporting, the base of disinfecting is including frame (4) and bottom (5) of mutually supporting, be equipped with on frame (4) with spread groove (6) of column casing (2) looks adaptation, be equipped with two at least fixture blocks (7) on column casing (2), correspond on spread groove (6) be equipped with fixture block (7) complex L shape draw-in groove (8), still be equipped with bactericidal lamp (9) on frame (4), the bottom surface of spread groove (6) still be equipped with standing groove (10) of host computer (1) looks adaptation.

2. The electric toothbrush of claim 1, wherein: it still includes magnetism and inhales charging wire (11), host computer (1) with all set up on frame (4) with magnetism inhale the magnetism of charging wire (11) looks adaptation and inhale joint (12), magnetism on frame (4) inhale joint (12) with bactericidal lamp (9) electricity is connected, magnetism on host computer (1) is inhaled joint (12) and is connected rather than built-in battery electricity.

3. The electric toothbrush of claim 2, wherein: and a charging wire temporary storage groove (13) matched with the magnetic suction charging wire (11) is arranged on the bottom cover (5).

4. The electric toothbrush of claim 1, wherein: the section of gripping of host computer (1) is the triangular prism that the fillet appears for vertical edge, the one side of the section of gripping of host computer (1) is equipped with control button (14), the other two sides of the section of gripping of host computer (1) are equipped with anti-skidding ripple (15).

5. The electric toothbrush of claim 4, wherein: the main frame (1) is provided with positioning ribs (16), and the positioning ribs (16) are perpendicular to the axial direction of the main frame (1).

6. The electric toothbrush of claim 1, wherein: the brush head assembly comprises a longitudinal brush head (17) and a transverse brush head (18), bristles of the longitudinal brush head (17) are axially distributed in parallel with the brush rod, and bristles of the transverse brush head (18) are axially distributed in a direction perpendicular to the brush rod.

7. The powered toothbrush as defined in claim 6, wherein: be equipped with brush head temporary storage groove (19) on bottom (5), brush head temporary storage groove (19) adaptation in vertical brush head (17) with horizontal brush head (18).
