Abstract
The utility model provides a moving platform formula hanging flower basket platform, including moving platform and hanging flower basket platform, moving platform places on the hanging flower basket platform and is connected with the hanging flower basket platform through the fixed bolster, moving platform can move on the hanging flower basket platform as required after dismantling the fixed bolster, be provided with the mounting bracket on the hanging flower basket platform, four-linkage electronic box and safe lifting assembly, four-linkage electronic box is connected with safe lifting assembly electricity, thereby operating button on the operating personnel can operate four-linkage electronic box as required makes climbing formula hoisting mechanism order about work wire rope income or output and realize that the hanging flower basket platform rises or descends. The utility model discloses a settle a moving platform's scheme again on the hanging flower basket platform, it can stand the position height to increase operating personnel in the construction operation process, the not enough problem of height when effectively solving the construction operation, the simple operation, safe and reliable has reduced construction cost.
Description
Technical Field
The utility model relates to a building engineering technical field specifically, relates to a moving platform formula hanging flower basket platform.
Background
A high-altitude operation hanging basket, called a hanging basket for short, is a very hanging approach device which is used for hanging a hanging device on a building or a structure, a lifting mechanism drives a platform to run up and down along a vertical surface through a steel wire rope, a hanging platform is hung in the air through the steel wire rope, guardrails are arranged on the periphery of the hanging platform and are used for carrying working devices of operators, tools and materials, the current common hanging basket platform in the market comprises a single hanging point platform, a double hanging point platform and a multi-hanging point platform, wherein the single hanging point platform is a platform connected with one hanging point through the steel wire rope; the double-hanging-point platform is connected with the two hanging points through a steel wire rope; the multi-suspension-point platform is a non-hinged platform connected with 3 or more suspension points through a steel wire rope.
Along with the more and more peculiar shape of the existing buildings or structures, such as the daylighting tops of markets, some building suspended ceilings and other positions, the main structure frame of the hanging basket is higher, and the construction height requirement cannot be met by adopting the conventional hanging basket platform with double hanging points. According to the characteristic analysis of the hanging basket, the maximum lifting height of the hanging basket platform is the height when the highest point on the platform of the working steel wire rope of the hanging basket touches the upper limiting device and stops, the limiting device is generally arranged 500mm below the suspension point of the suspension device, then the hanging basket position is combined with the position where an operator stands, the normal height of the operator is considered according to 1750mm, the normal operation height of the extended hand containing tool is considered according to 2100mm, the highest point of the hanging basket platform is about 1600mm from the pedal height of the bottom plate of the limiting installation contact point, and therefore the operation height which can be constructed by the operator under the normal condition is the height of the hanging point of the. If the site suspension point can only be located under the main structure of the building, the construction operation of the space above the site suspension point can not be met under normal conditions, so a new hanging basket platform needs to be designed to meet the requirement of actual operation.
Patent document CN208202518U discloses a basket special-shaped platform, which comprises an extension platform and a long rectangular basket platform; the expansion platform is vertically arranged at one end of the long rectangular hanging basket platform, and the special-shaped platform comprises a fixing piece, an outer railing and a working chamber; the fixing piece comprises a bottom plate and a plurality of fixing plates; the bottom plate comprises a bottom plate inner side and a bottom plate outer side; the inner side of the bottom plate is fixed on the bottom surface of the long rectangular hanging basket platform through a fixing plate, and the outer side of the bottom plate extends out of the bottom surface of the platform and is arranged in a hanging manner; the outer railing is vertically arranged on one side of the inner side of the bottom plate, which is far away from the outer side of the bottom plate, and is arranged on the outer side of the side face of the long rectangular hanging basket platform; the studio is interior railing and a plurality of extension plate railing enclose synthetic rectangular frame, rectangular frame sets up the opposite side platform side outside at long rectangular hanging flower basket platform, the vertical setting of interior railing is in the juncture in the bottom plate inboard and the bottom plate outside, and the extension plate railing centers on the vertical setting in the bottom plate outside, nevertheless when the on-the-spot hanging point can only be in building major structure below position, still has the not enough problem of height during this design construction operation, and the structure is unreasonable.
SUMMERY OF THE UTILITY MODEL
To the defect among the prior art, the utility model aims at providing a moving platform formula hanging flower basket platform.
According to the utility model provides a moving platform formula hanging flower basket platform, including moving platform 1 and hanging flower basket platform 2, moving platform 1 is provided with fixed bolster 26 along circumference, be provided with bottom plate 3 on hanging flower basket platform 2, moving platform 1 places on bottom plate 3 of hanging flower basket platform 2 and is connected with hanging flower basket platform 2 through fixed bolster 26, and moving platform 1 can move on bottom plate 3 as required after dismantling fixed bolster 26;
be provided with mounting bracket 7, four linkage electronic box 8 and safe play to rise the subassembly on hanging flower basket platform 2, the safe subassembly that rises is installed on mounting bracket 7, four linkage electronic box 8 and safe play to rise the subassembly electricity and be connected.
Preferably, the number of the safety hoisting assemblies is multiple, and the safety hoisting assemblies comprise anti-falling devices 9, climbing hoisting mechanisms 10 and overload limiting devices 11;
the anti-falling device 9, the climbing type lifting mechanism 10 and the overload limiting device 11 are sequentially arranged on the mounting frame 7;
and a limiting device is arranged on the anti-falling device 9.
Preferably, the safety hoisting assembly further comprises a working steel wire rope 12, the mounting frame 7 is provided with a steel wire rope guide wheel 13, the working steel wire rope 12 passes through the steel wire rope guide wheel 13 and is mounted on a rope connecting buckle on the climbing hoisting mechanism 10, and when the climbing hoisting mechanism 10 is started, the working steel wire rope 12 can be driven to be taken into the climbing hoisting mechanism 10 or be taken out from the climbing hoisting mechanism 10, so that the lifting or the lowering of the basket platform 2 is realized.
Preferably, the limiting means comprise an upper limit 14 and an upper limit 15.
Preferably, the number of the bottom plates 3 is multiple, and the basket platform 2 further comprises side guardrails 4 arranged on two sides of the bottom plates 3 and end guardrails 5 arranged at two ends of the basket platform 2;
bottom plate 3 and the side guardrail 4 of both sides constitute a hanging flower basket unit, connect through link 6 between two adjacent hanging flower basket units, wherein, install respectively at the hanging flower basket unit at hanging flower basket platform 2 both ends and install end guardrail 5.
Preferably, the mobile platform 1 comprises a support frame and a working platform;
the operation platform is arranged at the upper part of the support frame, the lower part of the support frame is provided with a second caster 21, the fixed support 26 is arranged along the circumferential direction of the support frame, the circumferential direction of the support frame is also provided with a guide wheel 25,
the side guard rail 4 is provided with a horizontally arranged guard rail cross bar 16, and the guide wheels 25 and the guard rail cross bar 16 are arranged at the same height.
Preferably, the work platform is provided with two guardrail frames 24 and two guardrail doors 23 arranged on the guardrail frames 24 along the circumferential direction, and the two guardrail doors 23 are respectively hinged on two sides of the guardrail frames 24;
one end of the guardrail frame 24 close to the support frame is provided with a skirting board 22 along the circumferential direction.
Preferably, the support frame is provided with a support column 28, one end of the fixed support 26 is movably matched with the support column 28, the other end of the fixed support 26 is sequentially provided with a plurality of pins 29 at intervals, and when the movable platform 1 and the hanging basket platform 2 are fixed through the fixed support 26, different pins 29 are selected to be fixed according to the gap between the movable platform 1 and the hanging basket platform 2.
Preferably, the number of safety lifting assemblies is 4.
According to the utility model provides a moving platform formula hanging flower basket platform, including moving platform 1 and hanging flower basket platform 2, moving platform 1 is provided with fixed bolster 26 along circumference, be provided with bottom plate 3 on hanging flower basket platform 2, moving platform 1 places on bottom plate 3 of hanging flower basket platform 2 and is connected with hanging flower basket platform 2 through fixed bolster 26, and moving platform 1 can move on bottom plate 3 as required after dismantling fixed bolster 26;
the hanging basket platform 2 is provided with an installation frame 7, a four-linkage electric box 8 and a safe lifting assembly, the safe lifting assembly is installed on the installation frame 7, and the four-linkage electric box 8 is electrically connected with the safe lifting assembly;
the number of the safety hoisting assemblies is multiple, and the safety hoisting assemblies comprise anti-falling devices 9, climbing hoisting mechanisms 10 and overload limiting devices 11;
the anti-falling device 9, the climbing type lifting mechanism 10 and the overload limiting device 11 are sequentially arranged on the mounting frame 7;
a limiting device is arranged on the anti-falling device 9;
the safety hoisting assembly further comprises a working steel wire rope 12, a steel wire rope guide wheel 13 is arranged on the mounting frame 7, the working steel wire rope 12 penetrates through the steel wire rope guide wheel 13 and is mounted on a rope connecting buckle on the climbing hoisting mechanism 10, and when the climbing hoisting mechanism 10 is started, the working steel wire rope 12 can be driven to be taken into the climbing hoisting mechanism 10 or be taken out of the climbing hoisting mechanism 10, so that the lifting or descending of the hanging basket platform 2 is realized;
the limiting device comprises an upper limiting part 14 and an upper limiting part 15;
the hanging basket platform 2 further comprises side guardrails 4 arranged on two sides of the bottom plate 3 and end guardrails 5 arranged at two ends of the hanging basket platform 2;
the bottom plate 3 and the side guardrails 4 on the two sides form a hanging basket unit, the two adjacent hanging basket units are connected through a connecting frame 6, and the hanging basket units arranged at the two ends of the hanging basket platform 2 are respectively provided with end guardrails 5;
the mobile platform 1 comprises a support frame and an operation platform;
the operation platform is arranged at the upper part of the support frame, the lower part of the support frame is provided with a second caster 21, the fixed support 26 is arranged along the circumferential direction of the support frame, the circumferential direction of the support frame is also provided with a guide wheel 25,
the side guardrail 4 is provided with a guardrail cross bar 16 which is horizontally arranged, and the guide wheels 25 and the guardrail cross bar 16 are arranged at the same height;
the working platform is provided with two guardrail frames 24 and two guardrail doors 23 arranged on the guardrail frames 24 along the circumferential direction, and the two guardrail doors 23 are respectively hinged to two sides of the guardrail frames 24;
a skirting board 22 is arranged at one end of the guardrail frame 24 close to the support frame along the circumferential direction;
the support frame is provided with a support upright post 28, one end of the fixed support 26 is movably matched with the support upright post 28, the other end of the fixed support 26 is sequentially provided with a plurality of pins 29 at intervals, and when the movable platform 1 and the hanging basket platform 2 are fixed through the fixed support 26, different pins 29 are selected for fixing according to the gap between the movable platform 1 and the hanging basket platform 2;
the number of the safety hoisting assemblies is 4.
Compared with the prior art, the utility model discloses following beneficial effect has:
1. the utility model discloses a settle a moving platform's scheme again on the platform that hangs, it can stand the position height at the construction operation in-process to increase operating personnel, effectively solves the hanging flower basket highly not enough problem when construction operation, through the relative height that improves operating personnel and stand in construction operation, makes the position that some conventional hanging flower baskets can not operate obtain solving, has reduced construction cost.
2. The utility model discloses well hanging flower basket suspension platform adopts 4 hoisting point modes, and forms integrative further assurance work security between moving platform and the hanging flower basket platform through the mode auto-lock of fixed bolster 26 mate connection bolt in the course of the work, and moving platform and suspension platform contact position increase crossbeam are strengthened, and moving platform sets up the security that the leading wheel guaranteed the moving process.
3. By adopting the strategy of double steel wire ropes of the working steel wire rope 12 and the safety steel wire rope 17, the falling accident caused after the working steel wire rope 12 is damaged is effectively avoided, and the safety of the equipment is greatly improved.
4. The guide wheel 25 on the mobile platform 1 is matched with the guardrail cross rod 16 on the side guardrail 4 and is arranged at the same height, so that the guide wheel 25 can roll along the guardrail cross rod 16, and the safety of the mobile platform 1 in the moving process is effectively guaranteed by the aid of shaking during movement of the mobile platform 1.
Drawings
Other features, objects and advantages of the invention will become more apparent upon reading of the detailed description of non-limiting embodiments with reference to the following drawings:

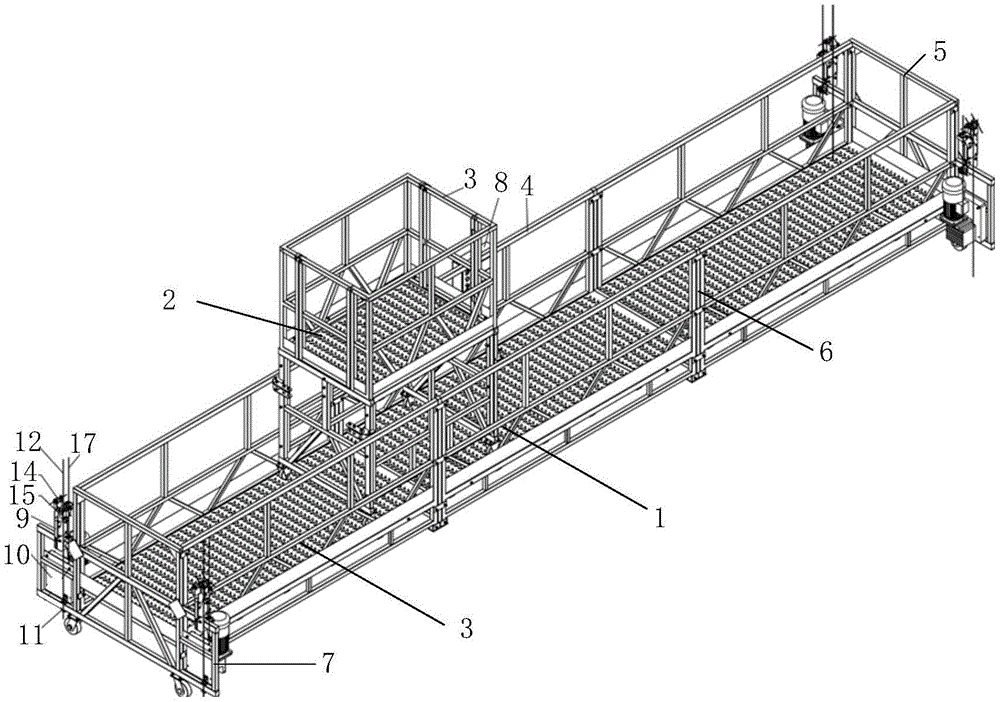

fig. 1 is a schematic structural view of the present invention;
FIG. 2 is a schematic structural diagram of installation of a safety lifting assembly;
fig. 3 is a schematic structural diagram of the mobile platform 1.
The figures show that:
Detailed Description
The present invention will be described in detail with reference to the following embodiments. The following examples will assist those skilled in the art in further understanding the present invention, but are not intended to limit the invention in any way. It should be noted that various changes and modifications can be made by one skilled in the art without departing from the spirit of the invention. These all belong to the protection scope of the present invention.
The utility model provides a moving platform formula hanging flower basket platform, as shown in fig. 1, fig. 2, including moving platform 1 and hanging flower basket platform 2, moving platform 1 is provided with fixed bolster 26 along circumference, be provided with bottom plate 3 on hanging flower basket platform 2, moving platform 1 places on bottom plate 3 of hanging flower basket platform 2 and is connected with hanging flower basket platform 2 through fixed bolster 26, and the self-locking of the mode that cooperates the connecting bolt through fixed bolster 26 in the course of the work between moving platform 1 and hanging flower basket platform 2 forms an organic whole and has guaranteed the work safety, and the bottom of moving platform 1 is provided with first truckle 20, and moving platform 1 conveniently moves through first truckle 20 when falling to the ground, and moving platform 1 can move on bottom plate 3 as required after dismantling fixed bolster 26; be provided with mounting bracket 7, four linkage electronic box 8 and safe hoisting assembly on hanging flower basket platform 2, safe hoisting assembly installs on mounting bracket 7, four linkage electronic box 8 and safe hoisting assembly electricity are connected, and in a preferred example, four linkage electronic box 8 are installed on side guardrail 4, and operating personnel can operate the operating button on four linkage electronic box 8 as required, thereby control climbing formula hoisting mechanism 10 orders about work wire rope 12 income or output and realizes that hanging flower basket platform 2 rises or descends the operation height, the simple operation, simple structure.
Further, as shown in fig. 1 and 2, the number of the bottom plates 3 is multiple, and the basket platform 2 further includes side fences 4 disposed at both sides of the bottom plates 3 and end fences 5 disposed at both ends of the basket platform 2; the hanging flower basket unit is constituteed to the side guardrail 4 of bottom plate 3 and both sides, connect through link 6 between two adjacent hanging flower basket units, wherein, install respectively at the hanging flower basket unit at 2 both ends of hanging flower basket platform and install end guardrail 5, can select the quantity of hanging flower basket unit according to actual need at the operation in-process of reality to satisfy actual operation's demand, the structure is nimble, and the practicality is strong.
Specifically, as shown in fig. 1 and 2, the safety lifting assembly comprises a falling prevention device 9, a climbing lifting mechanism 10 and an overload limiting device 11; the anti-falling device 9, the climbing type lifting mechanism 10 and the overload limiting device 11 are sequentially arranged on the mounting frame 7; the anti-falling device 9 is provided with a limiting device, in a preferred embodiment, the limiting device comprises an upper limiting 14 and an upper limiting 15, when the upper limiting 14 breaks down, the upper limiting 15 has a limiting effect, safety accidents of equipment can be prevented when the upper limiting 14 breaks down through two-stage limiting, and the safety of the equipment is improved.
Further, as shown in fig. 1 and 2, the safety hoisting assembly further includes a working wire rope 12, a wire rope guide wheel 13 is disposed on the mounting frame 7, the wire rope guide wheel 13 is mounted on the mounting frame 7 through a pin and a bearing, the working wire rope 12 passes through the wire rope guide wheel 13 and is mounted on a rope connecting buckle on the climbing hoisting mechanism 10, and when the climbing hoisting mechanism 10 is started, the working wire rope 12 can be driven to be taken in the climbing hoisting mechanism 10 or be taken out from the climbing hoisting mechanism 10, so that the lifting or the lowering of the basket platform 2 is realized. In order to ensure the safety of the device, the platform is also provided with a safety steel wire rope 17, the safety factors of the working steel wire rope 12 and the safety steel wire rope 17 are more than or equal to 8, and the falling accident after the working steel wire rope 12 is damaged is effectively avoided; the number of the safe hoisting assemblies is multiple, in a preferred embodiment, the problems of front and rear gravity center offset and gravity center height in the working process are considered, the number of the safe hoisting assemblies is 4, synchronization is guaranteed as far as possible by adopting an electric appliance linkage mode for solving the problem of synchronism of the climbing hoisting mechanisms 10 with 4 hoisting points, and when horizontal balance offset occurs, the single hoisting point climbing hoisting mechanism 10 can be controlled by adjusting a rotary switch on the four-linkage electric box 8, so that the horizontal balance of the hanging basket platform 2 can be guaranteed to the maximum extent, and favorable conditions are provided for walking of the mobile platform 1. The hanging basket platform 2 adopts a mode of 4 hanging points, so that the safety of operators is greatly improved.
Specifically, as shown in fig. 1 and 2, the mobile platform 1 includes a support frame and a work platform; the utility model discloses a safety protection device for hanging flower basket, including operation platform, second truckle 21, fixed bolster 26, leading wheel 25, side guardrail 4, leading wheel 25 and hanging flower basket platform 2, operation platform installs the upper portion at the support frame, second truckle 21 is installed to the lower part of support frame, fixed bolster 26 arranges along the circumference of support frame, the circumference of support frame still is provided with leading wheel 25, be provided with the guardrail horizontal pole 16 that the level was arranged on the side guardrail 4, leading wheel 25 arranges at same height with guardrail horizontal pole 16, can guarantee that leading wheel 25 rolls along guardrail horizontal pole 16, and the effect is rocked when preventing moving platform 1 from removing, sets up leading wheel 25 and moving platform 1 on moving platform 1 and.
Specifically, as shown in fig. 1 and fig. 2, the work platform is provided with a guardrail frame 24 and guardrail doors 23 mounted on the guardrail frame 24 along the circumferential direction, the number of the guardrail doors 23 is two, and the two guardrail doors 23 are respectively hinged on two sides of the guardrail frame 24; one end of the guardrail frame 24 close to the support frame is provided with a skirting board 22 along the circumferential direction, wherein the bottom of the operation platform is also provided with an anti-skid pedal 27, so that the installation of an operator during the operation is ensured.
Specifically, as shown in fig. 1 and fig. 2, be provided with the support post 28 on the support frame, the one end and the support post 28 clearance fit of fixed bolster 26, the other end of fixed bolster 26 has set up a plurality of pins 29 at the interval in proper order, and when fixing moving platform 1 and hanging flower basket platform 2 through fixed bolster 26, according to the clearance between moving platform 1 and the hanging flower basket platform 2 and select different pins 29 to fix, in a preferred example, for the fastness that increases the support frame, the support frame still is provided with the support side lever 30 that both ends are connected with support post 28 respectively, and the middle part of support frame still installs middle stiffener 31 simultaneously, makes whole support frame more firm, safe.
The working principle of the utility model is as follows:
in operating personnel got into hanging flower basket platform 2, operating button on the four linkage electronic boxes 8, control formula hoist mechanism 10 that climbs rises hanging flower basket platform 2 to the operation height, remove moving platform 1 this moment to the operation region back, fix moving platform 1 on hanging flower basket platform 2 through fixed bolster 26, operating personnel climbs on moving platform 1's the operation platform this moment, and close the guardrail door 23 of both sides, there is the bolt on the guardrail door 23, start the operation under the condition of guaranteeing that the bolt is inserted, operate button on the four linkage electronic boxes 8 again after the operation finishes, control formula hoist mechanism 10 that climbs rises hanging flower basket platform 2 or descends other operation heights.
It should be noted that, two fixed supports 26 at opposite angles of the mobile platform 1 are fastened firmly, the basket platform 2 rises to the height of the required working surface as a whole, the climbing type hoisting mechanism 10 is stopped, the basket platform 2 is in a relatively horizontal balance state, the fixed supports 26 on the mobile platform 1 are loosened when the mobile platform 1 needs to be moved, the mobile platform 1 is moved to the position needing to be operated along the length direction of the basket platform 2, the fixed supports 26 on the mobile platform 1 are fixed, the guardrail door 23 on the mobile platform 1 is opened, and an operator can operate and construct when entering the mobile platform.
In the description of the present application, it is to be understood that the terms "upper", "lower", "front", "rear", "left", "right", "vertical", "horizontal", "top", "bottom", "inner", "outer", and the like indicate orientations or positional relationships based on those shown in the drawings, and are only for convenience in describing the present application and simplifying the description, but do not indicate or imply that the referred device or element must have a specific orientation, be constructed in a specific orientation, and be operated, and thus, should not be construed as limiting the present application.
The foregoing description of the specific embodiments of the invention has been presented. It is to be understood that the present invention is not limited to the specific embodiments described above, and that various changes or modifications may be made by those skilled in the art within the scope of the appended claims without departing from the spirit of the invention. The embodiments and features of the embodiments of the present application may be combined with each other arbitrarily without conflict.
Claims (10)
1. The moving platform type hanging basket platform is characterized by comprising a moving platform (1) and a hanging basket platform (2), wherein the moving platform (1) is provided with a fixed support (26) along the circumferential direction, a bottom plate (3) is arranged on the hanging basket platform (2), the moving platform (1) is placed on the bottom plate (3) of the hanging basket platform (2) and is connected with the hanging basket platform (2) through the fixed support (26), and the moving platform (1) can move on the bottom plate (3) as required after the fixed support (26) is detached;
be provided with mounting bracket (7), four linkage electronic box (8) and safe play to rise the subassembly on hanging flower basket platform (2), the safe subassembly that rises is installed on mounting bracket (7), four linkage electronic box (8) rise the subassembly electricity with safe and are connected.
2. A moving platform gondola platform according to claim 1 characterized in that the number of safety hoisting assemblies is multiple, the safety hoisting assemblies comprising a fall arrest device (9), a climbing hoist (10) and an overload limiting device (11);
the anti-falling device (9), the climbing type lifting mechanism (10) and the overload limiting device (11) are sequentially arranged on the mounting frame (7);
and a limiting device is arranged on the anti-falling device (9).
3. A moving platform basket platform according to claim 2, wherein the safety hoisting assembly further comprises a working wire rope (12), a wire rope guide wheel (13) is arranged on the mounting frame (7), the working wire rope (12) passes through the wire rope guide wheel (13) and is mounted on a rope connecting buckle on the climbing hoisting mechanism (10), when the climbing hoisting mechanism (10) is started, the working wire rope (12) can be driven to be taken into the climbing hoisting mechanism (10) or be taken out from the climbing hoisting mechanism (10), so that the basket platform (2) is lifted or lowered.
4. A moving platform basket platform according to claim 2, characterized in that said stop means comprise an upper stop (14) and an upper limit stop (15).
5. A moving platform basket platform according to claim 1, characterized in that the number of said bottom plates (3) is multiple, said basket platform (2) further comprises side fences (4) disposed at both sides of the bottom plates (3) and end fences (5) disposed at both ends of the basket platform (2);
bottom plate (3) and side guardrail (4) of both sides constitute a hanging flower basket unit, connect through link (6) between two adjacent hanging flower basket units, wherein, install respectively at the hanging flower basket unit at hanging flower basket platform (2) both ends and install end guardrail (5).
6. The moving platform basket platform according to claim 5, characterized in that said moving platform (1) comprises a support frame and a work platform;
the operation platform is arranged at the upper part of the support frame, the lower part of the support frame is provided with a second caster (21), the fixed support (26) is arranged along the circumferential direction of the support frame, the circumferential direction of the support frame is also provided with a guide wheel (25),
the side guardrail (4) is provided with a guardrail cross rod (16) which is horizontally arranged, and the guide wheels (25) and the guardrail cross rod (16) are arranged at the same height.
7. The moving platform basket platform according to claim 6, wherein said work platform is circumferentially provided with a guardrail frame (24) and guardrail doors (23) mounted on the guardrail frame (24), the number of said guardrail doors (23) is two and two guardrail doors (23) are respectively hinged on both sides of the guardrail frame (24);
one end of the guardrail frame (24) close to the support frame is provided with a skirting board (22) along the circumferential direction.
8. The moving platform type hanging basket platform according to claim 6, characterized in that the supporting frame is provided with supporting columns (28), one end of the fixed support (26) is movably matched with the supporting columns (28), the other end of the fixed support (26) is sequentially provided with a plurality of pins (29) at intervals, and when the moving platform (1) and the hanging basket platform (2) are fixed through the fixed support (26), different pins (29) are selected for fixing according to the gap between the moving platform (1) and the hanging basket platform (2).
9. The moving platform basket platform of claim 1 wherein the number of safety lift assemblies is 4.
10. The moving platform type hanging basket platform is characterized by comprising a moving platform (1) and a hanging basket platform (2), wherein the moving platform (1) is provided with a fixed support (26) along the circumferential direction, a bottom plate (3) is arranged on the hanging basket platform (2), the moving platform (1) is placed on the bottom plate (3) of the hanging basket platform (2) and is connected with the hanging basket platform (2) through the fixed support (26), and the moving platform (1) can move on the bottom plate (3) as required after the fixed support (26) is detached;
the hanging basket platform (2) is provided with an installation frame (7), a four-linkage electric box (8) and a safe lifting assembly, the safe lifting assembly is installed on the installation frame (7), and the four-linkage electric box (8) is electrically connected with the safe lifting assembly;
the number of the safety lifting assemblies is multiple, and the safety lifting assemblies comprise anti-falling devices (9), climbing lifting mechanisms (10) and overload limiting devices (11);
the anti-falling device (9), the climbing type lifting mechanism (10) and the overload limiting device (11) are sequentially arranged on the mounting frame (7);
a limiting device is arranged on the anti-falling device (9);
the safety lifting assembly further comprises a working steel wire rope (12), a steel wire rope guide wheel (13) is arranged on the mounting frame (7), the working steel wire rope (12) penetrates through the steel wire rope guide wheel (13) and is installed on a rope connecting buckle on the climbing type lifting mechanism (10), and when the climbing type lifting mechanism (10) is started, the working steel wire rope (12) can be driven to be taken into the climbing type lifting mechanism (10) or be discharged from the climbing type lifting mechanism (10), so that the lifting or descending of the hanging basket platform (2) is realized;
the limiting device comprises an upper limiting part (14) and an upper limit limiting part (15);
the hanging basket platform (2) comprises a plurality of bottom plates (3), side guardrails (4) arranged on two sides of the bottom plates (3) and end guardrails (5) arranged at two ends of the hanging basket platform (2);
the hanging basket platform comprises a bottom plate (3) and side guardrails (4) on two sides, wherein the bottom plate and the side guardrails (4) on two sides form a hanging basket unit, two adjacent hanging basket units are connected through a connecting frame (6), and the hanging basket units arranged at two ends of the hanging basket platform (2) are respectively provided with an end guardrail (5);
the mobile platform (1) comprises a support frame and an operation platform;
the operation platform is arranged at the upper part of the support frame, the lower part of the support frame is provided with a second caster (21), the fixed support (26) is arranged along the circumferential direction of the support frame, the circumferential direction of the support frame is also provided with a guide wheel (25),
the side guardrail (4) is provided with a guardrail cross bar (16) which is horizontally arranged, and the guide wheel (25) and the guardrail cross bar (16) are arranged at the same height;
the working platform is provided with two guardrail frames (24) and two guardrail doors (23) arranged on the guardrail frames (24) along the circumferential direction, and the two guardrail doors (23) are respectively hinged to two sides of the guardrail frames (24);
a skirting board (22) is arranged at one end, close to the support frame, of the guardrail frame (24) along the circumferential direction;
the supporting frame is provided with a supporting upright post (28), one end of the fixed support (26) is movably matched with the supporting upright post (28), the other end of the fixed support (26) is sequentially provided with a plurality of pins (29) at intervals, and when the movable platform (1) and the hanging basket platform (2) are fixed through the fixed support (26), different pins (29) are selected for fixing according to the gap between the movable platform (1) and the hanging basket platform (2);
the number of the safety hoisting assemblies is 4.
