Abstract
The utility model relates to a heat-preservation integrated aluminum plate, which comprises a first aluminum plate, a second aluminum plate and a foaming layer, wherein the inner surfaces of the first aluminum plate and the second aluminum plate are provided with Teflon coatings, and the foaming layer is arranged between the first aluminum plate and the second aluminum plate; a wood plate and a third aluminum plate are arranged between the first aluminum plate and the second aluminum plate; reinforcing ribs are arranged on the edges of the two sides of the first aluminum plate and the second aluminum plate, and the wood plate and the second aluminum plate are fixedly arranged on the two sides of the third aluminum plate respectively; the flame-retardant heat-insulation sound-insulation board has the characteristics of corrosion resistance, long service life, flame retardance, high strength, difficulty in falling off and good heat-insulation and sound-insulation effects.
Description
Technical Field
The utility model belongs to the technical field of panel heat preservation and specifically relates to an integrative aluminum plate keeps warm.
Background
At present, with the enhancement of energy-saving and environment-friendly consciousness, the heat-insulating and energy-saving effects of buildings are more looked at, but the problems of non-flame retardance, poor strength and easy falling-off generally exist in the existing heat-insulating layer if a foaming material layer is purely adopted; the problem of interlinked combustion of the outer vertical surface of the floor caused by the heat-insulating layer is serious, and the economic loss is huge; the existing aluminum plate heat-insulating layer is insufficient in strength, is easy to deform and fall off in strong wind weather, particularly in typhoon crossing, is seriously corroded after being used for 10 years, has huge potential safety hazards, and is difficult to compare favourably with a pure foaming heat-insulating layer in sound and heat insulating effect, so that a new heat-insulating plate is needed.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide an integrative aluminum plate keeps warm for solve among the prior art not fire-retardant, easily drop, the poor problem of intensity.
In order to solve the problems, the utility model provides a heat-preservation integrated aluminum plate, which comprises a first aluminum plate, a second aluminum plate and a foaming layer, wherein the inner surfaces of the first aluminum plate and the second aluminum plate are provided with Teflon coatings, and the foaming layer is arranged between the first aluminum plate and the second aluminum plate; a wood plate and a third aluminum plate are arranged between the first aluminum plate and the second aluminum plate; the edge of two sides of the first aluminum plate and the second aluminum plate is provided with reinforcing ribs, and the wood plate and the second aluminum plate are respectively fixedly arranged on two sides of the third aluminum plate.
The utility model provides a pair of integrative aluminum plate keeps warm still has following technical characteristic:
further, first aluminum plate, plank, third aluminum plate, foaming layer, second aluminum plate adjacent setting in proper order.
Further, first aluminum plate, foaming layer, third aluminum plate, plank, second aluminum plate adjacent setting in proper order.
Further, the fixing mode among the wood board, the second aluminum plate and the third aluminum plate is gluing or screw fixing.
Furthermore, a grid layer is arranged between the first aluminum plate and the second aluminum plate.
Further, the first aluminum plate is a baking varnish aluminum plate, and the second aluminum plate is a fluorocarbon aluminum plate.
Further, the grid layer is a nano aerogel felt or a metal reinforcing net.
The utility model discloses following beneficial effect has: the utility model discloses a heat preservation integrative aluminum plate that first aluminum plate, plank, third aluminum plate, foaming layer, second aluminum plate, teflon coating are constituteed has corrosion-resistant, longe-lived, fire-retardant, intensity is big, be difficult for droing, thermal-insulated effectual characteristics that give sound insulation, combines concrete technical means to have following several:
1. the utility model enhances the strength of the heat preservation integrated aluminum plate mainly through the wood plate layer, meanwhile, the wood plate layer is cheap, energy-saving and environment-friendly, and has good sound insulation and heat insulation effects, and in order to make the aluminum plate flame retardant, the outer surface of the aluminum plate can be carbonized and coated with flame retardant; aiming at the flame retardant problem, the invention adopts double aluminum plates to clamp and form a closed space, so that air is difficult to enter, and the air is difficult to burn to form a flame retardant effect; the Teflon coating layer arranged between the double aluminum plates has the characteristics of corrosion resistance, friction resistance and high temperature resistance, and effectively forms a flame-retardant layer; the added wood board structure effectively solves the problem that the aluminum plate is easy to deform.
2. The utility model discloses through increasing special fluorine dragon coating on original integrative aluminum plate's that keeps warm basis, solved its inside corrosion-resistant problem after absorbing water, making damp, solved the corrosion-resistant problem of aluminum plate inner wall, prolonged the life-span of heat preservation.
Drawings

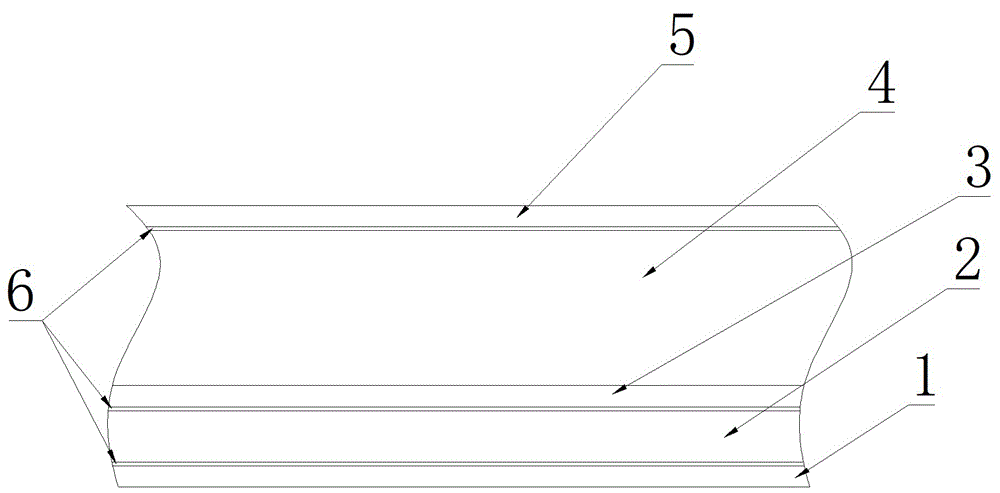

Fig. 1 is a schematic view of an integrated aluminum plate for heat preservation according to an embodiment of the present invention;
in the figure: 1. the first aluminum plate 2, the wood plate 3, the third aluminum plate 4, the foaming layer 5, the second aluminum plate 6 and the Teflon coating.
Detailed Description
The present invention will be described in detail below with reference to the accompanying drawings in conjunction with embodiments. It should be noted that, in the present invention, the embodiments and features of the embodiments may be combined with each other without conflict.
The utility model provides a heat preservation integrated aluminum plate as shown in fig. 1, which comprises a first aluminum plate 1, a second aluminum plate 5 and a foaming layer 4, wherein the inner surfaces of the first aluminum plate 1 and the second aluminum plate 5 are provided with Teflon coatings 6, and the foaming layer 4 is arranged between the first aluminum plate 1 and the second aluminum plate 5; a wood plate 2 and a third aluminum plate 3 are also arranged between the first aluminum plate 1 and the second aluminum plate 5; the edge of two sides of the first aluminum plate 1 and the second aluminum plate 5 is provided with a reinforcing rib, and the wood plate 2 and the second aluminum plate 5 are respectively fixedly arranged at two sides of the third aluminum plate 3.
When the heat-insulation integrated aluminum plate is implemented, firstly, the strength of the heat-insulation integrated aluminum plate is enhanced mainly through the wood plate layer, the wood plate is cheap in material, energy-saving and environment-friendly, and has good sound insulation and heat insulation effects, and in order to make the heat-insulation integrated aluminum plate flame-retardant, the outer surface of the heat-insulation integrated aluminum plate can be subjected to carbonization treatment and coated with a flame retardant; aiming at the flame retardant problem, the invention adopts double aluminum plates to clamp and form a closed space, so that air is difficult to enter, and the air is difficult to burn to form a flame retardant effect; the Teflon coating layer arranged between the double aluminum plates has the characteristics of corrosion resistance, friction resistance and high temperature resistance, and effectively forms a flame-retardant layer; the added wood board structure effectively solves the problem that the aluminum plate is easy to deform; and secondly, the corrosion-resistant problem of the aluminum plate after internal water absorption and moisture generation is solved by adding the Teflon coating on the basis of the original heat-preservation integrated aluminum plate, the corrosion-resistant problem of the inner wall of the aluminum plate is solved, and the service life of the heat-preservation layer is prolonged.
In one embodiment of the present application, the first aluminum plate 1, the wood plate 2, the third aluminum plate 3, the foaming layer 4, and the second aluminum plate 5 are sequentially and adjacently disposed; according to the installation and construction characteristics, the structure can be adopted, and is suitable for scenes with large stress on the outer vertical surface and good heat preservation effect required by the inner vertical surface; the structure has the characteristics of proper connection strength, difficult deformation of the outer vertical surface of the insulation board, strong wind resistance, hail resistance and other severe weather abilities.
In an embodiment of this application, first aluminum plate 1, foaming layer 4, third aluminum plate 3, plank 2, second aluminum plate 5 adjacent setting in proper order, be suitable for the scene that requires joint strength to be high, can make full use of the elasticity and the intensity of plank carry out fixed mounting, the construction of being convenient for, its sound insulation, thermal-insulated effectual.
In an embodiment of the application, the fixing mode among the wood board 2, the second aluminum board 5 and the third aluminum board 3 is gluing or screw fixing, and the two modes are suitable for on-site prefabrication and are prefabricated in advance, so that the production efficiency is high, the cost is low, and the implementation is convenient and efficient.
In an embodiment of the present application, a mesh layer is further disposed between the first aluminum plate 1 and the second aluminum plate 5, and for the other embodiments, the mesh layer can enhance the strength of the aluminum plate, so that the aluminum plate has enhanced compression resistance, tensile resistance, and impact deformation resistance, and is not easy to fall off, and is suitable for implementation and application of a lightweight aluminum plate.
In an embodiment of the application, the first aluminum plate 1 is a paint baking aluminum plate, the second aluminum plate 5 is a fluorocarbon aluminum plate, the cost is low, the effect is good, the application range of the invention can be further enhanced on the basis of the existing applied technology, and the effects of one-time installation and no replacement for the whole building period are realized.
In one embodiment of the present application, the grid layer is a nano aerogel felt or a metal reinforcing mesh, which respectively has the reinforcing effects of heat insulation and strength, and the nano aerogel felt can be a 3mm product supplied by Fuchang thermal insulation factories; the metal reinforcing mesh is a steel mesh or a copper mesh, and the meshes of the metal reinforcing mesh are quadrangles of 5mmx5mm specifications.
Finally, it should be noted that: the above embodiments are only used to illustrate the technical solution of the present invention, and not to limit it; although the present invention has been described in detail with reference to the foregoing embodiments, it should be understood by those skilled in the art that: the technical solutions described in the foregoing embodiments may still be modified, or some technical features may be equivalently replaced; such modifications and substitutions do not depart from the spirit and scope of the present invention in its corresponding aspects.
Claims (7)
1. The utility model provides an integrative aluminum plate keeps warm, includes first aluminum plate (1), second aluminum plate (5), foaming layer (4), its characterized in that: the inner surfaces of the first aluminum plate (1) and the second aluminum plate (5) are provided with Teflon coatings (6), and the foaming layer (4) is arranged between the first aluminum plate (1) and the second aluminum plate (5); a wood plate (2) and a third aluminum plate (3) are arranged between the first aluminum plate (1) and the second aluminum plate (5); first aluminum plate (1), second aluminum plate (5) both sides edge be provided with the stiffening rib, plank (2), second aluminum plate (5) fixed setting respectively in the both sides of third aluminum plate (3).
2. An insulating integrated aluminium plate according to claim 1, characterized in that: the first aluminum plate (1), the wood plate (2), the third aluminum plate (3), the foaming layer (4) and the second aluminum plate (5) are sequentially and adjacently arranged.
3. An insulating integrated aluminium plate according to claim 1, characterized in that: the first aluminum plate (1), the foaming layer (4), the third aluminum plate (3), the wood plate (2) and the second aluminum plate (5) are sequentially and adjacently arranged.
4. An insulating integrated aluminium plate according to claim 1, characterized in that: the wood board (2), the second aluminum plate (5) and the third aluminum plate (3) are fixed by gluing or screws.
5. An insulating integrated aluminium plate according to claim 1, characterized in that: and a grid layer is arranged between the first aluminum plate (1) and the second aluminum plate (5).
6. An insulated integrated aluminium panel according to any one of claims 1 to 5, wherein: the first aluminum plate (1) is a baking finish aluminum plate, and the second aluminum plate (5) is a fluorocarbon aluminum plate.
7. An insulated integrated aluminium panel according to claim 5, wherein: the grid layer is a nano aerogel felt or a metal reinforcing net.
