The utility model discloses a massage paste, which comprises a host and an electrode physiotherapy sheet connected with the host, wherein the host comprises a microprocessor, and a button, a battery and a charging interface which are connected with the microprocessor; the battery can be charged through the charging interface; the massage plaster can be controlled to work through the keys. Adopted the utility model discloses technical scheme's massage subsides, it is small-size light and handy to have, conveniently carry, be applicable to with the house, official working, the user demand of many scenes such as open air, adopt electrode physiotherapy piece to act on the human body moreover, be convenient for or hug closely human neck, waist, back, buttock, sole and whole body muscle position, connect the massage subsides host computer and carry out the low frequency pulse physiotherapy, open and select corresponding mode, can produce the automatic cycle mode, the simulation is strikeed the mode, the simulation is pointed to the pressure mode, four kinds of massage effects of mode are kneaded in the simulation, make the user more comfortable.
Description
Technical Field
The utility model relates to the technical field of health care equipment, in particular to a massager or a massage device, and specifically relates to a massage plaster.
Background
The existing massagers adopt the principle of mechanical knocking massage, are generally large in size, even though the existing massagers are like hand-held small dolphin massagers, the existing massagers still lack portability, are inconvenient to use and are not suitable for being carried outdoors, and therefore improvement is needed.
Disclosure of Invention
The utility model aims to solve the technical problem that a massage paste is provided, which solves the problems of large volume, insufficient portability and uneven heating of the existing massage device.
In order to solve the technical problem, the utility model adopts the following technical scheme:
a massage plaster comprises a host machine and an electrode physical therapy sheet connected with the host machine, wherein the host machine comprises a microprocessor, and a key, a battery and a charging interface which are connected with the microprocessor; the battery can be charged through the charging interface; the massage plaster can be controlled to work through the keys.
In a preferred technical solution, the key includes: a 'mode key' for switching massage modes, a 'strength plus key' for increasing massage strength, and a 'strength minus key' for decreasing massage strength.
In a further preferred technical solution, the key further includes: the heating key is used for heating, and can realize constant temperature heating function, dispel damp cold and qi and deeply relieve ache.
In a preferred technical scheme, the battery capacity of the battery reaches 200 mAh.
In the preferred technical scheme, the microprocessor is an intelligent integrated MCU chip, can simulate low-frequency pulse current therapy, combines the massage patch host with the electrode physical therapy sheet, and is applied to the neck, waist, back, hip, sole and whole body muscle positions of a human body to carry out low-frequency pulse current therapy, thereby relieving muscle pain.
In the preferred technical scheme, the electrode physical therapy sheet is connected with the host machine through the magnetic buckle in a structural and power-on manner.
In the preferred technical scheme, the electrode physical therapy sheet is formed by adopting the graphene as a heating base material and a hydrophilic environment-friendly gel integrated laminating process, and has the functions of pulse massage and constant-temperature heating.
The utility model has the advantages that:
adopted the utility model discloses technical scheme's massage subsides, it is small-size light and handy to have, conveniently carry, be applicable to with the house, official working, the user demand of many scenes such as open air, adopt electrode physiotherapy piece to act on the human body moreover, be convenient for or hug closely human neck, waist, back, buttock, sole and whole body muscle position, connect the massage subsides host computer and carry out the low frequency pulse physiotherapy, open and select corresponding mode, can produce the automatic cycle mode, the simulation is strikeed the mode, the simulation is pointed to the pressure mode, four kinds of massage effects of mode are kneaded in the simulation, make the user more comfortable. And the automatic circulation mode simulates ultralow frequency effect formed by a knocking mode, a finger pressure simulating mode and a kneading mode, combines pulses with high energy distribution, and simulates low frequency modulation according to various sensory spectral lines capable of being formed by human body stimulation, so that the reflex effect of muscles is stimulated, and closed-loop sensation is formed to achieve a real treatment mode and effect.
The present invention will be described in further detail with reference to the accompanying drawings.
Drawings

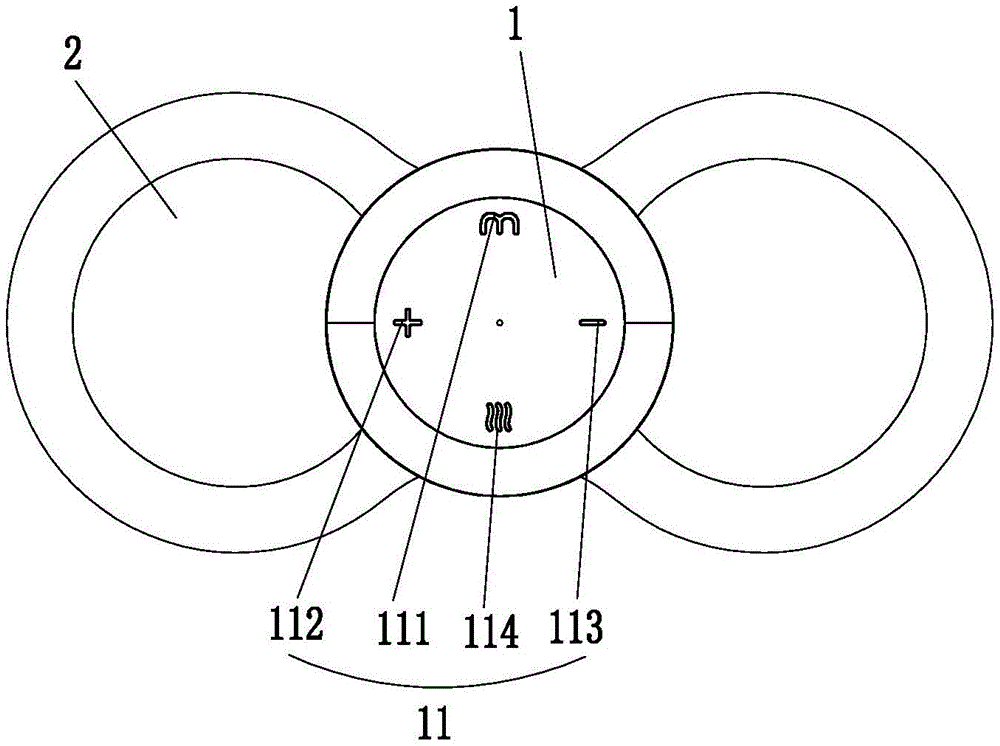

Fig. 1 is a front view of a massage plaster according to an embodiment of the present invention;
FIG. 2 is a front view of an electrode physiotherapy sheet and a magnetic button in a massage patch according to an embodiment of the present invention;
fig. 3 is a rear view of the main frame and the magnetic button in the massage paster according to the embodiment of the present invention;
fig. 4 is a bottom view of the main body of the massage plaster according to the embodiment of the present invention.
Detailed Description
As shown in fig. 1 to 4, the massage patch provided by the present embodiment includes: the electrode physiotherapy apparatus comprises a host 1 and an electrode physiotherapy sheet 2 connected with the host 1, wherein the host 1 comprises a microprocessor, and a key 11, a battery and a charging interface 12 which are electrically connected with the microprocessor; the battery can be charged through the charging interface 12; the operation of the massage plaster can be controlled through the key 11. The electrode physical therapy sheet 2 is convenient to cling to the neck, waist, back, buttocks, soles and muscles of the whole body of a human body, is connected with the massage patch main machine 1 to carry out pulse and heating transmission, and realizes the massage function and the heating function. The massage plaster main machine 1 is used for simulating low-frequency pulse physiotherapy by connecting the electrode physiotherapy sheet 2, realizing simulated automatic circulation, simulated knocking, simulated finger pressure, simulated kneading of 4 massage pulse modes and realization of a heating function. In the present embodiment, the charging interface 12 is a Micro USB interface as shown in fig. 4, and the interface is used for direct power supply in the heating mode as well as for charging.
The massage plaster adopting the technical scheme of the specific embodiment of the utility model has small size, light weight and convenient carrying, is suitable for the use requirements of multiple scenes such as home, office, outdoor and the like, and adopts the electrode physical therapy sheet 2 to act on the human body, is convenient for or clings to the neck, waist, back, buttocks, sole and the muscle position of the whole body of the human body, and is connected with the massage plaster host 1 to carry out low-frequency pulse physical therapy, thereby achieving the purpose of relieving muscle pain; after the massage paste is started to work, a massage mode or a heating function is selected, the massage paste is automatically turned off after working for 15 minutes at regular time, the simulated automatic circulation can be generated, the massage effects such as knocking, finger pressing and kneading can be simulated, the ultralow frequency effect is formed, and the low frequency modulation is simulated by combining pulses with high energy distribution according to spectral lines of various feelings which can be formed by human body stimulation, so that the reflection effect of muscles is stimulated, and the closed-loop feeling is formed to achieve the real treatment mode and effect.
In a preferred technical solution, the key 11 is shown in fig. 1 and 4, and includes: a "mode key" 111 for switching a massage mode, a "force addition key" 112 for increasing the massage force, and a "force subtraction key" 113 for decreasing the massage force. The mode key 111 can not only switch the massage mode, but also turn off and on the power supply mainboard, thereby realizing the functions of starting and shutting down. The force plus key 112 and the force minus key 113 are used for increasing or decreasing the massage pulse force, and the 10 steps are adjustable.
In a further preferred technical solution, the key 11 is shown in fig. 1, and further includes: the heating key 114 is used for a heating mode, and the constant-temperature heating function can be realized through the heating key 114, so that damp and cold air can be removed, and ache can be relieved deeply. Pressing the heating key 114 for 1 time, starting the heating function at 1 gear (38-40 ℃), pressing the heating key for 1 time, starting the heating function at 2 gear (41-43 ℃), and pressing the heating key for 1 time to turn off the heating function.
In a preferred technical scheme, the battery capacity of the battery reaches 200 mAh. The appearance is small and exquisite, and when lightweight, increase battery capacity to 200mAh, can effectively increase product operating time.
In the preferred technical scheme, the microprocessor is an intelligent integrated MCU chip which can simulate low-frequency pulse current therapy, combines the massage patch main machine 1 and the electrode physical therapy sheet 2 and is applied to the neck, waist, back, hip, sole and whole muscle positions of a human body to carry out low-frequency pulse current therapy, thereby relieving muscle pain.
In a preferred technical scheme, the electrode therapy sheet 2 is structurally and electrically connected with the main machine 1 through the magnetic buckle 3 as shown in fig. 2 and 3. The magnetic buttons 3 are divided into a male button and a female button, and the total number of the male button and the female button is 4 pairs, and the male button and the female button are respectively arranged at the corresponding positions of the host 1 and the electrode physical therapy sheet 2. Adopt magnetism to detain 3 can be convenient with the separation of host computer 1 and electrode physiotherapy piece 2 so that change electrode physiotherapy piece 2 or wash, disinfect etc..
In the preferred technical scheme, the electrode physical therapy sheet 2 is formed by completely attaching a graphene material serving as a base material and hydrophilic environment-friendly gel. The graphene material is adopted to replace the traditional printed circuit process, so that the constant temperature and the uniform heating are ensured.
The foregoing is a more detailed description of the present invention, taken in conjunction with the specific preferred embodiments thereof, and it is not intended that the invention be limited to the specific embodiments shown and described. To the utility model belongs to the technical field of ordinary technical personnel, do not deviate from the utility model discloses under the prerequisite of design, can also make a plurality of simple deductions or replacement, all should regard as belonging to the utility model discloses a protection scope.
Claims (7)
1. The massage paste is characterized by comprising a host and an electrode physical therapy sheet connected with the host, wherein the host comprises a microprocessor, and a key, a battery and a charging interface which are electrically connected with the microprocessor; the battery can be charged through the charging interface; the massage plaster can be controlled to work through the keys.
2. The massage sticker of claim 1, wherein the button comprises: a 'mode key' for switching massage modes, a 'strength plus key' for increasing massage strength, and a 'strength minus key' for decreasing massage strength.
3. The massage sticker of claim 2, wherein the button further comprises: the heating key is used for heating, and can realize constant temperature heating function, dispel damp cold and qi and deeply relieve ache.
4. A massage plaster according to any one of claims 1 to 3, wherein the battery has a capacity of up to 200 mAh.
5. The massage patch as claimed in any one of claims 1 to 3, wherein the microprocessor is an intelligent integrated MCU chip which can simulate low frequency pulse current therapy, and the massage patch host is combined with the electrode therapy sheet to be applied to the neck, waist, back, buttocks, sole and muscle positions of the whole body for low frequency pulse current therapy, thereby relieving muscle pain.
6. The massage patch as recited in any one of claims 1 to 3, wherein the electrode therapy sheet is structurally and electrically connected to the main body through the magnetic button.
7. The massage patch as recited in any one of claims 1 to 3, wherein the electrode therapy sheet is a hydrophilic environment-friendly gel electrode therapy sheet using graphene material.
