CN212115067U - Radiating structure of wind driven generator unit - Google Patents
Radiating structure of wind driven generator unit Download PDFInfo
- Publication number
- CN212115067U CN212115067U CN202020738079.9U CN202020738079U CN212115067U CN 212115067 U CN212115067 U CN 212115067U CN 202020738079 U CN202020738079 U CN 202020738079U CN 212115067 U CN212115067 U CN 212115067U
- Authority
- CN
- China
- Prior art keywords
- heat dissipation
- box
- fixedly connected
- filter screen
- flow guide
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Active
Links
Images
Classifications
-
- Y—GENERAL TAGGING OF NEW TECHNOLOGICAL DEVELOPMENTS; GENERAL TAGGING OF CROSS-SECTIONAL TECHNOLOGIES SPANNING OVER SEVERAL SECTIONS OF THE IPC; TECHNICAL SUBJECTS COVERED BY FORMER USPC CROSS-REFERENCE ART COLLECTIONS [XRACs] AND DIGESTS
- Y02—TECHNOLOGIES OR APPLICATIONS FOR MITIGATION OR ADAPTATION AGAINST CLIMATE CHANGE
- Y02E—REDUCTION OF GREENHOUSE GAS [GHG] EMISSIONS, RELATED TO ENERGY GENERATION, TRANSMISSION OR DISTRIBUTION
- Y02E10/00—Energy generation through renewable energy sources
- Y02E10/70—Wind energy
- Y02E10/72—Wind turbines with rotation axis in wind direction
Landscapes
- Cooling Or The Like Of Electrical Apparatus (AREA)
Abstract
The utility model provides a aerogenerator unit heat radiation structure relates to wind power generation technical field. This aerogenerator unit heat radiation structure, including the power generation box, the right flank fixedly connected with heat dissipation section of thick bamboo of power generation box, the inside of heat dissipation section of thick bamboo is hollow structure, and the inside of heat dissipation section of thick bamboo is provided with the heat dissipation fan, and the right-hand member of heat dissipation fan passes through the inner wall fixed connection of mounting bracket and heat dissipation section of thick bamboo, and the inside of heat dissipation section of thick bamboo is located the right side of mounting bracket and slides and pegs graft and have the filter screen, and the right side. This aerogenerator unit heat radiation structure through setting up flow guide box, jack box, collecting and fighting, pull rod and reset spring, has reached the effect that can fight the impurity of collecting and take out, has solved the unit and has installed in external environment mostly, and impurity and rainwater in the air often enter into the unit from the louvre, and difficult clearance causes the heat dissipation fan card to die to can not reach the radiating problem of effect.
Description
Technical Field
The utility model relates to a wind power generation technical field specifically is a aerogenerator unit heat radiation structure.
Background
Wind power generation means that kinetic energy of wind is converted into electric energy, and with the rise of wind generating sets, wind generator manufacturers increasingly pay more attention to the influence of the surrounding environment for arranging the wind generating sets on the wind generating sets, and heat dissipation structures are required to be installed to guarantee normal work of the wind generating sets.
Use the heat dissipation fan to dispel the heat to the unit nowadays mostly, the heat dissipation fan is got rid of from the louvre with the heat in the unit in the in-process of work, but because the unit is installed in external environment mostly, impurity and rainwater in the air often enter into the unit from the louvre in, difficult clearance causes the heat dissipation fan card to die to can not reach the heat dissipation.
SUMMERY OF THE UTILITY MODEL
Technical problem to be solved
The utility model provides a not enough to prior art, the utility model provides a aerogenerator unit heat radiation structure has solved the unit and has installed in external environment mostly, and impurity and rainwater in the air often enter into the unit from the louvre in, and difficult clearance causes the heat dissipation fan card to die to can not reach the radiating problem of effect.
(II) technical scheme
In order to achieve the above purpose, the utility model discloses a following technical scheme realizes: the utility model provides a aerogenerator unit heat radiation structure, includes the power generation box, the right flank fixedly connected with heat dissipation section of thick bamboo of power generation box, the inside of heat dissipation section of thick bamboo is hollow structure, the inside of heat dissipation section of thick bamboo is provided with the heat dissipation fan, the right-hand member of heat dissipation fan passes through the inner wall fixed connection of mounting bracket with a heat dissipation section of thick bamboo, the inside of heat dissipation section of thick bamboo is located the right side of mounting bracket and slides to peg graft and have the filter screen, the right side of filter screen is provided with three fixed block, the left surface of three fixed block all passes through buffer spring fixed connection with the right.
The below of a heat dissipation section of thick bamboo is provided with the flow guide box, the fixed surface that runs through a heat dissipation section of thick bamboo in upper end of flow guide box, the flow guide box is located the right side of filter screen, the bottom surface fixedly connected with jack box of flow guide box, the right flank of jack box slides and runs through and collects the fill, the equal fixedly connected with baffle in the positive back of jack box, the left surface of two baffles all slides and runs through there is the pull rod, the right-hand member face of two pull rods all with collect the one end fixed connection who fights and be located the jack box outside, the equal fixedly connected with reset spring in the left surface of two baffles, two reset spring cup joint the surface at two pull rods respectively, two pull rods are located the equal fixedly connected with positioning disk of the left one end of two baffles, two reset spring's left end respectively with the right flank fixed connection of two positioning.
Preferably, the right side of three fixed block all slides and runs through there is the slide bar, and the three buffer spring that runs through is slided respectively to the one end that is located three fixed block left side of three slide bar, and the left end face of three slide bar all is connected with the right flank fixed connection of filter screen.
Preferably, four rollers are mounted on the bottom surface of the collecting hopper, and the four rollers are all rolled and inserted on the inner bottom wall surface of the plug box.
Preferably, the flow guide box is in a trapezoidal shape, and the flow guide box and the plug box are coaxially arranged.
Preferably, the three buffer springs are arranged in parallel, and the three buffer springs are uniformly distributed around the axis of the filter screen in an axis circumferential array of the filter screen.
Preferably, the shape of the ventilation plate is circular arc, and the ventilation plate and the heat dissipation cylinder are coaxially arranged.
(III) advantageous effects
The utility model provides a aerogenerator unit heat radiation structure. The method has the following beneficial effects:
1. this aerogenerator unit heat radiation structure, through setting up the guide box, the jack box, collect and fight, pull rod and reset spring, in impurity enters into a heat dissipation section of thick bamboo from the ventilating board, keep off on the filter screen right side by the filter screen, then fall into inside the jack box through the guide box gradually at accumulational in-process, thereby enter into and collect on fighting, after impurity accumulation to certain degree in collecting fighting, the pulling pull handle is fought through the collection and is driven the pull rod, then through positioning disk compression reset spring, thereby to collect the fill and pull out, reached and to have collected the effect of taking out the impurity of fighting, solved the unit and installed in external environment mostly, impurity and rainwater in the air often enter into the unit from the louvre, be difficult for the clearance, cause the heat dissipation fan card to die, thereby can not reach the problem of radiating effect.
2. This aerogenerator unit heat radiation structure through setting up the gyro wheel, collects the in-process of fighting and removing at the pull handle pulling, collects and fights and the jack box takes place relative movement, and the gyro wheel rolls on the inner diapire of jack box, has reached and has collected the frictional force of fighting between the jack box and change into rolling friction's effect, has solved and has collected the fill because frictional force is too big when moving relative movement with the jack box and cause the very fast problem of wearing and tearing speed.
Drawings

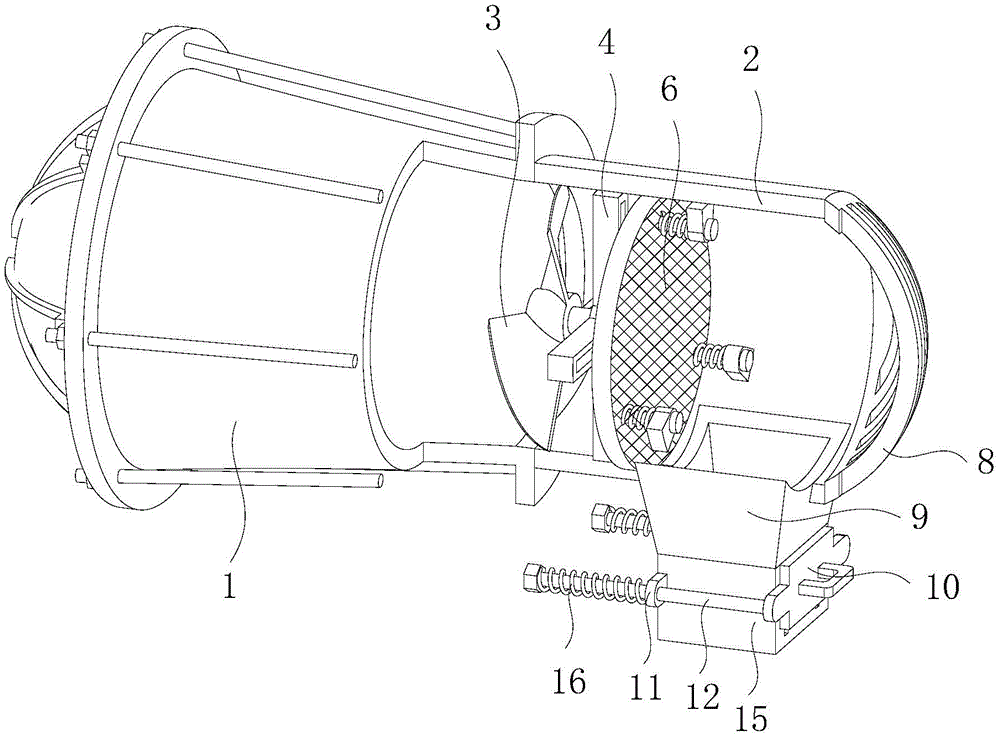

FIG. 1 is a schematic structural view of the present invention;
FIG. 2 is a schematic view of the connection between the filter screen and the heat dissipating tube of the present invention;
FIG. 3 is a schematic view of the connection between the buffer spring and the filter plate according to the present invention;
fig. 4 is a schematic diagram of the explosion structure of the partial structure of the present invention.
Wherein, 1 power generation box, 2 heat dissipation section of thick bamboo, 3 heat dissipation fans, 4 mounting brackets, 5 fixed blocks, 6 filter screens, 7 buffer spring, 8 ventilative boards, 9 guide box, 10 collection fill, 11 baffles, 12 pull rods, 13 positioning disk, 14 pull handles, 15 jack boxes, 16 reset spring, 17 slide bars, 18 gyro wheels.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
The embodiment of the utility model provides a heat dissipation structure of a wind driven generator unit, as shown in figures 1-4, comprising a generator box 1, a heat dissipation cylinder 2 is fixedly connected with the right side surface of the generator box 1, the interior of the heat dissipation cylinder 2 is a hollow structure, a heat dissipation fan 3 is arranged inside the heat dissipation cylinder 2, the right end of the heat dissipation fan 3 is fixedly connected with the inner wall of the heat dissipation cylinder 2 through a mounting frame 4, a filter screen 6 is slidably inserted in the right side of the mounting frame 4 inside the heat dissipation cylinder 2, three fixed blocks 5 are arranged on the right side of the filter screen 6, the left side surfaces of the three fixed blocks 5 and the right side surface of the filter screen 6 are fixedly connected through buffer springs 7, the buffer springs 7 are in an initial state in a compressed state, slide bars 17 are slidably penetrated through the right side surfaces of the three fixed blocks 5, one ends of the three slide bars 17, which are positioned on the left sides of the three fixed blocks 5, set up the stability when slide bar 17 guarantees that filter screen 6 removes, prevent that filter screen 6 from taking place the slope, the right-hand member face fixedly connected with air-permeable plate 8 of heat dissipation section of thick bamboo 2, air-permeable plate 8's shape is circular-arcly, air-permeable plate 8 and the coaxial setting of heat dissipation section of thick bamboo 2, three buffer spring 7 parallel arrangement, three buffer spring 7 is around the axis of filter screen 6 with the axis circumference array evenly distributed of filter screen 6.
A flow guide box 9 is arranged below the heat radiating cylinder 2, the upper end of the flow guide box 9 fixedly penetrates through the outer surface of the heat radiating cylinder 2, the flow guide box 9 is positioned on the right side of the filter screen 6, a connection box 15 is fixedly connected to the bottom surface of the flow guide box 9, the flow guide box 9 is in a trapezoidal shape, the flow guide box 9 and the connection box 15 are coaxially arranged, a collecting hopper 10 is slidably penetrated through the right side surface of the connection box 15, four rollers 18 are installed on the bottom surface of the collecting hopper 10, the four rollers 18 are all rotatably inserted on the inner bottom wall surface of the connection box 15, a sliding rod 17 is arranged to reduce the friction force between the collecting hopper 10 and the connection box 15, baffles 11 are fixedly connected to the right back surface of the connection box 15, pull rods 12 are slidably penetrated through the left side surfaces of the two baffles 11, the right end surfaces of the two pull rods 12 are fixedly connected with one ends of the collecting hopper 10 positioned outside the connection box 15, reset spring 16 is in compression state, and in loosening collection fill 10 back reset spring 16 drove collection fill 10 and enter into jack box 15, two reset spring 16 cup jointed respectively at the surface of two pull rods 12, and two pull rods 12 are located the equal fixedly connected with positioning disk 13 of the left one end of two baffles 11, and two reset spring 16's left end respectively with the right flank fixed connection of two positioning disk 13, the right flank fixedly connected with pull handle 14 of collection fill 10.
Theory of operation, in impurity enters into heat dissipation cylinder 2 from air-permeable plate 8, keep off on the filter screen 6 right side by filter screen 6, then fall into inside jack box 15 through guide box 9 gradually at accumulational in-process, thereby enter into and collect on fighting 10, after impurity accumulation to the certain extent in fighting 10 is fought in collecting, pulling pull handle 14 fights 10 through collecting and drives pull rod 12, then through positioning disk 13 compression reset spring 16, thereby fighting 10 and pulling out will collecting, can fight the effect that the impurity in 10 was taken out with collecting, at the in-process of 3 work of radiator fan, filter screen 6 bears wind-force, buffer spring 7 cushions the wind-force that filter screen 6 bore through the compression.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.
Claims (6)
1. The utility model provides a aerogenerator unit heat radiation structure, includes generator box (1), its characterized in that: the right side surface of the power generation box (1) is fixedly connected with a heat dissipation cylinder (2), the interior of the heat dissipation cylinder (2) is of a hollow structure, a heat dissipation fan (3) is arranged inside the heat dissipation cylinder (2), the right end of the heat dissipation fan (3) is fixedly connected with the inner wall of the heat dissipation cylinder (2) through a mounting frame (4), a filter screen (6) is slidably inserted into the interior of the heat dissipation cylinder (2) and is positioned on the right side of the mounting frame (4), three fixing blocks (5) are arranged on the right side of the filter screen (6), the left side surfaces of the three fixing blocks (5) and the right side surface of the filter screen (6) are fixedly connected through buffer springs (7), and a ventilating plate (8) is fixedly connected to the right;
a flow guide box (9) is arranged below the heat radiating cylinder (2), the upper end of the flow guide box (9) fixedly penetrates through the outer surface of the heat radiating cylinder (2), the flow guide box (9) is positioned on the right side of the filter screen (6), a splicing box (15) is fixedly connected to the bottom surface of the flow guide box (9), a collecting hopper (10) is slidably penetrated through the right side surface of the splicing box (15), baffles (11) are fixedly connected to the front back surface of the splicing box (15), pull rods (12) are slidably penetrated through the left side surfaces of the two baffles (11), the right end surfaces of the two pull rods (12) are fixedly connected with one ends of the collecting hopper (10) positioned outside the splicing box (15), reset springs (16) are fixedly connected to the left side surfaces of the two baffles (11), the two reset springs (16) are respectively sleeved on the outer surfaces of the two pull rods (12), and positioning discs (13) are fixedly connected to the ends of the two pull rods (12) positioned on the left sides of, the left ends of the two return springs (16) are respectively fixedly connected with the right side surfaces of the two positioning disks (13), and the right side surface of the collecting hopper (10) is fixedly connected with a pull handle (14).
2. The heat dissipation structure of wind turbine generator set according to claim 1, wherein: the right flank of three fixed block (5) all slides and runs through slide bar (17), and the one end that is located three fixed block (5) left side of three slide bar (17) slides respectively and runs through three buffer spring (7), the left end face of three slide bar (17) all with the right flank fixed connection of filter screen (6).
3. The heat dissipation structure of wind turbine generator set according to claim 1, wherein: four rollers (18) are installed on the bottom surface of the collecting hopper (10), and the four rollers (18) are all rolled and inserted on the inner bottom wall surface of the inserting box (15).
4. The heat dissipation structure of wind turbine generator set according to claim 1, wherein: the flow guide box (9) is in a trapezoidal shape, and the flow guide box (9) and the plug box (15) are coaxially arranged.
5. The heat dissipation structure of wind turbine generator set according to claim 1, wherein: the three buffer springs (7) are arranged in parallel, and the three buffer springs (7) are uniformly distributed around the axis of the filter screen (6) in an axis circumferential array of the filter screen (6).
6. The heat dissipation structure of wind turbine generator set according to claim 1, wherein: the shape of the ventilating plate (8) is arc-shaped, and the ventilating plate (8) and the heat dissipation cylinder (2) are coaxially arranged.
