Abstract

The utility model discloses a machining plate surface rust cleaning device, which relates to the technical field of machining, and comprises a fixed frame, wherein a fixing mechanism for clamping a plate is arranged on a supporting plate, a guide rod positioned above the supporting plate is horizontally fixed on the fixed frame, a sliding frame is arranged on the guide rod in a sliding manner, a vertically arranged hollow shaft is arranged on the sliding frame in a rotating manner, a rust cleaning mechanism is connected on the hollow shaft in a rotating manner, and a translation mechanism for driving the sliding frame to transversely move is arranged on the sliding frame; the utility model discloses a fixed establishment that sets up can carry out firm fixed to the plate, and stability when guaranteeing the rust cleaning, the rust cleaning mechanism of setting can carry out abundant, the efficient rust cleaning operation to the plate, and the translation mechanism of setting can drive rust cleaning mechanism lateral position and remove the regulation, guarantees the abundant rust cleaning effect of plate, and the crane of setting can drive the vertical altitude mixture control of mill, guarantees to compress tightly it on the plate surface, has promoted the rust cleaning effect greatly.

Description

Surface rust removal device for machined plate
Technical Field
The utility model relates to a machining technical field specifically is a machining plate surface rust cleaning device.
Background
The workpiece refers to a processing object in a machining process, can be a single part or a combination of several fixed parts, and has various processing modes including turning, milling, planing, grinding, casting, forging and the like. The machining process of the workpiece also varies with the machining method.
The patent with the publication number of CN205218724U discloses a steel plate polishing and rust removing device, wherein a steel plate is transported by a transport table, a polishing frame is arranged on the transport table for polishing operation so as to reduce dust pollution, and a first polishing head is arranged in the polishing frame for polishing the upper surface of the steel plate; the two sides in the polishing frame are provided with the lower push clamping cylinders, and the side cavity of the transport table is provided with the upper push clamping cylinders to clamp the steel plate, so that polishing is facilitated; an inner cavity is arranged for arranging a second polishing head to polish the lower surface of the steel plate; a dust suction cover and an air blowing pipe are arranged in the polishing frame for dust removal, and second dust suction pipes are connected to the two sides of the inner cavity for dust removal; although the device can be used for polishing and derusting of the steel plate, the polishing range is small, the requirement of actual polishing efficiency cannot be met, and therefore a device for derusting the surface of the machined plate is provided so as to solve the technical problem.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide a machining plate surface rust cleaning device to solve the problem that proposes in the above-mentioned background art.
In order to achieve the above object, the utility model provides a following technical scheme:
the utility model provides a machining plate surface rust cleaning device, includes the mount, is fixed with the biax motor on the mount, and the mount is improved level and is fixed with the backup pad, is equipped with the fixed establishment that is used for carrying out the centre gripping to the plate in the backup pad, the mount is improved level and is fixed with the guide arm that is located the backup pad top, and slidable mounting has the carriage on the guide arm, rotates on the carriage and installs the hollow shaft of vertical setting, and the transmission is connected with rust cleaning mechanism on the hollow shaft, be equipped with the translation mechanism who is used for driving its lateral shifting.
As an improved scheme of the utility model: the fixing mechanism comprises a screw rod which is coaxially fixed with two output shafts of the double-shaft motor and has opposite thread turning directions, and a clamping sleeve plate which is sleeved on the supporting plate in a sliding mode is fixed on the screw rod.
As an improved scheme of the utility model: the rust removing mechanism comprises a rotating frame coaxially fixed with the hollow shaft, a transmission sleeve eccentrically arranged is rotatably mounted on the rotating frame, a rotating column is slidably mounted on the transmission sleeve, a transmission clamping strip embedded in the transmission sleeve in a sliding mode is fixed on the side wall of the rotating column, and a polishing disc is coaxially fixed at the lower end of the rotating column.
As an improved scheme of the utility model: the derusting mechanism further comprises a driving motor fixed on the sliding frame, an output shaft of the driving motor is coaxially fixed with a bevel gear II, and the bevel gear II is connected with a bevel gear I which is sleeved and fixed on the hollow shaft in a meshing manner.
As an improved scheme of the utility model: the rust removing mechanism further comprises a ring plate fixed at the bottom of the sliding frame, an inner gear ring is fixed on the inner wall of the ring plate, and a transmission gear sleeved and fixed on the transmission sleeve is connected to the inner gear ring in a meshing mode.
As an improved scheme of the utility model: the translation mechanism comprises a walking gear which is sleeved and fixed on the hollow shaft, and a rack which is fixed on the side wall of the guide rod is connected to the walking gear in a meshed mode.
As an improved scheme of the utility model: be fixed with threaded sleeve on the carriage, threaded sleeve internal thread connection wears to be equipped with the threaded rod, and the threaded rod lower extreme coaxial fixation has the rotation axis that runs through hollow shaft and swivel mount, and the equal bearing connection of rotation axis and swivel mount is installed on the crane.
Compared with the prior art, the beneficial effects of the utility model are that:
the utility model discloses a fixed establishment that sets up can carry out firm fixed to the plate, and stability when guaranteeing the rust cleaning, the rust cleaning mechanism of setting can carry out abundant, the efficient rust cleaning operation to the plate, and the translation mechanism of setting can drive rust cleaning mechanism lateral position and remove the regulation, guarantees the abundant rust cleaning effect of plate, and the crane of setting can drive the vertical altitude mixture control of mill, guarantees to compress tightly it on the plate surface, has promoted the rust cleaning effect greatly.
Drawings

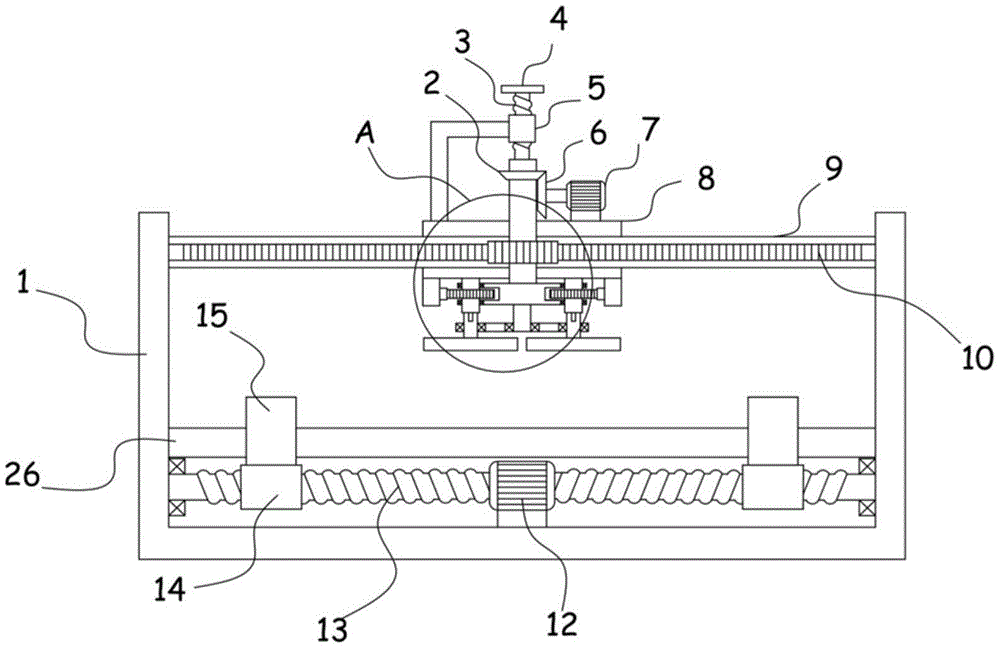

Fig. 1 is a schematic view of the internal structure of the present invention;
FIG. 2 is an enlarged view of portion A of FIG. 1;
fig. 3 is a schematic view of a partial three-dimensional structure of the present invention.
In the figure: 1-fixed frame, 2-bevel gear I, 3-threaded rod, 4-hand wheel, 5-threaded sleeve, 6-bevel gear II, 7-driving motor, 8-sliding frame, 9-guide rod, 10-rack, 11-polishing disc, 12-double-shaft motor, 13-screw rod, 14-screw rod sleeve block, 15-clamping sleeve plate, 16-hollow shaft, 17-walking gear, 18-ring plate, 19-inner gear ring, 20-transmission clamping strip, 21-rotary column, 22-transmission gear, 23-lifting frame, 24-rotary frame, 25-transmission sleeve, 26-support plate and 27-rotary shaft.
Detailed Description
The technical scheme of the patent is further described in detail by combining the following specific embodiments:
example 1
Referring to fig. 1-3, a rust removing device for the surface of a machined plate includes a fixing frame 1, a double-shaft motor 12 is fixed on the fixing frame 1, a supporting plate 26 is horizontally fixed on the fixing frame 1, a fixing mechanism for clamping the plate is arranged on the supporting plate 26, a guide rod 9 positioned above the supporting plate 26 is horizontally fixed on the fixing frame 1, a sliding frame 8 is slidably mounted on the guide rod 9, a vertically arranged hollow shaft 16 is rotatably mounted on the sliding frame 8, a rust removing mechanism is rotatably connected to the hollow shaft 16, and a translation mechanism for driving the sliding frame 8 to transversely move is arranged on the sliding frame 8.
The backup pad 26 that this device set up is used for supporting the plate, carries out the centre gripping through fixed establishment to the plate and fixes, guarantees its stable in position, carries out the surface rust cleaning of polishing to the plate through rust cleaning mechanism, and translation mechanism can drive rust cleaning mechanism lateral position and remove, promotes the scope of polishing.
Specifically, the fixing mechanism comprises a screw rod 13 which is coaxially fixed with two output shafts of the double-shaft motor 12 and has opposite thread turning directions, a clamping sleeve plate 15 which is sleeved on the supporting plate 26 in a sliding mode is fixed on the screw rod 13, the double-shaft motor 12 drives the screw rod 13 to rotate, the screw rod 13 drives a screw rod sleeve block 14 on the screw rod 13 to move oppositely, and then the two clamping sleeve plates 15 move oppositely and clamp and fix the plate.
The rust cleaning mechanism of this device includes the swivel mount 24 with the coaxial fixed of hollow shaft 16, swivel mount 24 goes up the rotation and installs eccentric settings's transmission sleeve pipe 25, slidable mounting has column spinner 21 on the transmission sleeve pipe 25, column spinner 21 lateral wall is fixed with the slip and inlays the transmission card strip 20 of establishing in transmission sleeve pipe 25, the coaxial polishing dish 11 that is fixed with of column spinner 21 lower extreme, rust cleaning mechanism is still including fixing the driving motor 7 on carriage 8, the output shaft coaxial fixation of driving motor 7 has bevel gear II6, the meshing is connected with the cover on the bevel gear II6 and establishes bevel gear I2 on hollow shaft 16.
The driving motor 7 drives the bevel gear II6 to rotate, the bevel gear II6 drives the bevel gear I2 meshed with the bevel gear II to rotate, the hollow shaft 16 rotates at the moment, the rotating frame 24 rotates, the rotating frame 24 drives the transmission sleeve 25 to rotate, the transmission sleeve 25 drives the rotating column 21 to rotate, and finally the polishing disc 11 rotates around the rotating shaft 27 and performs polishing and rust removing effects on the plate.
Example 2
On the basis of the embodiment 1, in addition, the rust removing mechanism further comprises a ring plate 18 fixed at the bottom of the sliding frame 8, an inner ring gear 19 is fixed on the inner wall of the ring plate 18, a transmission gear 22 sleeved and fixed on a transmission sleeve 25 is connected to the inner ring gear 19 in a meshing manner, in the rotating process of the rotating frame 24, the transmission gear 22 on the transmission sleeve 25 and the inner ring gear 19 are in meshing transmission and are in absorption rotation, at the moment, the transmission sleeve 25 drives the rotating column 21 to rotate through the transmission clamping strip 20, and finally, the rotation of the polishing disc 11 is realized, namely, the polishing disc 11 can rotate and can revolve around the rotating shaft 27, and the rust.
Further, the translation mechanism comprises a traveling gear 17 fixed on the hollow shaft 16 in a sleeved mode, a rack 10 fixed on the side wall of the guide rod 9 is connected to the traveling gear 17 in a meshed mode, the driving motor 7 is preferably a servo motor and can control the output shaft of the driving motor 7 to rotate forwards or backwards, the driving motor 7 drives the bevel gear II6 to rotate, the bevel gear II6 drives the bevel gear I2 to rotate to achieve rotation of the hollow shaft 16, the traveling gear 17 on the hollow shaft 16 is in meshed transmission with the rack 10, then the sliding frame 8 is driven to transversely translate the derusting mechanism, and efficient and comprehensive derusting effects on the plate are achieved.
In addition, a threaded sleeve 5 is fixed on the sliding frame 8, a threaded rod 3 penetrates through the threaded sleeve 5 in a threaded connection mode, a rotating shaft 27 penetrating through the hollow shaft 16 and the rotating frame 24 is coaxially fixed at the lower end of the threaded rod 3, the rotating shaft 27 and the rotating column 21 are both installed on the lifting frame 23 in a bearing connection mode, the threaded rod 3 is driven to rotate by screwing a hand wheel 4 fixed on the threaded rod 3, position adjustment of the threaded rod 3 in the vertical direction is achieved under the limiting effect of the threaded sleeve 5, the lifting frame 23 can drive the rotating column 21 to adjust the vertical height, the polishing disc 11 can be tightly pressed on the surface of a plate, enough pressing force during polishing and rust removal is guaranteed, and the.
To sum up, the utility model discloses a fixed establishment that sets up can carry out firm fixed to the plate, and stability when guaranteeing the rust cleaning, the rust cleaning mechanism of setting can carry out abundant, efficient rust cleaning operation to the plate, and the translation mechanism of setting can drive rust cleaning mechanism lateral position and move the regulation, guarantees the abundant rust cleaning effect of plate, and the crane of setting can drive the vertical altitude mixture control of the mill of polishing, guarantees to compress tightly it on the plate surface, has promoted the rust cleaning effect greatly.
It should be noted that, although the present specification describes embodiments, each embodiment does not include only a single technical solution, and such description of the specification is only for clarity, and those skilled in the art should take the specification as a whole, and the technical solutions in the embodiments may be appropriately combined to form other embodiments understood by those skilled in the art, and the above-mentioned embodiments only express the preferred embodiments of the technical solutions, and the description thereof is more specific and detailed, but should not be construed as limiting the scope of the claims of the technical solutions. It should be noted that, for those skilled in the art, without departing from the concept of the present invention, several modifications, improvements and substitutions can be made, which all fall within the protection scope of the present technical solution. The protection scope of this technical solution patent should be subject to the appended claims.

Claims (7)

1. The utility model provides a machining plate surface rust cleaning device, includes mount (1), is fixed with biax motor (12) on mount (1), and mount (1) is improved level and is fixed with backup pad (26), its characterized in that, be equipped with the fixed establishment that is used for carrying out the centre gripping to the plate on backup pad (26), mount (1) is improved level and is fixed with guide arm (9) that are located backup pad (26) top, and slidable mounting has carriage (8) on guide arm (9), and rotatable mounting has hollow shaft (16) of vertical setting on carriage (8), and the transmission is connected with rust cleaning mechanism on hollow shaft (16), be equipped with the translation mechanism that is used for driving its lateral shifting on carriage (8).
2. The device for removing the rust on the surface of the machined plate according to claim 1, wherein the fixing mechanism comprises a screw rod (13) which is coaxially fixed with two output shafts of the double-shaft motor (12) and has opposite thread turning directions, and a clamping sleeve plate (15) which is sleeved on the supporting plate (26) in a sliding mode is fixed on the screw rod (13).
3. The device for removing the rust on the surface of the machined plate according to claim 1, wherein the rust removing mechanism comprises a rotating frame (24) coaxially fixed with the hollow shaft (16), a transmission sleeve (25) eccentrically arranged is rotatably mounted on the rotating frame (24), a rotating column (21) is slidably mounted on the transmission sleeve (25), a transmission clamping strip (20) which is slidably embedded in the transmission sleeve (25) is fixed on the side wall of the rotating column (21), and a polishing disc (11) is coaxially fixed at the lower end of the rotating column (21).
4. The device for removing the rust on the surface of the machined plate according to claim 3, wherein the rust removing mechanism further comprises a driving motor (7) fixed on the sliding frame (8), an output shaft of the driving motor (7) is coaxially fixed with a bevel gear II (6), and the bevel gear II (6) is in meshing connection with a bevel gear I (2) sleeved and fixed on the hollow shaft (16).
5. The device for removing the rust on the surface of the machined plate according to claim 3, wherein the rust removing mechanism further comprises a ring plate (18) fixed at the bottom of the sliding frame (8), an inner gear ring (19) is fixed on the inner wall of the ring plate (18), and a transmission gear (22) which is sleeved and fixed on a transmission sleeve (25) is connected to the inner gear ring (19) in a meshing manner.
6. The device for removing rust on the surface of a machined plate according to claim 1, wherein the translation mechanism comprises a walking gear (17) which is sleeved and fixed on the hollow shaft (16), and a rack (10) which is fixed on the side wall of the guide rod (9) is connected to the walking gear (17) in a meshing manner.
7. The rust removing device for the surfaces of the machined plates according to claim 3, wherein a threaded sleeve (5) is fixed on the sliding frame (8), a threaded rod (3) penetrates through the threaded sleeve (5) in a threaded connection mode, a rotating shaft (27) penetrating through the hollow shaft (16) and the rotating frame (24) is coaxially fixed at the lower end of the threaded rod (3), and the rotating shaft (27) and the rotating column (21) are both installed on the lifting frame (23) in a bearing connection mode.
