Abstract

The utility model discloses an ultrafine grinder, which comprises a supporting chassis, wherein sliding plates are arranged at two ends of the inner side of the supporting chassis, a guide plate is connected to the inner side of each sliding plate, a grinding box is arranged at the top of the supporting chassis, two sets of motors which are arranged in parallel are connected to one side of the top of the supporting chassis, the motors are arranged in parallel, a screw rod is connected between one end of each motor and the inner side of the grinding box, a discharging pipe is arranged at the other side of the grinding box, a grinding box is arranged at the top of the grinding box, a pulling plate is arranged at the inner side of the joint of the top of the grinding box and the bottom of the grinding box, a fixed box is arranged at the top of the grinding box, and a motor II is arranged at the top of the fixed box; the utility model discloses can conveniently carry out timely collection to the raw materials after smashing, adopt regrinding's mode simultaneously, improve the crushing effect of raw materials, whole machine simple structure, convenient operation.

Description

Ultrafine grinder
Technical Field
The utility model belongs to the rubbing crusher field specifically is a super little rubbing crusher.
Background
The ultrafine grinder is a machine for grinding materials into fine particles, and is used for grinding and crushing the materials to prepare material particles, widely used in the field of processing of various materials and is a crushing machine indispensable for material crushing.
The existing ultrafine grinder has certain disadvantages when in use, has relatively common grinding effect, and basically performs one-time grinding operation on materials; the current super little rubbing crusher is inconvenient to be collected the material, is difficult to find when collecting the material with the high assorted collecting tool of discharging pipe, has brought certain influence for in-service use.
SUMMERY OF THE UTILITY MODEL
The utility model aims to provide a superfine pulverizer, which effectively solves the problem that the existing superfine pulverizer has a relatively common pulverizing effect and basically performs one-time pulverizing operation on materials; the inconvenient material of collecting of current superfine rubbing crusher is difficult to find the technical problem with the high assorted collecting tool of discharging pipe when collecting the material.
The purpose of the utility model can be realized by the following technical scheme:
the utility model provides an ultrafine grinder, includes the support chassis, the inboard both ends of support chassis are all installed the slide, and the inboard of slide is connected with the baffle, the top of support chassis is installed and is smashed the case, and the top of support chassis leans on one side of smashing the case to be connected with two sets of parallel arrangement's motor one, two sets of the parallel arrangement of motor one, and all be connected with the hob between the one end of two sets of motor one and the inboard of smashing the case, the opposite side of smashing the case is installed the discharging pipe, smash the top of case and install crushing case, and the top of crushing case and the bottom of crushing case link up the department inboard and be provided with the pull board, the top of smashing the case is installed the fixed box;
a second motor is installed at the top of the fixed box, an upper cover plate is arranged at the bottom end of the fixed box, a connecting shaft is connected to the bottom end of the second motor, one end of the connecting shaft penetrates through the bottom of the upper cover plate, and a crushing disc is connected to the bottom end of the connecting shaft;
the both ends of baffle all are connected with the card rail, and the bottom of baffle leans on one side position to install the returning face plate.
As a further proposal of the utility model, the baffle passes through the card rail at both ends and two sets of slide sliding connection, and the spout that the card rail agrees with mutually is seted up to the inboard of slide.
As a further proposal of the utility model, the fixed recess that three equidistance of group set up is installed at the top of baffle, and the feed cylinder that gathers materials is all installed to the inboard of every fixed recess of group.
As a further aspect of the utility model, the one end of returning face plate is rotated through pivot and baffle and is connected, and the length of returning face plate equals to the bottom distance of supporting the chassis with the bottom of baffle.
As a further proposal of the utility model, the fixed box is fixed at the top of the crushing box through the upper cover plate, and one end of the connecting shaft stretches into the inside of the crushing box.
As a further scheme of the utility model, crushing dish is the disc setting, and the bottom of crushing dish installs two sets of crushing sword, and is two sets of crushing sword is horizontal parallel and sets up back on the body mutually.
The utility model has the advantages that:
the utility model discloses a baffle, pulling baffle, baffle utilize the card rail to slide in the inboard spout of slide and see off to the outside of supporting the chassis, overturn the returning face plate to the vertical state through the pivot, support the baffle bottom, utilize the aggregate cylinder to collect the material afterwards, set up multiunit aggregate cylinder, through the length that the control baffle is outwards taken out, can change the aggregate cylinder, conveniently in time collect the material after smashing;
through setting up fixed case, fixed case is fixed with crushing case, utilizes the upper cover plate to seal the upper portion of smashing the case, and starter motor two afterwards, motor two drive the connecting axle and rotate, and then drive crushing dish and rotate, and the crushing blade of crushing dish bottom is tentatively smashed the material of smashing incasement portion, and the material enters into and carries out the regrinding after smashing the case to whole super little rubbing crusher's crushing effect has been improved.
Drawings
In order to facilitate understanding for those skilled in the art, the present invention will be further described with reference to the accompanying drawings.

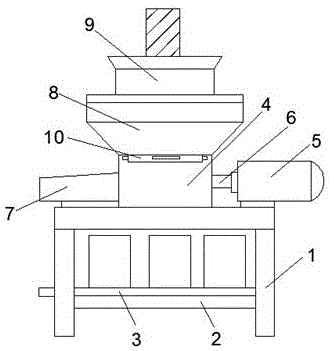

Fig. 1 is a schematic view of the overall structure of the present invention.
Fig. 2 is an assembly view of the fixing box of the present invention.
Fig. 3 is a structural view of the guide plate of the present invention.
In the figure: 1. a support chassis; 2. a slide plate; 3. a guide plate; 4. a grinding box; 5. a first motor; 6. a screw rod; 7. a discharge pipe; 8. a crushing box; 9. a fixed box; 10. a drawing plate; 11. a second motor; 12. an upper cover plate; 13. a connecting shaft; 14. a crushing disc; 15. clamping a rail; 16. a turnover plate; 17. a material collecting barrel.
Detailed Description
The technical solution of the present invention will be described clearly and completely with reference to the following embodiments, and it should be understood that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. Based on the embodiments of the present invention, all other embodiments obtained by a person of ordinary skill in the art without creative efforts belong to the protection scope of the present invention.
As shown in fig. 1-3, an ultrafine pulverizer comprises a supporting chassis 1, wherein sliding plates 2 are respectively installed at two ends of the inner side of the supporting chassis 1, guide plates 3 are connected to the inner side of the sliding plates 2, a grinding box 4 is installed at the top of the supporting chassis 1, two groups of motors 5 which are arranged in parallel are connected to one side, close to the grinding box 4, of the top of the supporting chassis 1, the two groups of motors 5 are arranged in parallel, spiral rods 6 are respectively connected between one ends of the two groups of motors 5 and the inner side of the grinding box 4, a discharging pipe 7 is installed at the other side of the grinding box 4, a grinding box 8 is installed at the top of the grinding box 4, a pulling plate 10 is arranged at the inner side of a joint of the top of the grinding box 4 and the bottom of the grinding box 8, a fixing box 9 is installed at the top of;
a second motor 11 is mounted at the top of the fixed box 9, an upper cover plate 12 is arranged at the bottom end of the fixed box 9, a connecting shaft 13 is connected to the bottom end of the second motor 11, one end of the connecting shaft 13 penetrates through the bottom of the upper cover plate 12, a crushing disc 14 is connected to the bottom end of the connecting shaft 13, and the crushing disc 14 crushes the inside of the fixed box 9;
both ends of the guide plate 3 are connected with clamping rails 15, a turning plate 16 is arranged at the position, close to one side, of the bottom of the guide plate 3, and the turning plate 16 can support the guide plate 3 when being turned to be in a vertical state.
The guide plate 3 is connected with the two groups of sliding plates 2 in a sliding mode through the clamping rails 15 at the two ends, sliding grooves matched with the clamping rails 15 are formed in the inner sides of the sliding plates 2, and the clamping rails 15 are clamped into the sliding grooves, so that the guide plate 3 can slide.
Three groups of fixed recesses which are arranged at equal intervals are arranged at the top of the guide plate 3, the material collecting barrels 17 are arranged on the inner sides of each group of fixed recesses, and the fixed recesses are arranged to facilitate the fixation of the material collecting barrels 17.
One end of the turnover plate 16 is rotatably connected with the guide plate 3 through a rotating shaft, and the length of the turnover plate 16 is equal to the distance from the bottom of the guide plate 3 to the bottom of the supporting underframe 1.
The fixed box 9 is fixed on the top of the crushing box 8 through an upper cover plate 12, and one end of a connecting shaft 13 extends into the crushing box 8.
Crushing pan 14 is the disc setting, and two sets of crushing sword are installed to the bottom of crushing pan 14, and two sets of crushing sword are horizontal parallel and set up mutually oppositely, and two 11 drive crushing pans of motor 14 rotate, drive crushing sword afterwards and rotate, smash the material.
An ultrafine grinder, when using, at first the fixed box 9 is taken down from the top of the crushing box 8, the material to be ground is put into the crushing box 8, then the fixed box 9 and the crushing box 8 are fixed, the upper cover plate 12 is used for sealing the upper part of the crushing box 8, then the motor II 11 is started, the motor II 11 drives the connecting shaft 13 to rotate, and further drives the crushing disk 14 to rotate, the crushing blade at the bottom of the crushing disk 14 primarily crushes the material in the crushing box 8, then the pull plate 10 is drawn out, the material in the crushing box 8 enters the crushing box 4, the two sets of motors I5 are started, the spiral rods 6 connected at the ends of the two sets of motors I5 rotate towards the opposite direction, the material falling from the crushing box 8 enters the middle position of the two sets of spiral rods 6 to be secondarily crushed, the ultrafine grinding operation is realized, the material crushed under the spiral motion action of the discharge pipe 6 enters the discharge pipe 7, pulling baffle 3, baffle 3 utilizes card rail 15 to slide in slide 2 inboard spout and see off to the outside of supporting chassis 1, overturns the board 16 to the vertical state through the pivot, supports baffle 3 bottom, utilizes the aggregate bin 17 to collect the material afterwards.
The utility model discloses a baffle 3, pulling baffle 3, baffle 3 utilizes card rail 15 to slide in slide 2 inboard spout and see off to the outside of supporting chassis 1, overturns the returning face plate 16 to the vertical state through the pivot, supports baffle 3 bottom, utilizes the aggregate cylinder 17 to collect the material afterwards, sets up multiunit aggregate cylinder 17, through the length of controlling baffle 3 outwards taking out, can change aggregate cylinder 17, conveniently in time collects the material after smashing; through setting up fixed case 9, fixed case 9 is fixed with crushing case 8, utilizes upper cover plate 12 to seal the upper portion of crushing case 8, and two 11 starting motors later, two 11 drive connecting axle 13 rotations of motor, and then drive crushing disk 14 and rotate, and the crushing blade of crushing disk 14 bottom carries out preliminary crushing to the material of crushing case 8 inside, and the material enters into and carries out the regrinding after crushing case 4 to whole super little rubbing crusher's crushing effect has been improved.
The preferred embodiments of the present invention disclosed above are intended only to help illustrate the present invention. The preferred embodiments are not intended to be exhaustive or to limit the invention to the precise embodiments disclosed. Obviously, many modifications and variations are possible in light of the above teaching. The embodiments were chosen and described in order to best explain the principles of the invention and its practical applications, to thereby enable others skilled in the art to best understand the invention for and utilize the invention. The present invention is limited only by the claims and their full scope and equivalents.

Claims (6)

1. The utility model provides an ultra-fine pulverizer, includes support chassis (1), its characterized in that: the grinding device is characterized in that sliding plates (2) are mounted at two ends of the inner side of the supporting chassis (1), a guide plate (3) is connected to the inner side of each sliding plate (2), a grinding box (4) is mounted at the top of the supporting chassis (1), two groups of motors I (5) which are arranged in parallel are connected to one side, close to the grinding box (4), of the top of the supporting chassis (1), the two groups of motors I (5) are arranged in parallel, a spiral rod (6) is connected between one end of each group of motors I (5) and the inner side of the grinding box (4), a discharging pipe (7) is mounted at the other side of the grinding box (4), a grinding box (8) is mounted at the top of the grinding box (4), a drawing plate (10) is arranged on the inner side of the joint of the top of the grinding box (4) and the bottom of the grinding box (8);
a second motor (11) is mounted at the top of the fixed box (9), an upper cover plate (12) is arranged at the bottom end of the fixed box (9), a connecting shaft (13) is connected to the bottom end of the second motor (11), one end of the connecting shaft (13) penetrates through the bottom of the upper cover plate (12), and a crushing disc (14) is connected to the bottom end of the connecting shaft (13);
both ends of the guide plate (3) are connected with clamping rails (15), and the bottom of the guide plate (3) is provided with a turnover plate (16) close to one side.
2. The ultrafine grinder according to claim 1, wherein the guide plate (3) is slidably connected with the two sets of sliding plates (2) through clamping rails (15) at two ends, and sliding grooves matched with the clamping rails (15) are formed on the inner sides of the sliding plates (2).
3. A micronizer according to claim 1, characterized in that the top of said guide plate (3) is fitted with three sets of fixed pockets arranged at equal intervals, the inner side of each set of fixed pockets being fitted with a cylinder (17).
4. A micronizer according to claim 1, characterized in that one end of said turnover plate (16) is rotatably connected to the guide plate (3) by means of a rotating shaft, the length of the turnover plate (16) being equal to the distance from the bottom of the guide plate (3) to the bottom of the supporting chassis (1).
5. A micronizer according to claim 1, characterized in that said fixed box (9) is fixed on the top of the micronizer box (8) by means of an upper cover plate (12), one end of the connecting shaft (13) extending inside the micronizer box (8).
6. A micronizer according to claim 1, characterized in that said disk (14) is in the form of a disk and in that at the bottom of the disk (14) are mounted two sets of knives, which are laterally parallel and opposite.
