The arm fixing device for the surgical patient mainly comprises a left trapezoidal cylinder, a right trapezoidal cylinder, a left back plate connected with the left trapezoidal cylinder, a right back plate connected with the right trapezoidal cylinder and the like, wherein a left U-shaped groove and a right U-shaped groove are formed in the left trapezoidal cylinder and the right trapezoidal cylinder to accommodate a left arm and a right arm, and the left arm and the right arm are fixed through fixing straps. The left backboard is used for adjusting the distance between the left trapezoidal cylinder and the right trapezoidal cylinder in a built-in hidden groove of the right backboard in a sliding manner, and the left backboard and the right backboard move up and down between the operation bed surface and the back of a patient to adapt to the patients with different physiques. The utility model provides an easy operation, arm are easily fixed, width and position are adjustable in order to be adapted to different patients, arrange the operation bed surface in and do not influence the technical scheme that the doctor operated, and the technical problem of how effectively to fix operation patient's arm of having solved, and do not produce adverse effect to the operation process, have effectively ensured developing smoothly and medical safety of operation.
Description
Technical Field
The utility model belongs to the technical field of a medical instrument and specifically relates to a patient's arm fixing device performs operation.
Background
At present, an arm placing plate is attached to an operating bed used in an operating room and extends towards two sides of the operating bed in a splayed shape, and a patient lies on the operating bed to place an arm on the operating bed during operation, so that the defects that firstly, after anesthesia, the muscle of the upper arm of the patient is loosened, the patient cannot be stably and effectively placed on the arm placing plate, a nurse needs to bind and fix the arm placing plate by using gauze or a bandage, and the workload of the nurse is increased; secondly, the problem that patients with smaller or larger upper limbs are not adaptive due to individual differences of ages, physiques and the like exists among surgical patients, and although the technical scheme of the existing telescopic arm placing plate is published, the problem is only improved to a certain extent; thirdly, the arm placing plate extending out of the operating bed increases the distance between the operating doctor and the operating bed, thereby stopping the working space of the doctor and increasing the operation difficulty. These problems affect and limit the normal performance of the surgical procedure to some extent.
Disclosure of Invention
In order to solve the problem, the utility model provides an operation patient arm fixing device, its aim at provide easy operation, arm easily fixed, width and position are adjustable in order to be adapted to different patients, arrange the operation bed surface in and not influence the technical scheme that the doctor operated.
In order to realize the purpose, the utility model provides a technical scheme is: the arm fixing device for the surgical patient mainly comprises a left trapezoidal column body, a right trapezoidal column body, a left back plate and a right back plate which are connected with the left trapezoidal column body and the right trapezoidal column body.
In the arm fixing device for the surgical patient, the right U-shaped groove is formed in the right trapezoidal cylinder, the bottom surface of the right trapezoidal cylinder with a planar structure is arranged below the right trapezoidal cylinder, the inner side of the right trapezoidal cylinder is perpendicular to the inner side of the right trapezoidal cylinder, and the outer side of the right trapezoidal cylinder is intersected with the bottom surface of the right trapezoidal cylinder at an acute angle.
Above-mentioned operation patient arm fixing device sets up two fixing bandage at least on the trapezoidal cylinder inner face of right side, and fixing bandage end is installed and is pasted the hook face, installs two on the corresponding horizontal position in the trapezoidal cylinder outside of right side and pastes the hair face at least.
According to the arm fixing device for the surgical patient, the inner edge of the bottom surface of the right trapezoidal column body keeps the right trapezoidal column body inclined towards the outer side of the right foot at a proper angle and is fixedly connected with the right back plate.
According to the arm fixing device for the surgical patient, the left U-shaped groove is formed in the left trapezoidal cylinder, the bottom surface of the left trapezoidal cylinder with the planar structure is arranged below the left trapezoidal cylinder, the inner side of the left trapezoidal cylinder is perpendicular to the inner side of the left trapezoidal cylinder, and the outer side of the left trapezoidal cylinder is intersected with the bottom surface of the left trapezoidal cylinder at an acute angle.
Above-mentioned operation patient arm fixing device sets up two fixing bandage at least on the trapezoidal cylinder inner face in a left side, and fixing bandage end is installed and is pasted the hook face, installs two on the corresponding horizontal position in the trapezoidal cylinder outside in a left side and pastes the hair face at least.
According to the arm fixing device for the surgical patient, the inner edge of the bottom surface of the left trapezoidal column body keeps the left trapezoidal column body inclined towards the outer side of the left foot at a proper angle and is fixedly connected with the left back plate.
According to the arm fixing device for the surgical patient, the right back plate is internally provided with the right back plate built-in hidden groove, and the inner end of the left back plate is arranged in the right back plate built-in hidden groove.
The utility model has the advantages that: the left trapezoidal column body and the right trapezoidal column body are arranged on the surface of the operation bed, and the bottom surface of the left trapezoidal column body and the bottom surface of the right trapezoidal column body can be stably arranged on the operation bed by adopting a planar design. The design scheme that the inner surface of the left trapezoidal cylinder and the inner surface of the right trapezoidal cylinder are perpendicular to the bottom surface of the left trapezoidal cylinder and the bottom surface of the right trapezoidal cylinder respectively is favorable for reducing the distance between the left trapezoidal cylinder and the patient trunk, and the left trapezoidal cylinder and the right trapezoidal cylinder are prevented from protruding out of the operation bed surface. The outer surface of the left trapezoidal cylinder and the outer surface of the right trapezoidal cylinder are respectively intersected with the bottom surface of the left trapezoidal cylinder and the bottom surface of the right trapezoidal cylinder at acute angles, so that the convex structure is reduced, the operation is facilitated, and the structural placement stability is facilitated. The left trapezoid column and the right trapezoid column are respectively provided with a left U-shaped groove and a right U-shaped groove for accommodating a left arm and a right arm, and the positions of the left trapezoid column and the right trapezoid column can be flexibly adjusted to select different structures such as an upper arm, an elbow joint or a forearm. The inner face of the left trapezoid cylinder and the inner face of the right trapezoid cylinder are provided with at least 2 fixing bandages, and the pasting hook faces at the tail ends of the fixing bandages are respectively connected with the pasting rough faces arranged at the corresponding positions outside the left trapezoid cylinder and outside the right trapezoid cylinder, so that the upper arm of a patient can be conveniently fixed. The inner of the left back plate is arranged in the built-in hidden groove of the right back plate, and the left and right sliding can adjust the distance between the left trapezoidal cylinder and the right trapezoidal cylinder, so that the left and right sliding type adjustable back plate is beneficial to being adapted to patients with different physiques. The whole arm fixing device for the operation patient can be arranged on the operation bed surface at different positions, and is favorable for being suitable for the operation patients with different heights and the operation requirements.
Drawings
The present invention will be further explained with reference to the drawings and examples.

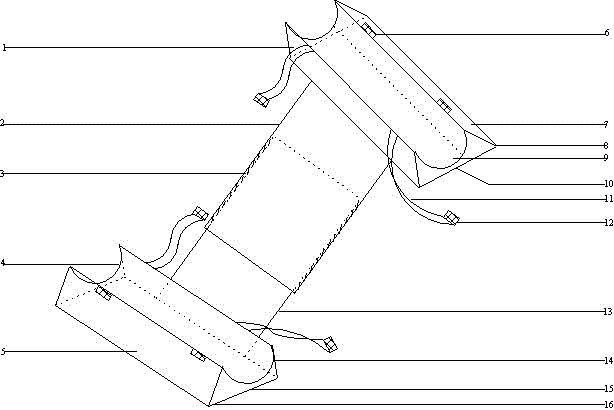

FIG. 1 is a schematic view of the present invention;
in the figure, 1, a right trapezoid cylinder inner face, 2, a right back plate, 3, a right back plate built-in hidden groove, 4, a left U-shaped groove, 5, a left trapezoid cylinder outer face, 6, a sticking rough face, 7, a right trapezoid cylinder outer face, 8, a right trapezoid cylinder, 9, a right U-shaped groove, 10, a right trapezoid cylinder bottom face, 11, a fixing binding band, 12, a sticking hook face, 13, a left back plate, 14, a left trapezoid cylinder inner face, 15, a left trapezoid cylinder bottom face and 16, a left trapezoid cylinder are arranged in the left trapezoid cylinder.
Detailed Description
The working principle and the working process of the utility model are as follows
When the device works, according to the specific conditions of a patient, the arm fixing device of the patient is placed at a proper position on the surface of an operation bed, the inner end of the left back plate 13 is placed in the right back plate built-in hidden groove 3 formed in the right back plate 2, and the left back plate 13 is slid to adjust the distance between the left trapezoidal column 16 and the right trapezoidal column 8 to be suitable for the width of the patient. The back of the operation patient lies on the left back plate 13 and the right back plate 2, and the positions of the left back plate 13 and the right back plate 2 which move up and down between the back and the bed surface of the patient are adapted to the body height of the patient. The bottom surface 15 of the left trapezoidal column body and the bottom surface 10 of the right trapezoidal column body are placed on the operating bed in a plane shape, the inner surface 14 of the left trapezoidal column body and the inner surface 1 of the right trapezoidal column body are perpendicular to the bed surface and are attached to the left side and the right side of the trunk of a patient, and the outer surface 5 of the left trapezoidal column body and the outer surface 7 of the right trapezoidal column body form acute angles and are respectively intersected with the bottom surface 15 of the left trapezoidal column body and the bottom. The left arm and the right arm are respectively arranged in a left U-shaped groove 4 and a right U-shaped groove 9 which are arranged in a left trapezoidal column 16 and a right trapezoidal column 8, and the left arm and the right arm are fixed by connecting a sticking rough surface 6 with a sticking hook surface 12 at the tail end of a fixing bandage 11.
Claims (9)
1. Operation patient arm fixing device, its characterized in that: the structure mainly comprises a left trapezoidal column (16), a right trapezoidal column (8), a left backboard (13) and a right backboard (2) which are respectively connected with the left trapezoidal column and the right trapezoidal column.
2. The surgical patient arm fixation device of claim 1, wherein: a right U-shaped groove (9) is arranged in the right trapezoidal column body (8), the bottom surface (10) of the right trapezoidal column body is arranged on the surface of the operation bed, the inner surface (1) of the right trapezoidal column body is vertical to the right trapezoidal column body, and the outer surface (7) of the right trapezoidal column body is intersected with the right trapezoidal column body at an acute angle.
3. The surgical patient arm fixation device of claim 1, wherein: at least two fixing bands (11) are arranged on the inner surface (1) of the right trapezoid cylinder, the tail ends of the fixing bands are provided with adhering hook surfaces (12), and at least two adhering rough surfaces (6) are arranged on the outer surface (7) of the right trapezoid cylinder in a corresponding horizontal position.
4. The surgical patient arm fixation device of claim 1, wherein: the inner edge of the bottom surface (10) of the right trapezoidal column keeps the right trapezoidal column (8) inclined towards the outer side of the right foot at a proper angle and is connected with the right back plate (2).
5. The surgical patient arm fixation device of claim 1, wherein: a left U-shaped groove (4) is arranged in the left trapezoidal column body (16), the bottom surface (15) of the left trapezoidal column body is arranged on the surface of the operation bed, the inner surface (14) of the left trapezoidal column body is vertical to the left trapezoidal column body, and the outer surface (5) of the left trapezoidal column body is intersected with the left trapezoidal column body at an acute angle.
6. The surgical patient arm fixation device of claim 1, wherein: at least two fixing bands (11) are arranged on the inner surface (14) of the left trapezoidal column body, the tail ends of the fixing bands are provided with sticking hook surfaces (12), and at least two sticking rough surfaces (6) are arranged on the outer surface (5) of the left trapezoidal column body corresponding to the horizontal position.
7. The surgical patient arm fixation device of claim 1, wherein: the inner edge of the bottom surface (15) of the left trapezoidal column keeps the left trapezoidal column (16) inclined towards the outer side of the left foot at a proper angle and is connected with the left back plate (13).
8. The surgical patient arm fixation device of claim 1, wherein: a right backboard built-in hidden groove (3) is arranged in the right backboard (2).
9. The surgical patient arm fixation device of claim 1, wherein: the inner end of the left back plate (13) is arranged in the built-in hidden groove (3) of the right back plate.
