Abstract
The utility model discloses a visual sample thief of splash is prevented in pharynx swab inspection process, including luminous handle, sampling head, cage, test tube, luminous handle end is equipped with the connector, the connector inboard is equipped with the lamp pearl, the tail end swing joint of connector and sampling head, and the sampling head front end is for wiping the sub-head, and the sampling head rear end is the plastic tubing, and luminous handle side is equipped with the switch, the cage is transparent umbrella-shaped structure, and the cage cover is in the connector outside, and the cage opening is towards the sampling head, and in the test tube was put into to the sampling head take off, the test tube exit was equipped with the test tube lid, the utility model discloses an umbrella-shaped cage blocks patient's mouth, and the protection nature is good, and convenient operation can prevent to lead to patient's secretion splash because of the sampling, effectively protects medical personnel's safety.
Description
Technical Field
The utility model belongs to the technical field of medical equipment, concretely relates to visual sample thief of splash is prevented to pharynx swab inspection in-process.
Background
The throat swab examination is an essential and important operation for diagnosis and treatment of diseases such as novel coronavirus, pharyngeal diphtheria, acute pharyngolaryngitis and the like. Specifically, the pharyngeal tonsils and the posterior pharyngeal wall were wiped with a sterilized cotton swab or plastic rod swab, and a little of the pharyngeal secretions were taken and examined under a microscope. The secretion can also be used for bacterial culture and drug sensitivity experiments to find harmful bacteria planted in the throat, thereby providing clinical help for the next diagnosis and medication guidance. When the throat swab is used for inspection, a patient often coughs, sneezes and even vomits, and splashes follow the cough, so that the throat swab which seems simple and the like is used for sampling, and becomes one of the most dangerous operations in the first epidemic prevention line. In order to ensure the safety of sampling personnel and the like and reduce the infection risk of medical personnel, the pharyngeal swab sampler needs to be improved and is urgent.
Disclosure of Invention
In order to solve the problem, the utility model discloses a visual sample thief of splash is prevented to pharynx swab inspection in-process, and the protectiveness is good, and convenient operation improves the sampling rate of accuracy, has better protected medical personnel's safety, reduces medical staff and infects the risk.
To achieve the above purpose, the utility model discloses
The utility model provides a visual sample thief of splash is prevented in pharynx swab inspection process, includes luminous handle, sampling head, cage, test tube, luminous handle end is equipped with the connector, the connector inboard is equipped with the lamp pearl, the tail end swing joint of connector and sampling head, and the sampling head front end is for wiping sub-head (nylon fine hair head), and the sampling head rear end is the plastic tubing, and luminous handle side is equipped with the switch, the cage is transparent umbrella-type structure, and the cage setting is in the connector outside, and the cage opening is towards the sampling head, and in the test tube was put into to the sampling head take off, test tube exit was equipped with the test tube lid.
As an improvement of the utility model, the inside circuit board that is equipped with of luminous handle, lamp pearl is connected to circuit board one end, and the USB interface of luminous handle rear end is connected to the other end.
As an improvement of the utility model, the inside button cell that is equipped with of luminous handle, button cell connects the lamp pearl.
As an improvement of the utility model, the connector is in threaded connection with the tail end of the plastic pipe.
As an improvement of the utility model, the inner wall of the connector is a taper hole, and the tail end of the plastic pipe is provided with a taper block to be inserted into the taper hole.
As an improvement of the utility model, the length of the sampling head is 1-4mm longer than that of the test tube.
The utility model has the advantages that:
a visual sample thief of preventing splash in pharynx swab inspection process, adopt umbrella-type cage to block patient's mouth, the protectiveness is good, convenient operation improves the sampling rate of accuracy, better protected medical personnel's safety, reduces medical staff and infects the risk.
Drawings

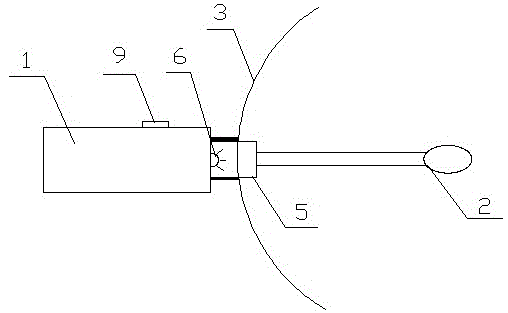

Fig. 1 is a schematic structural diagram of the present invention.
Fig. 2 is a diagram of the working state of the test tube of the present invention.
Fig. 3 is a structural diagram of the inside of the handle according to the present invention.
Fig. 4 is another structure diagram of the inside of the handle according to the present invention.
List of reference numerals:
1. luminous handle, 2, sampling head, 3, cage, 4, test tube, 5, connector, 6, lamp pearl, 7, swab head, 8, plastic tubing, 9, switch, 10, test tube lid, 11, circuit board, 12, USB interface, 13, button cell, 14, screw thread, 15, bell mouth.
Detailed Description
The present invention will be further explained with reference to the accompanying drawings and embodiments, which are to be understood as illustrative only and not limiting the scope of the invention. It should be noted that the terms "front," "back," "left," "right," "upper" and "lower" used in the following description refer to directions in the drawings, and the terms "inner" and "outer" refer to directions toward and away from, respectively, the geometric center of a particular component.
As shown in the figure, the splash-proof visual sampler in the throat swab inspection process comprises a light-emitting handle 1, a sampling head 2, a shielding case 3 and a test tube 4, wherein the light-emitting handle 1 is similar to a handle of a light-emitting earpick, a lamp bead at the front end of the light-emitting handle 1 emits light to illuminate the position of the swab head, and a lamp bead 6 is arranged on the inner side of a connector 5 and has two light-emitting modes:
the utility model provides a be equipped with circuit board 11 in luminous handle 1 inside, lamp pearl 6 is connected to circuit board 11 one end, and the USB interface 12 of luminous handle rear end is connected to the other end, can charge.
The other type is that a button cell 13 is arranged inside the luminous handle 1, and the button cell 13 is connected with the lamp bead 6.
The front end of the sampling head is a swab head 7 (a nylon fluff head is adopted and is somewhat like a small brush), the rear end of the sampling head is a plastic tube 8, as long as a switch 9 on the side surface of the luminous handle is turned on, light shines on the swab head 7 through the plastic tube 8, and the isolation cover 3 is transparent, so that a nurse can conveniently sample in work, and the working efficiency is improved; cage 3 be umbrella structure, cage 3 sets up in the connector outside, the cage opening blocks patient's mouth towards sampling head one end with umbrella-shaped cage 3 during the sampling, prevents saliva or vomitus to splash the nurse on one's body, the protectiveness is good, convenient operation can protect medical personnel's safety.
After the sampling, the sampling head 2 is taken down and put into the test tube 4, the test tube cover 10 is covered for sealed storage, in order to conveniently and quickly take out the sampling head 2, the length of the sampling head can be 1-4mm longer than that of the test tube, the plastic tube 8 is slightly bent during sealed storage, and the test tube cover 10 is opened. The plastic pipe 8 rebounds to pop out of the test tube, so that medical staff can take the plastic pipe conveniently.
The cage 3 for the rubber and plastic products, disposable, the cover is outside the connector 5 of the luminous handle front end, preventing the splash.
1. the connector 2 is connected with the tail end of the plastic pipe 8 through threads 14, as shown in fig. 3;
2. the inner wall of the connector 2 is a tapered hole 15, and the tail end of the plastic pipe 8 is provided with a tapered block inserted into the tapered hole 15, as shown in fig. 4.
The technical means disclosed in the present invention is not limited to the technical means disclosed in the above embodiments, but also includes the technical solution formed by combining the above technical features at will.
Claims (6)
1. The utility model provides a visual sample thief of splash is prevented to pharynx swab inspection in-process which characterized in that: including luminous handle, sampling head, cage, test tube, luminous handle end is equipped with the connector, the connector inboard is equipped with the lamp pearl, connector and sampling head's tail end swing joint, and the first front end of sampling is for wiping the son head, and the first rear end of sampling is the plastic tubing, and luminous handle side is equipped with the switch, the cage is transparent umbrella-shaped structure, and the cage setting is in the connector outside, and the cage opening is towards the sampling head, and in the test tube was put into in the sampling head took off, the test tube exit was equipped with the test tube lid.
2. The visual sampler of claim 1 for preventing splash during pharyngeal swab examination, wherein: the inside circuit board that is equipped with of luminous handle, lamp pearl is connected to circuit board one end, and the USB interface at luminous handle rear end is connected to the other end.
3. The visual sampler of claim 1 for preventing splash during pharyngeal swab examination, wherein: the button cell is arranged inside the luminous handle and connected with the lamp bead.
4. The visual sampler of claim 1 for preventing splash during pharyngeal swab examination, wherein: the connector is connected with the tail end of the plastic pipe through threads.
5. The visual sampler of claim 1 for preventing splash during pharyngeal swab examination, wherein: the inner wall of the connector is a conical hole, and a conical block is arranged at the tail end of the plastic pipe and inserted into the conical hole.
6. The visual sampler of claim 1 for preventing splash during pharyngeal swab examination, wherein: the length of the sampling head is 1-4mm longer than that of the test tube.
