CN212068215U - Building construction dust collector - Google Patents
Building construction dust collector Download PDFInfo
- Publication number
- CN212068215U CN212068215U CN202020175977.8U CN202020175977U CN212068215U CN 212068215 U CN212068215 U CN 212068215U CN 202020175977 U CN202020175977 U CN 202020175977U CN 212068215 U CN212068215 U CN 212068215U
- Authority
- CN
- China
- Prior art keywords
- base
- dust
- fixedly arranged
- dust collection
- top end
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Expired - Fee Related
Links
Images
Abstract
The utility model relates to a dust removing device for building construction, which comprises a base, wherein universal wheels are symmetrically and fixedly arranged at the bottom end of the base, a push rod is fixedly arranged at one side of the base, a support is fixedly arranged at the middle position of the top end of the base, a plurality of connecting rods are symmetrically and fixedly arranged at the top end of the support, a support plate is fixedly arranged at the top end of each connecting rod, a rotating rod is arranged on the support plate in a penetrating and rotating manner, a limit block is fixedly sleeved at the lower part of the rotating rod, the bottom end of the limit block is abutted against the top end of the support plate, the bottom end of the rotating rod penetrates through the support plate and extends to the lower part of the support plate, a first gear is fixedly sleeved on the top end of the rotating rod, a water tank is arranged in the rotating disk, the utility model, and a good construction environment is created for constructors.
Description
Technical Field
The utility model relates to a construction dust collector belongs to dust collecting equipment technical field.
Background
On the construction site, dust is often scattered, especially under indoor construction environment, if the dust is more, will certainly lead to the fact very big influence to constructor's healthy, and the common construction site of present general building often lacks dust collecting equipment, and common has a suction drum, but the suction drum is used for the job site effect alone not good.
Therefore, a dust removing device for building construction is needed, which can adsorb dust and treat the dust, effectively ensure the health of constructors and create a good construction environment for the constructors.
SUMMERY OF THE UTILITY MODEL
The utility model discloses the technical problem who solves overcomes current defect, provides a building construction dust collector, the utility model discloses simple structure, convenient to use can adsorb the dust and handle, and effectively guarantee constructor's is healthy, builds a good construction environment for constructor, can effectively solve the problem in the background art.
In order to solve the technical problem, the utility model provides a following technical scheme:
a dust removal device for building construction comprises a base, universal wheels are symmetrically and fixedly arranged at the bottom of the base, a push rod is fixedly arranged on one side of the base, a support is fixedly arranged at the middle position of the top end of the base, a plurality of connecting rods are symmetrically and fixedly arranged at the top end of the support, a support plate is fixedly arranged at the top end of each connecting rod, a rotating rod is arranged on the support plate in a penetrating and rotating manner, a limiting block is fixedly sleeved at the lower part of the rotating rod, the bottom end of the limiting block is abutted against the top end of the support plate, the bottom end of the rotating rod penetrates through the support plate and extends to the lower part of the support plate, a first gear is fixedly sleeved on the support plate, a rotary disc is fixedly connected at the top end of the rotating rod, a water tank is arranged in, the dust absorption fan is located one side of the base, which is far away from the push rod, the motor is located between the water pump and the dust absorption fan, a second gear is fixedly arranged at the output end of the motor, and the first gear is meshed with the second gear.
Furthermore, a plurality of spray heads are fixedly arranged at the bottom end of the rotary table in an array mode, and the input ends of the spray heads penetrate through the rotary table and extend into the water tank.
Further, the output fixedly connected with drain pipe of water pump, the other end of drain pipe runs through the dwang with the bottom of carousel extends to in the basin, the drain pipe with the carousel rotates to be connected.
Furthermore, a dust collection box is fixedly arranged at the top end of one side, away from the support, of the base, a filter screen layer, an activated carbon layer and a grid layer are fixedly arranged in the dust collection box, the grid layer is located on one side, away from the dust collection fan, of the dust collection box, the activated carbon layer is located on one side, close to the dust collection fan, of the grid layer, the filter screen layer is located on one side, close to the dust collection fan, of the activated carbon layer, and the dust collection box is fixedly connected with the output end of the dust collection fan through a dust collection pipe.
Further, the base is close to the fixed water tank that is equipped with in one side top of push rod, the water tank is close to the fixed controller that is equipped with in one side upper portion of push rod, the water inlet has been seted up on the top of water tank, the input fixedly connected with drinking-water pipe of water pump, the drinking-water pipe runs through the water tank extends to in the water tank.
Further, the motor, the water pump and the dust collection fan are electrically connected with the output end of the controller.
The utility model discloses a technological effect and advantage:
1. the utility model discloses a carousel has been set up, when using, drives gear two through the motor and rotates to make gear two drive gear one and rotate, thereby make gear one drive the dwang and rotate, and then make the dwang drive the carousel and rotate, can pump the water liquid in the water tank to the basin through the water pump this moment, thereby spray through the shower nozzle, because the shower nozzle has all set up certain angle, thereby make the shower nozzle can spray in rotatory process farther, can spray dust removal diversely simultaneously;
2. the dust collection fan and the dust collection box are arranged, when the dust collection fan is used, the dust collection fan is controlled to work through the controller, so that the external air is sucked into the dust collection box through the dust collection box, and the air is filtered through the filter screen layer, the activated carbon layer and the grid layer, so that the external air can be effectively filtered and dedusted;
3. the utility model discloses simple structure, convenient to use can adsorb the dust and handle, and effective guarantee constructor's is healthy, builds a good construction environment for the constructor.
Drawings
The accompanying drawings are included to provide a further understanding of the invention, and are incorporated in and constitute a part of this specification, illustrate embodiments of the invention, and together with the description serve to explain the invention and not to limit the invention.

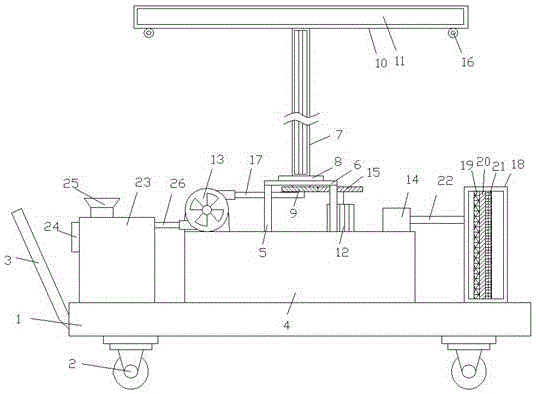

Fig. 1 is a front view of the present invention.
Fig. 2 is a bottom view of the turntable of the present invention.
Fig. 3 is a schematic perspective view of the connecting rod and the supporting plate of the present invention.
Reference numbers in the figures: 1. a base; 2. a universal wheel; 3. a push rod; 4. a support; 5. a connecting rod; 6. a support plate; 7. rotating the rod; 8. a limiting block; 9. a first gear; 10. a turntable; 11. a water tank; 12. a motor; 13. a water pump; 14. a dust collection fan; 15. a second gear; 16. a spray head; 17. a drain pipe; 18. a dust collection box; 19. a filter screen layer; 20. an activated carbon layer; 21. a grid layer; 22. a dust collection pipe; 23. a water tank; 24. a controller; 25. a water inlet; 26. a water pumping pipe.
Detailed Description
The preferred embodiments of the present invention will be described in conjunction with the accompanying drawings, and it will be understood that they are presented herein only to illustrate and explain the present invention, and not to limit the present invention.
As shown in figures 1-3, a dust removing device for building construction comprises a base 1, universal wheels 2 are symmetrically and fixedly arranged at the bottom end of the base 1, a push rod 3 is fixedly arranged at one side of the base 1, a support 4 is fixedly arranged at the middle position of the top end of the base 1, a plurality of connecting rods 5 are symmetrically and fixedly arranged at the top end of the support 4, a support plate 6 is fixedly arranged at the top end of each connecting rod 5, a rotating rod 7 is rotatably arranged on each support plate 6 in a penetrating manner, a limit block 8 is fixedly sleeved at the lower part of each rotating rod 7, the bottom end of each limit block 8 is abutted against the top end of each support plate 6, the bottom end of each rotating rod 7 penetrates through each support plate 6 and extends to the lower part of each support plate 6, a first gear 9 is fixedly sleeved on each support plate, a turntable 10 is fixedly connected at the top end of each rotating rod, the dust collection fan 14 is positioned on one side, far away from the push rod 3, of the base 1, the motor 12 is positioned between the water pump 13 and the dust collection fan 14, the second gear 15 is fixedly arranged at the output end of the motor 12, and the first gear 9 is meshed with the second gear 15 in a gear mode.
As shown in fig. 1 and fig. 2, a plurality of nozzles 16 are fixedly arranged at the bottom end array of the rotating disc 10 of the present embodiment, input ends of the nozzles 16 all penetrate through the rotating disc 10 and extend into the water tank 11, an output end of the water pump 13 is fixedly connected with a drain pipe 17, the other end of the drain pipe 17 penetrates through the rotating rod 7 and the bottom end of the rotating disc 10 and extends into the water tank 11, the drain pipe 17 is rotatably connected with the rotating disc 10, and water in the water tank 23 is pumped into the water tank 11 by the water pump 13, so as to be sprayed outwards by the nozzles.
As shown in fig. 1, a dust collection box 18 is fixedly arranged at the top end of one side of the base 1 far away from the support 4, a filter screen layer 19, an activated carbon layer 20 and a grid layer 21 are fixedly arranged in the dust collection box 18, the grid layer 21 is positioned at one side of the dust collection box 18 far away from the dust collection fan 14, the activated carbon layer 20 is positioned at one side of the grid layer 21 close to the dust collection fan 14, the filter screen layer 19 is positioned at one side of the activated carbon layer 20 close to the dust collection fan 14, the dust collection box 18 is fixedly connected with the output end of the dust collection fan 14 through a dust collection pipe 22, and a plurality of through holes are formed at one side of the dust collection box 18 far away from the dust collection fan 14, so that outside air is drawn into the dust collection box 18 through the dust collection box 18 and is filtered through the filter screen layer.
As shown in fig. 1, the base 1 of this embodiment is close to the fixed water tank 23 that is equipped with in one side top of push rod 3, the fixed controller 24 that is equipped with in one side upper portion that the water tank 23 is close to push rod 3, water inlet 25 has been seted up on the top of water tank 23, the input end fixedly connected with drinking-water pipe 26 of water pump 13, drinking-water pipe 26 runs through in water tank 23 extends to water tank 23, motor 12, water pump 13, dust absorption fan 14 all with controller 24's output electric connection, can control motor 12 through controller 24, water pump 13, dust absorption fan 14 opens and stops.
Here, the motor 12, the water pump 13, and the dust suction fan 14 are all in the prior art, and therefore, the details related to other prior arts are not described herein.
For the convenience of understanding the technical solution of the present invention, the following detailed description is made on the working principle or the operation mode of the present invention in the practical process.
The utility model discloses the theory of operation: when the dust collector is used, the controller 24 controls the motor 12 to drive the gear two 15 to rotate, so that the gear two 15 drives the gear one 9 to rotate, so that the gear one 9 drives the rotating rod 7 to rotate, so that the rotating rod 7 drives the rotating disc 10 to rotate, at the moment, the controller 24 controls the water pump 13 to pump out water in the water tank 23 through the water pumping pipe 26 and pump the water into the water tank 11 through the water drainage pipe 17, and then the water is sprayed through the spray head 16, because the spray head 16 is provided with a certain angle, the spray head 16 can spray farther in the rotating process, and can spray and remove dust in multiple directions, then the controller 24 controls the dust collection fan 14 to work, so that outside air is sucked into the dust collection box 18 through the dust collection box 18, at the moment, the air is filtered through the filter screen layer 19, the activated carbon layer 20 and the grid layer 21, so that the outside air can be effectively filtered and removed, the utility model discloses simple structure, convenient to use can adsorb the dust and handle, and effective guarantee constructor's is healthy, builds a good construction environment for the constructor.
The above is the preferred embodiment of the present invention, and the technical personnel in the field of the present invention can also change and modify the above embodiment, therefore, the present invention is not limited to the above specific embodiment, and any obvious improvement, replacement or modification made by the technical personnel in the field on the basis of the present invention all belong to the protection scope of the present invention.
Claims (6)
1. The utility model provides a construction dust collector, includes base (1), its characterized in that: the universal wheel (2) is symmetrically and fixedly arranged at the bottom end of the base (1), a push rod (3) is fixedly arranged on one side of the base (1), a support (4) is fixedly arranged at the middle position of the top end of the base (1), a plurality of connecting rods (5) are symmetrically and fixedly arranged at the top end of the support (4), a supporting plate (6) is fixedly arranged at the top end of each connecting rod (5), a rotating rod (7) is arranged on each supporting plate (6) in a penetrating and rotating mode, a limiting block (8) is fixedly sleeved on the lower portion of each rotating rod (7), the bottom end of each limiting block (8) is abutted to the top end of each supporting plate (6), the bottom end of each rotating rod (7) penetrates through the supporting plates (6) and extends to the lower portion of the corresponding supporting plate (6), a first gear (9) is fixedly sleeved on the top end of each rotating rod (7, the top of support (4) is fixed and is equipped with motor (12), water pump (13) and dust absorption fan (14), water pump (13) are located base (1) is close to one side of push rod (3), dust absorption fan (14) are located base (1) is kept away from one side of push rod (3), motor (12) are located water pump (13) with between dust absorption fan (14), the output end of motor (12) is fixed and is equipped with gear two (15), gear one (9) with gear two (15) gear engagement.
2. The building construction dust collector of claim 1, wherein: the bottom end array of carousel (10) is fixed and is equipped with a plurality of shower nozzles (16), the input of shower nozzle (16) all runs through carousel (10) extend to in basin (11).
3. The building construction dust collector of claim 1, wherein: the output fixedly connected with drain pipe (17) of water pump (13), the other end of drain pipe (17) runs through dwang (7) with the bottom of carousel (10) extends to in basin (11), drain pipe (17) with carousel (10) rotate to be connected.
4. The building construction dust collector of claim 1, wherein: base (1) is kept away from one side top of support (4) is fixed and is equipped with dust collection box (18), dust collection box (18) internal fixation is equipped with filter screen layer (19), activated carbon layer (20) and grid layer (21), grid layer (21) are located dust collection box (18) are kept away from one side of dust absorption fan (14), activated carbon layer (20) are located grid layer (21) are close to one side of dust absorption fan (14), filter screen layer (19) are located activated carbon layer (20) are close to one side of dust absorption fan (14), dust collection box (18) with the output of dust absorption fan (14) passes through dust absorption pipe (22) fixed connection.
5. The building construction dust collector of claim 1, wherein: base (1) is close to one side top of push rod (3) is fixed and is equipped with water tank (23), water tank (23) are close to one side upper portion of push rod (3) is fixed and is equipped with controller (24), water inlet (25) have been seted up on the top of water tank (23), input fixedly connected with drinking-water pipe (26) of water pump (13), drinking-water pipe (26) run through water tank (23) extend to in water tank (23).
6. The dust removing device for building construction according to claim 5, wherein: the motor (12), the water pump (13) and the dust collection fan (14) are electrically connected with the output end of the controller (24).
