Abstract
The utility model discloses an antidetonation support is with supporting even arm, including the joint steel, the both ends of joint steel are equipped with the connecting seat respectively, the connecting seat includes that the terminal surface sets up the seat bottom plate of mounting hole, and the both sides of seat bottom plate are equipped with the otic placode respectively, are equipped with the pivot on the otic placode, rotate in the pivot be connected with otic placode parallel arrangement's linking riser, the rigid coupling has to be established on the linking riser linking diaphragm between the otic placode, linking diaphragm follows linking riser revolutes the axle and makes the rotation, have the breach portion towards linking diaphragm side on the linking riser, breach portion with linking diaphragm formation supplies the slot that the joint steel part stretched into, set up threaded hole on the linking diaphragm, threaded connection has the tip butt on the screw hole the retaining member of joint steel. The support connecting arm has the characteristics of firm connection, convenient disassembly and assembly, complete overall function and strong practicability.
Description
Technical Field
The utility model relates to an antidetonation support technical field, more specifically say, it relates to an antidetonation support is with supporting even arm.
Background
The square air duct is mostly arranged at the top of the basement and used for circulating air in the closed room. Therefore, in the process of arranging the pipelines, a large number of brackets are needed to fix the air pipes and the wall body, so that connection is realized. But current support simple structure directly passes through nut or other fasteners by the lead screw fixed with the wall body top and is connected to square tuber pipe on, and the tuber pipe easily rocks, and does not have secondary safeguard measure, and dangerous high to do not set up the subassembly or the device that prevent to rock on the support (being the lead screw), whole effect is not good. Therefore, the utility model provides an antidetonation support is with supporting even arm.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to overcome not enough among the above-mentioned prior art, provide an antidetonation support with supporting even arm, should support even arm has the connection firm, easy dismounting's characteristics.
In order to solve the technical problem, the purpose of the utility model is to realize like this: the utility model relates to an antidetonation support is with supporting even arm, including the connection steel, the both ends of connecting the steel are equipped with the connecting seat respectively, the connecting seat includes that the terminal surface sets up the seat bottom plate of mounting hole, and the both sides of seat bottom plate are equipped with the otic placode respectively, are equipped with the pivot on the otic placode, rotate in the pivot be connected with otic placode parallel arrangement's linking riser, the rigid coupling has to be established on the linking riser linking diaphragm between the otic placode, linking diaphragm follows linking riser revolutes the axle and makes the rotation, have the breach portion towards linking diaphragm side on the linking riser, breach portion with linking diaphragm formation supplies the slot that the connecting steel part stretched into, set up threaded hole on the linking diaphragm, threaded connection has the tip butt on the screw hole the retaining member of connection steel.
The utility model discloses further set up to: the locking piece is an outer hexagon screw.
The utility model discloses further set up to: the connecting steel is C-shaped steel; the connecting steel comprises a main steel sheet and side steel sheets which are arranged on two sides of the main steel sheet and perpendicular to the main steel sheet, and two ends of the main steel sheet extend into the slots respectively.
The utility model discloses further set up to: the edge of the side steel sheet extends to form a bending flanging.
The utility model discloses further set up to: the seat bottom plate comprises a front bottom plate and a rear bottom plate, the mounting hole is formed in the front bottom plate, and the lug plate is arranged on the rear bottom plate.
The utility model discloses further set up to: an included angle of 120 degrees is formed between the front bottom plate and the rear bottom plate.
To sum up, the utility model discloses following beneficial effect has: the utility model relates to a support link arm for an anti-seismic support, which is connected with a support for hanging an air pipe through one end and connected with an indoor roof through the other end, has the advantages of strengthening and forming a triangular stable structure, avoiding the support and the air pipe on the support from shaking and improving the safety; the connecting steel which can be freely cut and then additionally installed is adopted in the middle section of the connecting arm, so that the overall length of the connecting arm main body is changed, different specification requirements are met, the structures of the connecting seats at the two ends do not need to be changed, the manufacturing and processing are convenient, and the manufacturing cost is indirectly saved; because linking arm both ends do not have the ascending displacement of length direction, consequently adopt the screw fastening mode will connect the steel fixed to the connecting seat can, the dismouting is more convenient, and the operation is more convenient, and overall function is perfect, and the practicality is strong.
Drawings

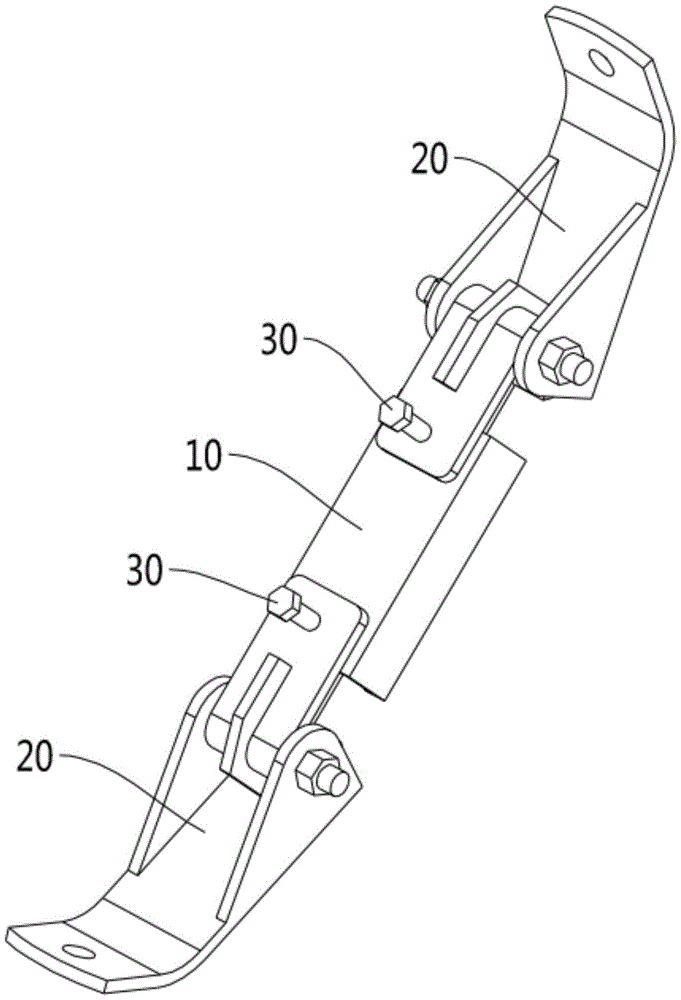

Fig. 1 is a schematic view of the overall structure of the present invention;
fig. 2 is a schematic structural diagram of the present invention for embodying the connecting seat;
FIG. 3 is a schematic view of the structure of FIG. 2 from another perspective;
fig. 4 is a schematic structural diagram for embodying the connection steel of the present invention.
Detailed Description
In order to make the technical solutions of the present invention better understood by those skilled in the art, the following description of the preferred embodiments of the present invention is provided in conjunction with the specific examples, but it should be understood that these descriptions are only for the purpose of further illustrating the features and advantages of the present invention, and are not intended to limit the patent requirements of the present invention. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
The invention will be further described with reference to the accompanying drawings and preferred embodiments.
Referring to fig. 1 to 4, the support link arm for the anti-seismic bracket according to the present embodiment includes a connection steel 10, connection seats 20 respectively provided at both ends of the connection steel 10, the connecting seat 20 comprises a seat bottom plate 22 with an end surface provided with a mounting hole 21, two sides of the seat bottom plate 22 are respectively provided with an ear plate 23, the ear plate 23 is provided with a rotating shaft 24, the rotating shaft 24 is rotatably connected with a connecting vertical plate 25 which is parallel to the ear plate 23, the connecting vertical plate 25 is fixedly connected with a connecting transverse plate 26 arranged between the ear plates 23, the connecting transverse plate 26 rotates around the rotating shaft 24 along with the connecting vertical plate 25, the engaging vertical plate 25 has a notch 27 facing the engaging transverse plate 26, the notch 27 and the engaging transverse plate 26 form a slot 28 for the connecting steel 10 to partially extend into, threaded holes 29 are formed in the connecting transverse plate 26, and locking pieces 30 with end portions abutting against the connecting steel 10 are connected to the threaded holes 29 in a threaded mode.
In this embodiment, the connecting steel 10 with a set length is cut, one end of the connecting steel 10 extends into the slot 28 on the corresponding connecting seat 20, the locking piece 30 is screwed in the threaded hole 29 on the upper connecting transverse plate 26, the locking piece 30 abuts against the connecting steel 10 to complete the locking and fixing of the end, the other end of the connecting steel 10 is fixed in a same manner, the connecting bracket at one end of the combined supporting connecting arm and the other end of the combined supporting connecting arm are connected with the roof, and the position of the connected roof can be selected as a rear bottom expanding anchor bolt.
The arrangement of the connecting transverse plate 26 is helpful for positioning the connecting vertical plate 25 between the two lug plates 23, so as to avoid the vertical plate 25 from moving between the lug plates 23, and facilitate the opening of the threaded hole 29 and the installation of the locking piece 30 thereon.
Furthermore, the locking member 30 is an outer hexagon screw, and is not required to be customized, and can be directly selected and purchased for use, so that the cost is saved, and the installation and locking are convenient.
Further, the connecting steel 10 is C-shaped steel; the connecting steel 10 comprises a main steel sheet 11 and side steel sheets 12 which are arranged on two sides of the main steel sheet 11 and are perpendicular to the main steel sheet 11, two ends of the main steel sheet 11 extend into the slots 28 respectively, the connecting steel 10 is of a C-shaped steel structure, has good bending resistance, and is small in area with the cross section, smaller in quality, less in steel consumption and good in economy.
Furthermore, the edge of the side steel sheet 12 extends to form a bending flange 13, so that the bending resistance of the whole connecting steel 10 in the length direction is enhanced, and the strength of the whole structure is improved.
Further, the seat bottom plate 22 is composed of a front bottom plate 221 and a rear bottom plate 222, the mounting hole 21 is formed on the front bottom plate 221, and the ear plate 23 is formed on the rear bottom plate 222.
Furthermore, an included angle of 120 degrees is formed between the front bottom plate 221 and the rear bottom plate 222, so that when the front bottom plate 221 is attached to the installation position, the rear bottom plate 222 and the corresponding component thereon are in an overhead state, the subsequent assembly and connection of the steel 10 are facilitated, a yield effect is also achieved, and an area is vacated for component assembly.
The utility model relates to a support link arm for an anti-seismic support, which has the advantages that the support for hanging the air pipe is connected through one end, the other end is connected with the indoor roof, the reinforcement is realized, the triangular stable structure is formed, the support and the air pipe on the support are prevented from shaking, and the safety is improved; the connecting steel which can be freely cut and then additionally installed is adopted in the middle section of the connecting arm, so that the overall length of the connecting arm main body is changed, different specification requirements are met, the structures of the connecting seats at the two ends do not need to be changed, the manufacturing and processing are convenient, and the manufacturing cost is indirectly saved; because linking arm both ends do not have the ascending displacement of length direction, consequently adopt the screw fastening mode will connect the steel fixed to the connecting seat can, the dismouting is more convenient, and the operation is more convenient, and overall function is perfect, and the practicality is strong.
Unless otherwise specified, in the present invention, if the terms "length", "width", "upper", "lower", "front", "rear", "left", "right", "vertical", "horizontal", "top", "bottom", "inner", "outer", "clockwise", "counterclockwise", "axial", "radial", "circumferential", etc. indicate an orientation or positional relationship based on the actual orientation or positional relationship shown, it is only for convenience of describing the present invention and simplifying the description, rather than to indicate or imply that the device or element so referred to must have a particular orientation, be constructed and operated in a particular orientation, therefore, the terms describing orientation or positional relationship in the present invention are used for illustrative purposes only, and should not be construed as limiting the present patent, it is possible for those skilled in the art to combine the embodiments and understand the specific meanings of the above terms according to specific situations.
Unless expressly stated or limited otherwise, the terms "disposed," "connected," and "connected" are used broadly and encompass both fixed and removable connections, or integral connections; the connection may be direct or indirect via an intermediate medium, and may be a communication between the two elements. The specific meaning of the above terms in the present invention can be understood in specific cases to those skilled in the art.
The foregoing has described in detail preferred embodiments of the present invention. It should be understood that numerous modifications and variations can be devised by those skilled in the art in light of the present teachings without departing from the inventive concepts. Therefore, the technical solutions that can be obtained by a person skilled in the art through logic analysis, reasoning or limited experiments based on the prior art according to the concepts of the present invention should be within the scope of protection defined by the claims.
Claims (6)
1. The utility model provides an antidetonation support is with supporting even arm, is equipped with connecting seat, its characterized in that respectively including the connection steel, the both ends of connecting the steel: the connecting seat includes that the terminal surface sets up the seat bottom plate of mounting hole, and the both sides of seat bottom plate are equipped with the otic placode respectively, are equipped with the pivot on the otic placode, rotate in the pivot be connected with otic placode parallel arrangement's linking riser, the rigid coupling has to be established on the linking riser linking diaphragm between the otic placode, linking diaphragm follows linking riser revolutes the axle and makes the rotation, have the breach portion towards linking diaphragm side on the linking riser, breach portion with linking diaphragm forms the slot that supplies the joint steel part to stretch into, set up threaded hole on the linking diaphragm, threaded connection has the tip butt on the screw hole the retaining member of joint steel.
2. A support link arm for an anti-seismic support according to claim 1, characterized in that: the locking piece is an outer hexagon screw.
3. A support link arm for an earthquake-proof support according to claim 1 or 2, characterized in that: the connecting steel is C-shaped steel; the connecting steel comprises a main steel sheet and side steel sheets which are arranged on two sides of the main steel sheet and perpendicular to the main steel sheet, and two ends of the main steel sheet extend into the slots respectively.
4. A support link arm for an earthquake-proof support according to claim 3, characterized in that: the edge of the side steel sheet extends to form a bending flanging.
5. A support link arm for an anti-seismic support according to claim 1, characterized in that: the seat bottom plate comprises a front bottom plate and a rear bottom plate, the mounting hole is formed in the front bottom plate, and the lug plate is arranged on the rear bottom plate.
6. A support link arm for an earthquake-proof support according to claim 5, characterized in that: an included angle of 120 degrees is formed between the front bottom plate and the rear bottom plate.
