The utility model discloses a portable multi-functional file, package file body and a plurality of clamping device of connection on the file body, clamping device includes a pair of fixing device and sets up the tight strip of clamp between fixing device, fixing device includes fixed plate, fixed column, torsional spring, fixed plate fixed connection is on the file body, fixed column fixed connection is on the fixed plate, and with fixed plate mutually perpendicular, the torsional spring cover is established on the fixed column, and torsional spring one end fixed connection is on the file body, and torsional spring other end fixed connection is at tight strip top of clamp, the utility model discloses can fix the pen on the file at any time, can accomplish to take at any time, and can prevent losing of pen, simple and practical.
Description
Technical Field
The utility model belongs to science and technology office supplies field, concretely relates to portable multi-functional file.
Background
The file folder is an indispensable tool for teachers to arrange files or data in daily life, and can be used for storing the files orderly and regularly. However, the existing folder has a single function, and usually a writing pen, a hard disk and other tools need to be carried when the folder is used.
SUMMERY OF THE UTILITY MODEL
To the not enough of existence on the prior art, the utility model provides a portable multi-functional file.
In order to achieve the above purpose, the utility model adopts the following technical scheme:
the utility model provides a portable multi-functional file, package file body and connect a plurality of clamping device on the file body, clamping device includes a pair of fixing device and sets up the tight strip of clamp between fixing device, fixing device includes fixed plate, fixed column, torsional spring, fixed plate fixed connection is on the file body, fixed column fixed connection is on the fixed plate, and with fixed plate mutually perpendicular, the torsional spring cover is established on the fixed column, and torsional spring one end fixed connection is on the file body, and torsional spring other end fixed connection is at the tight strip top of clamp.
Furthermore, the side face and the front face of the folder body are respectively provided with a side face label and a front face label.
Furthermore, a visual cavity is further formed in the side face of the folder body, and a visual window is fixedly connected in the visual cavity.
Further, the clamping devices are at least one group.
Further, the clamping device can be fixedly connected to the side surface, the front surface or the inner part of the folder body.
Further, the angle between the clamping strip and the folder body is smaller than 90 degrees.
Adopt above-mentioned technical scheme, the beneficial effects of the utility model are that:
this device is equipped with a plurality of clamping device on the file body, when needs carry a class instrument, can pass a pen from clamping device, applys for pressing from both sides tight strip pressure through the torsional spring to fix a pen on the file body, prevent that a from sending this internal coming off of file, the utility model discloses can fix a pen on the file at any time, can accomplish to take at any time, and can prevent losing, simple and practical of a pen.
Drawings

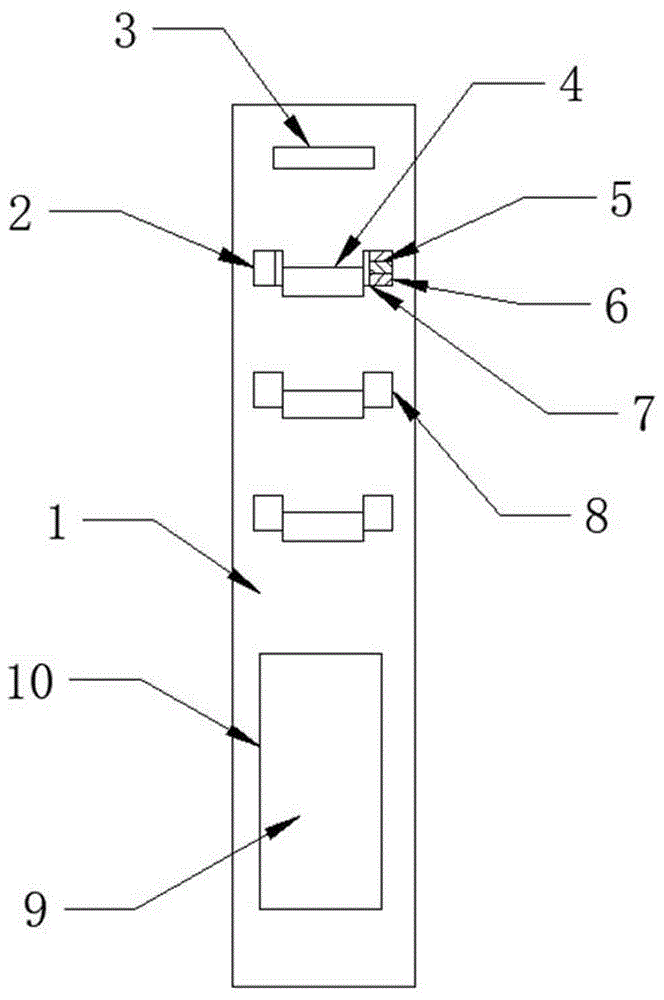

Fig. 1 is a schematic structural diagram of the present invention;
fig. 2 is a left side view of the structure of the present invention.
Detailed Description
For making the utility model discloses the technological means, creation characteristic, achievement purpose and efficiency that realize are easily understood and are known, combine specific implementation below, further explain the utility model discloses:
therefore, the following detailed description of the embodiments of the present invention, which is provided in the accompanying drawings, is not intended to limit the scope of the invention, as claimed, but is merely representative of selected embodiments of the invention, and all other embodiments that can be obtained by one of ordinary skill in the art without any creative effort based on the embodiments of the present invention belong to the scope of the invention.
It should be noted that: like reference numbers and letters refer to like items in the following figures, and thus, once an item is defined in one figure, it need not be further defined and explained in subsequent figures.
The terms "first," "second," "third," and the like are used solely to distinguish one from another and are not to be construed as indicating or implying relative importance.
In the description of the present invention, it should also be noted that, unless otherwise explicitly specified or limited, the terms "disposed," "mounted," "connected," and "connected" are to be construed broadly, e.g., as meaning either a fixed connection, a removable connection, or an integral connection; can be mechanically or electrically connected; the two elements may be directly connected or indirectly connected through an intermediate medium, and the two elements may be connected through an intermediate medium.
In conjunction with fig. 1-2:
the utility model provides a portable multi-functional file, package file body 1 and connect a plurality of clamping device 2 on file body 1, clamping device 2 includes a pair of fixing device 8 and sets up the tight strip 4 of clamp between fixing device 8, fixing device 8 includes fixed plate 7, fixed column 5, torsional spring 6, 7 fixed connection of fixed plate is on file body 1, 5 fixed connection of fixed column are on fixed plate 7, and 7 mutually perpendicular with fixed plate, 6 covers of torsional spring are established on fixed column 5, and 6 one end fixed connection of torsional spring are on file body 1, and 6 other end fixed connection of torsional spring are at the tight strip 4 tops of clamp.
In this embodiment, the side surface and the front surface of the folder body 1 are respectively provided with a side label 3 and a front label 9.
In this embodiment, a visual cavity 10 is further disposed on a side surface of the folder body 1, and a visual window 9 is fixedly connected in the visual cavity 10.
In this embodiment, there is at least one set of clamping devices 2.
In this embodiment, the clamping device 2 can be fixedly connected to the side, front or inside of the folder body 1.
In this embodiment, the angle between the clamping strip 4 and the folder body 1 is smaller than 90 degrees.
This device is equipped with a plurality of clamping device on the file body, when needs carry a class instrument, can pass a pen from clamping device, applys for pressing from both sides tight strip pressure through the torsional spring to fix a pen on the file body, prevent that a from sending this internal coming off of file, the utility model discloses can fix a pen on the file at any time, can accomplish to take at any time, and can prevent losing, simple and practical of a pen.
The present embodiment is not intended to limit the shape, material, structure, etc. of the present invention in any form, and all of the technical matters of the present invention belong to the protection scope of the present invention to any simple modification, equivalent change and modification made by the above embodiments.
Claims (6)
1. The utility model provides a portable multi-functional file, its characterized in that, package file body and a plurality of clamping device of connection on the file body, clamping device includes a pair of fixing device and sets up the tight strip of clamp between fixing device, fixing device includes fixed plate, fixed column, torsional spring, fixed plate fixed connection is on the file body, fixed column fixed connection is on the fixed plate, and with fixed plate mutually perpendicular, the torsional spring cover is established on the fixed column, and torsional spring one end fixed connection is on the file body, and torsional spring other end fixed connection presss from both sides tight strip top at tight strip top.
2. The portable multifunctional file folder according to claim 1, wherein the side and front faces of the folder body are provided with a side label and a front label, respectively.
3. The portable multifunctional folder according to claim 1, wherein a visual cavity is further formed in the side surface of the folder body, and a visual window is fixedly connected in the visual cavity.
4. The portable multi-purpose file of claim 1, wherein said clamping means is at least one set.
5. The portable multi-purpose file of claim 1, wherein said clamping means can be fixedly attached to a side, front or interior of the file body.
6. The portable multi-purpose file of claim 1, wherein the angle between the clamping bar and the file body is less than 90 degrees.
